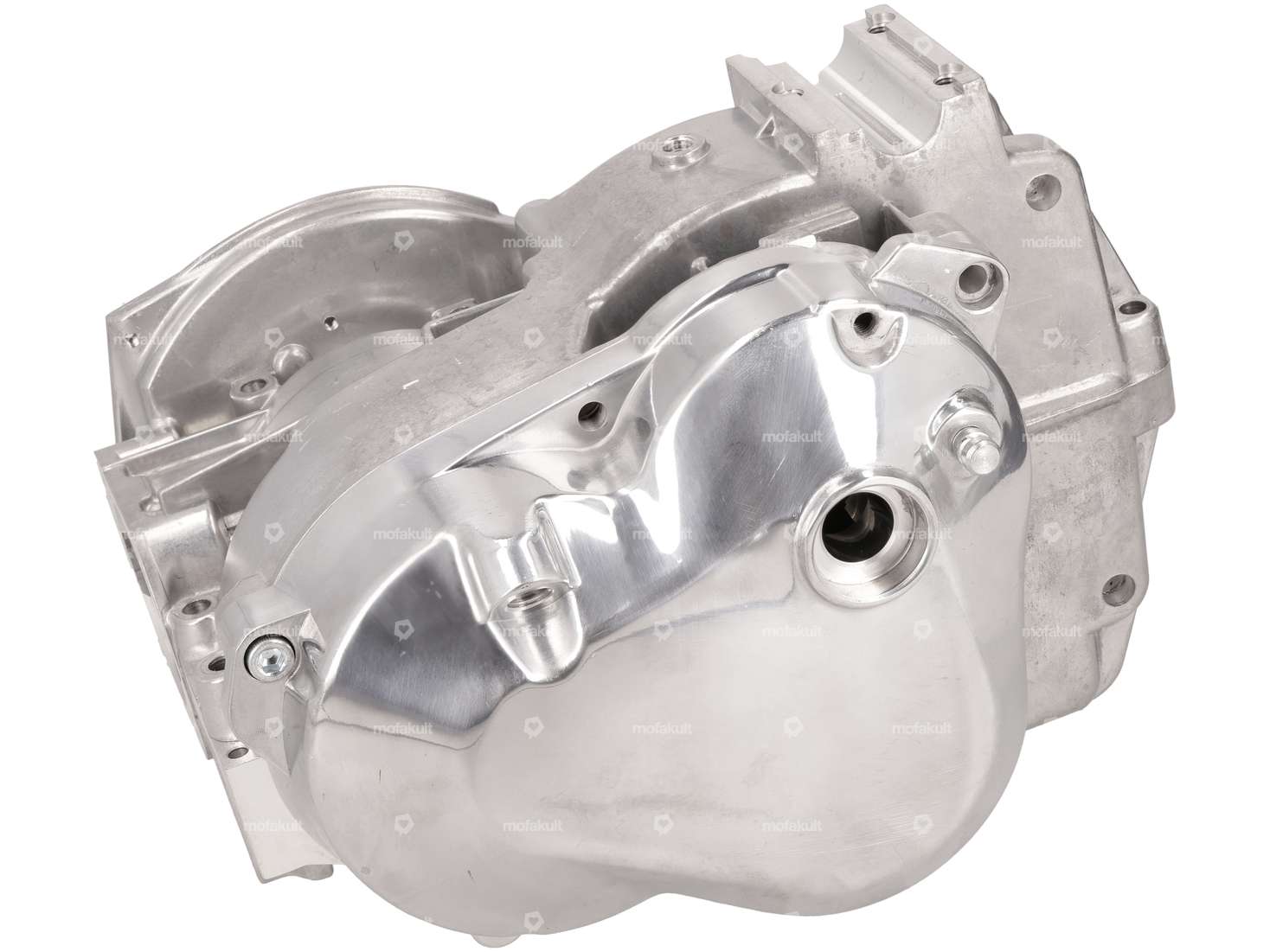

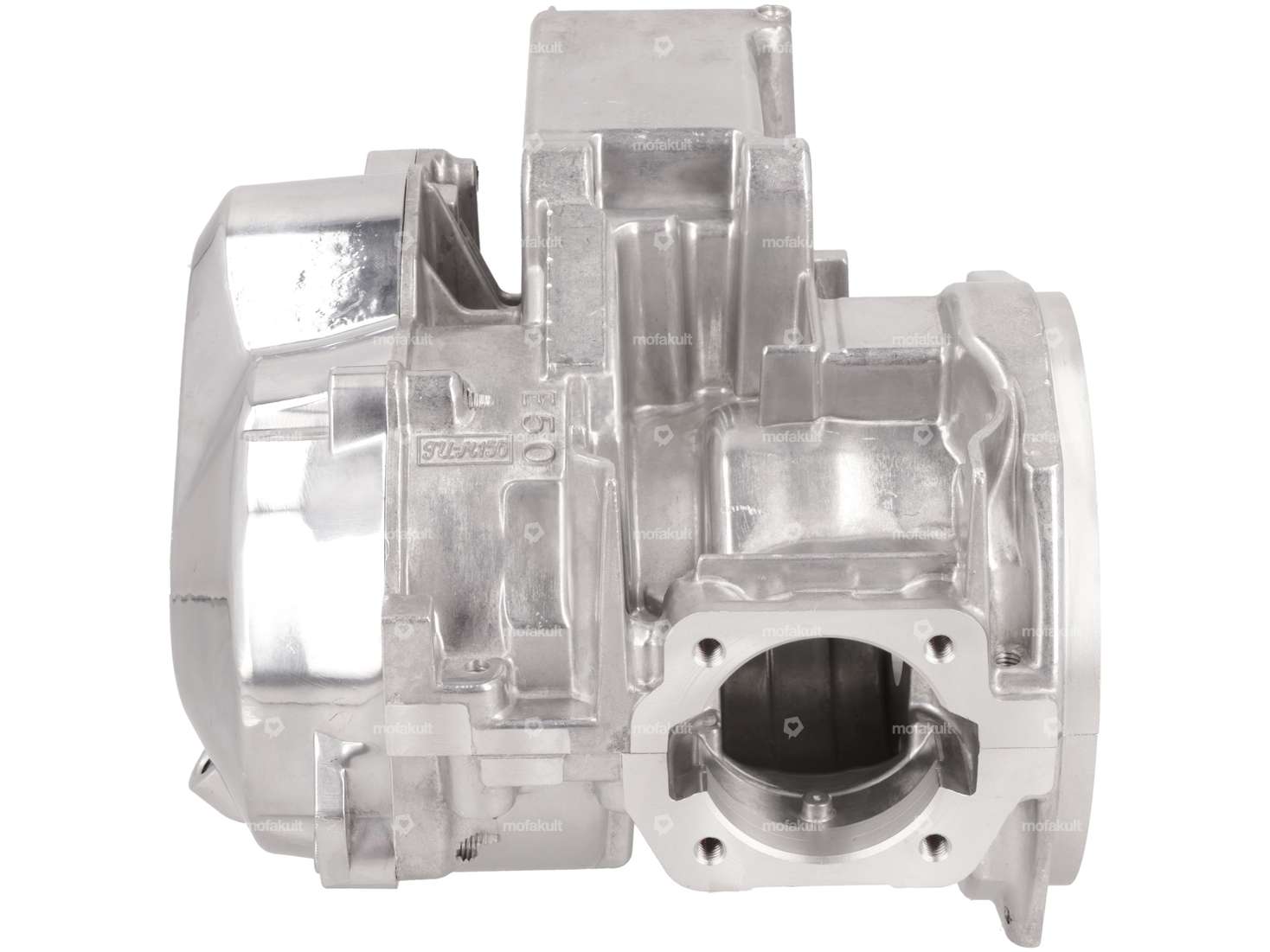

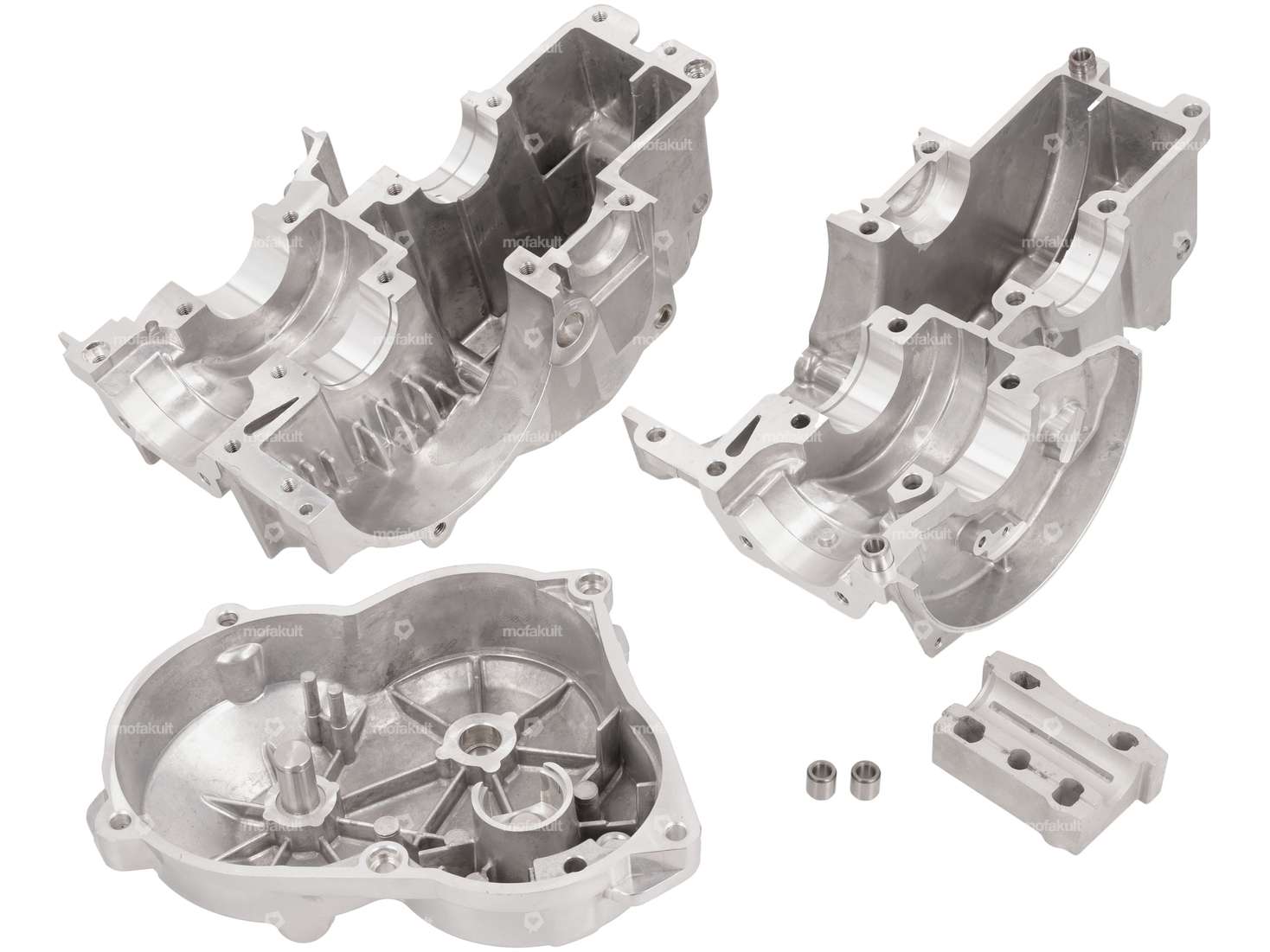

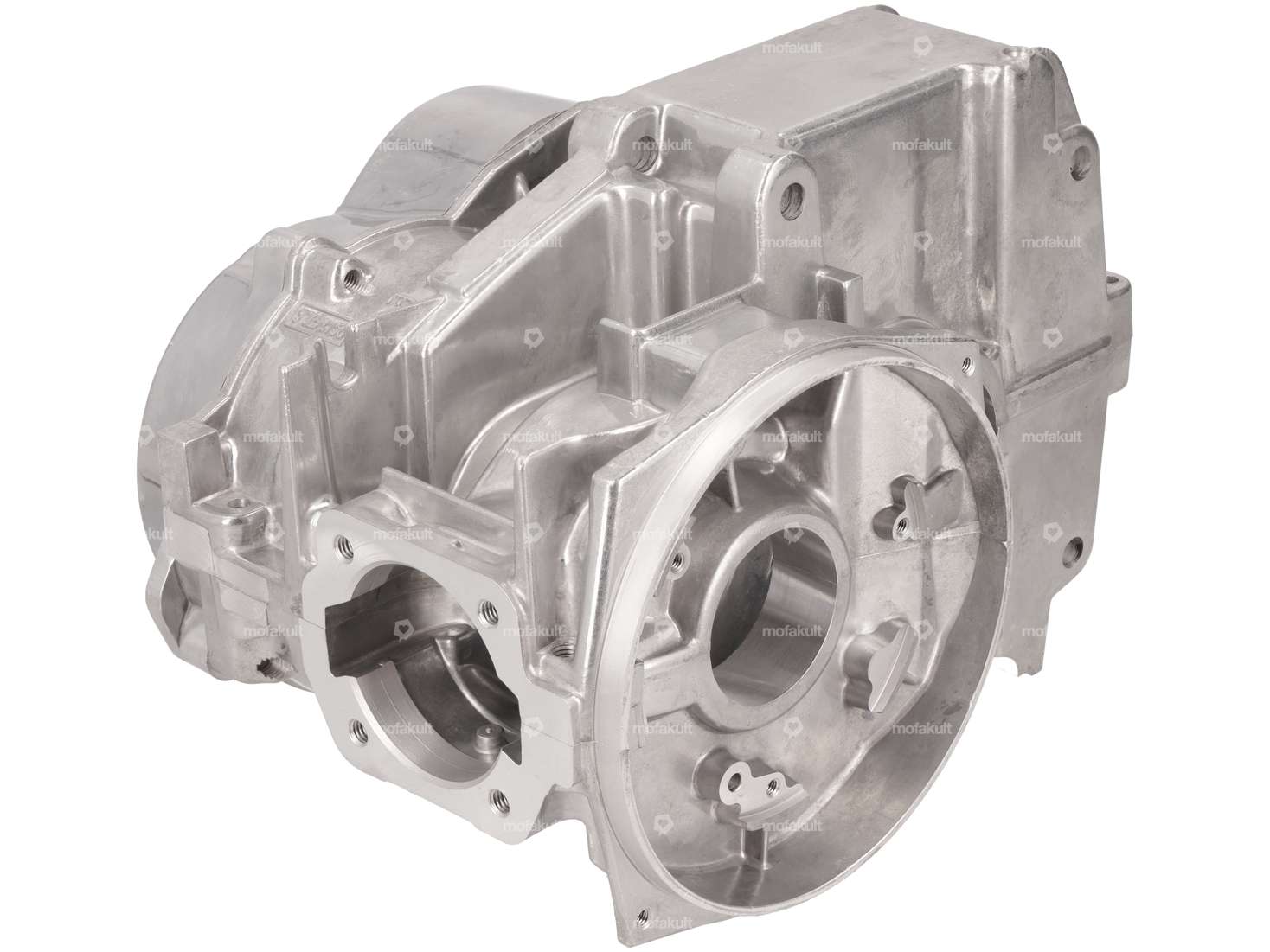

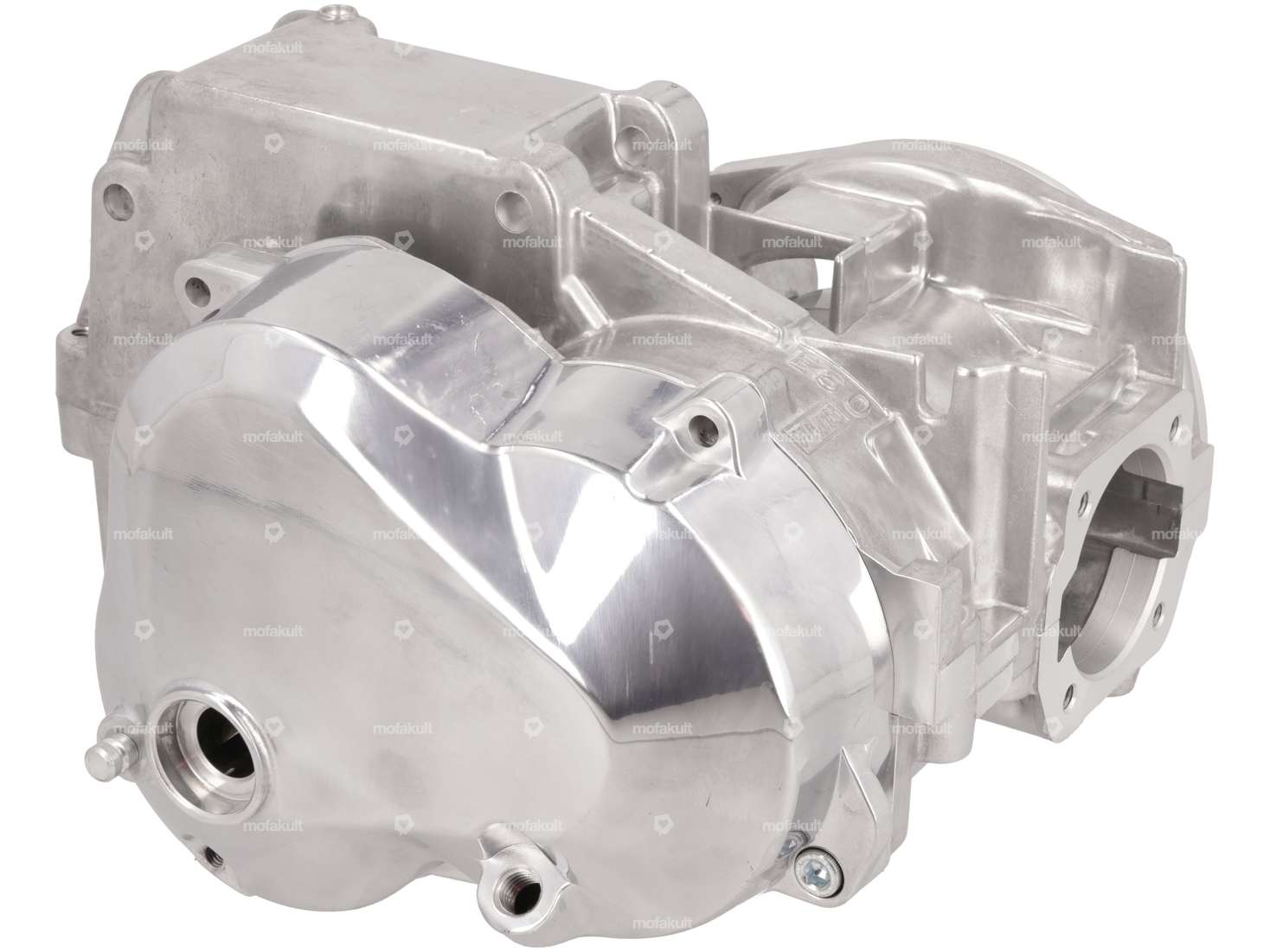

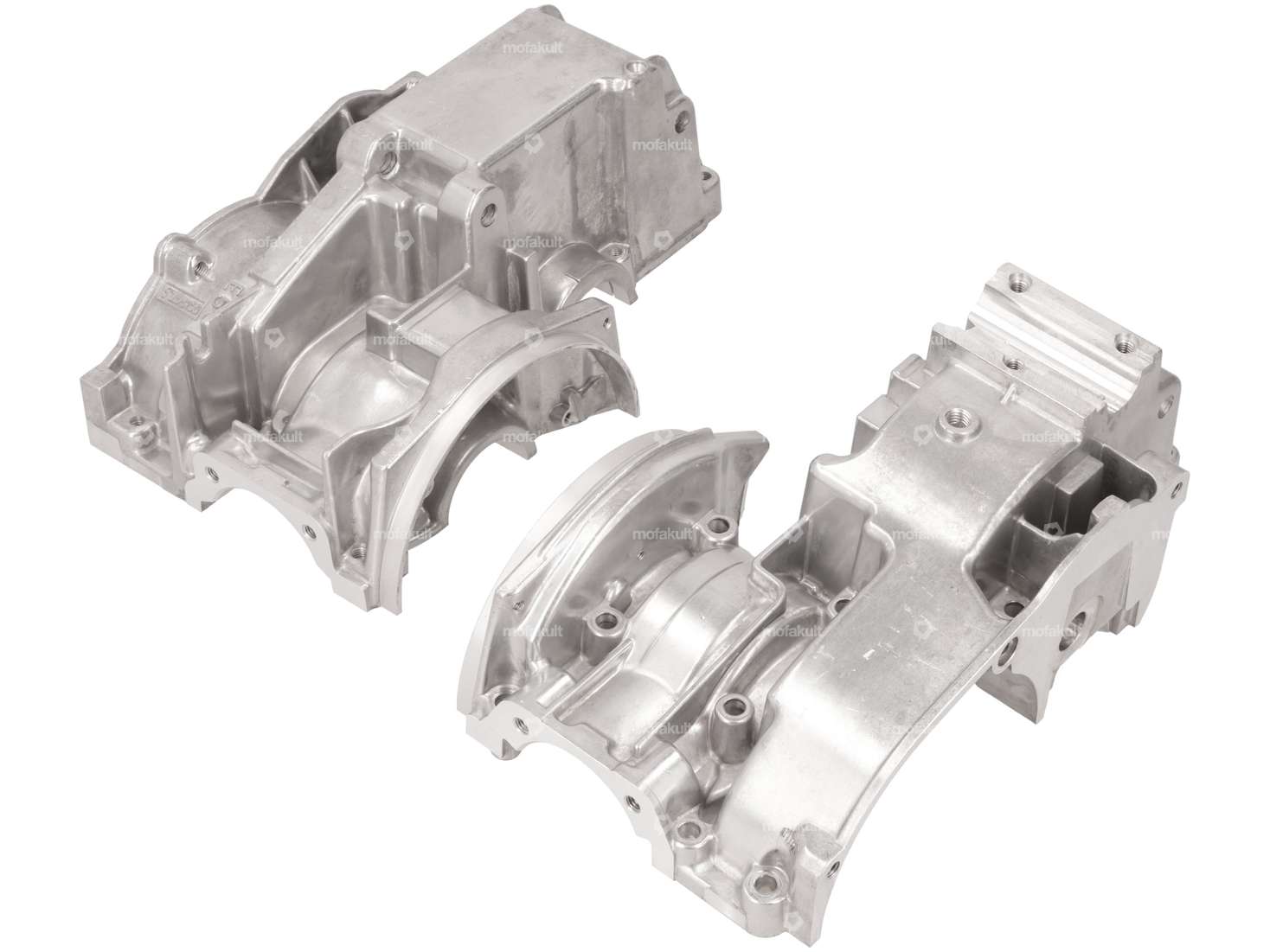

A beautiful replica of the original E50 engine housing with 4 bearings and a kick starter for your Puch moped.

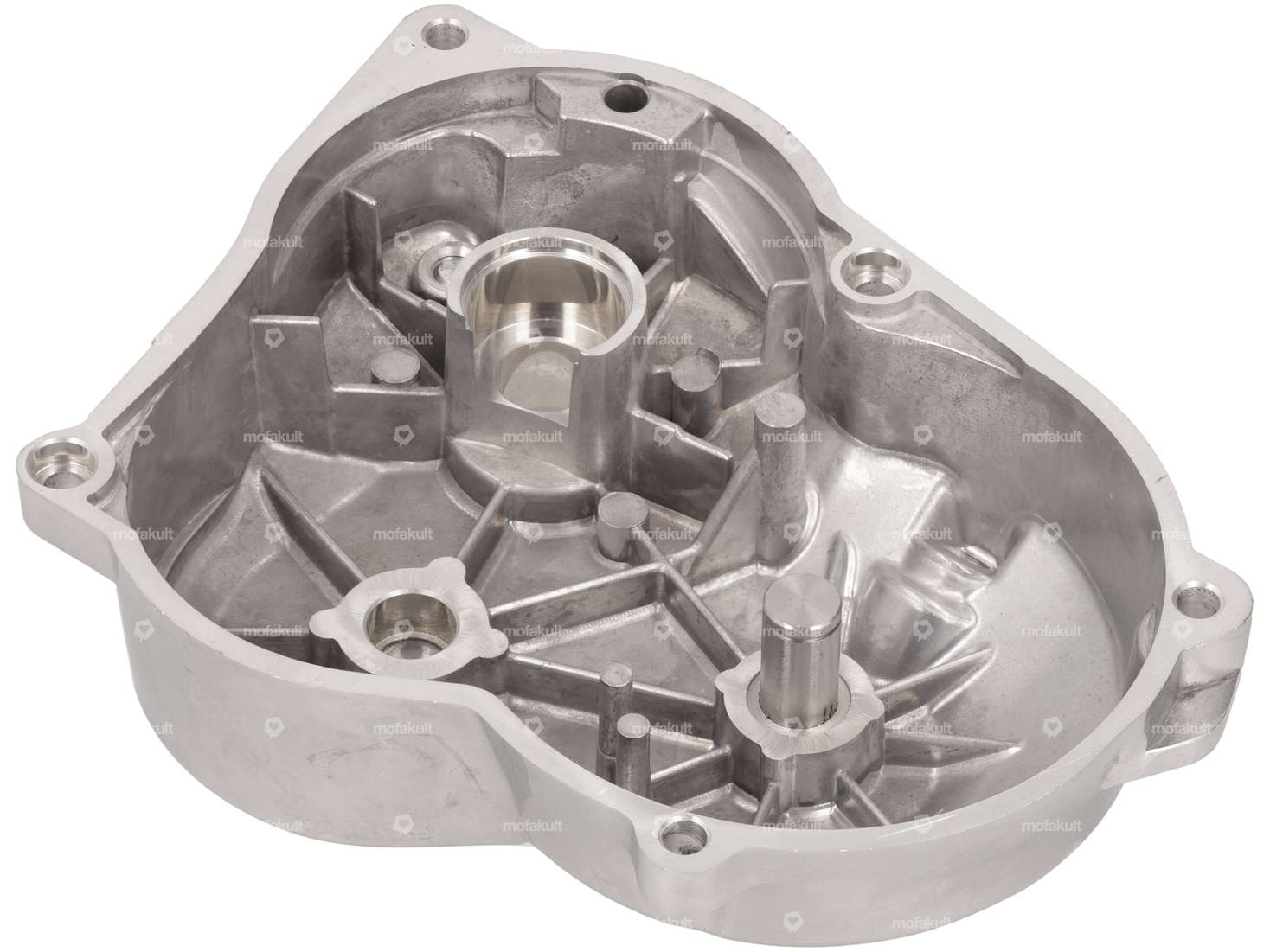

The surface of the housing and the clutch cover is slightly glossy and dirt-repellent, just like the original.
The dimensions match those of the original housing. This means that all attached parts, such as the kickstand, ignition plates, crankshafts, or cylinders, can be reused.
As with the original, a cylinder lock has been installed, which must be removed when installing a racing cylinder. The factory-installed pinion lock, however, is not included.
The owner can stamp the engine number themselves as needed.
You can find matching mounting and engine parts, as well as a racing case for your Puch Maxi, in the accessories section.
| Material | Aluminum |
| Puch | E50 |
