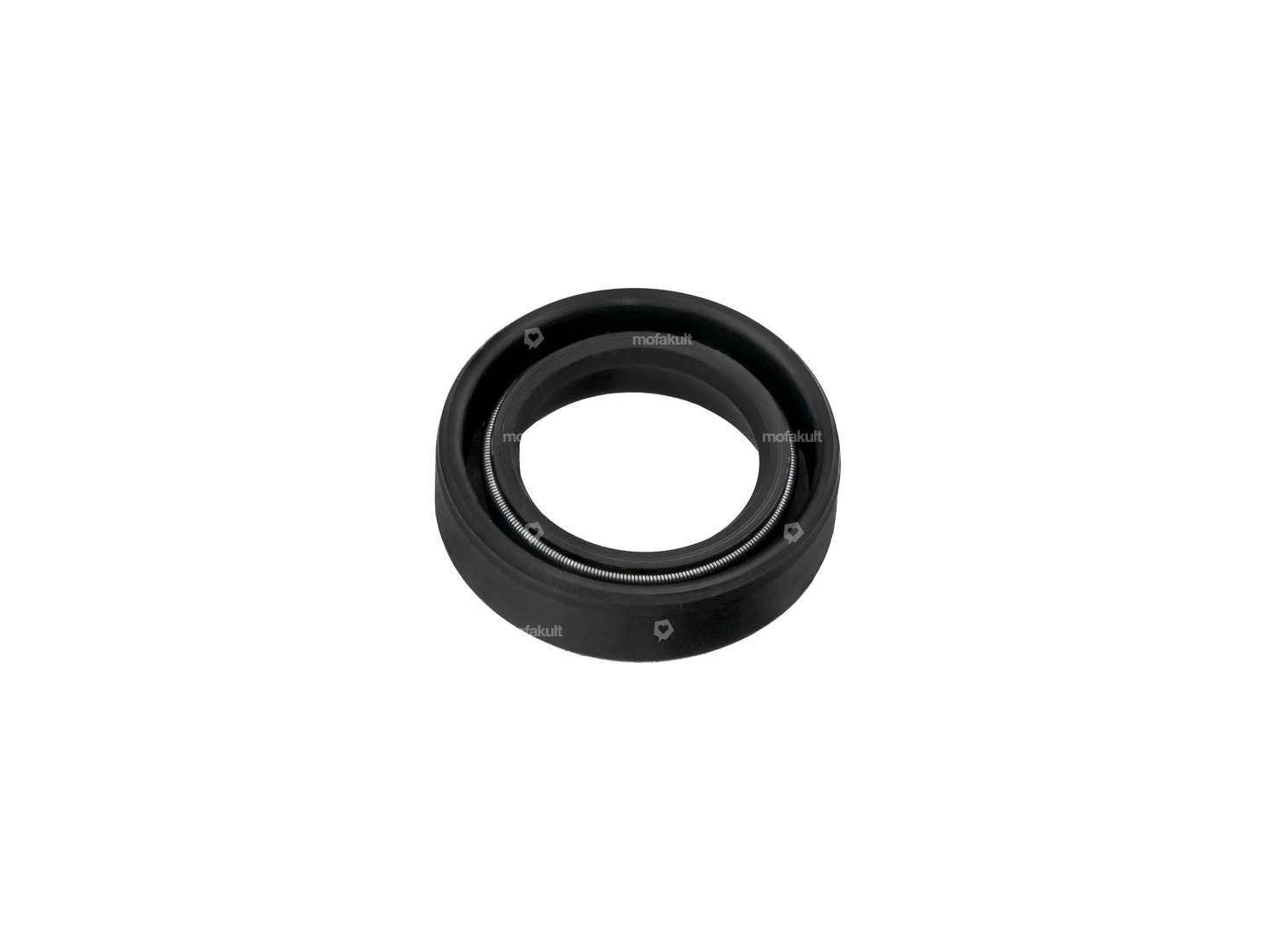

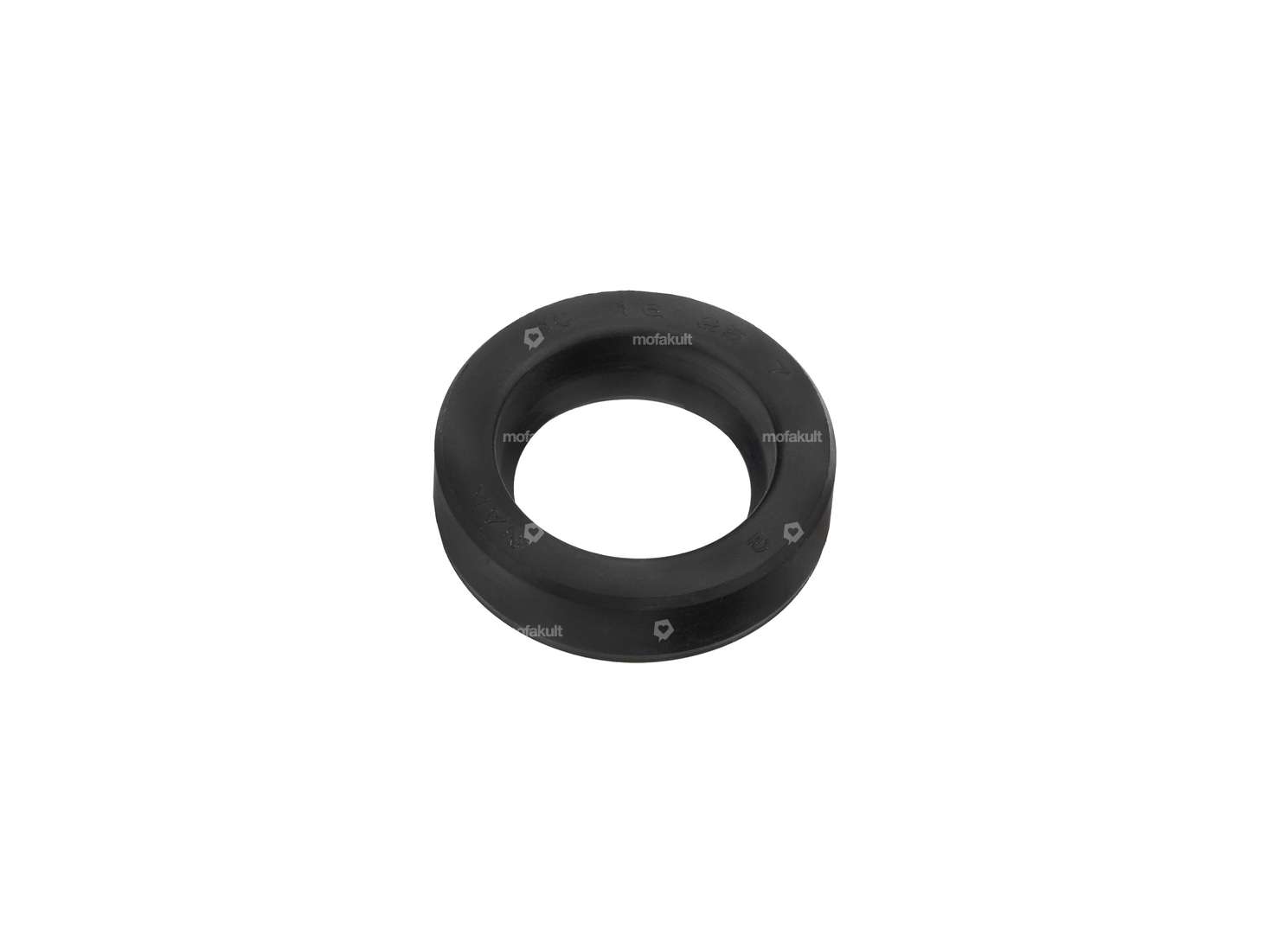

Shaft seal NBR 16/25/7 A Kickstarter | Puch E50

Rubber kickstarter original | Puch

Material: Rubber

Spring kickstarter Puch E50

Spring design: Torsion spring

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Type of application: 1K · Contents: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Temperature resistance (min.): -75 - 200 °C · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m · Area of application: Chemistry

Loctite 638 Joining shaft-hub high-strength 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Type of application: 1K · Contents: 10 ml · Area of application: Chemistry · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Gap dimension (max.): 0.25 mm · Temperature resistance (min.): -75 - 150 °C · Color: green · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m

Spring Kickstarter | Puch E50

Material: Plastic

Kickstart drive pinion | Puch E50

Material: Metal

Outlet seal Ø 27 Steel ring

Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Reinforced: Yes · Ø outlet inside: 27 mm · Ø screw holder: 6.3 mm · Thickness: 2.1 mm · Hole spacing outlet: 42.5 mm · Area of application: Tuning

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Total length: 30 mm · Strength class: 10.9 · Thread type: M6x1 (standard thread) · Thread length: 12 mm

swiing® revival engine revision set (new model) | Puch E50

Manufacturer: swiing® revival parts · Number of components: 7 pcs · Area of application: Tuning

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival stud bolt set M6 x 106 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Drive: External hexagon · Total length: 106 mm · Width across flats: 10 mm · Thread type: M6x1 (standard thread) · Thread length: 13 mm · Thread length: 18.5 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

Spring kickstarter Puch E50

Spring design: Torsion spring

Spring Kickstarter | Puch E50

Material: Plastic

Inner circlip kickstarter | Puch E50

Nominal diameter: 15 mm · Fuse type: Inside · Manufacturer: Puch · Material: Spring steel

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 968 g · Number of gears: 1 pcs · Area of application: High End · Area of application: Racing · Area of application: Tuning

Gasket gearbox cover kickstarter (1A quality) | Puch Maxi

Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 5 pcs
