GPO stud bolt "Divertimento" & "Diablo" cylinder | Sachs 502, 50/2, 50/3, 50/4

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Contents: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Color: blue · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Temperature resistance (min.): -75 - 200 °C · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Flange nut M6 galvanized (8 strength)

Material: Steel · Surface: galvanized (blue) · Nut type: Flange nut · Thread type: M6x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 6 mm · Height: 6 mm · Width across flats: 10 mm · Strength class: 8

Washer M6 standard (6.4/12/1.6) galvanized

Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 6 mm · Nominal diameter (thread): 6 mm · Ø inside: 6.4 mm · Hardness [HV]: 140 HV · Ø outside: 12 mm · Thread size: M6 · Thickness: 1.6 mm · Pony OEM number: A4515 · Sachs OEM no.: 0944 142 002

Spring washer M6 (6.2x11.8x1.6) galvanized

Material: Spring steel · Area of application: Standard · Surface: galvanized (blue) · Nominal diameter inside: 6 mm · Nominal diameter (thread): 6 mm · Ø inside: 6.4 mm · Ø outside: 11.4 mm · Thread size: M6 · Thickness: 1.8 mm

Nut M6 galvanized

Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Thread type: M6x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 6 mm · Height: 4.8 mm · Width across flats: 10 mm · Strength class: 8

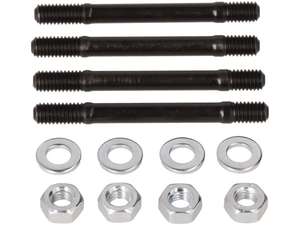

GPO stud bolt set "Divertimento" & "Diablo" cylinder | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Material: Steel · Surface: blackened · Diameter: 5.3 mm · Thread type: M6x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 6 mm · Total length: 62 mm · Thread length: 7.8 mm · Thread length: 11.8 mm · Width across flats: 10 mm · Strength class: 10.9

Petrol hose 30 cm black

Material: Plastic · Color: black · Total length: 300 mm · Ø inside: 4.6 mm · Ø outside: 8 mm

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Thread type: M4x0.7 (standard thread) · Ø Cable bushing: 1.6 mm · Drive: Slot · Total length: 6 mm · Thread length: 4 mm · Ø outside: 5 mm · Number of components: 2 pcs · Screw head: Lens head

GPO piston stopper M14x1.25

Manufacturer: GPO · Area of application: Special tool · Material: Steel · Surface: galvanized (blue) · Diameter: 12 mm · Diameter: 16 mm · Thread type: MF14x1.25 (fine pitch thread) · Total length: 83 mm · Number of components: 1 pcs · Width across flats: 17 mm

GPO sealing ring 12.8/19/2.4 shift/clutch lever | Sachs 50/2, 503 A3844

Manufacturer: GPO · Material: NBR · Ø inside: 12.8 mm · Ø outside: 19 mm · Thickness: 2.4 mm · Pony OEM number: A3844 · Sachs OEM no.: 0650 017 000

GPO gasket set slot version | Sachs 50/3 3-speed engine

Manufacturer: GPO · Area of application: Standard · Ø outlet inside: 28 mm · Hole spacing inlet: 31 mm · Number of components: 8 pcs · Hole pattern [mm]: 51 x 40

Magura cable clamp Sachs shift/clutch arm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Thread type: M4x0.7 (standard thread) · Ø shaft: 4 mm · Ø Cable bushing: 2.8 mm · Drive: External hexagon · Drive: Slot · Ø Bundle: 7 mm · Total length: 11 mm · Thread length: 7 mm · Ø outside: 7 mm · Number of components: 2 pcs · Screw head: Hexagon · Width across flats: 6 mm

swiing® revival screw set engine galvanized | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue)

swiing® revival bearing ring Ø 22 / 35 mm pedal set (large)

Manufacturer: swiing® revival parts · Bearing type: Bearing ring · Ø ball [inch] / [mm]: 1/4" (6.35 mm) · Ø inside: 22 mm · Ø outside: 35 mm

Wheel clamp straight (coaster brake) per piece

Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Total length: 60.5 mm · Ø inside: 11.2 mm · Thread length: 33.2 mm · Ø outside: 20.2 mm

GPO stud bolt M6 x 62 mm

Manufacturer: GPO · Material: Steel · Surface: blackened · Diameter: 5.3 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 62 mm · Thread length: 7.8 mm · Thread length: 11.8 mm · Strength class: 10.9
