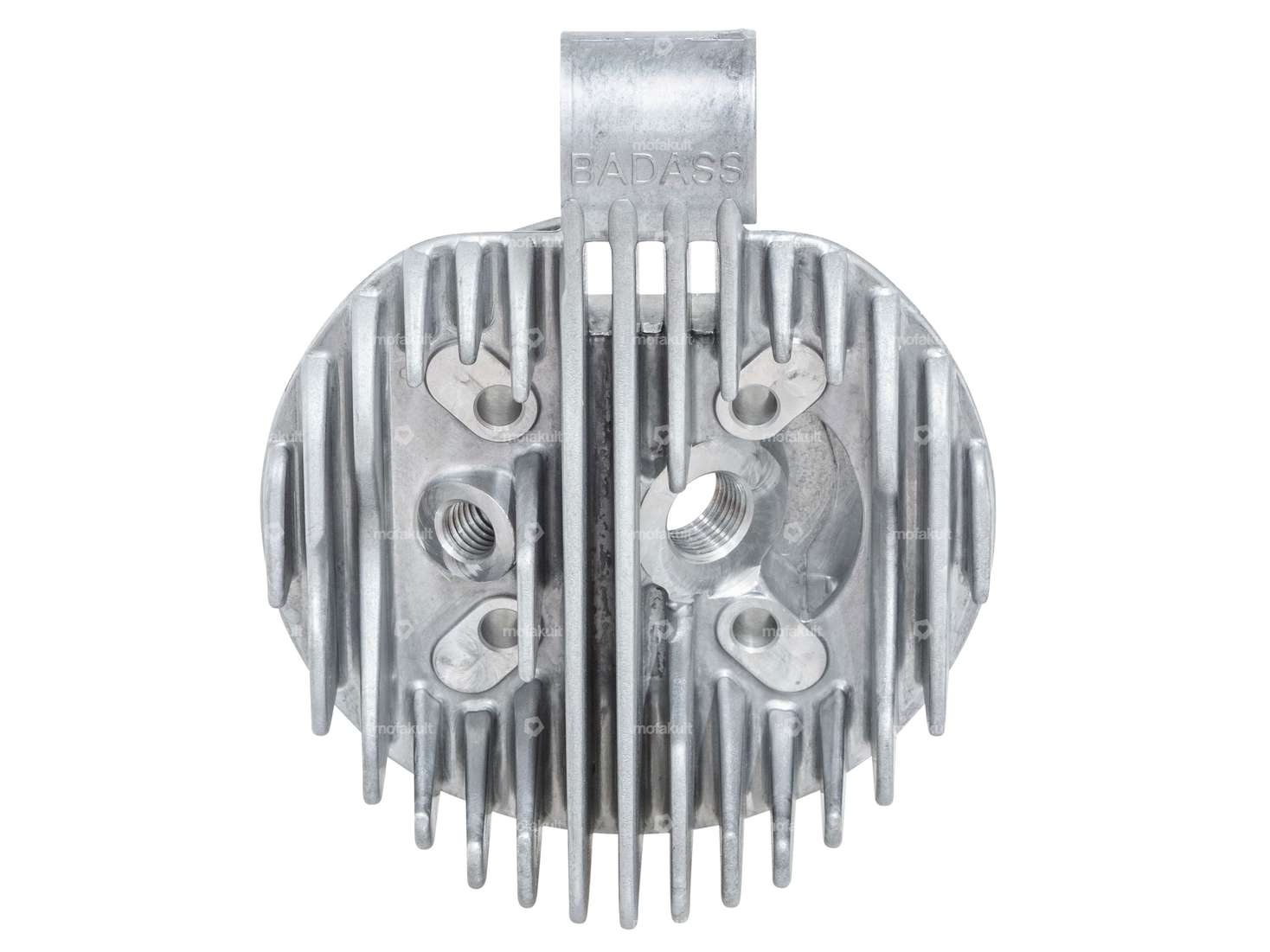

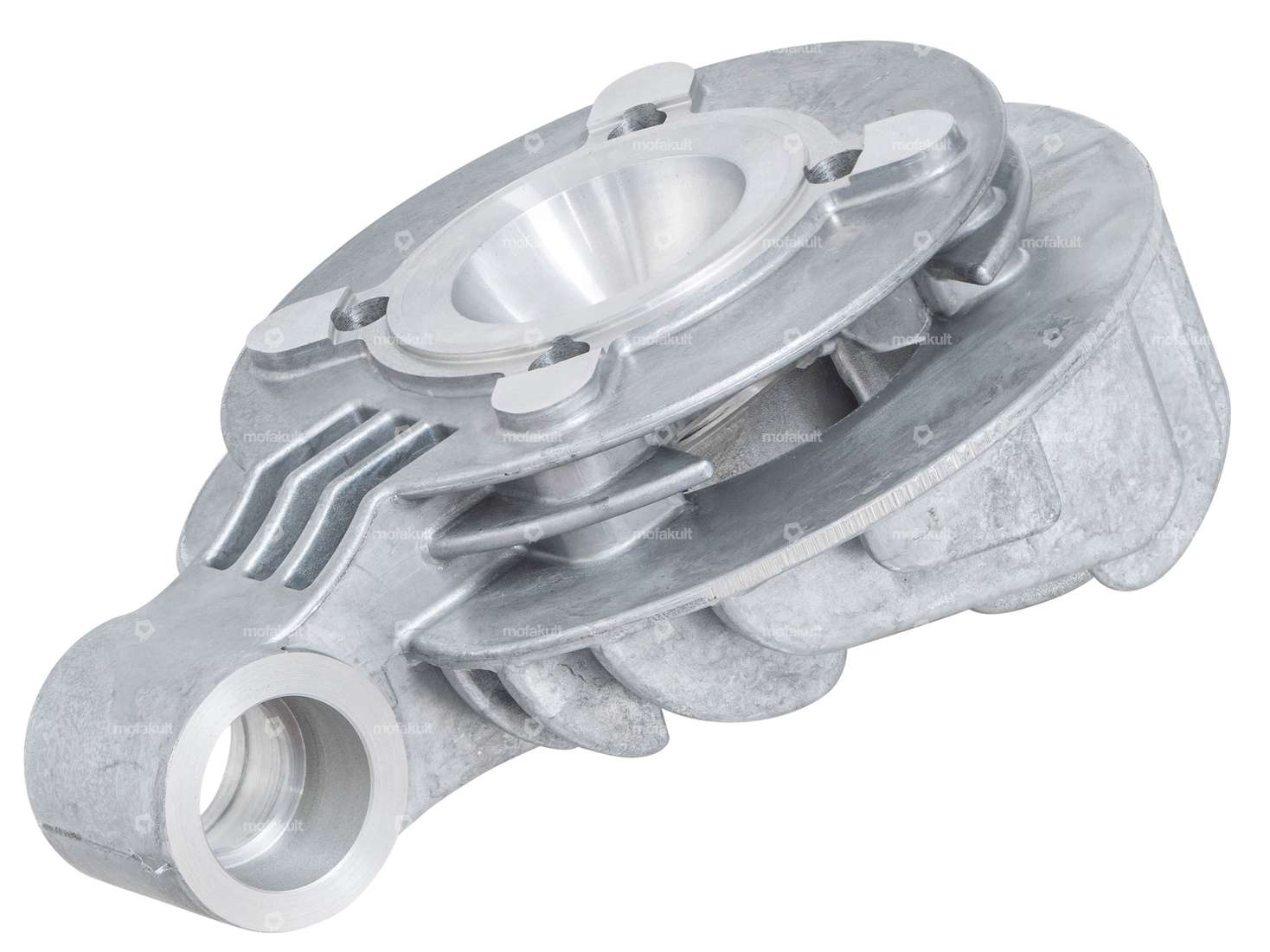

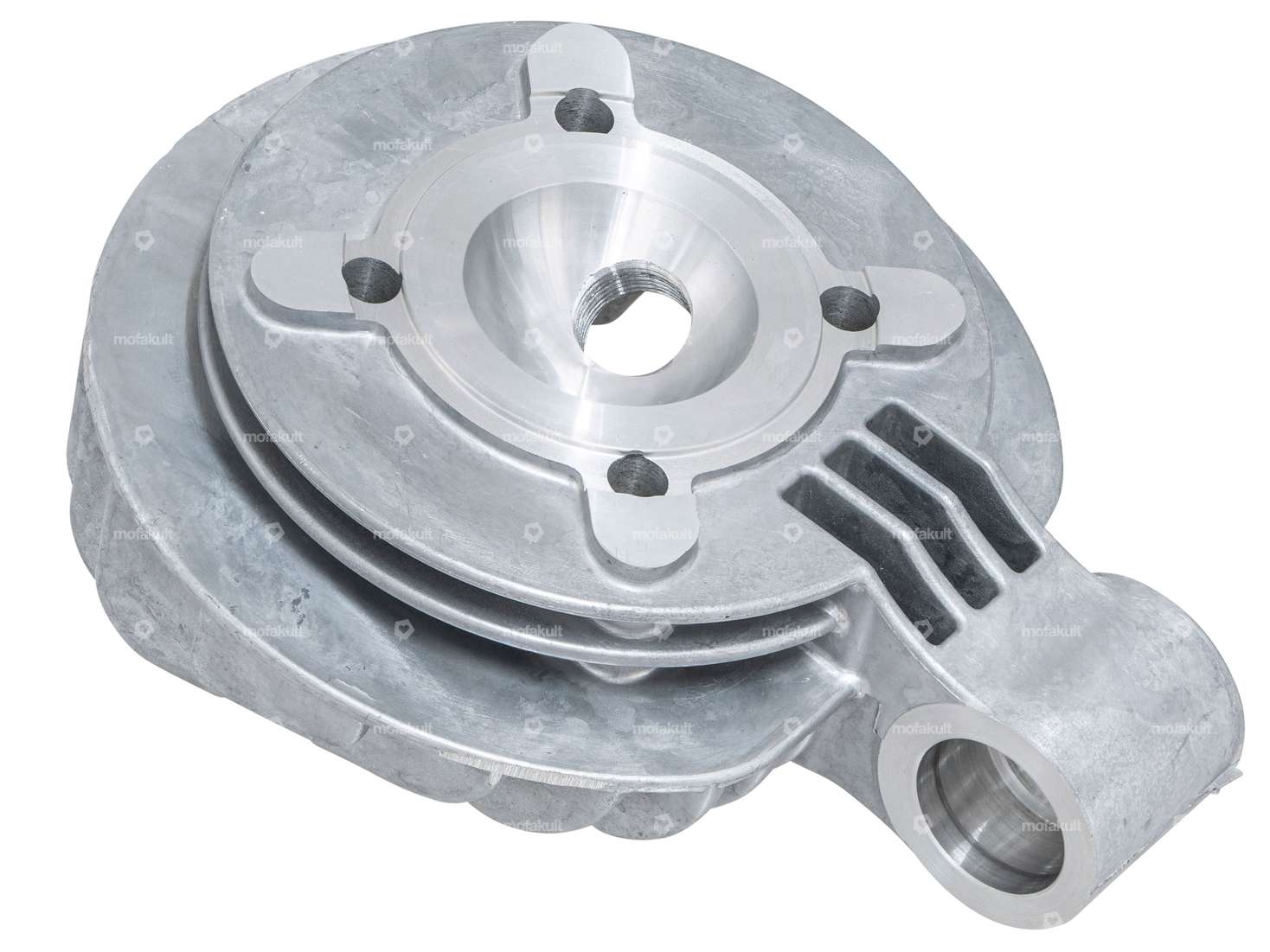

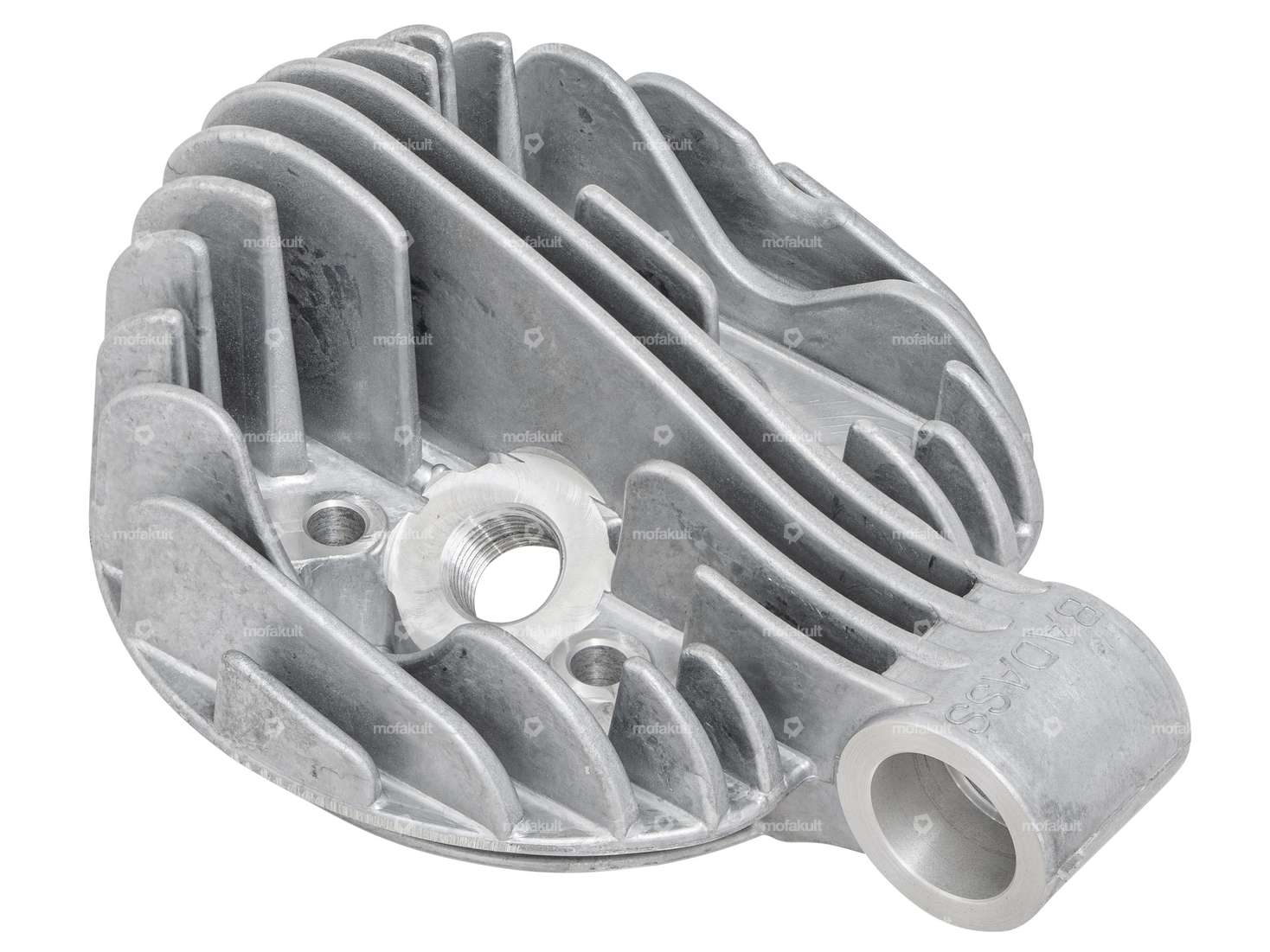

First 41 - 43 mm cylinder head in original look with enlarged fins, suitable for Sachs 502, 50/2, 50/3, 50/4 engines.
Thanks to the larger fin design, the cylinder head can optimally dissipate heat even at high temperatures and slow uphill rides.
The hole for the decompressor is prepared and threaded (M10 x 1.5 mm). If a decompressor is installed, it only needs to be drilled through with a 3 mm drill bit.
Ø Cylinder: 41.0 - 43.0 mm (type L)
Perforation pattern for cylinder head screws: 37 x 37 mm
Decompressor thread: M10 x 1.5 mm
Ø Silentblower mount: 19.3 mm
Ø outside: 108 mm
Ø outside under casing: 86 mm
The cylinder head is installed without gasket, the tightening torque of the cylinder head bolts (strength 10.9) is 11 - 13 Nm.
Matching add-on parts such as spark plugs, decompressors, silentblowers etc. can be found in the accessories section.
Made by the BADASS brand.
| Manufacturer | BAD ASS |
| Material | Aluminum |
| Ø cylinder | 41 - 43 mm |
| Ø outside | 108 mm |
| Ø screw holder | 19.3 mm |
| Number of fixing points | 4 pcs, 1 pcs |
| Hole pattern [mm] | 37 x 37 |
| Decompressor | M10x1.5 |
| Area of application | Tuning |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) |
Accessories & related products
swiing® revival nozzle set M3.5 (58 - 68) Bing SRE, SRA, SRC, SRF
Manufacturer: swiing® revival parts · Material: Brass · Quantity: 6 pcs · Component group Carburetor: Spraying · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Total length: 6 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68
EUR 18,60
swiing® revival bolt set cylinder head galvanized | Sachs 503 / 50/2 / 50/3 / 50/4
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Total length: 34 mm · Drive: External hexagon · Screw head: Hexagon · Thread type: M6x1 (standard thread) · Shank: Yes · Thread length: 22 mm · Ø shaft: 5.85 mm · Number of components: 12 pcs · Shank length: 8 mm · Width across flats SW: 10 mm · Strength class: 10.9 · Area of application: Standard
EUR 5,75
swiing® ingenious 41 mm cylinder head tuning | Sachs 50/2, 50/3, 50/4
Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 mm · Ø outside: 98 mm · Total length: 127 mm · Ø screw holder: 19 mm · Candle thread: long · Number of fixing points: 4 pcs · Hole pattern [mm]: 37 x 37 · Decompressor: M10x1.5 · Width: 95 mm · Height: 50 mm · Area of application: Standard
EUR 80,30
41 mm cylinder head tuning | Sachs 50/3, 50/4 LKH
Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 mm · Ø outside: 128 mm · Camouflaged: Yes · Number of fixing points: 4 pcs · Hole pattern [mm]: 37 x 37 · Candle thread: long · Decompressor: No · Area of application: Tuning
EUR 113,60
Not in stock
Hot

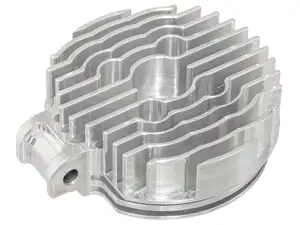

41 mm cylinder head CNC tuning | Sachs 50/3, 50/4 LKH
