Pin bolt set consisting of four M6 threaded bolts for fastening the GPO «Divertimento» and BAD ASS «Diablo» cylinder to your moped / moped with Sachs 50, 502, 50/2, 50/3 or 50/4 engine.
| Width across flats | 10 mm |
| Drive | External hexagon |
| Manufacturer | GPO |
| Diameter | 5.3 mm |
| Material | Steel |
| Surface | blackened |
| Thread type | M6x1 (standard thread) |
| Total length | 62 mm |
| Thread length | 11.8 mm, 7.8 mm |
| Nominal diameter (thread) | 6 mm |
| Strength class | 10.9 |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) |
Accessories & related products
Washer M6 6.4/12/1.6 galvanized
Ø inside: 6.4 mm · Ø outside: 12 mm · Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 6 mm · Nominal diameter (thread): 6 mm · Thickness: 1.6 mm · Hardness [HV]: 140 HV · Thread size: M6 · Pony OEM number: A4515 · Sachs OEM no.: 0944 142 002
EUR 0,45
GPO 43 mm cylinder kit "Divertimento" (slotted) | Sachs 502, 50/2, 50/3, 50/4
Nominal diameter: 43 mm · Manufacturer: GPO · Number of fixing points: 4 pcs · Material: Gray cast iron · Surface: blank / oiled · Displacement: 61 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 40 mm · Inlet window: 17 x 15 mm · Thread inlet: M5x0.8 (standard thread) · Ø outlet inside: 28 mm · Decompressor: No · Ø piston pin (B): 12 mm · Outlet type: Union nut · Hole spacing inlet: 31 mm · Thread outlet: MF40x1.5 (fine pitch thread) · Hole pattern [mm]: 60 x 40 / 51 x 40 / 37 x 37 · Camouflaged: Yes
EUR 205,80

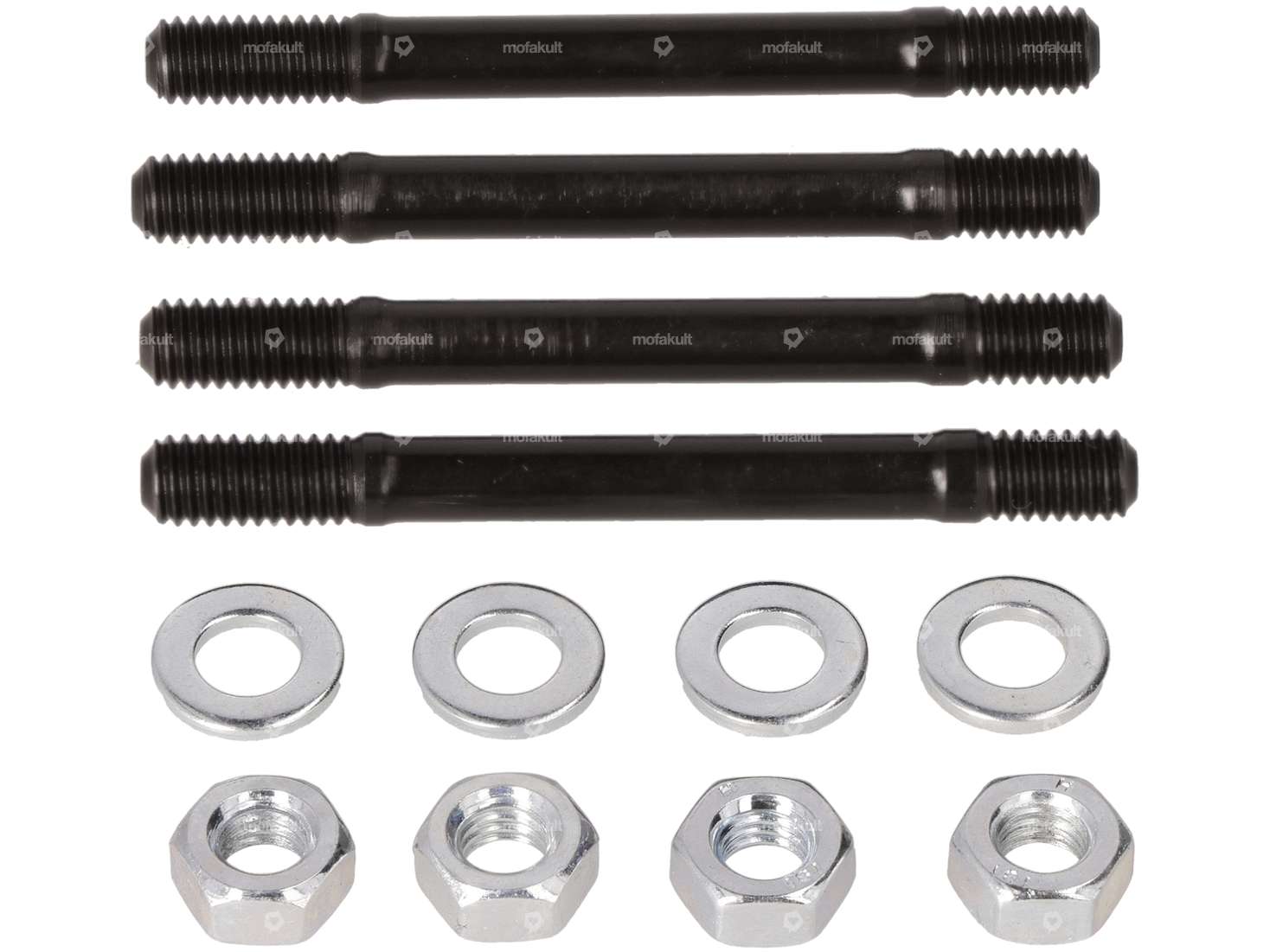

GPO stud bolt "Divertimento" & "Diablo" cylinder | Sachs 502, 50/2, 50/3, 50/4
Manufacturer: GPO · Material: Steel · Surface: blackened · Diameter: 5.3 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 62 mm · Thread length: 7.8 mm · Thread length: 11.8 mm · Strength class: 10.9
EUR 3,30
Explore categories from Screws & fastener sets
Moped fans also bought

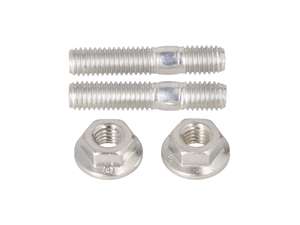

swiing® revival stud bolt set M5x26 inlet (10.9 strength) | Sachs 50/2, 502, 50/3
