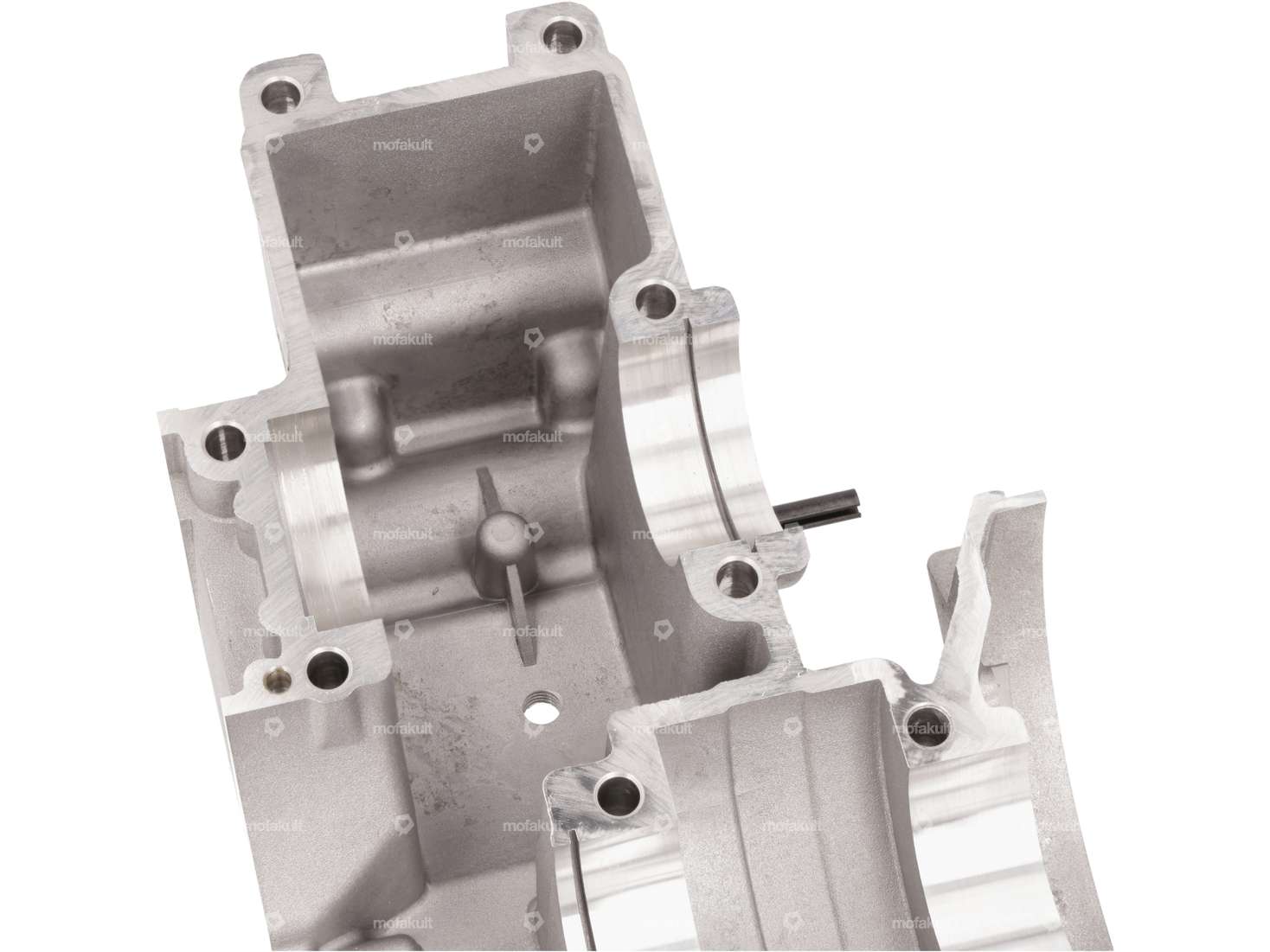

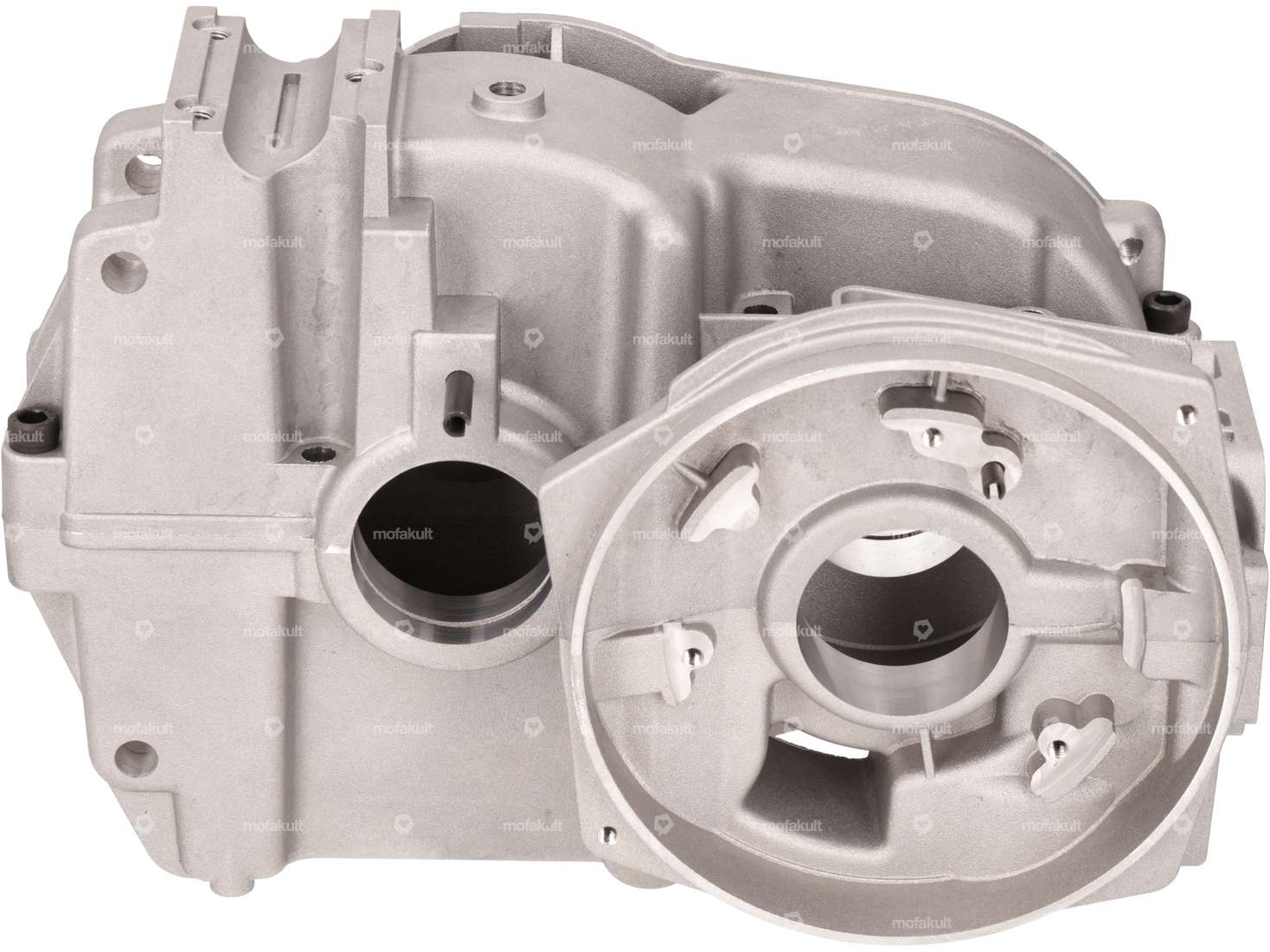

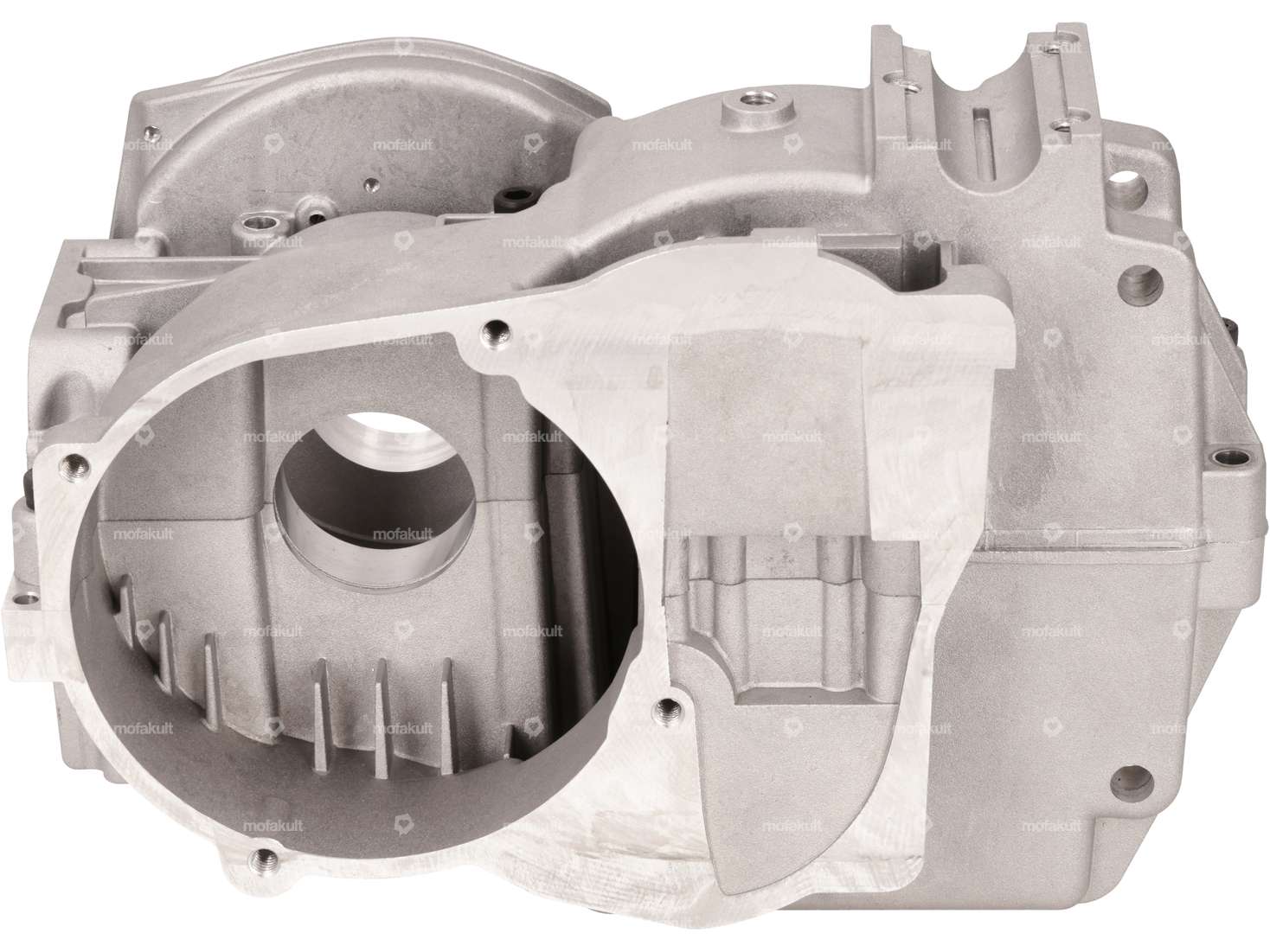

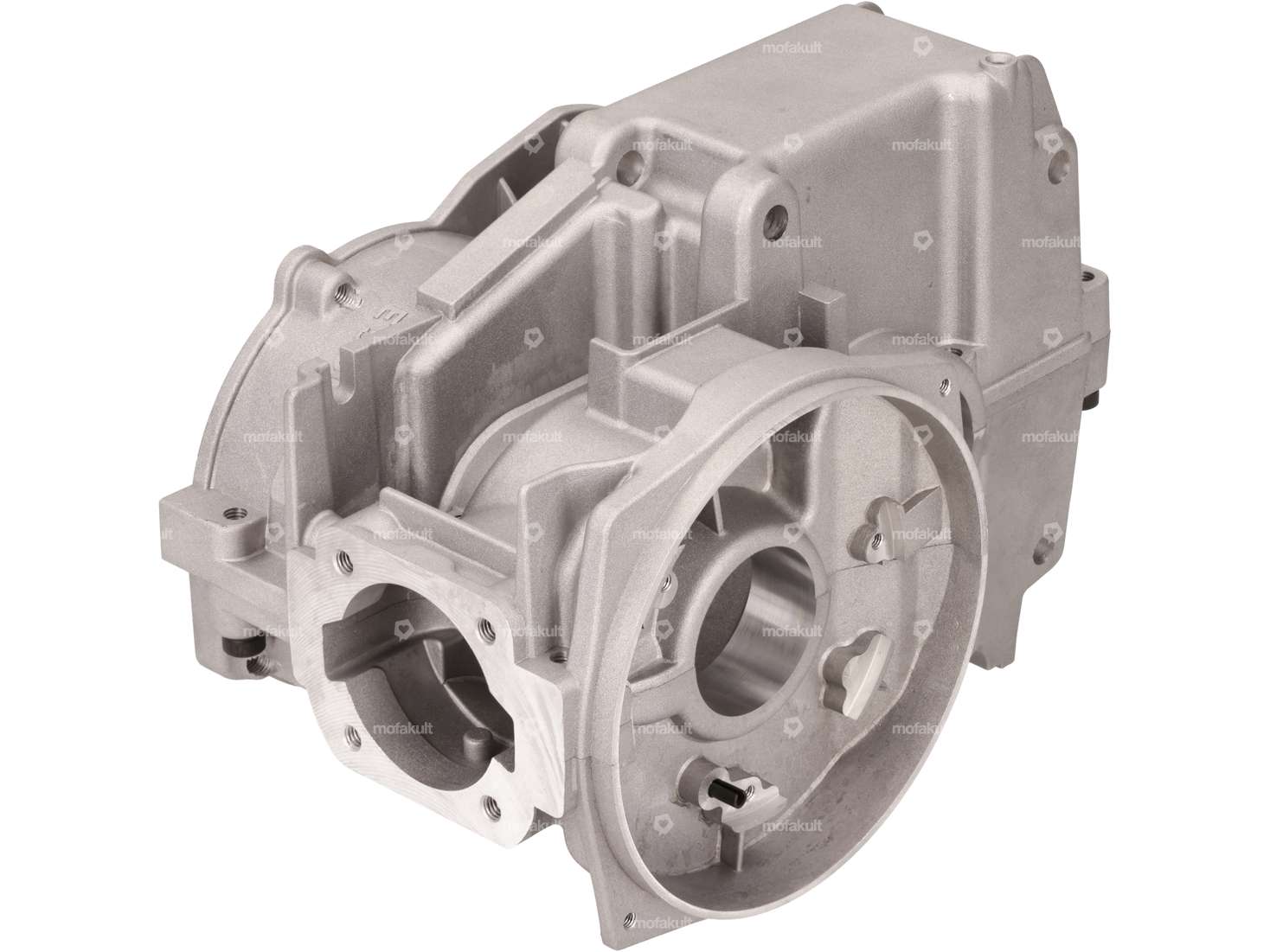

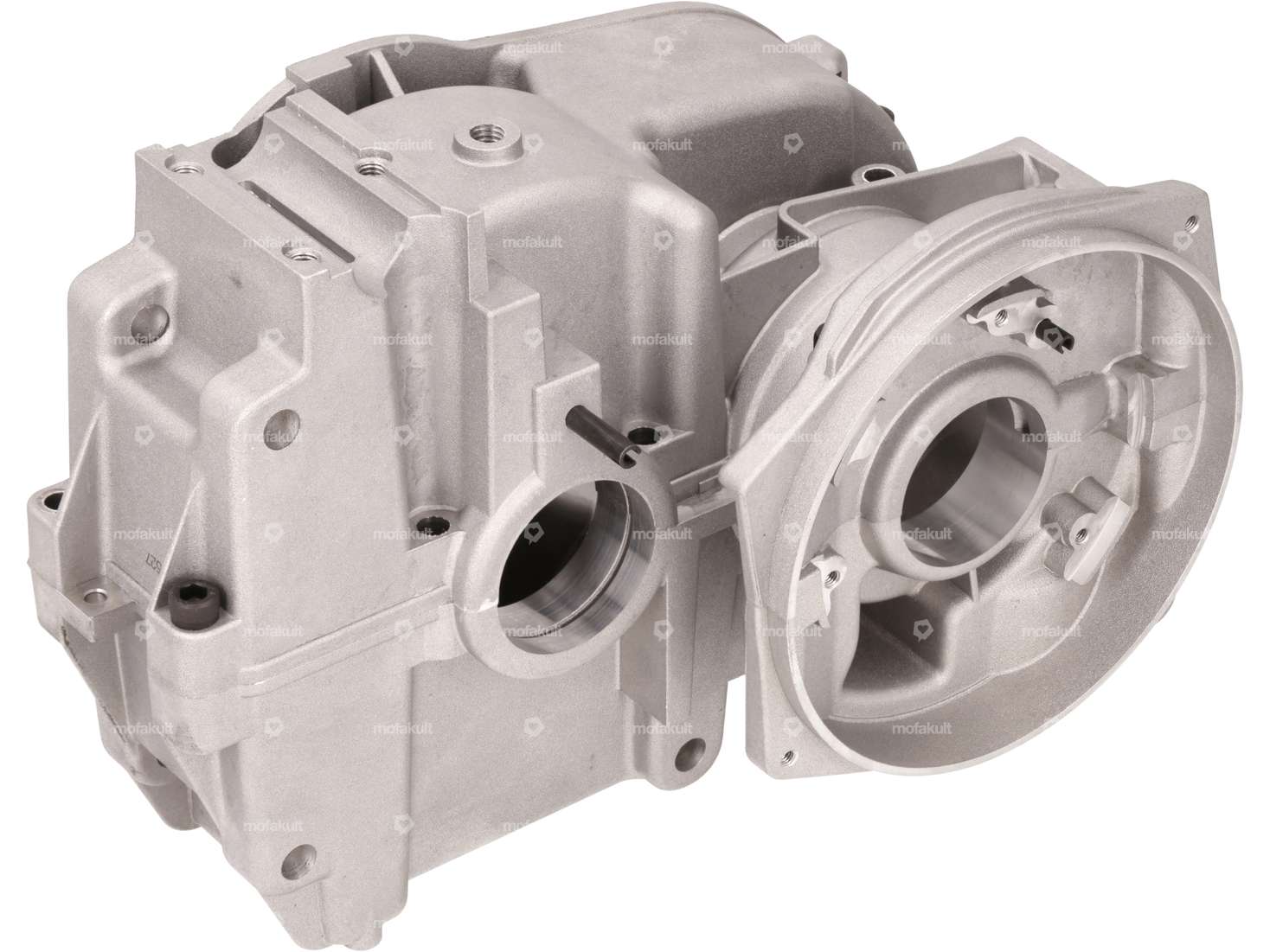

Reproduction of the original E50 engine housing with 4 bearings for your Puch moped / moped.
The dimensions correspond to the original housing. This means that all add-on parts such as pushrods, end plates, crankshafts or cylinders can be used.
As with the original, a cylinder and pinion lock was installed, which must be removed when installing tuning parts. The sealing surface for the cylinder base has been slightly widened, as with the ADDY housing. This gives you more material for adjustments when fitting a racing cylinder.

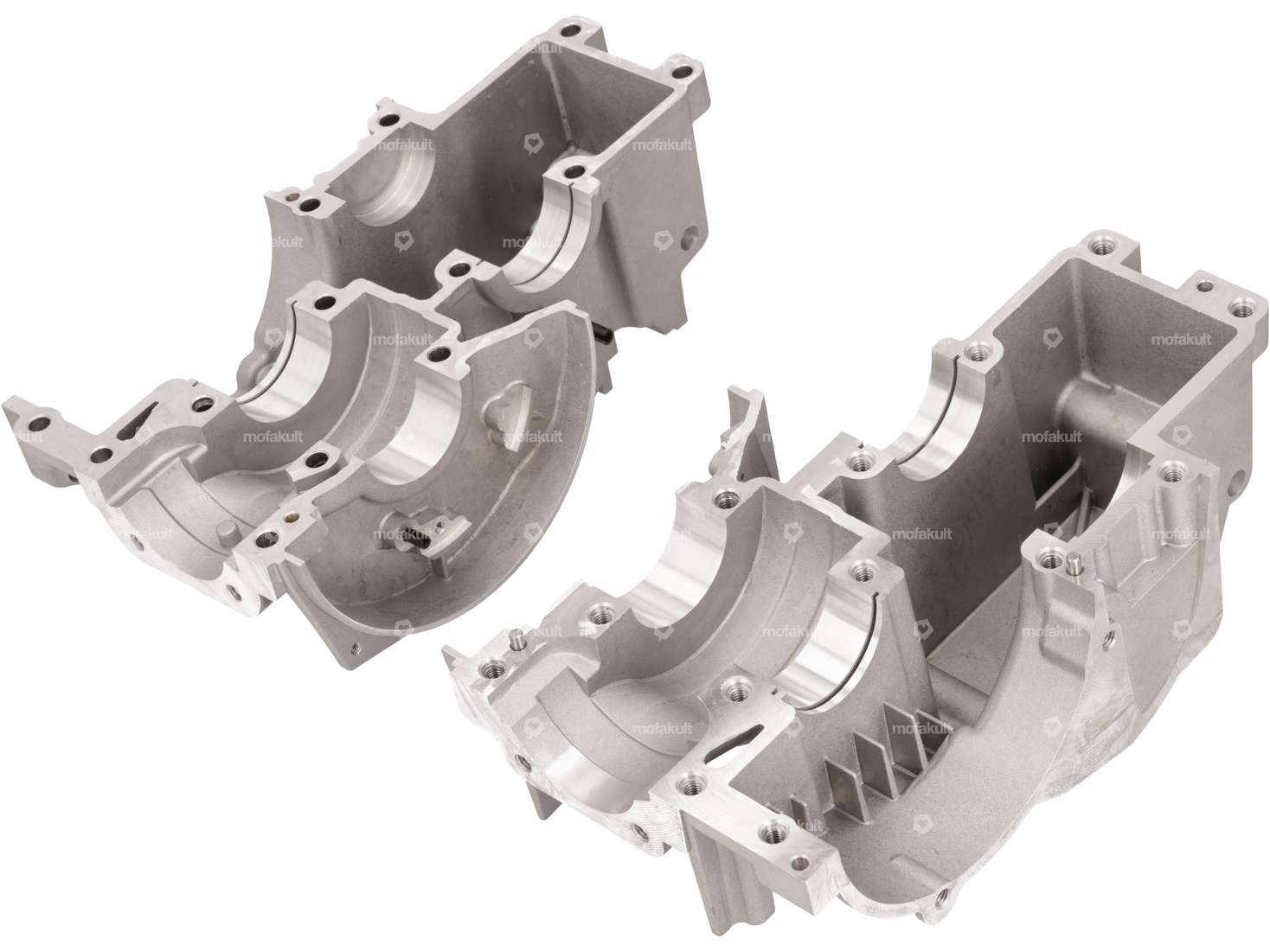

The housing parts are numbered. The engine number can be stamped in by the owner if required.
Material: Cast aluminum
Ø Cylinder neck (max.): 48 mm
Cylinder hole pattern: 44 x 44 mm
Pin thread: M6x1 mm
Matching attachments and a racing case for your Puch Maxi can be found in the accessories section.
Original Puch spare part number: 349.3.10.332.0
Branded product from the manufacturer AKOA.
| Manufacturer | AKOA |
| Material | Aluminum |
| Puch OEM number | 349.3.10.332.0 |
| Puch | E50 |
