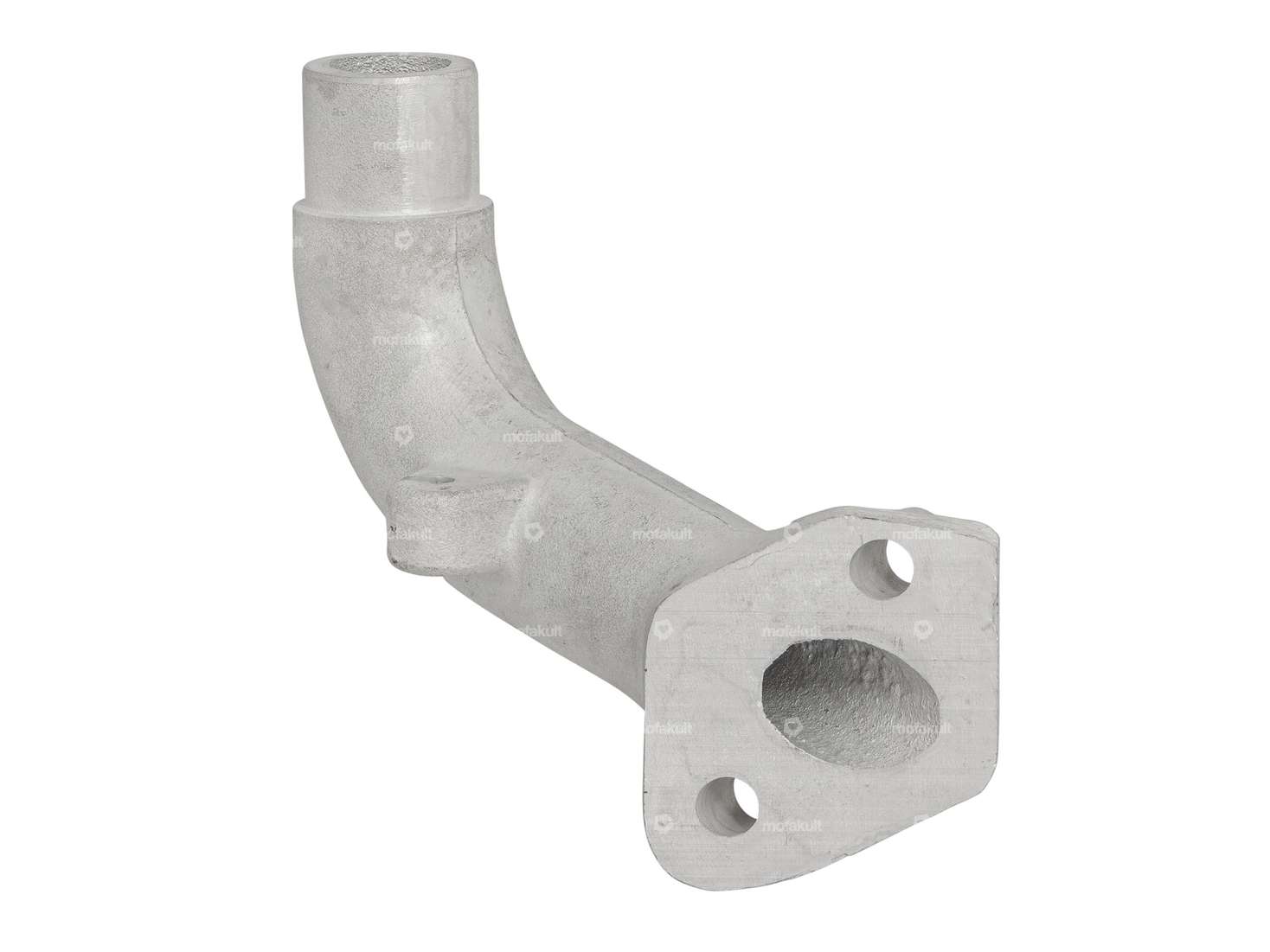

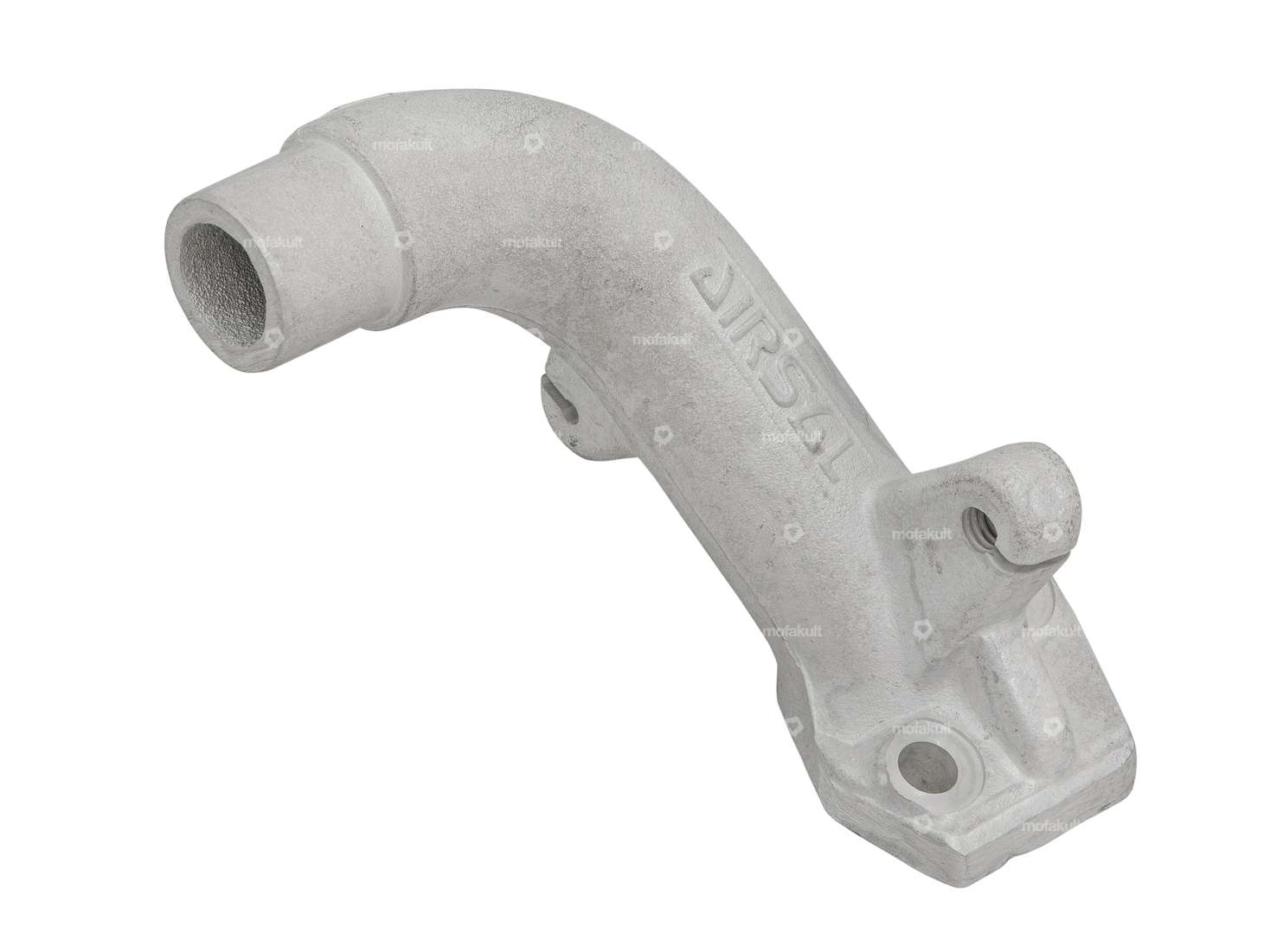

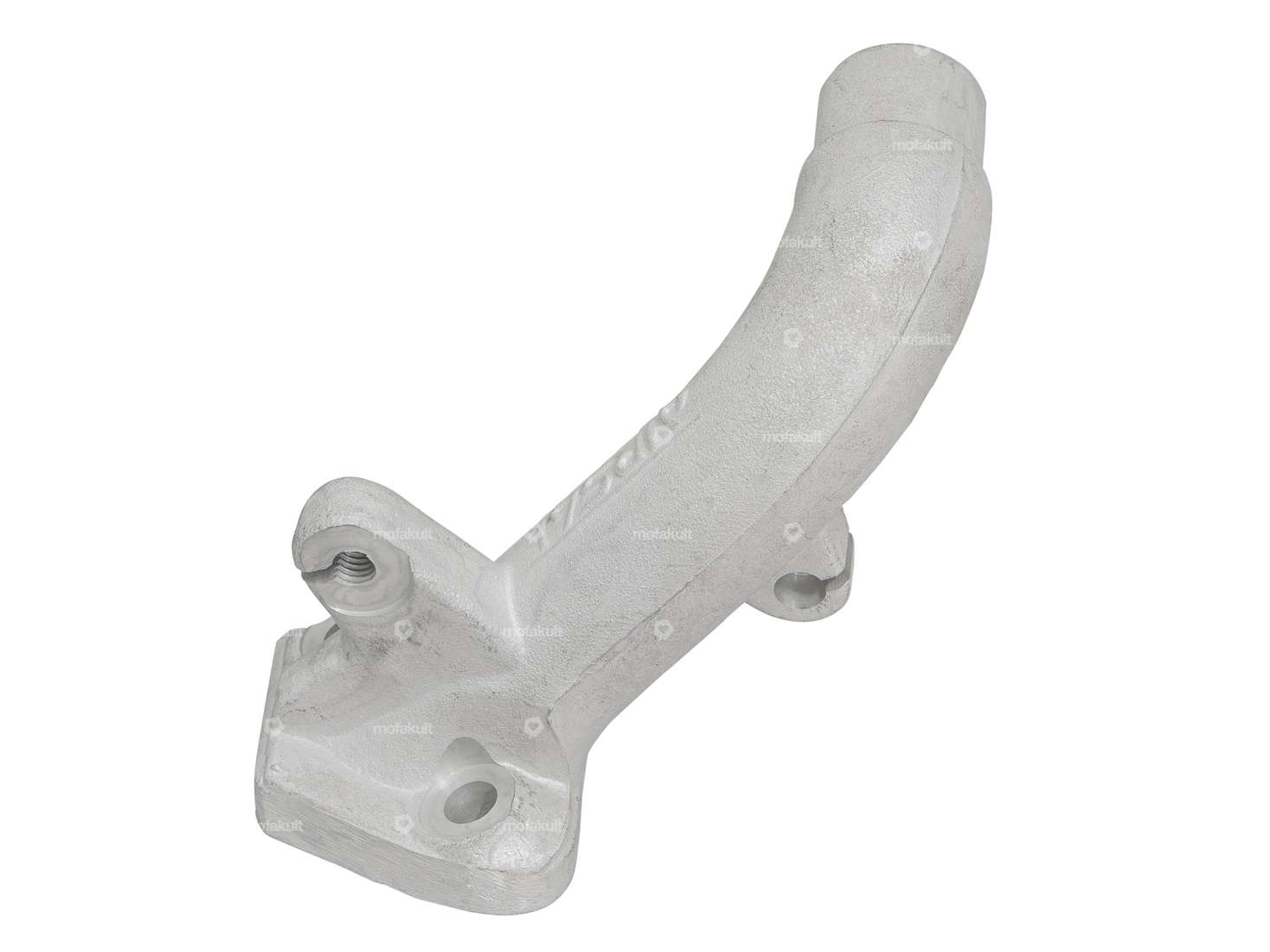

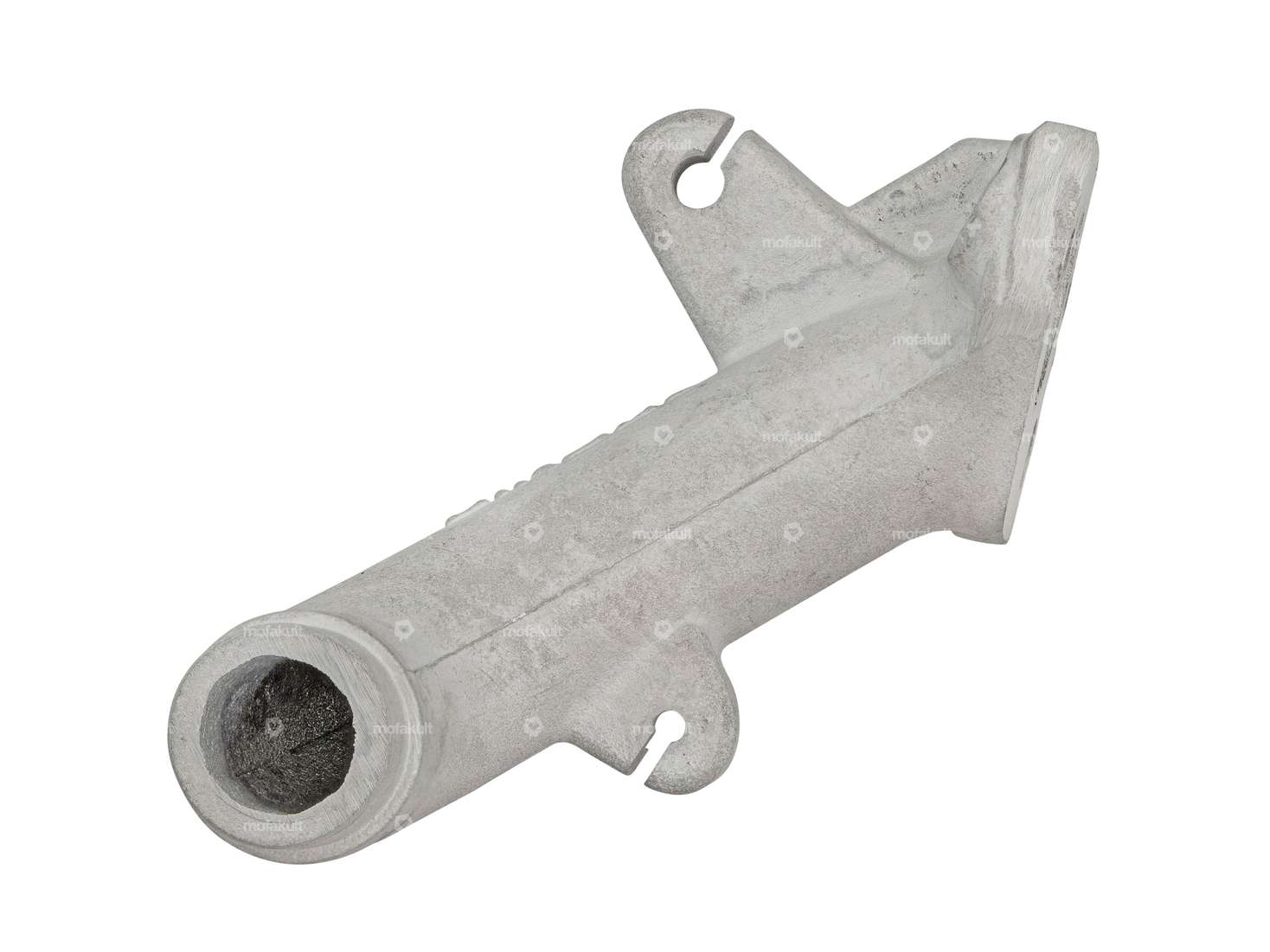

Inlet manifold for the 43.5 mm Airsal cylinder kit suitable for your moped / moped with Sachs 504 and 505 engine.
This intake manifold can be used for Hercules Prima M, 2, 3, 4, 5 and Optima models, among others, provided you have fitted the racing cylinder mentioned above.
You can find the matching tuning cylinder and other intake manifolds in the accessories section.
Quality product from the Spanish manufacturer Airsal.
Details
| Manufacturer | Airsal |
| Material | Aluminum |
| Number of fixing points | 2 pcs |
| Ø inside | 13.6 mm |
| Hole spacing inlet | 31 mm |
| Height flange center hole | 56 mm |
| Area of application | Tuning |
| Ø External connection | 20 mm |
| Mounting type | Screws |
Suitable for the following models
| Sachs | 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT), 2A (HG), 2B (HG) |
| Hercules | Great - 2, 3, 4, 5, Optima |
