Tun'R 90° air filter Dell'Orto PHBG (Ø=35 mm)

Polini 30° air filter Air Box Ø 32 mm

Manufacturer: Polini · Area of application: Tuning · Color: black · Color: blue · Filter type: Foam · Total length: 110 mm · Ø Internal connection: 32 mm · Angle: 30 ° · Mounting type: Plug connection clamped · Camouflaged: No

Polini 90° air filter Air Box Ø 32 mm

Manufacturer: Polini · Camouflaged: No · Color: black · Color: blue · Filter type: Foam · Total length: 125 mm · Angle: 90 ° · Ø Internal connection: 32 mm · Mounting type: Plug connection clamped · Area of application: Tuning

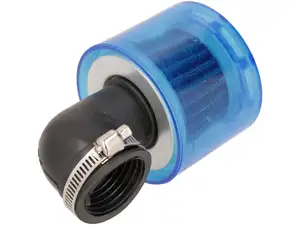

RMS air filter grille with splash cap 90° (Ø=35)

Manufacturer: RMS · Camouflaged: No · Color: blue · Filter type: Grille · Total length: 110 mm · Angle: 90 ° · Ø Internal connection: 35 mm · Ø outside: 75 mm · Mounting type: Plug connection clamped · Area of application: Tuning

GPO mushroom air filter short foam red , Dell'Orto PHBG (Ø=32 mm)

Manufacturer: GPO · Camouflaged: No · Color: red · Filter type: Foam · Total length: 50 mm · Ø Internal connection: 32 mm · Ø outside: 92 mm · Mounting type: Plug connection clamped · Area of application: Tuning

Dell'Orto flange Ø 59 mm PHBG 15 - 21 mm

Manufacturer: Dell'Orto · Component group Carburetor: Adjusting screws, float, etc. · Material: Plastic · Color: black · Carburetor type: PHBG · Ø outside: 59 mm · Thread type: MF32x1.25 (fine pitch thread)

66HEROES Air filter mushroom grille black Dell'Orto PHBG (Ø=28 mm)

Manufacturer: 66HEROES · Camouflaged: No · Area of application: Tuning · Color: black · Filter type: Grille · Ø outside: 60 mm · Total length: 70 mm · Ø Internal connection: 28 mm · Mounting type: Plug connection clamped

66HEROES Air filter mushroom 45° grille black Dell'Orto PHBG (Ø=34 mm)

Manufacturer: 66HEROES · Area of application: Tuning · Color: black · Filter type: Grille · Total length: 98 mm · Ø outside: 60 mm · Ø Internal connection: 34 mm · Angle: 45 ° · Mounting type: Plug connection clamped · Camouflaged: No

swiing® revival snap ring low control bearing set (version 2.0)

Manufacturer: swiing® revival parts · Material: Spring steel · Surface: blank · Nominal diameter: 20 mm · Nominal diameter: 28 mm · Height: 7 mm · Thickness: 0.6 mm · Sachs OEM no.: P0521 · Puch OEM number: 349.1.30.015.1

Airsal piston 44 mm | Puch

Manufacturer: Airsal · Nominal diameter: 44 mm · Ø outside piston (A): 43.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.6 mm · Curvature (D): 3.48 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.9 mm · Piston weight: 92 g

Dell'Orto 19 mm PHBG CS carburetor hand choke

Manufacturer: Dell'Orto · Material: Aluminum · Area of application: Racing · Area of application: Tuning · Component group Carburetor: Carburetor complete · Color: black · Nominal diameter: 19 mm · Carburetor type: PHBG CS · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Height: 124 mm · Ø without reducing sleeve: 26 mm · Total length: 82 mm · Ø Inside entrance: 19 mm · Width: 70 mm · Ø Output inside: 19 mm · Mounting type: Plug connection clamped · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø Internal connection: 24 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke nozzle size: 60 · Camouflaged: No · Nozzle size: 75 · Size of secondary nozzle: 45

Magura cable end sleeve 5 mm (1A quality)

Manufacturer: Magura · Material: Brass · Area of application: Standard · Surface: nickel-plated · Color: silver · Ø outside: 5.5 mm · Ø inside: 5 mm · Ø Cable bushing: 2.5 mm · Total length: 12 mm

swiing® revival seal Float SRE, SRC, SRF, SRA

Manufacturer: swiing® revival parts · Material: Sealing paper · Component group Carburetor: Sealing, revising · Surface: blank · Ø outside: 45 mm · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Ø inside: 41 mm · Thickness: 1.5 mm · Pony OEM number: A4519 · Sachs OEM no.: 0950 128 000

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Surface: blank · Ø outside: 12 mm · Number of sensors / lugs: 1 pcs

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Thread type: M4x0.7 (standard thread) · Ø outside: 5 mm · Drive: Slot · Number of components: 2 pcs · Ø Cable bushing: 1.6 mm · Screw head: Lens head · Total length: 6 mm · Thread length: 4 mm

Airsal gasket set 44 - 45 mm

Manufacturer: Airsal · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Number of components: 4 pcs · Hole spacing outlet: 42 mm · Area of application: Tuning · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Hole spacing inlet: 38 mm

Dell'Orto gasket set carburetor PHBG

Manufacturer: Dell'Orto · Component group Carburetor: Sealing, revising · Carburetor type: PHBG

18.5 mm intake manifold Dell'Orto PHBG | Puch E50

Material: Aluminum · Area of application: Tuning · Color: Chrome · Surface: polished · Ø inside: 18.8 mm · Ø External connection: 23.9 mm · Total length: 40 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Total height: 57 mm · Height flange center hole: 45 mm · Camouflaged: No · Hole spacing inlet: 38 mm
