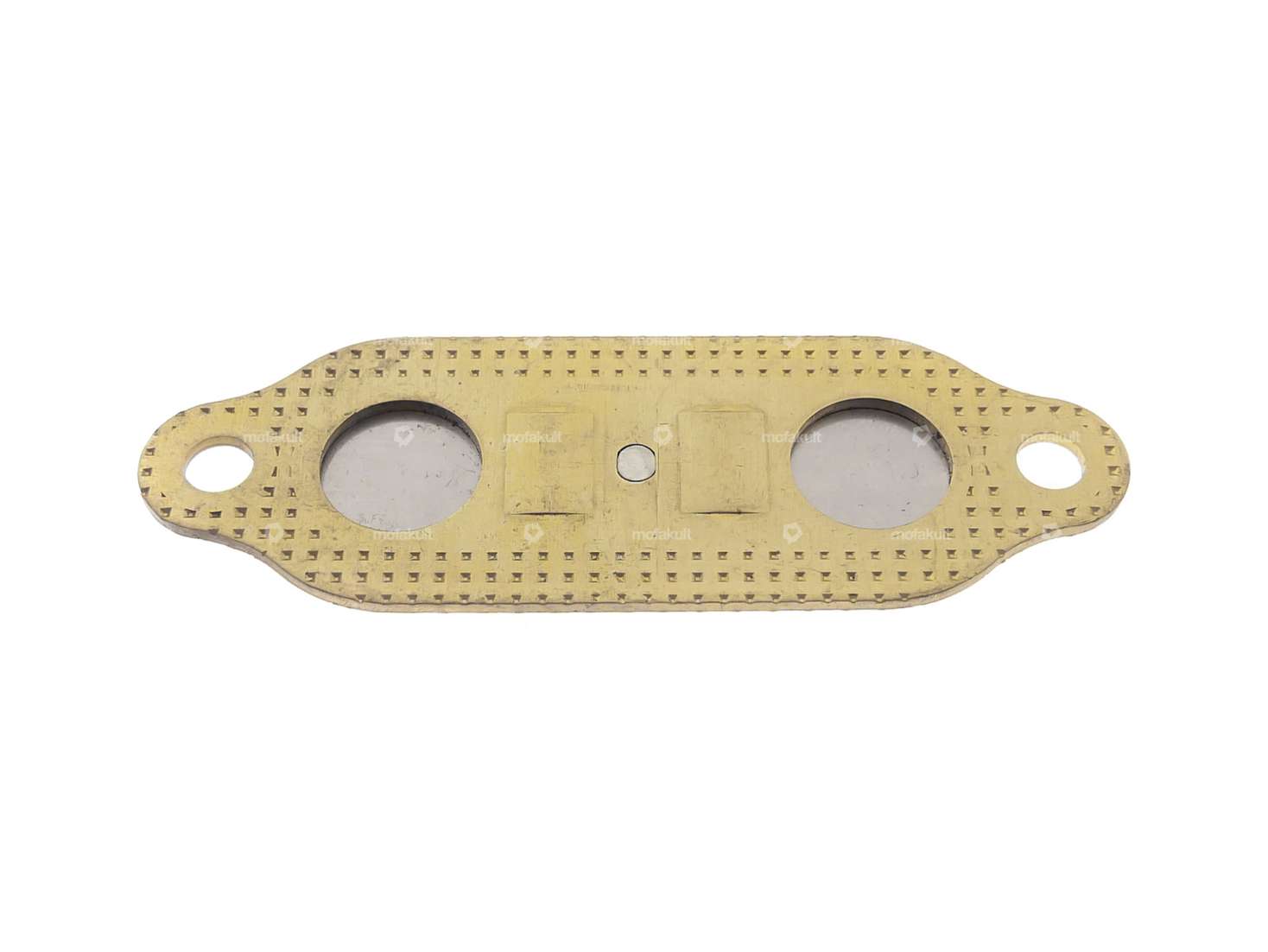

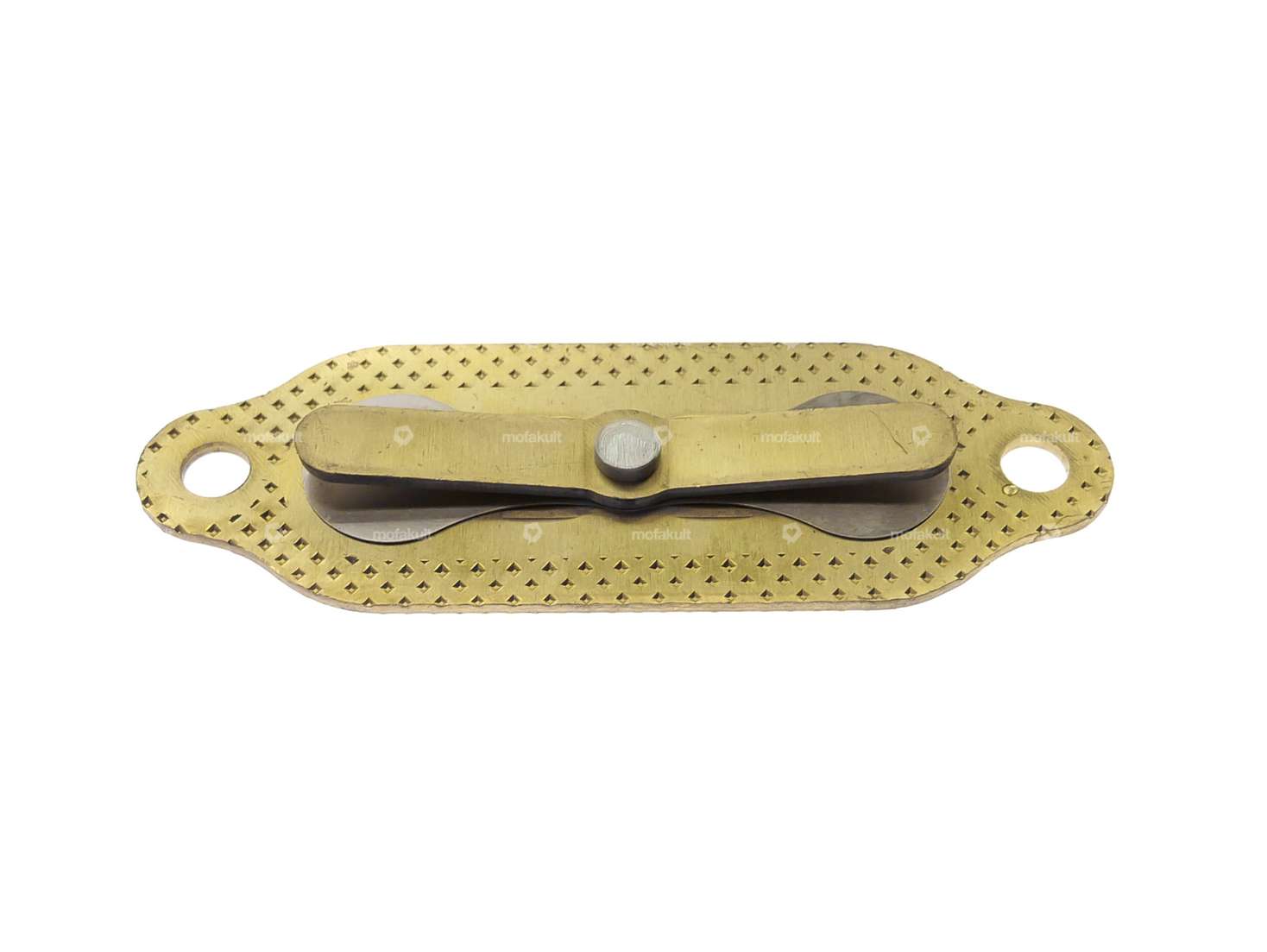

Diaphragm insert Sachs 50/2

swiing® revival membrane seal 0.4 mm | Sachs 50/2, 50/3, 50/4 (A1840)

Material: Oiled paper · Manufacturer: swiing® revival parts · Thickness: 0.4 mm · Hole spacing inlet: 67 mm · Pony OEM number: A1840 · Sachs OEM no.: 0250 106 00

swiing® revival exhaust nut M35x2 galvanized | Sachs 50/2 (A1507)

Material: Steel · Ø inside: 30 mm · Manufacturer: swiing® revival parts · Ø outside: 43 mm · Surface: galvanized (blue) · Nut type: Union nut · Thread type: M35x2 (standard thread) · Pony OEM number: A1507 · Sachs OEM no.: 0242 048 101

Carburetor 17 mm Bing SSB 1/17/69 reproduction

Nominal diameter: 17 mm · Material: Aluminum · Total length: 116 mm · Height: 99 mm · Component group Carburetor: Carburetor complete · Carburetor type: SSB · Width: 86 mm · Choke control: without choke · Nozzle thread: MF7x0.75 (fine pitch thread) · Ø fuel hose connection: 6.2 mm · Mounting type: Stud bolts & nuts · Nozzle size: 76 · Hole spacing inlet: 31 mm · Area of application: Standard · Area of application: Tuning · Mixed oil connection: No · Vacuum connection: Yes · Camouflaged: No · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

Inlet seal 17 mm spigot (5.5 mm) | Sachs 50/3

Place of use: Admission · Thickness: 5.5 mm · Hole spacing inlet: 30 mm

swiing® revival stud bolt M5 x 23 inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Material: Steel · Total length: 23 mm · Manufacturer: swiing® revival parts · Surface: galvanized (blue) · Diameter: 4.9 mm · Thread length: 6 mm · Thread length: 12 mm · Thread type: M5x0.8 (standard thread) · Area of application: Standard · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102

swiing® ingenious intermediate flange 17 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Number of fixing points: 4 pcs · Ø inside: 17 mm · Manufacturer: swiing® ingenious parts · Total length: 29 mm · Width: 80 mm · Thickness: 6.9 mm · Material: Aluminum · Material: Steel · Area of application: Tuning · Surface: anodized · Surface: galvanized (blue) · Number of flaps: 2 pcs · Mounting type: Screws · Thread type: M5x0.8 (standard thread) · Hole spacing: 31 mm · Hole spacing: 67 mm

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Nominal diameter: 41 mm · Manufacturer: GPO · Thick piston ring: 1.8 mm · Ø outside piston (A): 40.94 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 86 g

swiing® revival gasket set cylinder diaphragm version | Sachs 50/2

Manufacturer: swiing® revival parts · Area of application: Standard · Material: Copper · Material: Sealing paper · Ø cylinder: 38 mm · Ø outlet inside: 28 mm · Number of components: 5 pcs · Hole spacing inlet: 31 mm · Hole spacing inlet: 67 - 31 mm · Hole pattern [mm]: 60 x 40 mm

swiing® revival exhaust manifold 28 mm chrome | Sachs 50/2, 50/3

Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Union nut · Ø inside: 25.7 mm · Ø outside: 28 mm · Total length: 368 mm · Ø External connection: 32.25 mm · Sachs OEM no.: P5005
