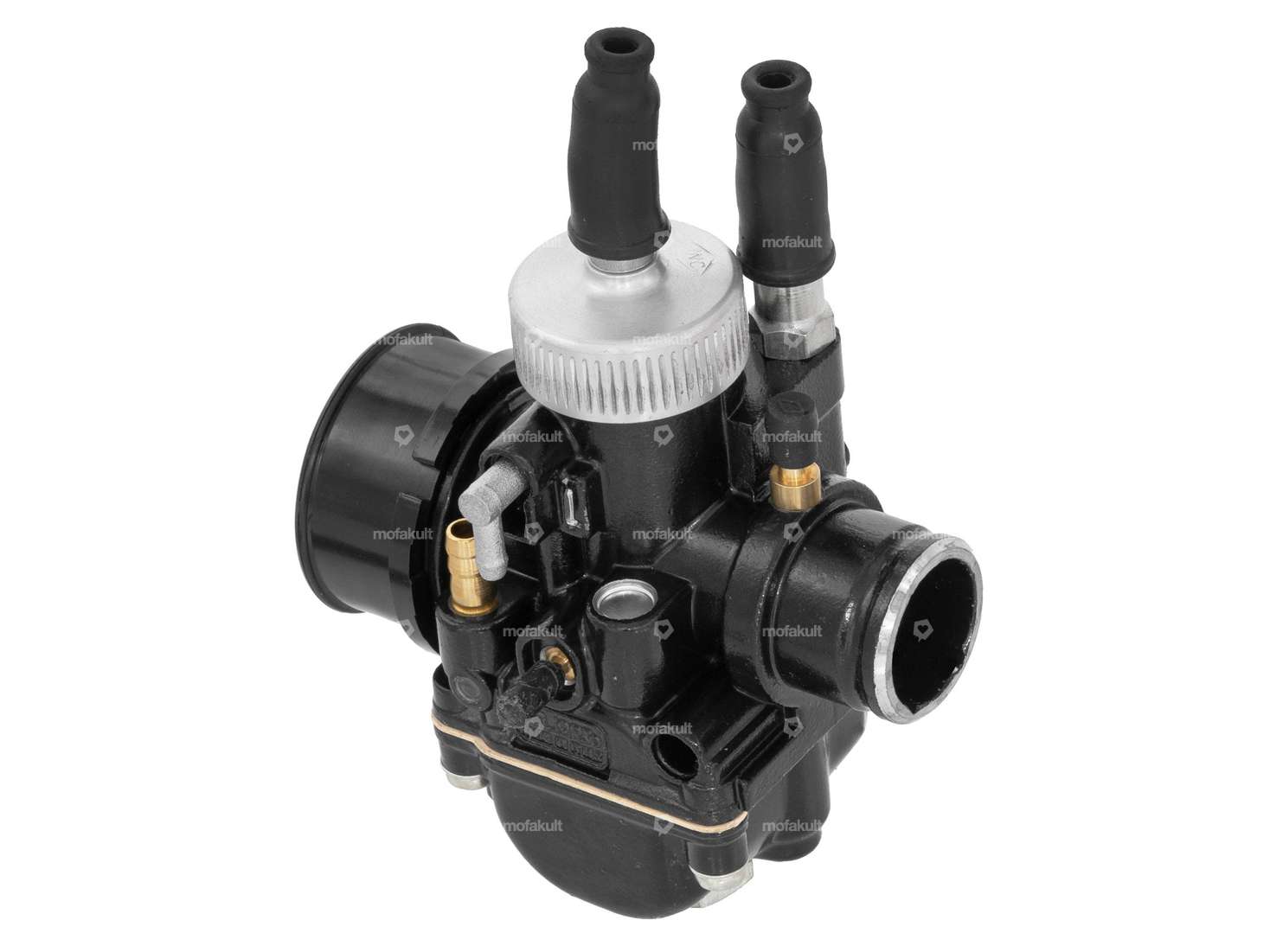

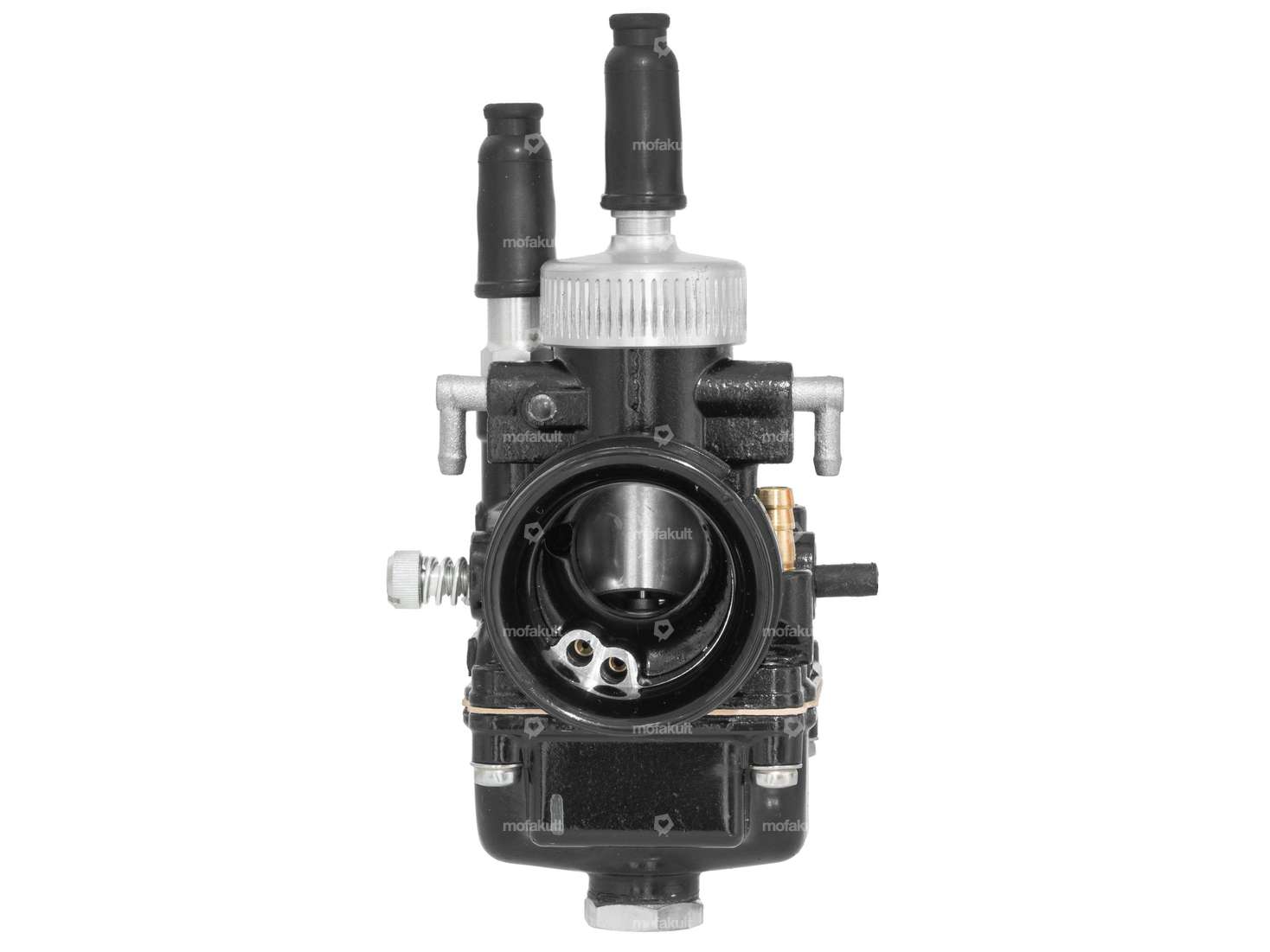

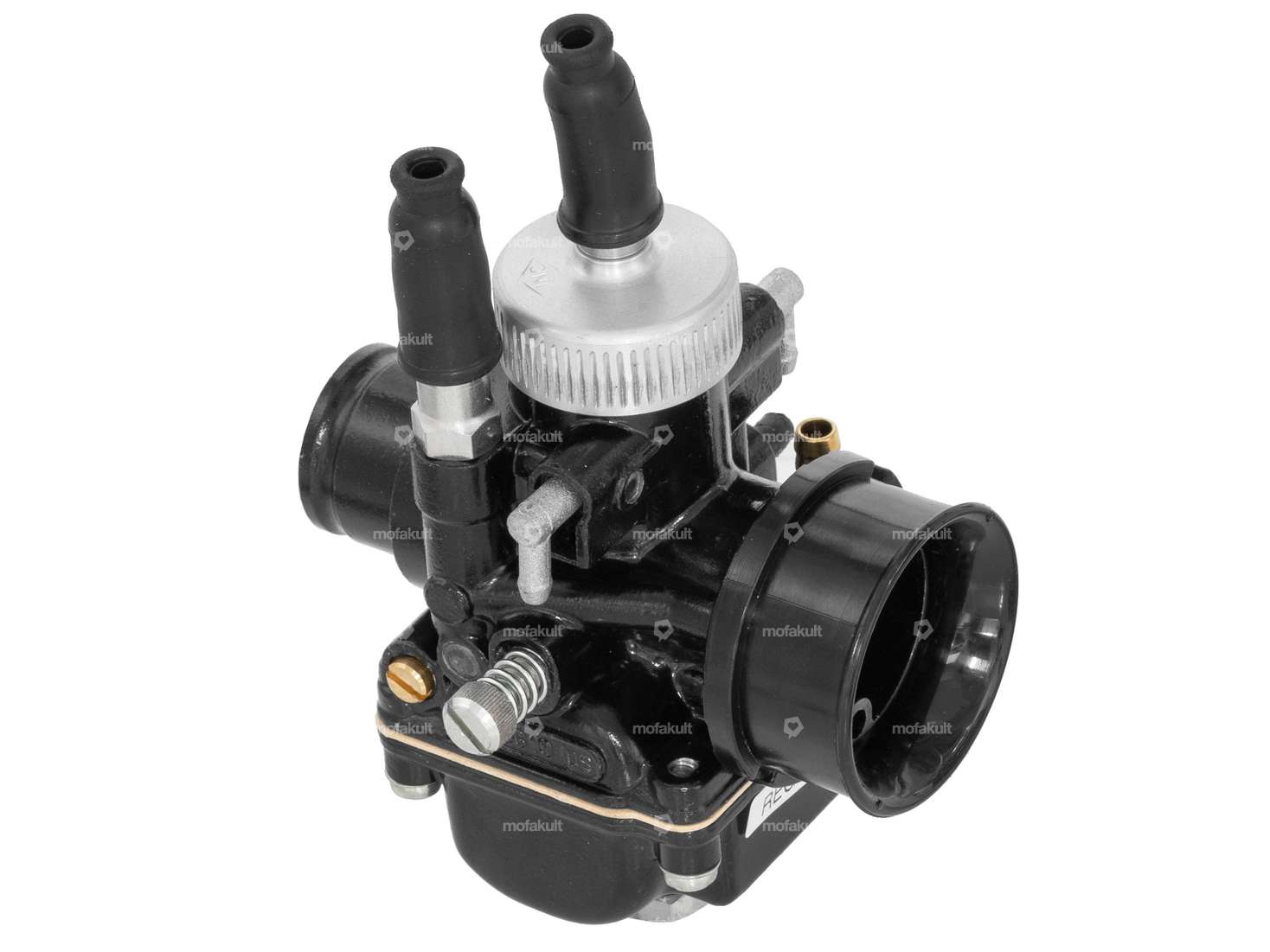

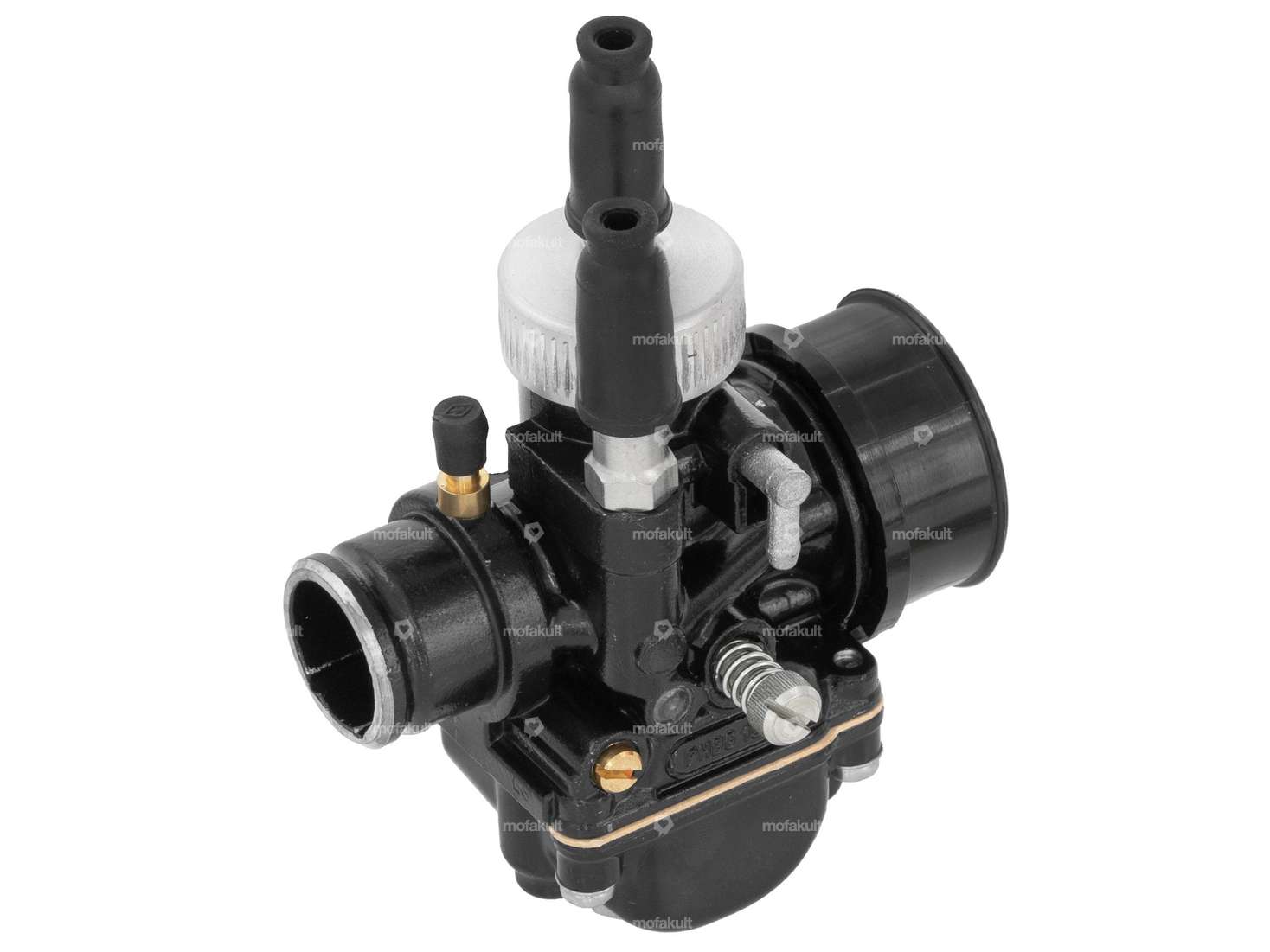

21 mm racing carburetor Dell'Orto PHBG. Ideal for 46 and 47 mm racing cylinders. This is the Black Edition.
An M32x1.25 thread is available for mounting the air filter, with the supplied ring you can thus achieve a diameter of 38 mm.
The carburetor has an oil and vacuum connection.
Connection width intake manifold: 25 mm
Main diameter: 92
Quality product from the Italian manufacturer Dell'Orto.
| Nominal diameter | 21 mm |
| Manufacturer | Dell'Orto |
| Component group Carburetor | Carburetor complete |
| Surface | varnished |
| Color | black |
| Area of application | Tuning |
| Carburetor type | PHBG DS |
| Total length | 86.6 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Width | 51.2 mm |
| Nozzle size | 92 |
| Mounting type | Plug connection |
| Height | 134 mm |
| Ø Inside entrance | 21.2 mm |
| Ø Output inside | 28.3 mm |
| Ø Air filter connection | 32 mm, 38 mm |
| Air filter connection thread | MF32x1.25 (fine pitch thread) |
| Ø fuel hose connection | 6 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Choke control | Cable choke |
