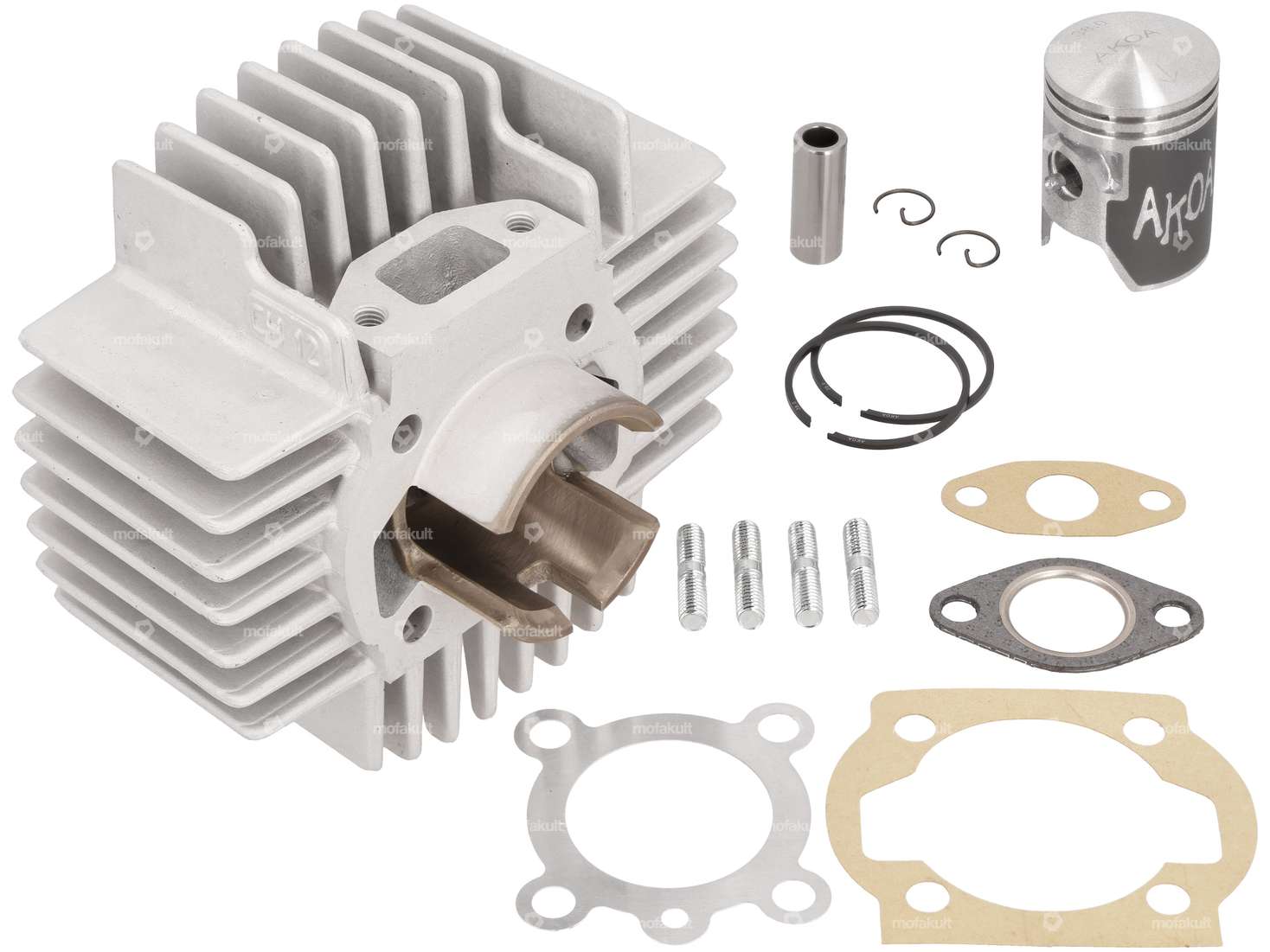

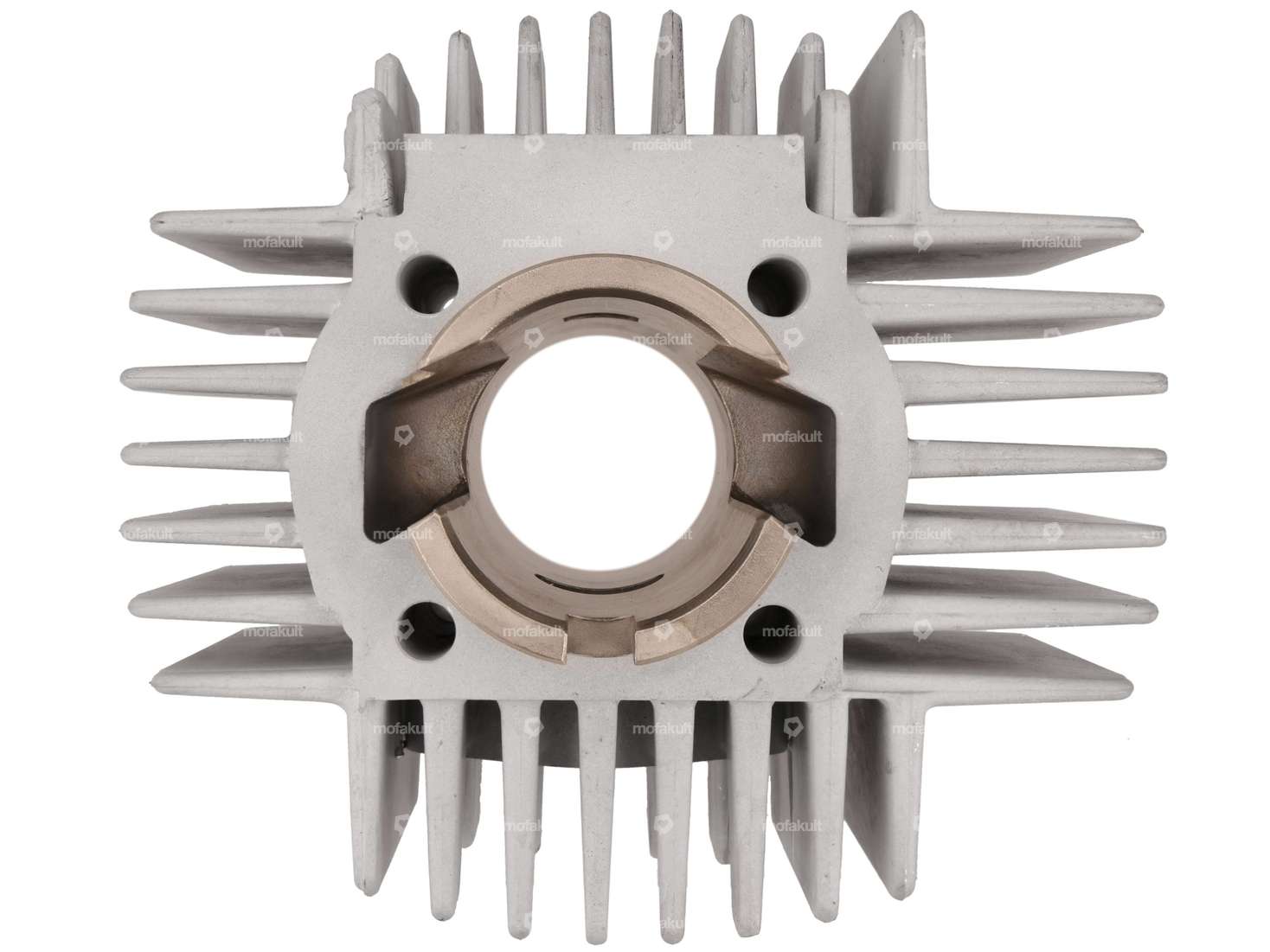

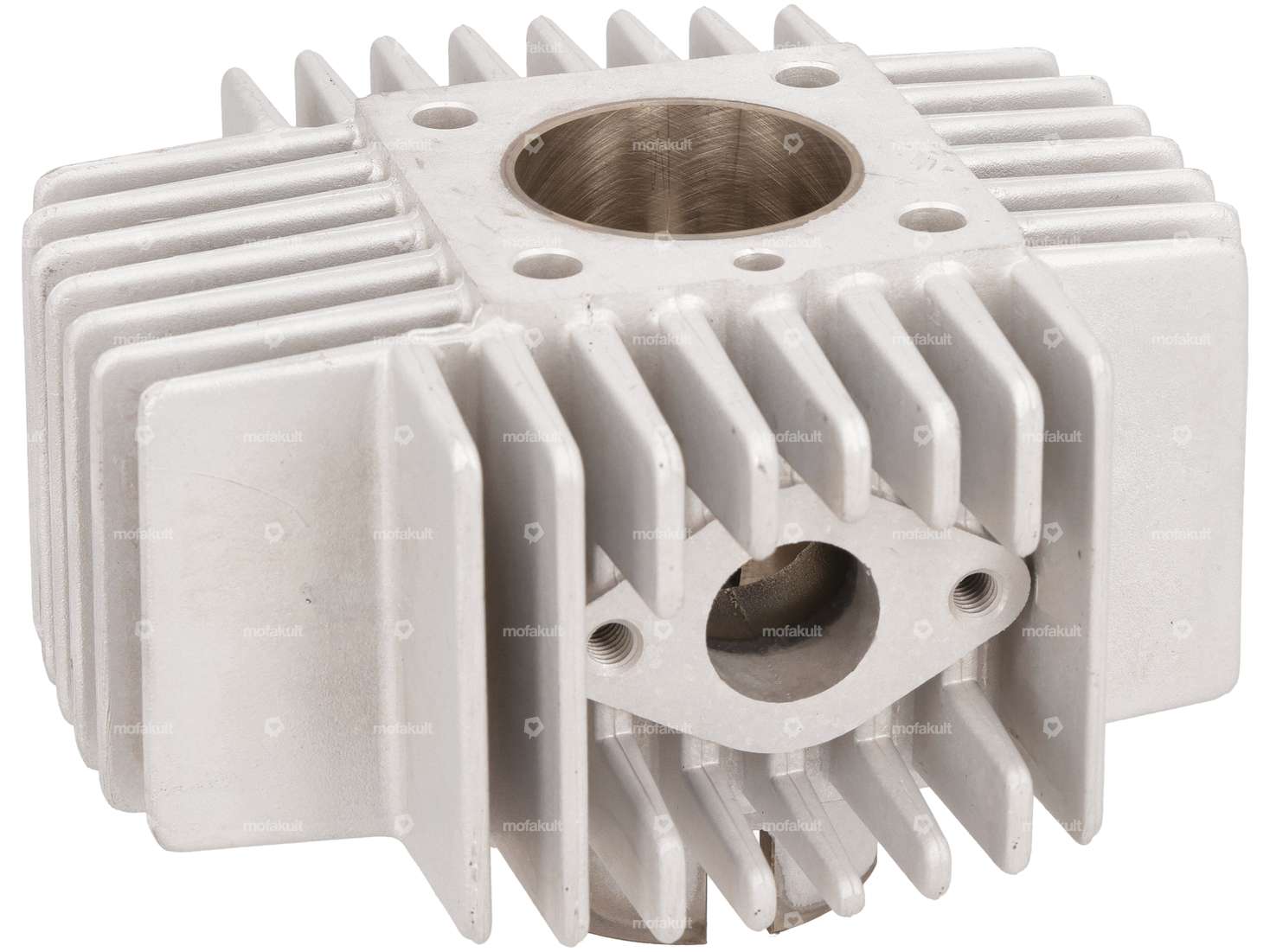

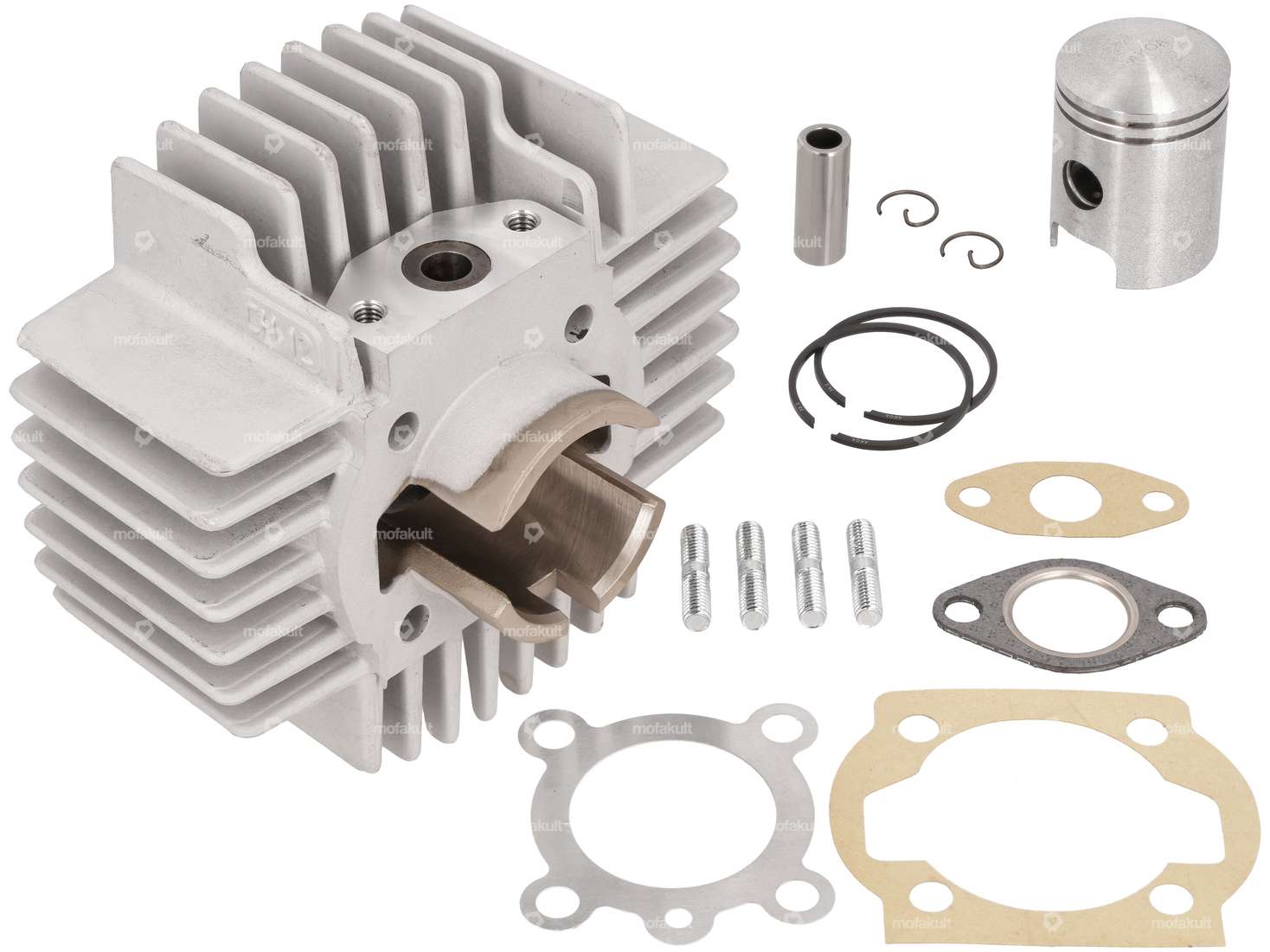

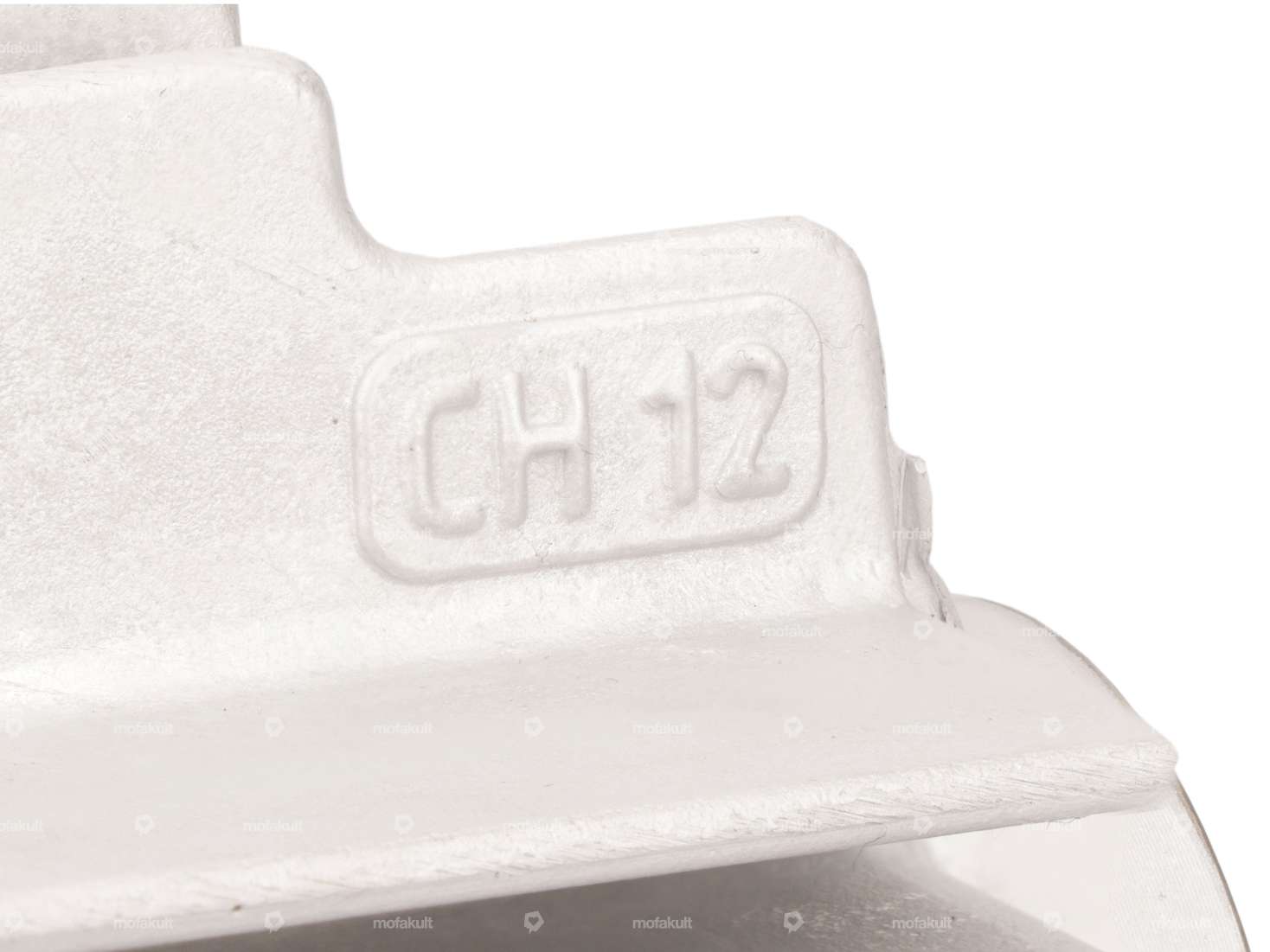

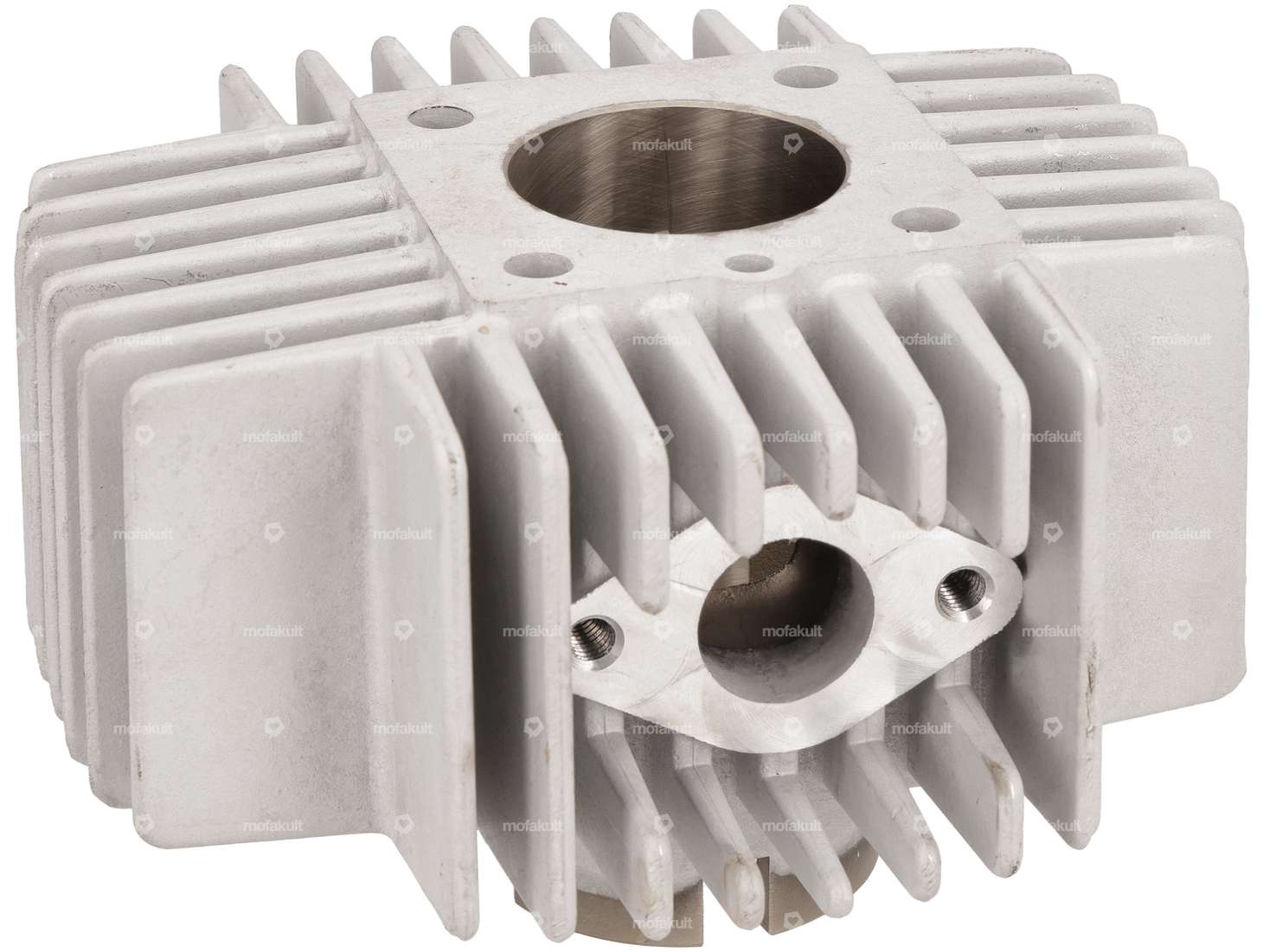

AKOA 38 mm cylinder kit 1.6 hp gray CH12 camouflaged | Puch E50 / ZA50 / Z50

swiing® revival stud bolt set M6 x 106 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Width across flats: 10 mm · Thread length: 13 mm · Thread length: 18.5 mm · Total length: 106 mm · Drive: External hexagon · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Alternative version of the Puch OEM number: 360.1.10.034.1

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents: 10 ml · Area of application: Chemistry · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

swiing® ingenious 15 mm carburetor set camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Nominal diameter: 15 mm · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Ø Inside entrance: 15 mm · Mounting type: Plug connection clamped · Mounting type: Stud bolts & nuts · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Hole spacing inlet: 38 mm · Ø Internal connection: 20 mm · Ø fuel hose connection: 5 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m · Area of application: Tuning

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

NGK B6HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm

swiing® ingenious resonance exhaust set Ø 28 / 70 mm | Puch Maxi, X30 Sport

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Total length: 730 mm · Color: Chrome · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Flange

GPO gasket set cylinder 38 mm Puch

Manufacturer: GPO · Area of application: Standard · Area of application: Tuning · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 mm · Number of components: 4 pcs · Hole spacing outlet: 42 mm · Decompressor: Yes

swiing® revival stud bolt set M6x30 (10.9 strength) galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Width across flats: 10 mm · Thread length: 12 mm · Total length: 30 mm · Drive: External hexagon · Diameter: 6 mm · Thread type: M6x1 (standard thread) · Strength class: 8 · Strength class: 10.9

Solder wire Ø 2 mm Determination of the crimping edge (10 cm piece)

Area of application: Workshop accessories · Total length: 100 mm · Diameter: 2 mm

swiing® ingenious 17 mm carburetor set camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Nominal diameter: 17 mm · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Carburetor type: SRF · Mounting type: Plug connection clamped · Ø Air filter connection: 27.5 mm · Hole spacing inlet: 38 mm · Mixed oil connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.2 · Nozzle size: 74 · Clamping screw torque (max.): 4 N/m · Area of application: Racing · Area of application: Tuning

GPO sprocket 13 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Number of teeth: 13 pcs · Ø inside: 13.7 mm · Ø inside: 16.9 mm · Recording type: Interlocking · Total thickness: 4.6 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: GPO · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

Exhaust 18 mm original 1-piece | Puch Maxi S, N

Manufacturer: Puch · Material: Steel · Surface: chrome-plated · Color: Chrome · Number of fixing points: 4 pcs · Mounting type: Welded lug · Ø Flame tube outside: 18 mm · Flame tube attachment: Flange

Inner cable set automatic | Puch E50

Manufacturer: Made in Germany · Material: Steel · Quantity: 4 pcs · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Total length: 1600 mm · Total length: 2200 mm · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears

Cable set E50 engine automatic black | Puch Maxi S / N

Material: Steel · Quantity: 4 pcs · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Total length: 1600 mm · Total length: 2200 mm · Outer shell length: 6000 mm · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears · Color: black

GPO fuel tap horizontal M12x1 (with union nut) bottom outgoing | Puch Maxi S, N

Manufacturer: GPO · Possible lever positions: open / closed / reserve · Material lever: Aluminum · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Puch OEM number: 349.3.22.030.0 · Puch OEM number: 349.4.22.030.0

AKOA 38 mm cylinder head gray | Puch E50 / ZA50 (air-cooled) / ZA50 (cat.) / Z50

Manufacturer: AKOA · Material: Aluminum · Surface: varnished · Ø cylinder: 38 mm · Total length: 132.2 mm · Width: 123.2 mm · Height: 54.5 mm · Hole pattern [mm]: 44 x 44 · Candle thread: short · Number of fixing points: 4 pcs · Decompressor: No · Area of application: Tuning
