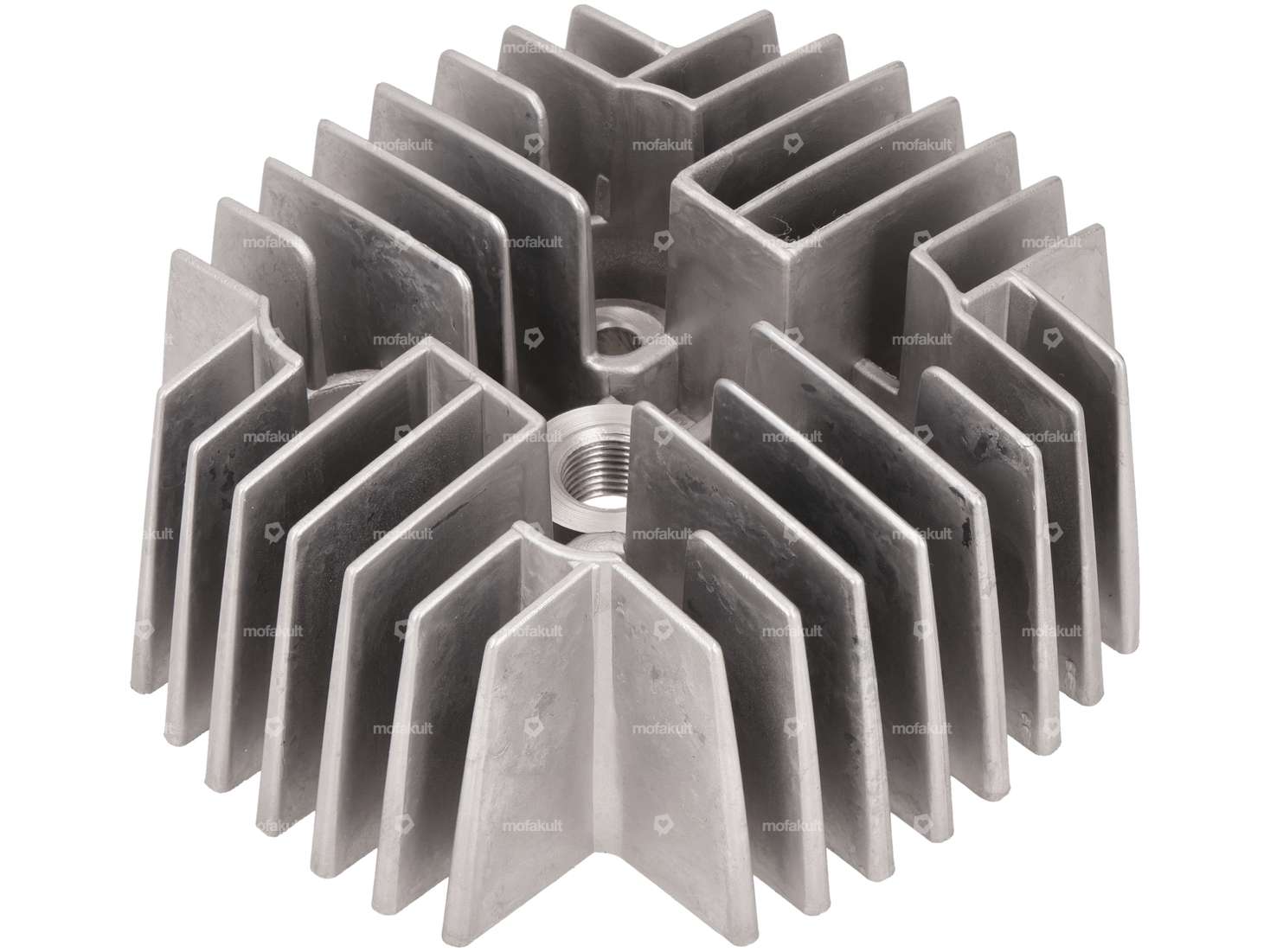

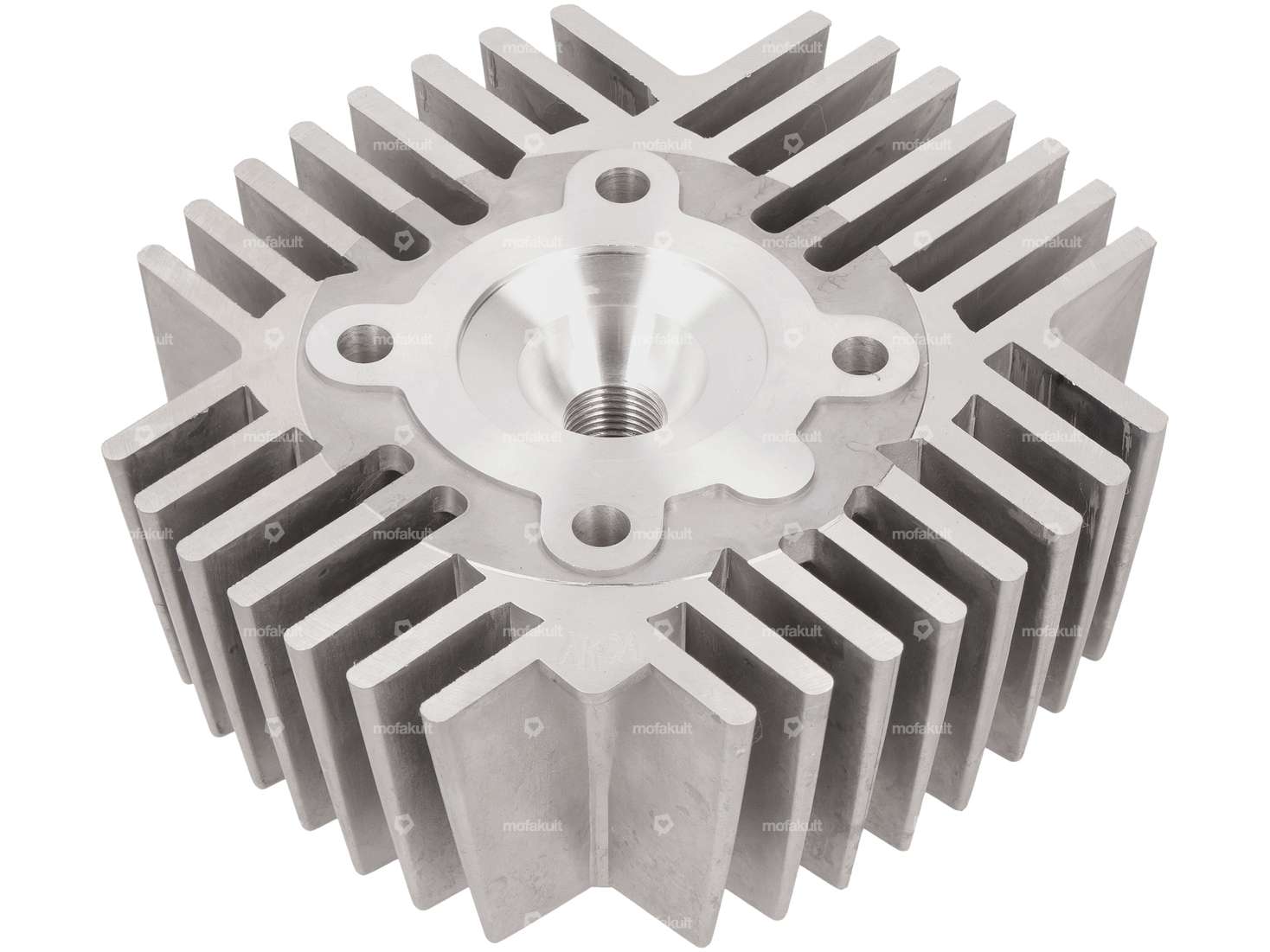

AKOA 38 mm cylinder head gray | Puch E50 / ZA50 (air-cooled) / ZA50 (cat.) / Z50

GPO 38 mm gasket cylinder head 0.4 mm aluminum | Puch

Place of use: Cylinder head · Manufacturer: GPO · Material: Aluminum · Area of application: Standard · Ø cylinder: 38 mm · Ø inside: 39 mm · Nominal diameter: 39 mm · Thickness: 0.4 mm · Ø screw holder: 7 mm · Hole pattern [mm]: 44 x 44 · Puch OEM number: 349.3.10.013.1

swiing® revival stud bolt set M6 x 106 | Puch

Material: Steel · Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Total length: 106 mm · Drive: External hexagon · Diameter: 5.9 mm · Thread length: 13 mm · Thread length: 18.5 mm · Thread type: M6x1 (standard thread) · Width across flats: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

NGK B6HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm

GPO gasket set cylinder 38 mm Puch

Manufacturer: GPO · Area of application: Standard · Area of application: Tuning · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 mm · Number of components: 4 pcs · Hole spacing outlet: 42 mm · Decompressor: Yes

Ripp-Lock washer M6 6.2/14/1.4 galvanized

Material: Steel · Surface: galvanized (blue) · Thread size: M6 · Thickness: 1.4 mm · Nominal diameter (thread): 6 mm · Ø inside: 6.2 mm · Ø outside: 14 mm · Alternative version of the Pony OEM number: A1644 · Alternative version of the Sachs OEM number: 0245 023 002 · Pony OEM number: A1542 · Sachs OEM no.: 0244 021 000

Flange nut M6 galvanized (8 strength)

Material: Steel · Surface: galvanized (blue) · Nut type: Flange nut · Width across flats: 10 mm · Height: 6 mm · Drive: External hexagon · Thread type: M6x1 (standard thread) · Strength class: 8

Solder wire Ø 2 mm Determination of the crimping edge (10 cm piece)

Area of application: Workshop accessories · Total length: 100 mm · Diameter: 2 mm

AKOA 38 mm cylinder kit 1.6 hp gray CH12 camouflaged | Puch E50 / ZA50 / Z50

Manufacturer: AKOA · Material: Aluminum · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Camouflaged: Yes · Crankshaft stroke: 43 mm · Displacement: 49 ccm · Ø cylinder neck: 47.9 mm · Ø Outlet outside: 19.9 mm · Inlet window: 9 · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Hole spacing inlet: 38 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: No · Area of application: Standard

AKOA 38 mm cylinder kit gray CH12 camouflaged | Puch E50 / ZA50 / Z50

Manufacturer: AKOA · Material: Aluminum · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Camouflaged: Yes · Crankshaft stroke: 43 mm · Displacement: 49 ccm · Ø cylinder neck: 47.9 mm · Ø Outlet outside: 19.9 mm · Ø piston pin (B): 12 mm · Inlet window: 22.5 x 14.8 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Hole spacing inlet: 38 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: No · Area of application: Tuning

GPO clutch 3-jaw aluminum | Puch E50

Manufacturer: GPO · Material: Aluminum · Area of application: Original · Area of application: Standard · Material: Steel · Material addition: Composite materials · Number of jaws: 3 pcs · Recording type: Cone mounting · Number of springs: 3 pcs · Ø inside: 12 mm · Ø inside: 14.6 mm · Thickness: 20.9 mm · Ø outside: 93 mm

15 mm intake manifold | Puch E50

Material: Aluminum · Area of application: Tuning · Ø inside: 14.5 mm · Ø External connection: 20 mm · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Height flange center hole: 43 mm · Total height: 54 mm · Total length: 47 mm · Camouflaged: Yes

GPO sprocket 13 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Number of teeth: 13 pcs · Ø inside: 13.7 mm · Ø inside: 16.9 mm · Recording type: Interlocking · Total thickness: 4.6 mm

Magura set screw M6 x 34 lock nut SW8

Slotted: No · Manufacturer: Magura · Width across flats nut: 8 mm · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Ø cable holder: 3.05 mm · Ø Receptacle: 7.05 mm · Thread length: 24 mm · Width across flats Screw: 8 mm · Thread type: M6x1 (standard thread) · Total length: 34 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: GPO · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

Exhaust 18 mm original 1-piece | Puch Maxi S, N

Manufacturer: Puch · Material: Steel · Surface: chrome-plated · Color: Chrome · Number of fixing points: 4 pcs · Mounting type: Welded lug · Ø Flame tube outside: 18 mm · Flame tube attachment: Flange

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents: 10 ml · Area of application: Chemistry · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

AKOA 38 mm cylinder kit 1.6 hp gray CH12 camouflaged | Puch E50 / ZA50 / Z50

Manufacturer: AKOA · Material: Aluminum · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Camouflaged: Yes · Crankshaft stroke: 43 mm · Displacement: 49 ccm · Ø cylinder neck: 47.9 mm · Ø Outlet outside: 19.9 mm · Inlet window: 9 · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Hole spacing inlet: 38 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: No · Area of application: Standard
