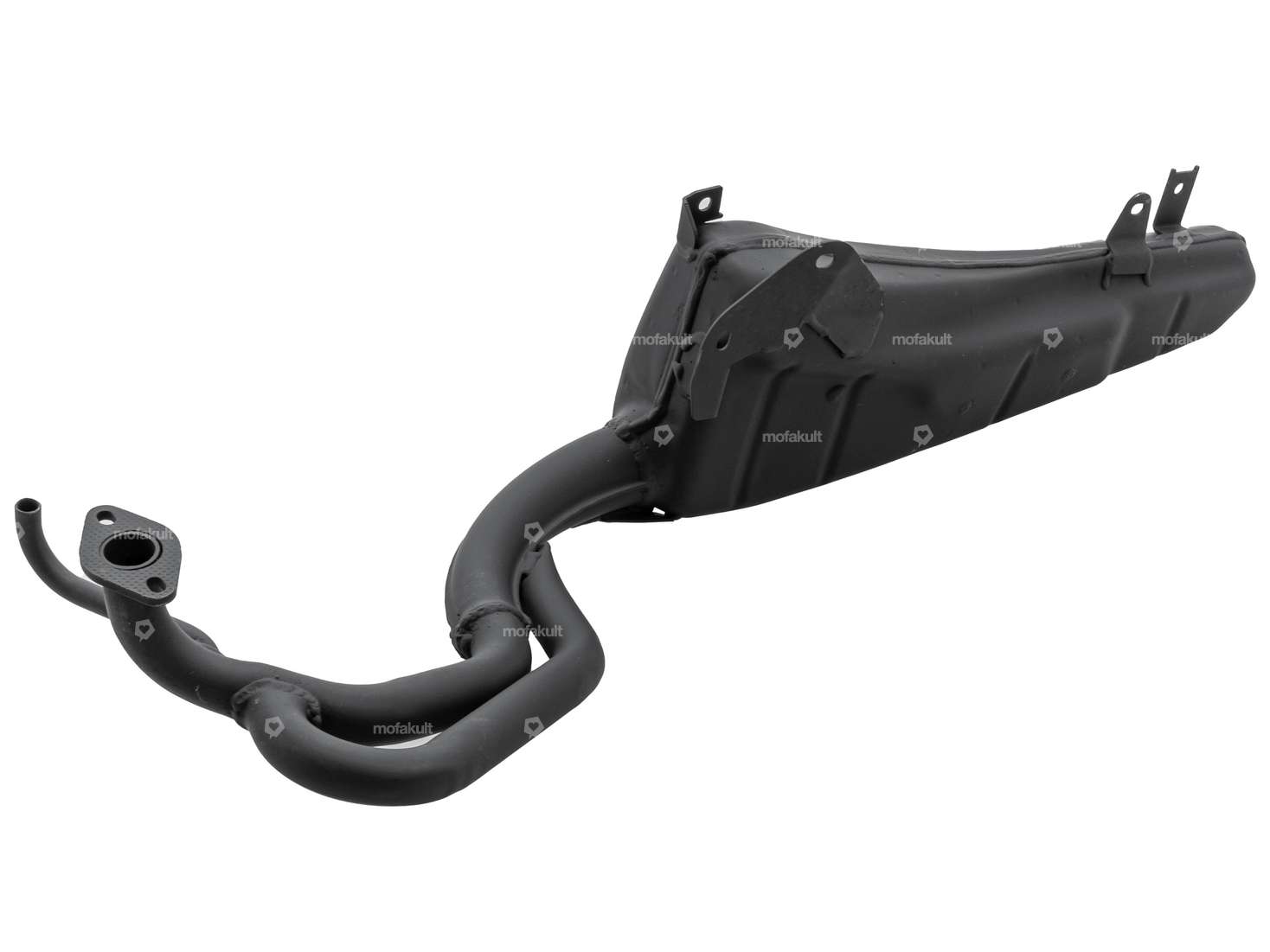

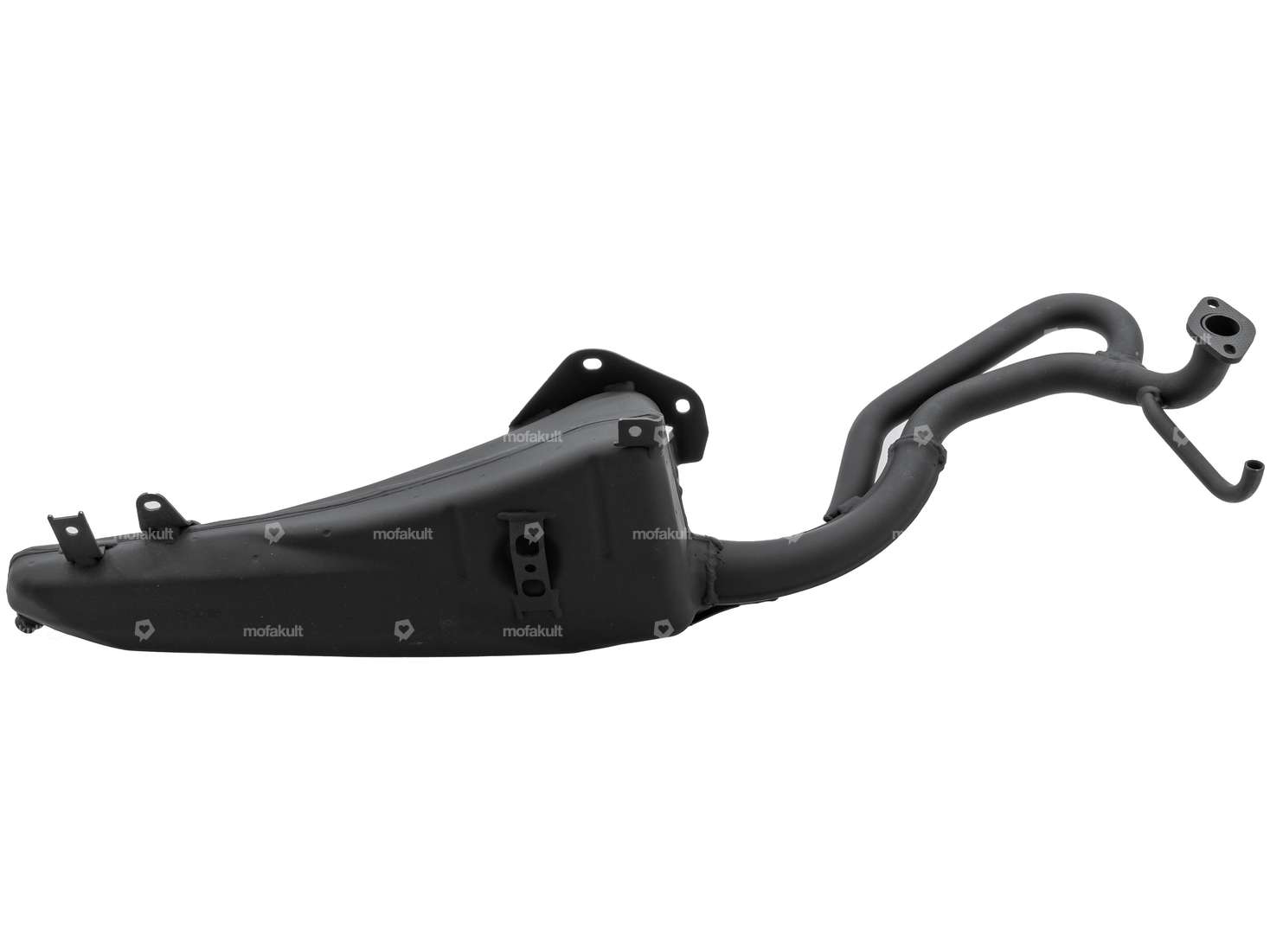

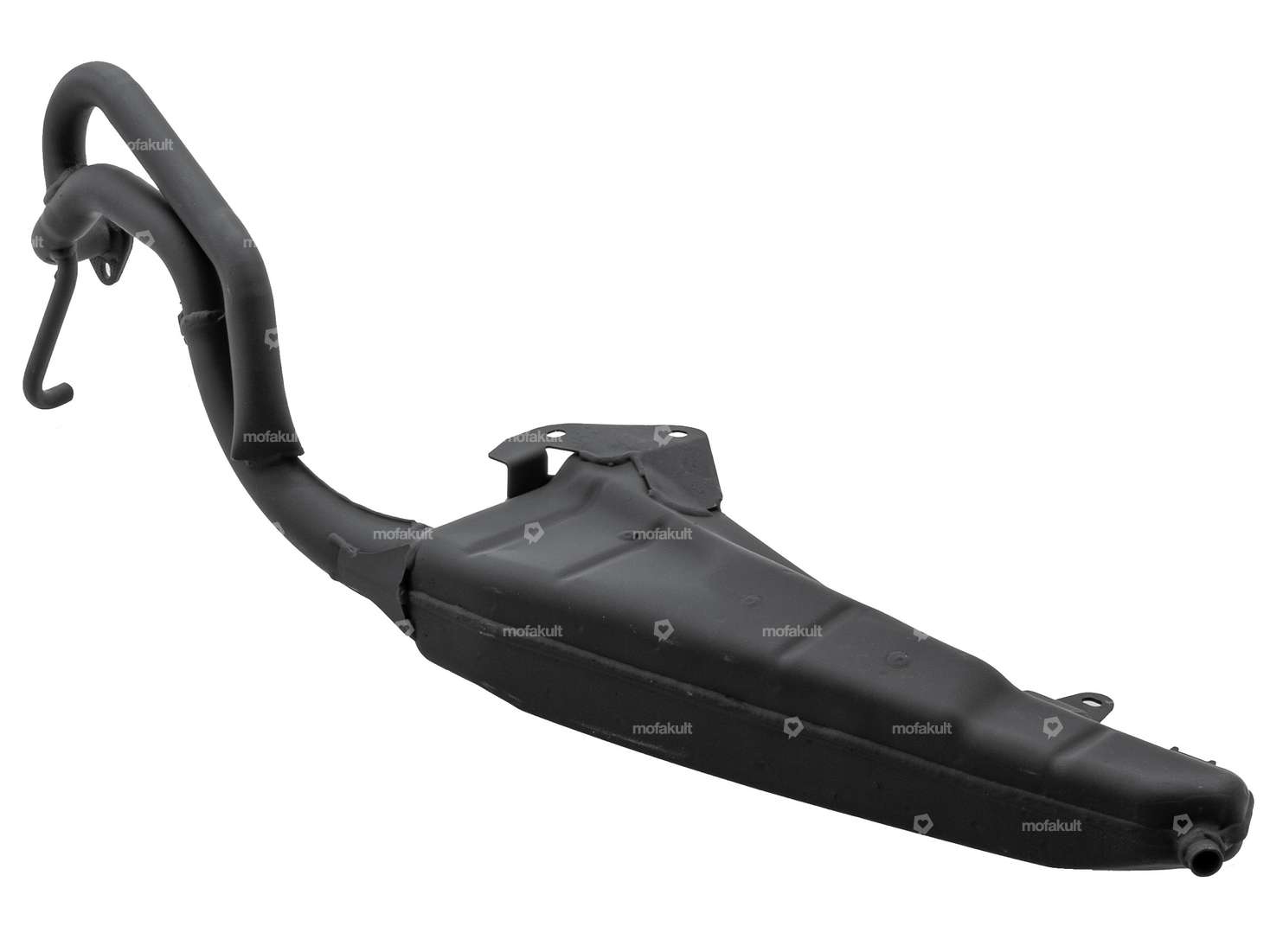

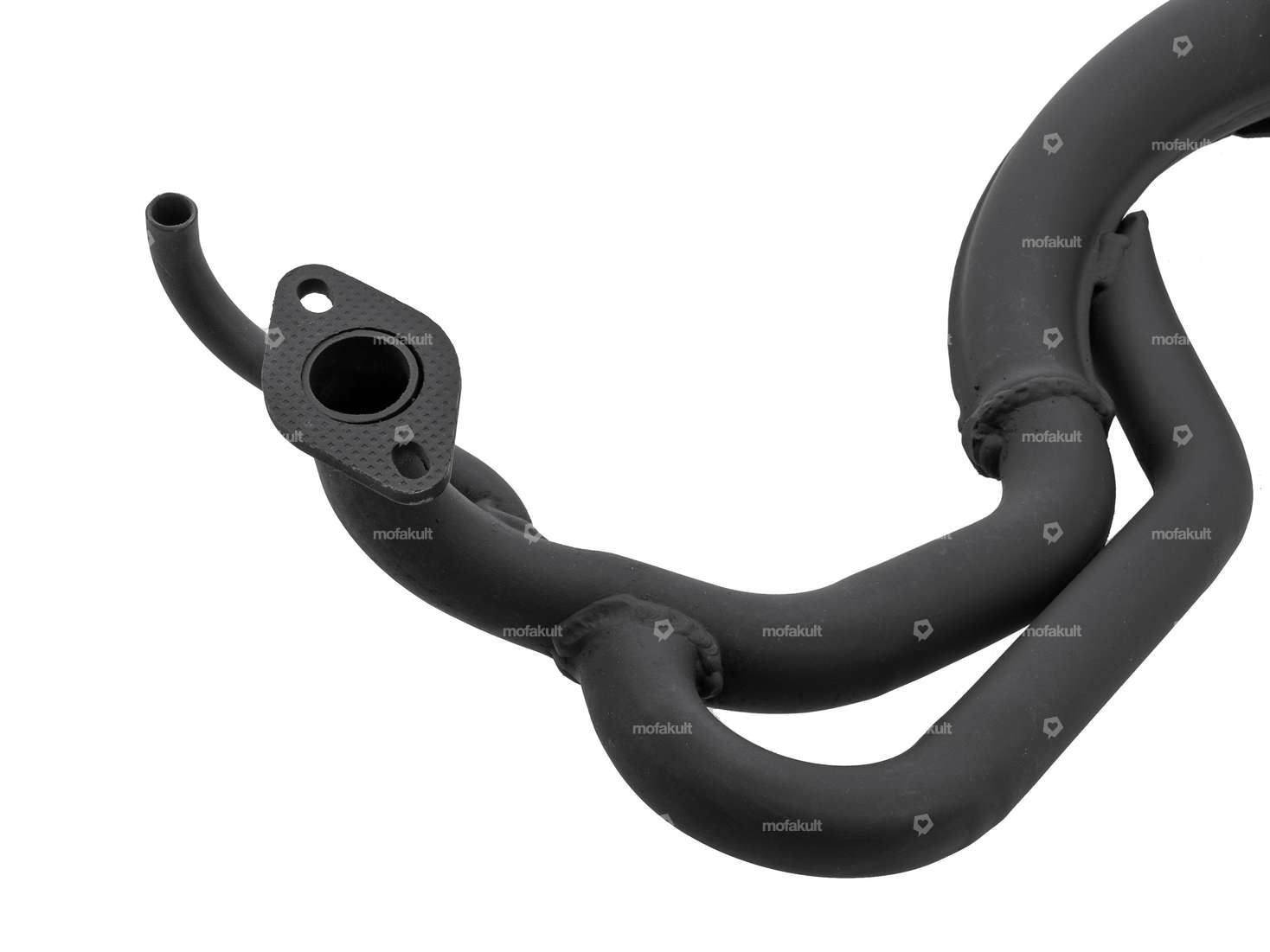

Tecnigas exhaust 45 km/h version with catalytic converter | BYE BIKE

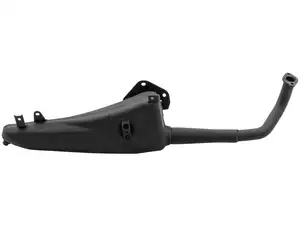

Tecnigas exhaust Racing 45 km/h version | BYE BIKE

Manufacturer: Tecnigas · Material: Steel · Surface: varnished · Color: black · Total length: 800 mm · Mounting type: Stud bolts & nuts · Number of fixing points: 2 pcs · Ø Flame tube outside: 30 mm · Exhaust type: Fishtail

Crankshaft full cheeks original | BYE BIKE

Manufacturer: BYE BIKE · Area of application: Original · Area of application: Standard · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 40 mm · Connecting rod length center-center: 80 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 87 mm · Total length crankpin ignition side: 94 mm · Thread type: M10x1.5 (standard thread) · Ø crank webs: 70 mm · Ø Connecting rod eye: 16 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 20 mm · Ø Bearing seat (ignition side): 20 mm · Thread length: 12 mm · Dimension needle bearing: 12 / 16 x 14.7 mm (axe 12) · Wide crank webs: 40 mm · Length 1st paragraph: 50.5 mm · Length 2nd paragraph: 21 mm · Length 3rd paragraph: 22.5 mm · Ø 1st step (on the coupling side): 48 mm · Ø 2nd shoulder (on the clutch side): 27 mm · BYE BIKE OEM number: BB01-11110-00-810

Pinion 11 teeth | BYE BIKE

Chain type: 415H · Material: Steel · Recording type: Interlocking · Chain pitch: 1/2" x 3/16" · Thickness: 4.2 mm · Number of teeth: 11 pcs · Ø inside: 14.6 mm · Ø inside: 17.1 mm · BYE BIKE OEM number: BB03-14111-00-810

Sprocket 13 teeth | BYE BIKE

Chain type: 415H · Manufacturer: BYE BIKE · Material: Steel · Recording type: Interlocking · Chain pitch: 1/2" x 3/16" · Thickness: 4.2 mm · Number of teeth: 13 pcs · Ø inside: 14.6 mm · BYE BIKE OEM number: BB01-14111-00-810

Pinion 14 teeth | BYE BIKE

Chain type: 415H · Manufacturer: BYE BIKE · Material: Steel · Recording type: Interlocking · Chain pitch: 1/2" x 3/16" · Thickness: 4.2 mm · Number of teeth: 14 pcs · Ø inside: 14.6 mm · Ø inside: 17.1 mm · BYE BIKE OEM number: BB01-14112-00-810

Sprocket 44 teeth | BYE BIKE

Chain type: 415H · Ø mounting hole: 8.8 mm · Material: Steel · Surface: galvanized (blue) · Color: silver · Chain pitch: 1/2" x 3/16" · Thickness: 4.6 mm · Number of teeth: 44 pcs · Ø inside: 54.1 mm · Ø bolt circle: 70 mm · Number of fixing points: 4 pcs · BYE BIKE OEM number: BB03-14131-00-810

Sprocket 40 teeth | BYE BIKE

Chain type: 415H · Ø mounting hole: 8.8 mm · Manufacturer: BYE BIKE · Material: Steel · Surface: galvanized (blue) · Chain pitch: 1/2" x 3/16" · Thickness: 4.6 mm · Number of teeth: 44 pcs · Ø inside: 54.1 mm · Ø bolt circle: 70 mm · Number of fixing points: 4 pcs · BYE BIKE OEM number: BB01-14131-00-810

Cylinder gasket set (1A quality) | BYE BIKE

Material: Aluminum · Material: Graphite / Graphite · Material: Oiled paper · Area of application: Original · Area of application: Standard · Ø cylinder: 38 mm · Thickness: 0.5 mm · Thickness: 1.5 mm · Ø outlet inside: 22 mm · Number of components: 3 pcs · Hole spacing outlet: 30.5 - 11.5 mm · Hole pattern [mm]: 46 x 46 mm
