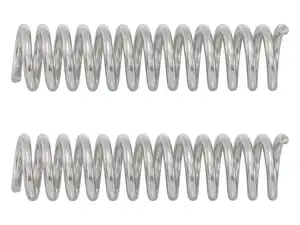

High-quality fork repair kit with Ø 28 mm fork springs made of stainless spring steel to fit your Piaggio Ciao PX and C24 moped / moped.
The springs fit the following model series as standard, which have swing arms with a 28 mm mount:
- Ciao PX: round seat tube, cast rims and new luggage carrier
- Ciao C24: last model from 1999 to 2006 with square seat post, cast rims and new luggage rack
All bolts, nuts and washers are made of stainless steel and the brass bushes significantly increase the service life of the axle for the swing arms. The support rubbers are made of high-quality, flexible plastic and do not tear like other protective rubbers available on the market. Depending on the desired riding behavior, you have the option of choosing between three different spring strengths in the selection field.

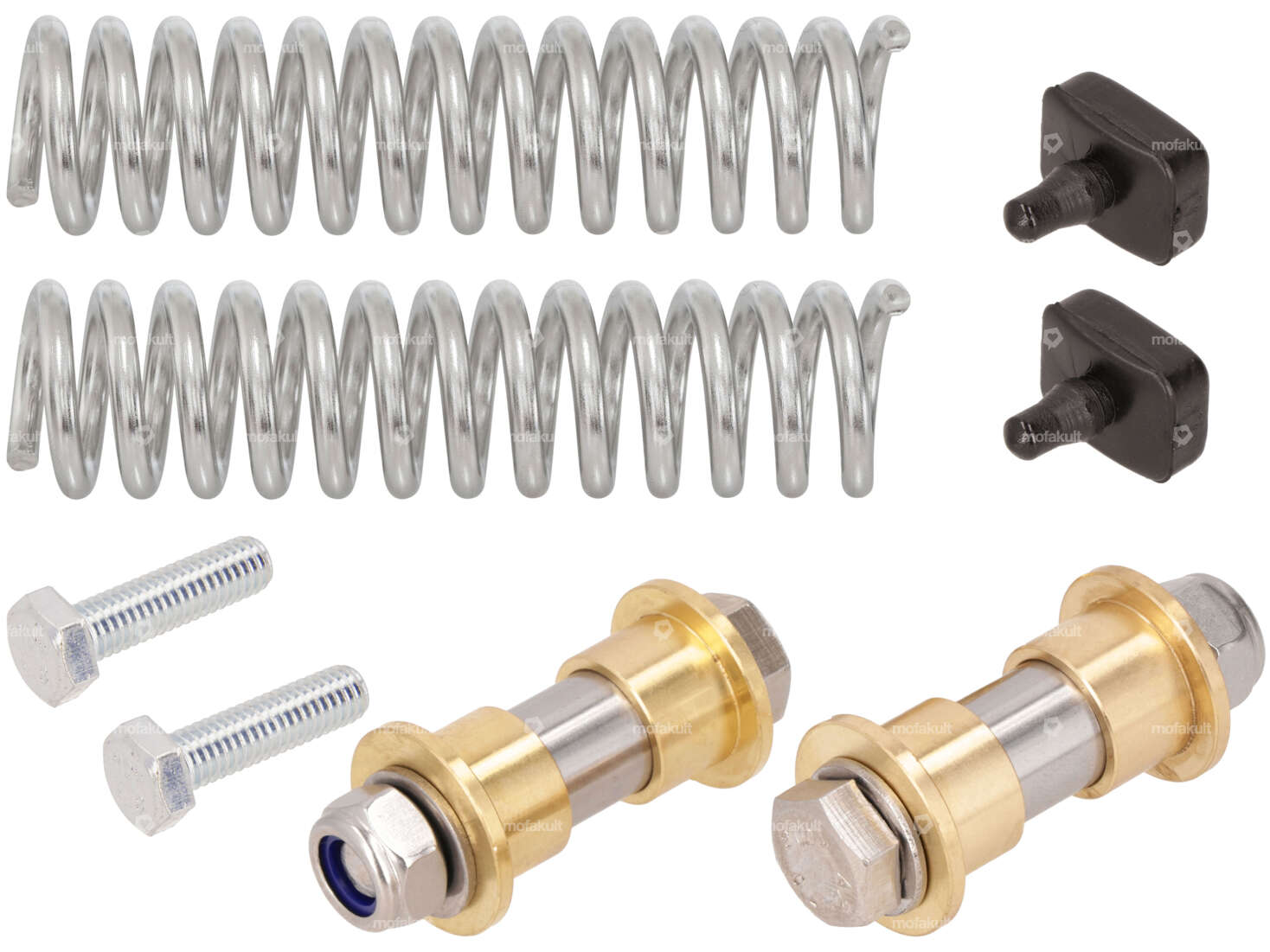

The set includes the following fixed parts:
Manufacturer: swiing® ingenious parts · Material: Brass, Chrome steel (stainless steel) · Color: gold · Drive: External hexagon · Ø Bearing inside: 12.85 mm · Ø outside: 16 mm, 22 mm · Total length: 50 mm · Thread type: M8x1.25 (standard thread) · Thread length: 22 mm
Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Thread type: M6x1 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Width across flats SW: 10 mm · Total length: 26 mm · Thread length: 22 mm · Strength class: 8.8 · Color: silver · Number of components: 1 pcs
Details
| Manufacturer | swiing® ingenious parts |
| Ø wire | 4.25 mm, 4.5 mm |
| Material | Chrome steel (stainless steel), Spring steel, Brass, Rubber |
| Surface | electropolished |
| Color | Chrome, black |
| Ø inside | 20 mm |
| Total length | 110 mm |
| Ø outside | 28.4 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao |
