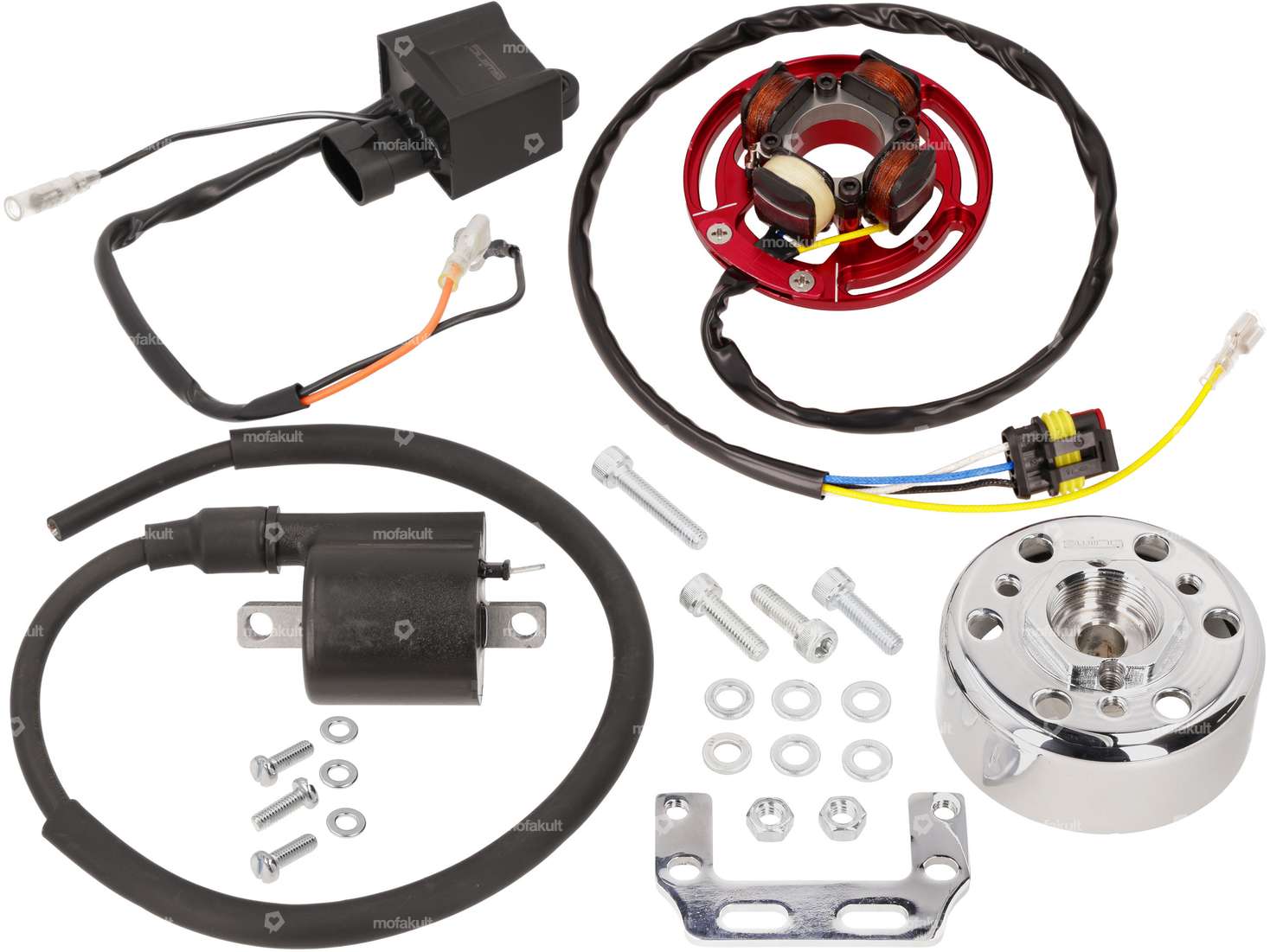

Complete set of the 12V swiing® ingenious EVO ignition with built-in 60W light coil, suitable for various moped, moped or small motorcycle models with airstream-cooled engines such as Sachs 50/2, 50/3, 505/1, 505/2, 505/3 and 506.
This electric ignition can be installed on Hercules Prima 2, 3, 4, 5 and GT models, among others.
| Manufacturer | swiing® ingenious parts |
| Area of application | Tuning, Racing, High End |
| Ø Internal flywheel | 63.5 mm |
| Tension | 12 V |
| Light coil voltage | 12 V |
| Performance | 60 W |
| Direction of rotation | any |
| Ø mounting plate | 90 mm |
| Ø Flywheel outside | 75 mm |
| Mounting type | Screws |
| Number of fixing points | 3 pcs |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 50/2 - MB (2.6 PS) 50/3 505 (with pedal shaft) - 1A (AT) , 2A (HG) , 2B (HG) 535 |
| Hercules | Great - 2 , 3 , 4 , 5 , Optima , GT |
