Useful tool for tightening the clutch spring on manual Puch X30 Sport & Puch X30 Velux mopeds / mopeds.
By pretensioning the spring, the nut can be easily mounted on the crankshaft.

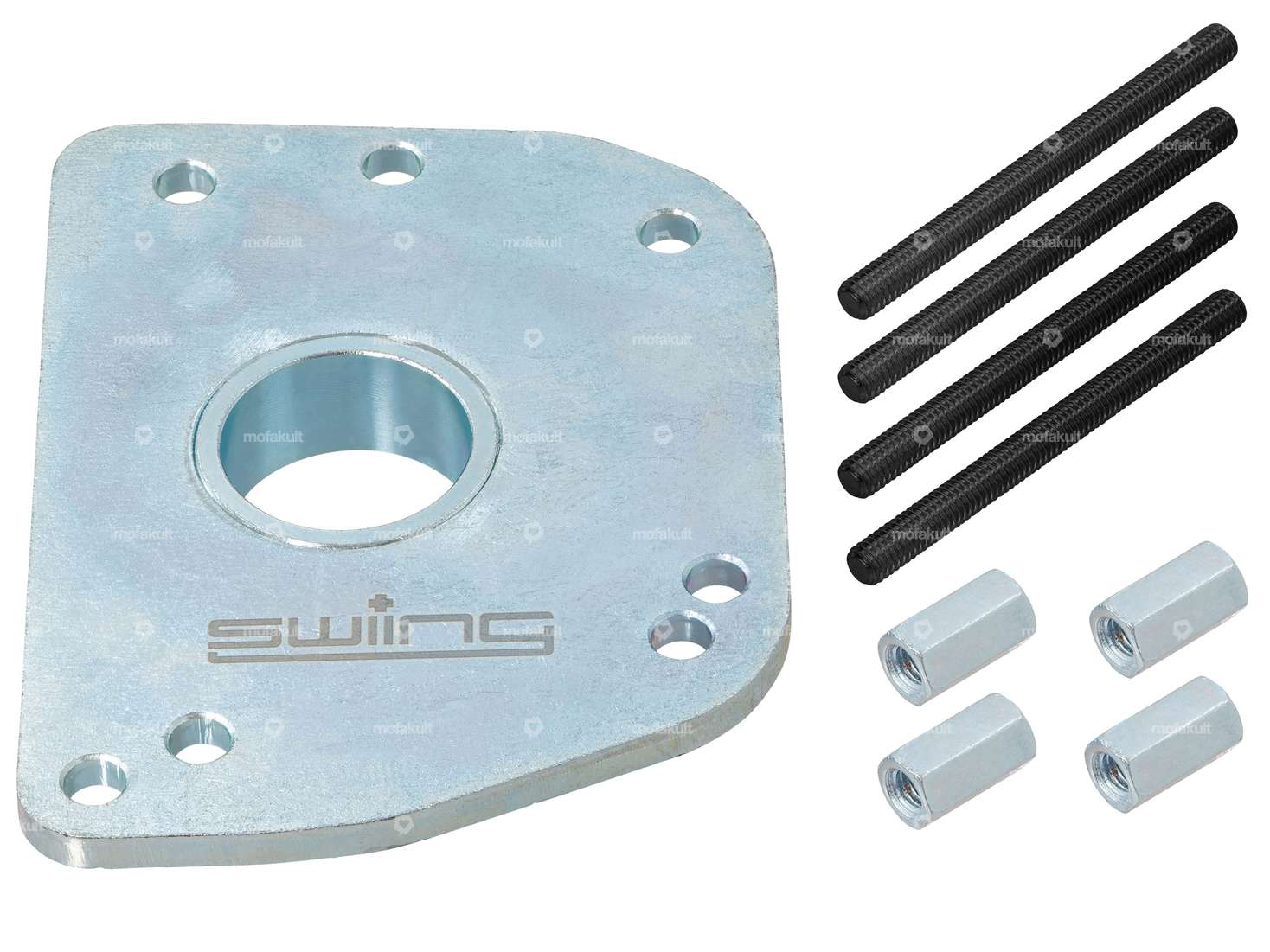

The four threaded bolts with hexagon socket are screwed into the corresponding threaded holes. The clutch spring is pretensioned by tightening the four 3D nuts.

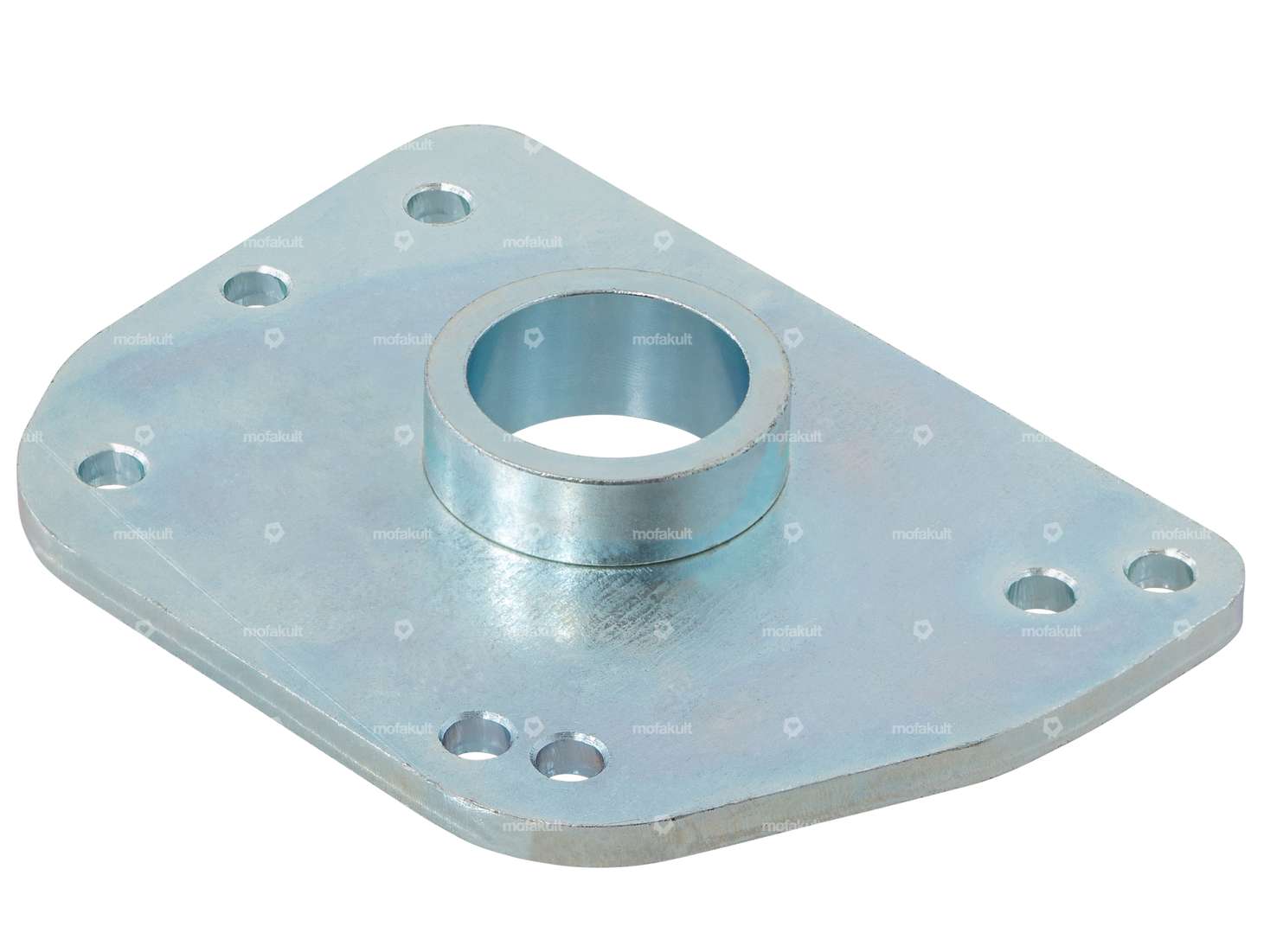

Thickness of mounting plate: 6 mm

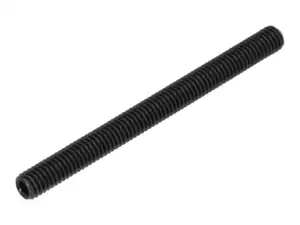

Threaded bolts: M6 x 70 mm (with hexagon socket)
Nuts: M6 x 18 mm (SW10 mm)

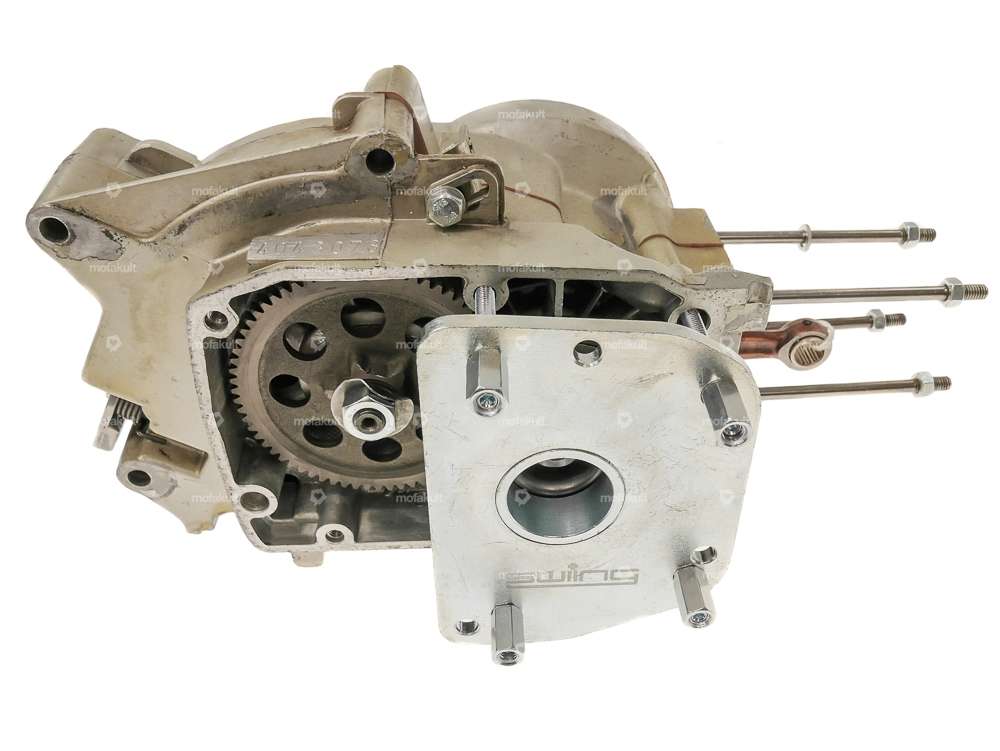

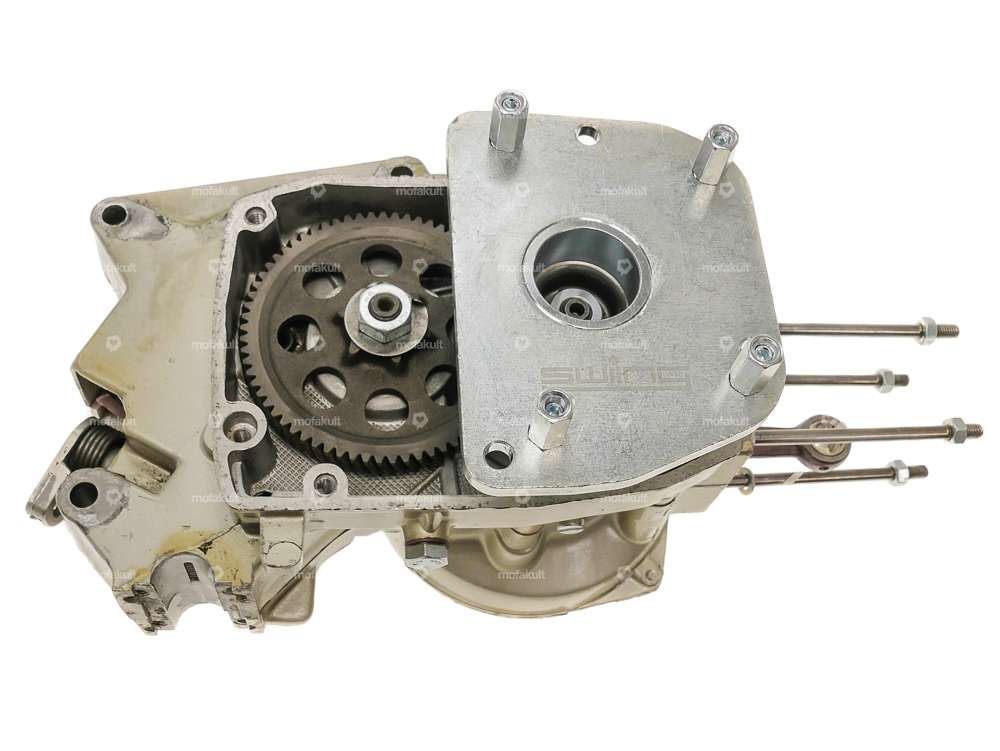

Figures 4 and 5 are for illustrative purposes.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Area of application | Special tool |
| Material | Steel |
| Surface | galvanized (blue) |
| Thread type | M6x1 (standard thread) |
| Total length | 130 mm |
| Thickness | 6 mm |
| Number of components | 9 pcs |
| Width | 96 mm |
Suitable for the following models
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) |
