Not so nice
17-inch spoked rear wheel with a 1.5" rim for your Puch Maxi S & N moped.
The aluminum hub comes complete with wheel bearings, axle, nuts, and spacers. The rim is made of chrome-plated steel. The spokes and nipples are galvanized.
Moderately casual! – We strive to offer you the widest selection of moped replacement parts. However, the quality of this product is rather “moderately casual,” and we do not recommend it. If you still choose this item, we understand your decision, but we cannot offer any warranty or exchange. This is a replica product that differs in quality from the original rim.- The spokes should be checked before first use and tightened if necessary.
- The rim’s concentricity should be checked.
- The threads for the sprocket should be reamed out so that the sprocket can be secured with standard screws and nuts.
- The rim tape should be replaced with a high-quality product.
You can find high-quality alternatives, compatible brake anchor plates, and the rear wheel rim in the accessories section.
| Material | Aluminum, Steel |
| Surface | galvanized (blue), chrome-plated |
| Wheel size | 17 " |
| Nominal diameter | 457 mm |
| Rim well depth | 9.5 mm |
| Overall width outside | 50 mm |
| Number of spoke holes | 36 pcs |
| Ø axle | 12 mm |
| Ø spoke | 2.9 mm |
| Thread type | MF12x1 (fine pitch thread) |
| Axle length | 180 mm |
| Jaw width [mm] | 37.5 mm |
| Jaw width [inch] | 1.5 " |
| Ø Brake drum | 80 mm |
| Puch | E50 |
Accessories & related products
Fortune / Merrick 2.00-2.25 x 16" / 17" inner tube
Manufacturer: Fortune · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Wheel size: 16 - 17 " · Wheel size: 17 " · Tire height [%]: 100 · Old designation: 20 x 2 " · Old designation: 20 x 2.25 " · Old designation: 20 x 2.5 " · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR4 Auto valve · Alternative version of the Puch OEM number: 567.060700 · Alternative version of the Puch OEM number: 901.0863 · Alternative version of the Puch OEM number: 902.0853
EUR 12,40
Hot
Mitas 2.25 x 17" tires MC11 Semi-Slick Whitewall
Inventory-managed: No · Manufacturer: Mitas · Tire width: 2.25 " · Color: black · Color: white · Tire width [mm]: 57.15 · Width: 2 1/4 " · Wheel size: 17 " · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: MC11 · Tire type: Semi-slick · Old designation: 21 x 2.25 " · White wall: Yes · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 76,40
Heidenau 2.25 x 17" tires M4 Allround
Inventory-managed: No · Manufacturer: Heidenau · Tire width: 2.25 " · Width: 2 1/4 " · Wheel size: 17 " · Old designation: 21 x 2.25 " · Speed index: B = 50 km/h · Load capacity index: 28 = 100 kg · Profile type: M4 · Tire type: Allround · Color: black · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 56,40

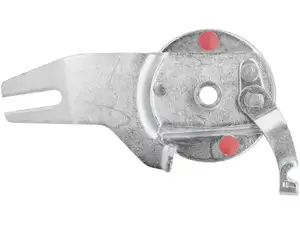

swiing® revival rear brake anchor plate | Puch Maxi S, X30 NG
