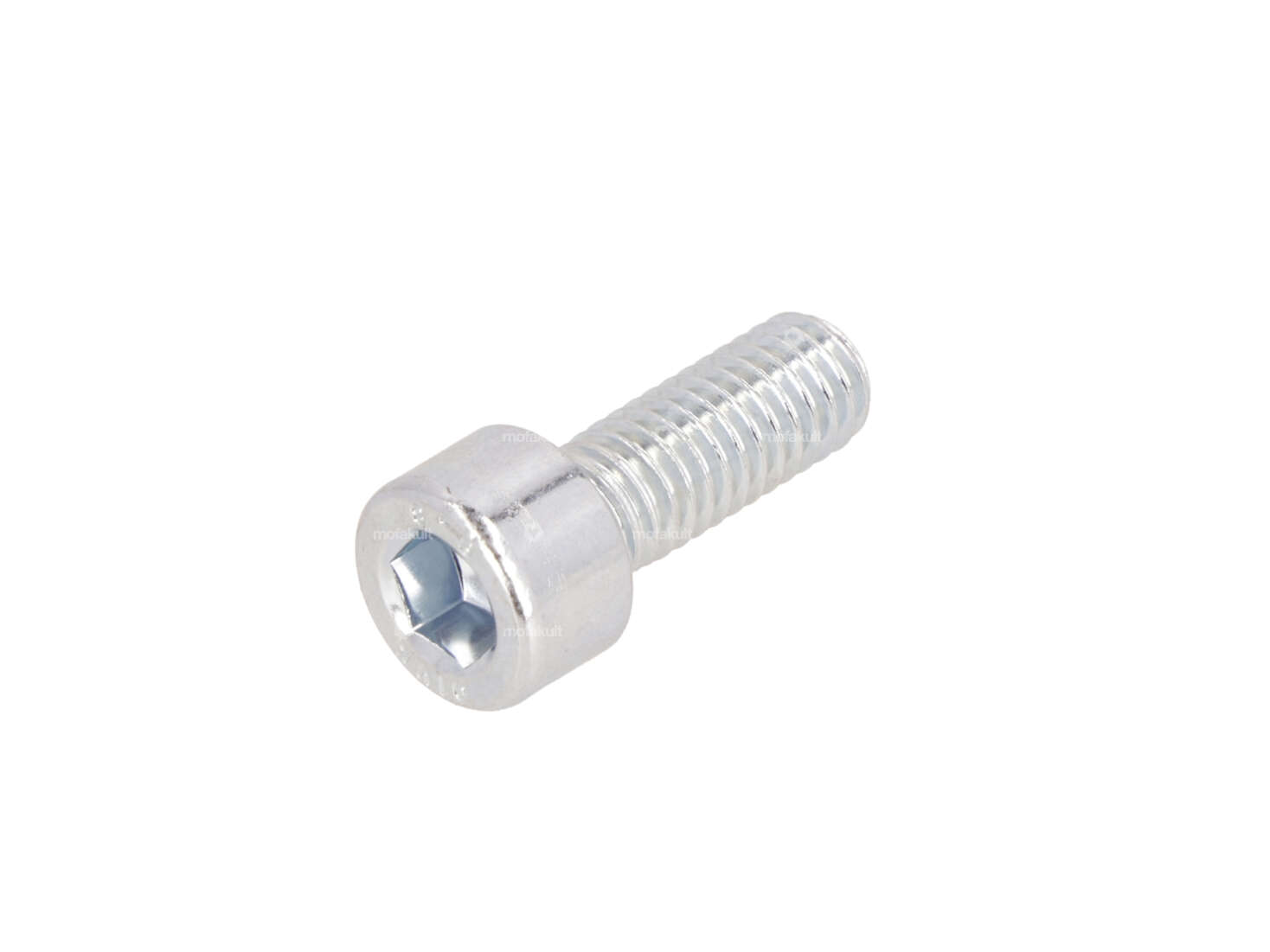

Screw M6x16 cylinder head hexagon socket, galvanized

Outlet seal Ø 27 Steel ring

Material: Sealing carton · Material: Sheet metal (steel) · Area of application: Tuning · Reinforced: Yes · Ø outlet inside: 27 mm · Ø screw holder: 6.3 mm · Thickness: 2.1 mm · Place of use: Outlet · Hole spacing outlet: 42.5 mm

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Cable length: 2200 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: GPO · Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Mounting type: Union nut · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

Exhaust gasket original | Puch

Material: Sealing carton · Ø mounting hole: 6.3 mm · Thickness: 1.8 mm · Place of use: Outlet · Ø inside: 18 mm · Ø inside: 22 mm · Hole spacing: 42.5 mm · Number of fixing points: 2 pcs

Puch intake gasket original

Place of use: Admission · Material: Sealing paper · Ø inside: 15 mm · Thickness: 0.35 mm · Ø screw holder: 6.3 mm · Hole spacing inlet: 32.5 - 38 mm · Area of application: Original

Ø 9.5 mm Wedge 4.5° Pedal crank galvanized

Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Color: silver · Total length: 43 mm · Angle crank wedge: 4.5° · Ø outside: 9.5 mm

Brass nut M6 3D

Material: Brass · Thread type: M6x1 (standard thread) · Nut type: Neck nut · Ø outside: 9 mm · Nominal diameter (thread): 6 mm · Height: 25 mm · Drive: External hexagon · Width across flats: 10 mm · Shank length: 20 mm · Thread depth: 25 mm · Area of application: Standard

Screw M6x20 cylinder head hexagon socket, galvanized

Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 25.9 mm · Screw head: Cylinder head · Ø External head: 9.9 mm · Thread length: 20 mm · Drive: Hexagon socket · Shank: No · Width across flats: 5 mm · Strength class: 8.8
