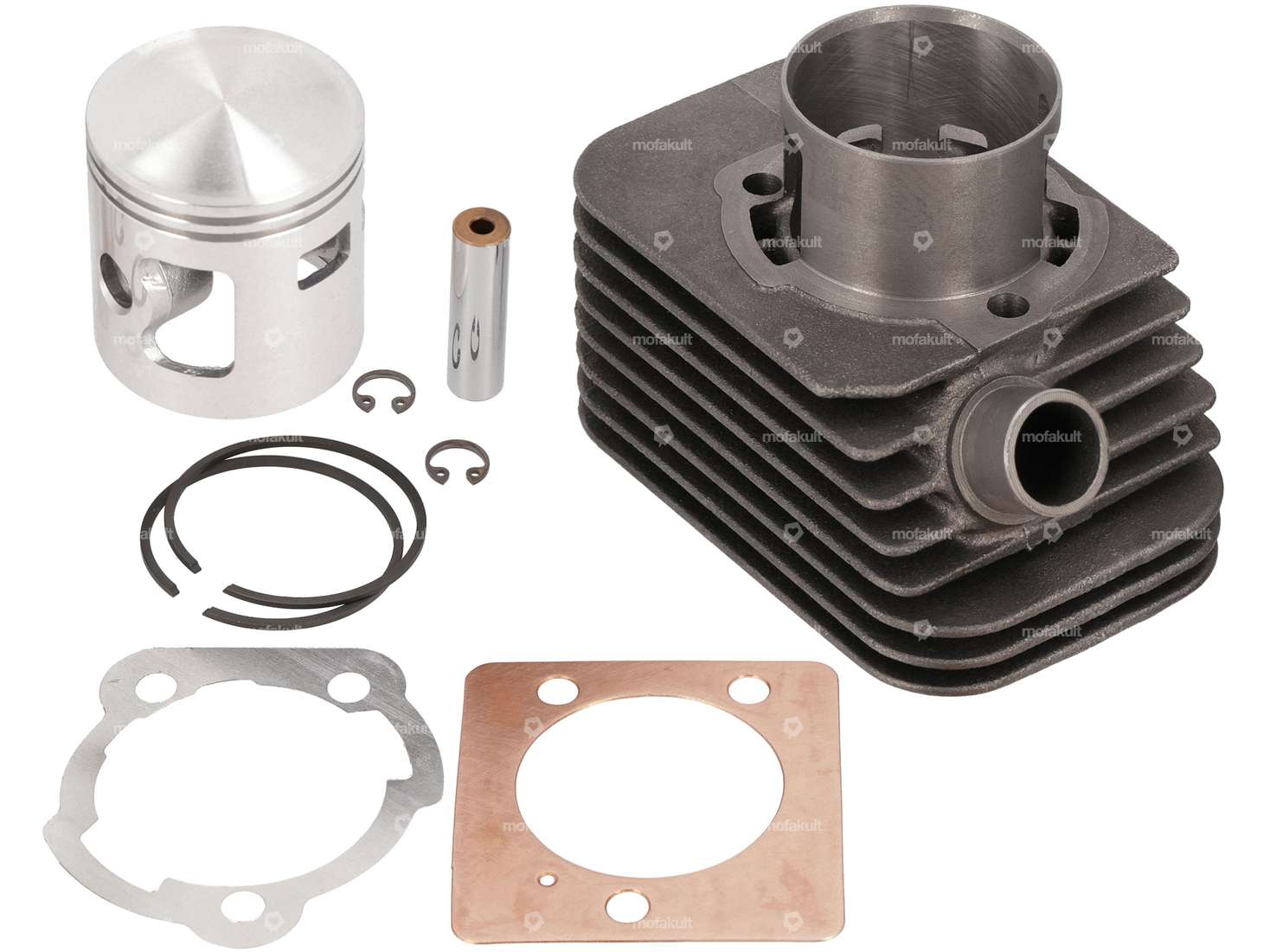

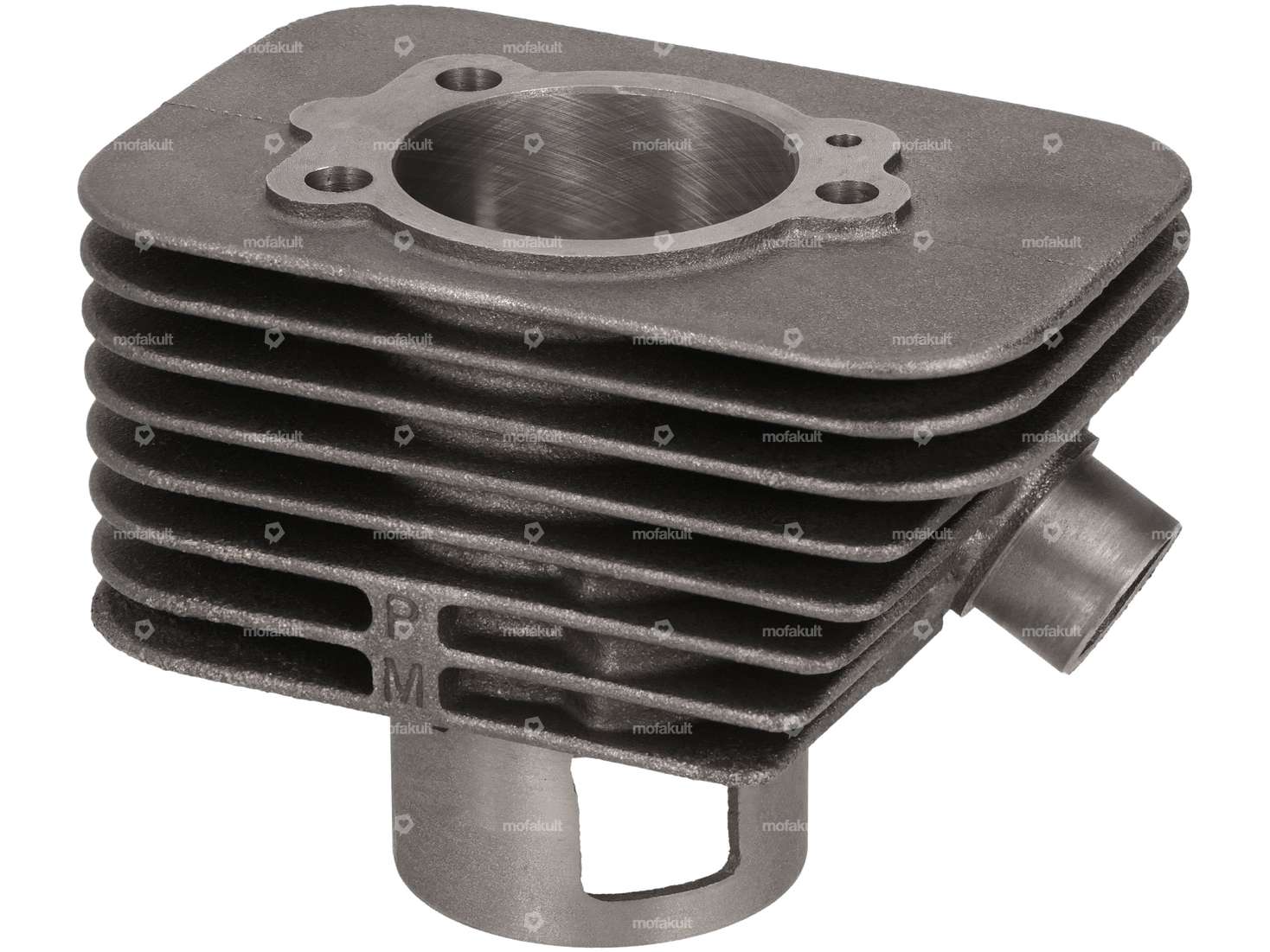

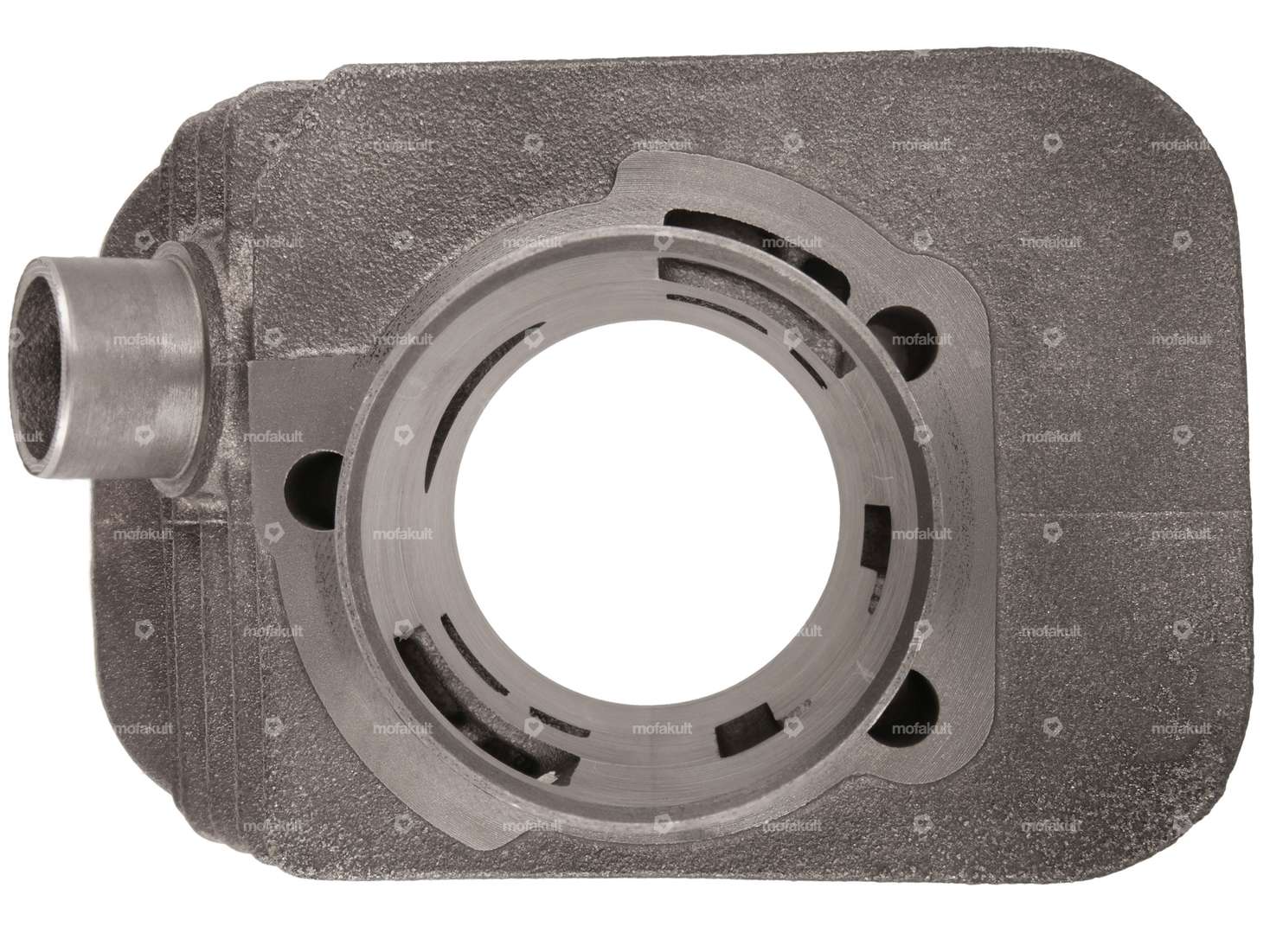

46 mm cylinder kit with 10 mm piston pin suitable for your Piaggio Ciao, Bravo and Boxer moped / moped.
Excellent workmanship, durability and an exceptional price-performance ratio make this cylinder set one of the most popular on the market.
In addition to the cylinder, the pistons, piston pins and piston pin clips are included in the scope of delivery.
Note: Please note the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.
Further components useful for assembly can be found in the accessories section.
Quality product from the Italian manufacturer Polini.
| Manufacturer | Polini |
| Material | Gray cast iron |
| Surface | sandblasted |
| Nominal diameter | 46 mm |
| Displacement | 70 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 49.8 mm |
| Ø Outlet outside | 22.5 mm |
| Ø outlet inside | 18 mm |
| Area of application | Tuning |
| Number of fixing points | 3 pcs |
| Hole pattern [mm] | 55 x 34 |
| Ø piston pin (B) | 10 mm |
| Outlet type | clamped |
| Decompressor | Yes |
| Camouflaged | No |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
