For: Sachs

15138

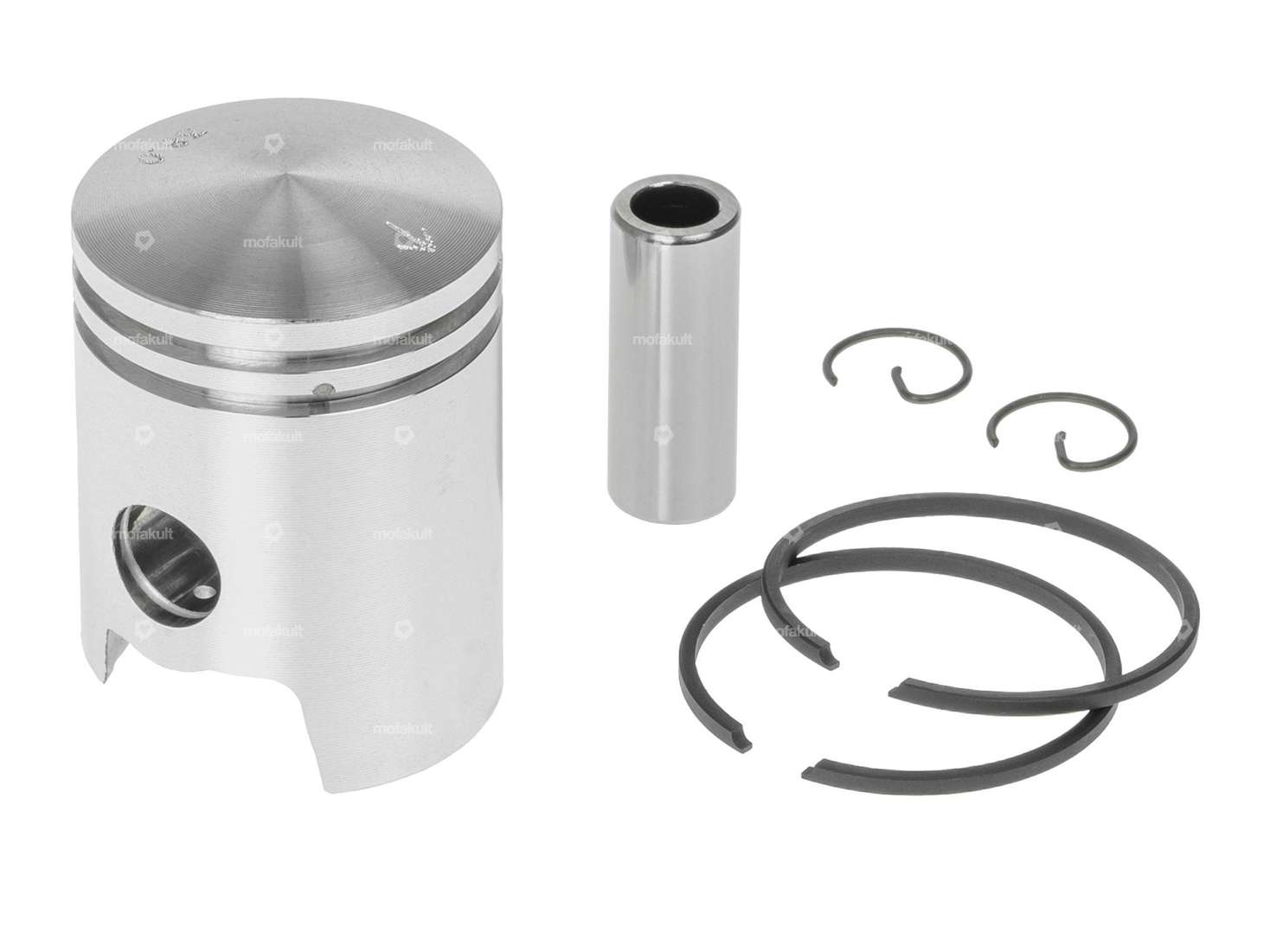

Piston 38 mm | Sachs 50/3, 50/4 square inlet

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 56,40

Incl. 20% VAT.

Description

38 mm replacement piston / piston kit with two pieces of 2 mm rectangular piston rings with flank lock (FS) suitable for the windage-cooled cylinder of Sachs 50/3 & 50/4 mopeds / mopeds with square intake.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38 mm
Ø outside piston (A)37.94 mm
Compression height (C)28 mm
Curvature (D)2.95 mm
Total piston height (E)53 mm
Number of piston rings (F)2 pcs
Piston ring impactFlank safety device (FS)
Piston ring moldRectangular ring
Piston ring height2 mm
Ø piston pin (B)12 mm
Weight piston kit73 g
Sachs

50/3

50/4 - MLFB (2.6 PS) , LKH (4.5 PS)
