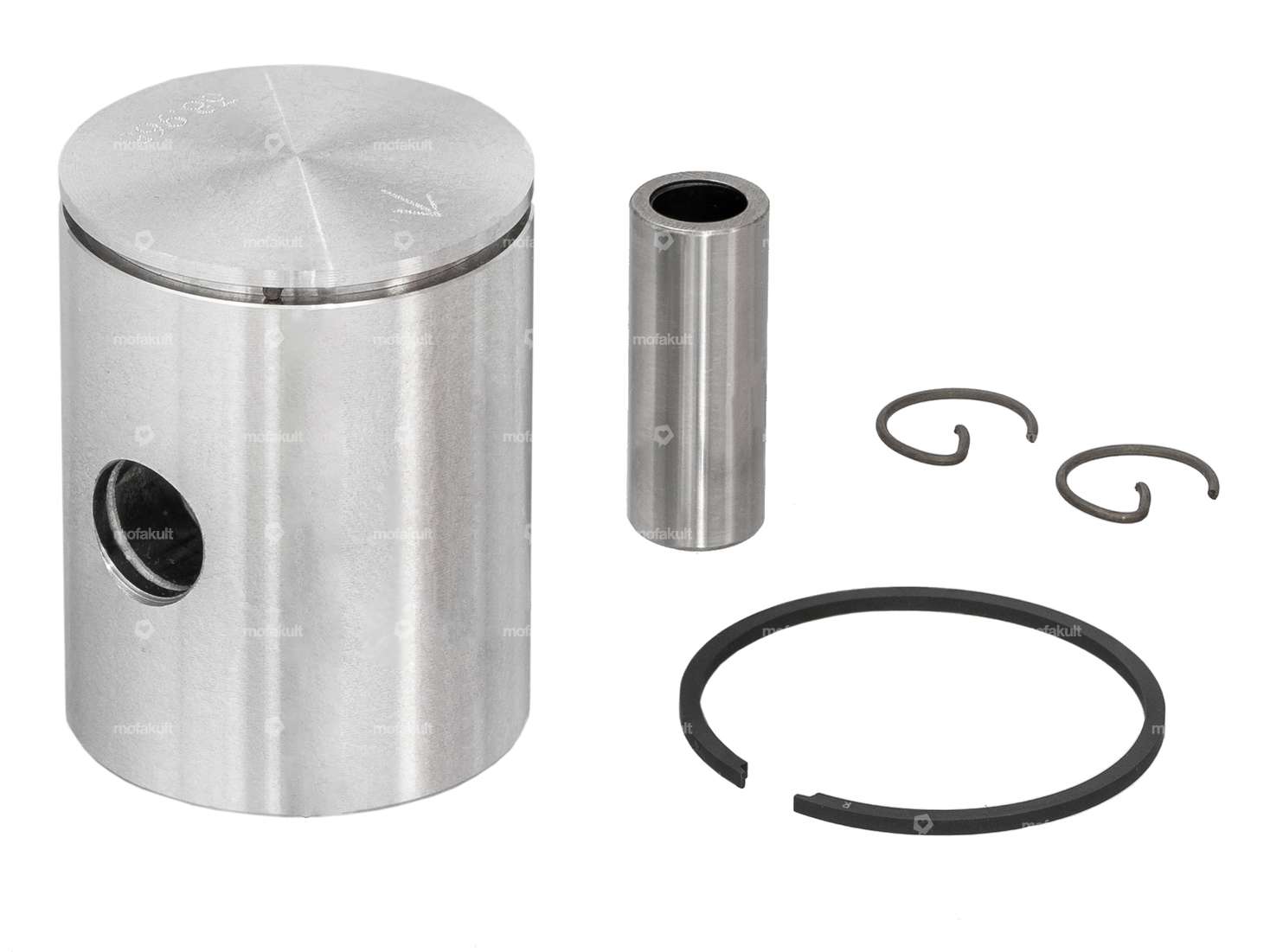

39.0 mm piston with a rectangular piston ring with internal fuse (IS) suitable for Zündapp Belmondo mopeds, Zündapp Bergsteiger M25/M50 mopeds, as well as Alpa Spezial 3000 or Alpa Black River small motorcycles which have a Zündapp type 247 engine installed.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Nominal diameter | 39 mm |
| Ø outside piston (A) | 38.96 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 26.3 mm |
| Curvature (D) | 1.3 mm |
| Total piston height (E) | 51.65 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Tolerance group | D |
| Weight piston kit | 84 g |
| Zündapp | Belmondo (Type 247-71) Moped 25 (M 25) / Moped M 50 Bergsteiger (Type 247-434) |
Accessories & related products

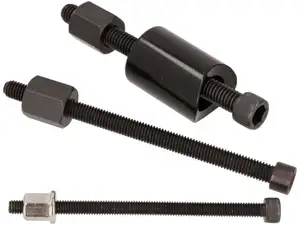

GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Number of components: 7 pcs · Width across flats: 10 mm · Width across flats: 17 mm · Total length: 130 mm · Area of application: (Dis)assembly tool
EUR 23,40
Meteor piston pin Ø 12 mm (length: 31 - 40 mm)
Manufacturer: Meteor · Material: Steel · Surface: Hardened · Ø piston pin (B): 12 mm · Total length: 31 mm · Total length: 31.5 mm · Total length: 33 mm · Total length: 35.5 mm · Total length: 37 mm · Total length: 38 mm · Total length: 40 mm · Sachs OEM no.: 0216 003 105 · Pony OEM number: A1112
EUR 8,10
Explore categories from Piston
Moped fans also bought
Carburetor 17 mm Bing SSB 1/17/69 reproduction
Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Carburetor type: SSB · Nominal diameter: 17 mm · Ø fuel hose connection: 6.2 mm · Mixed oil connection: No · Vacuum connection: Yes · Choke control: without choke · Nozzle thread: MF7x0.75 (fine pitch thread) · Nozzle size: 76 · Mounting type: Stud bolts & nuts · Hole spacing inlet: 31 mm · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m · Total length: 116 mm · Width: 86 mm · Height: 99 mm · Area of application: Standard · Area of application: Tuning
EUR 94,00
EUR 84,60
Loctite 243 medium-strength threadlocker 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Temperature resistance (min.): -75 - 200 °C · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m · Area of application: Chemistry
EUR 25,80
EUR 2.580,00/l
swiing® Revival Exhaust Gasket | Zündapp Belmondo & Pony GTX, Cross 521
Manufacturer: swiing® revival parts · Material: Graphite / Graphite · Place of use: Outlet · Ø inside: 25 mm · Ø outside: 38.3 mm · Ø mounting hole: 7.1 mm · Thickness: 1.5 mm · Number of fixing points: 2 pcs · Hole spacing: 40 mm · Total length: 53 mm
EUR 4,60

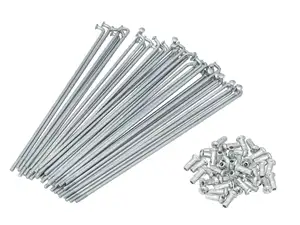

Spoke set incl. nipple (2.9 x 160 mm) galvanized steel
Nipple length: 15 mm · Material: Steel · Surface: galvanized (blue) · Quantity: 40 pcs · Length from hook: 160 mm · Ø spoke: 2.9 mm · Ø spoke head: 5.6 mm · Nominal diameter (thread): 3.2 mm · Thread length: 11.5 mm · Ø nipple head: 9 mm · Ø Nipple neck: 5.6 mm · Hook length: 10.3 mm · Hook angle: 95 °
EUR 44,60

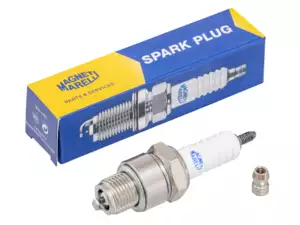

Magneti Marelli SNA7 spark plug short thread
