Description

Operating and maintenance instructions for the foot-operated Zündapp KS 50 mopeds. The manual describes the following types:

KS 50 Sport (type 530-510)
KS 50 Super Sport (type 530-500)
KS 50 watercooled (type 530-010)
KS 50 watercooled TT (type 530-011)

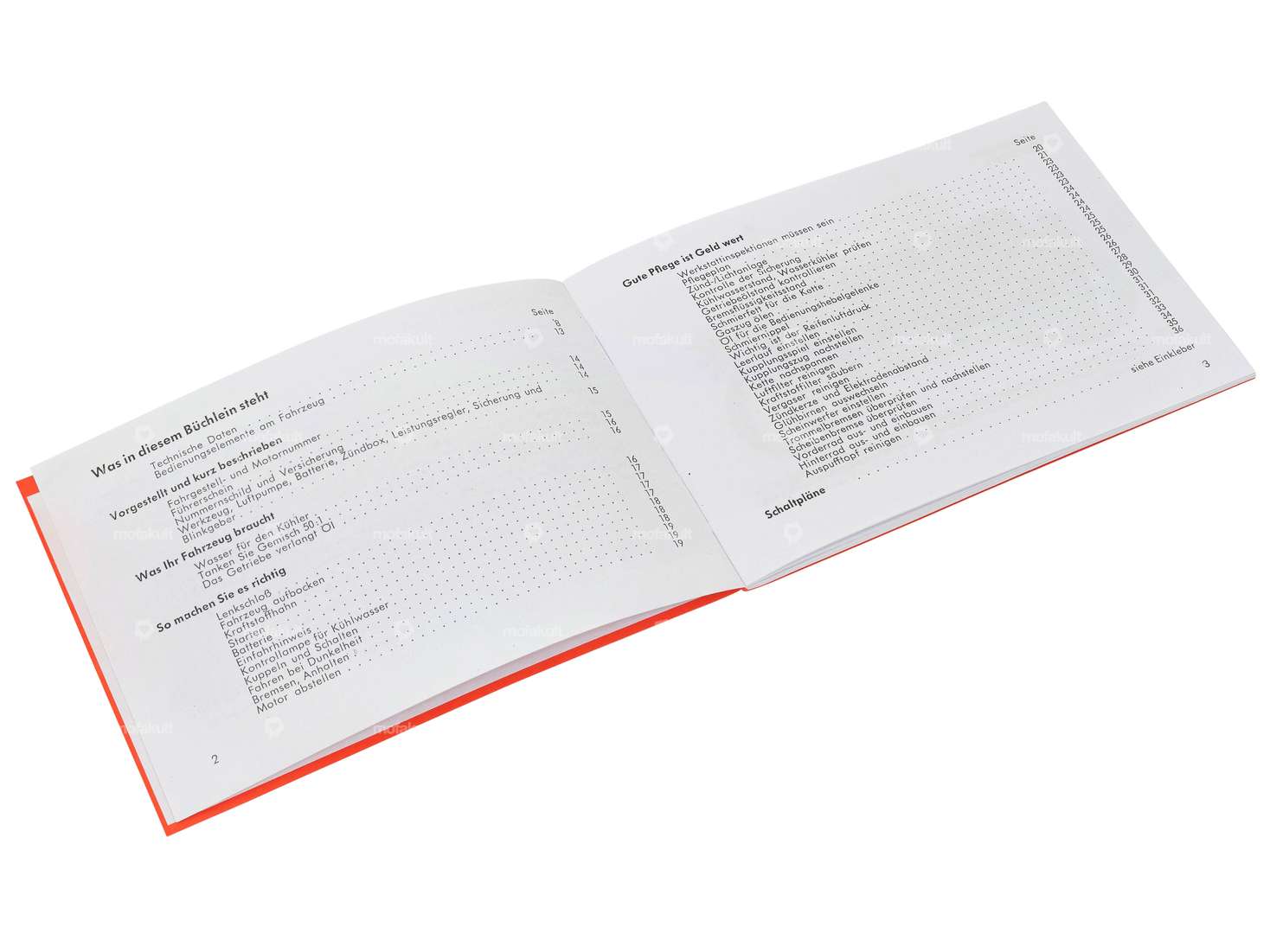

Very helpful, informative booklet. Among other things, it explains maintenance and adjustment work as well as troubleshooting. This instruction manual should not be missing in any Zündapp workshop.

Format: A6 (148 x 105 mm)
Pages: 36 (plus 2 fold-out circuit diagrams)
Language: German

High-quality facsimile (reproduction) of the original edition.

More workshop manuals, spare parts catalogs and repair instructions can be found in the accessories section.

Details

Width	148 mm
Material	Paper
DIN format	A6
Height	105 mm
Number of pages	36 pcs
Language	German

Suitable for the following models

Zündapp
