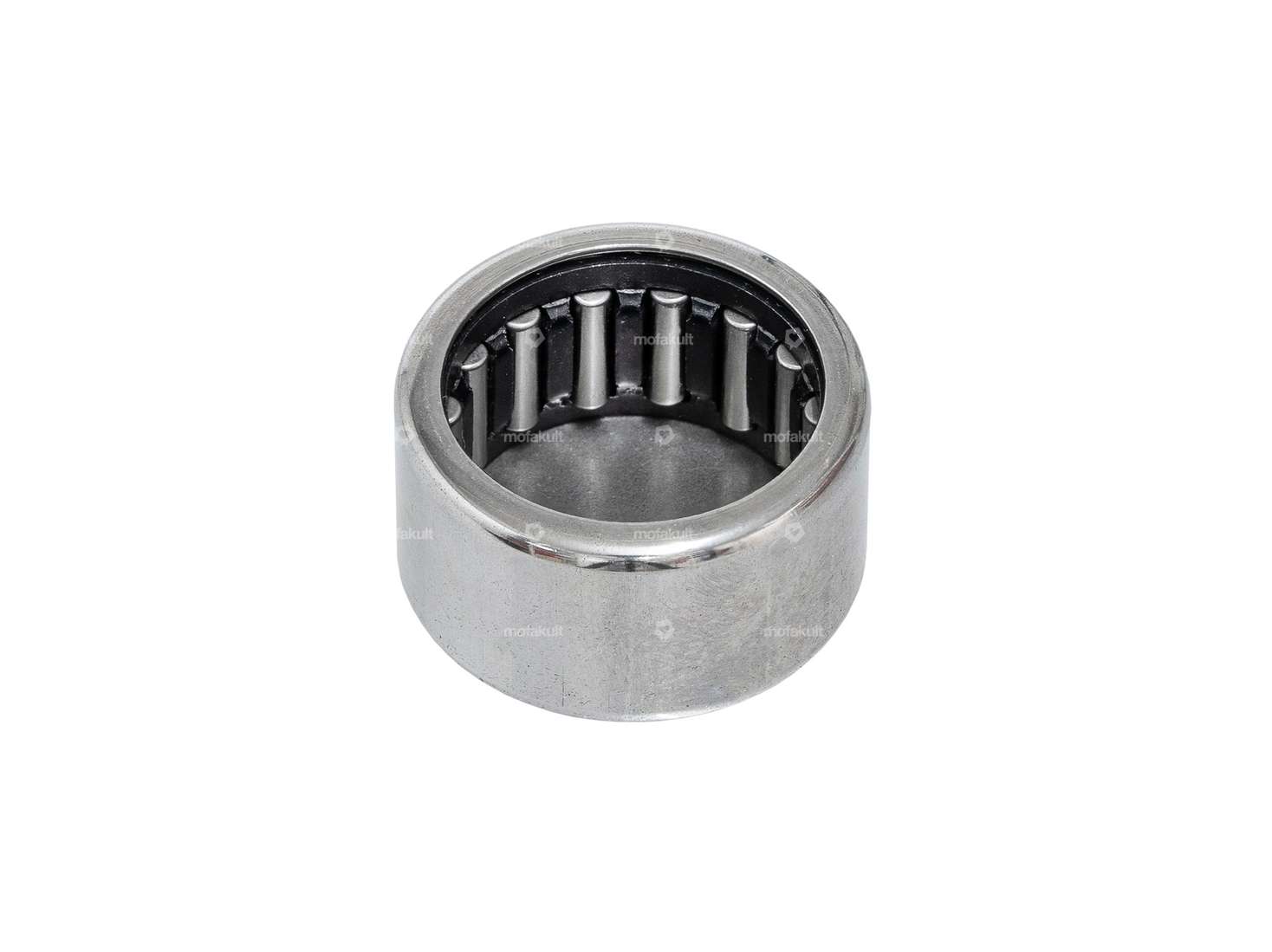

Needle bearing for the output shaft of the mono and vario gearbox suitable for your Piaggio, Ciao, SI, Bravo and Boxer moped / moped.

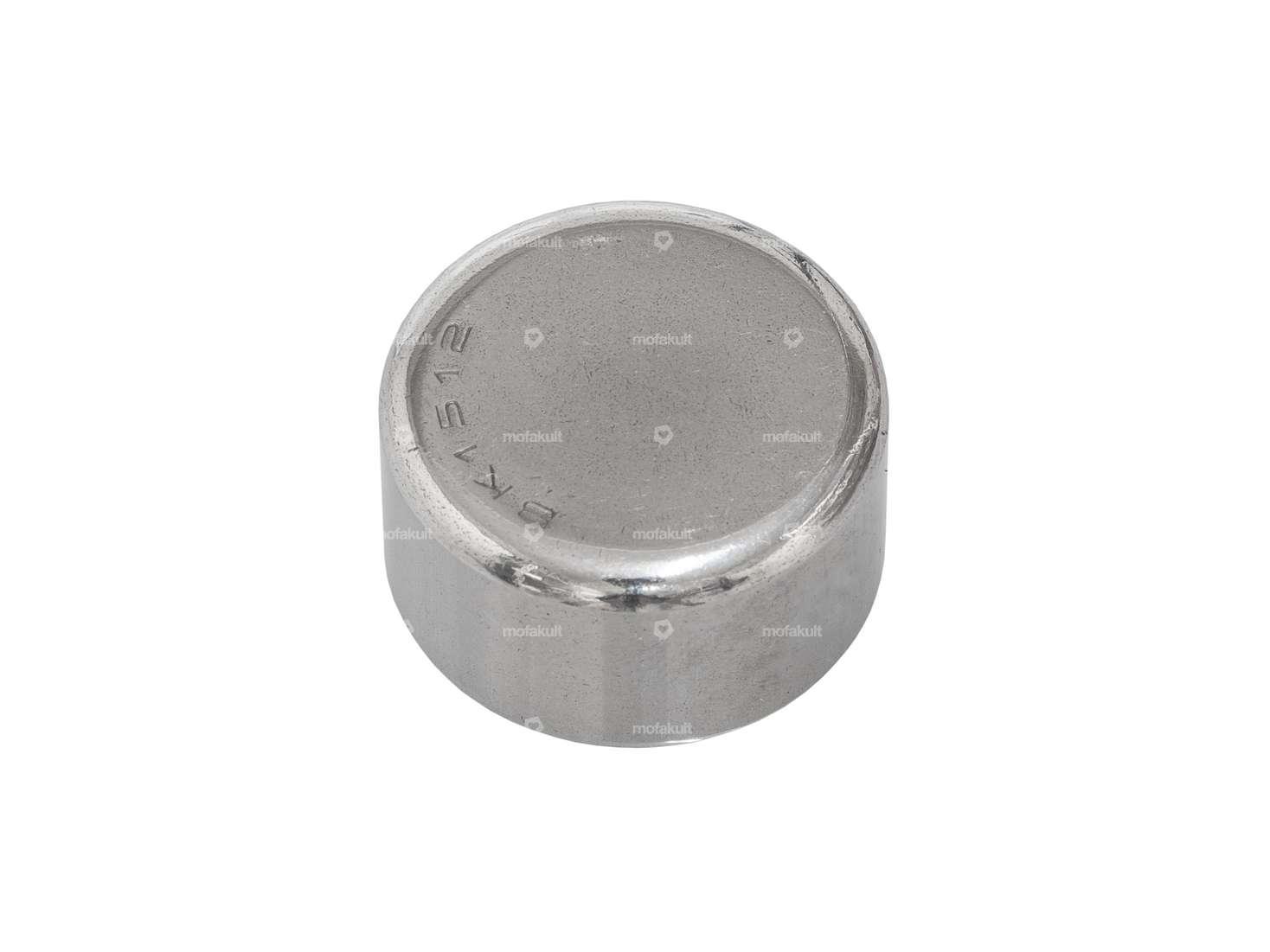

The needle roller and cage assembly is installed in the gearbox cover. The bearing is closed on the rear side.
Quality product from the Italian manufacturer Piaggio in original equipment quality.
Original Piaggio spare part number: 103689
| Manufacturer | Piaggio |
| Ø inside | 15 mm |
| Bearing type | Needle box |
| Ø outside | 21 mm |
| Width | 12 mm |
| Dimension needle bearing | 15/21 x 12 |
| Piaggio OEM number | 103689 |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
