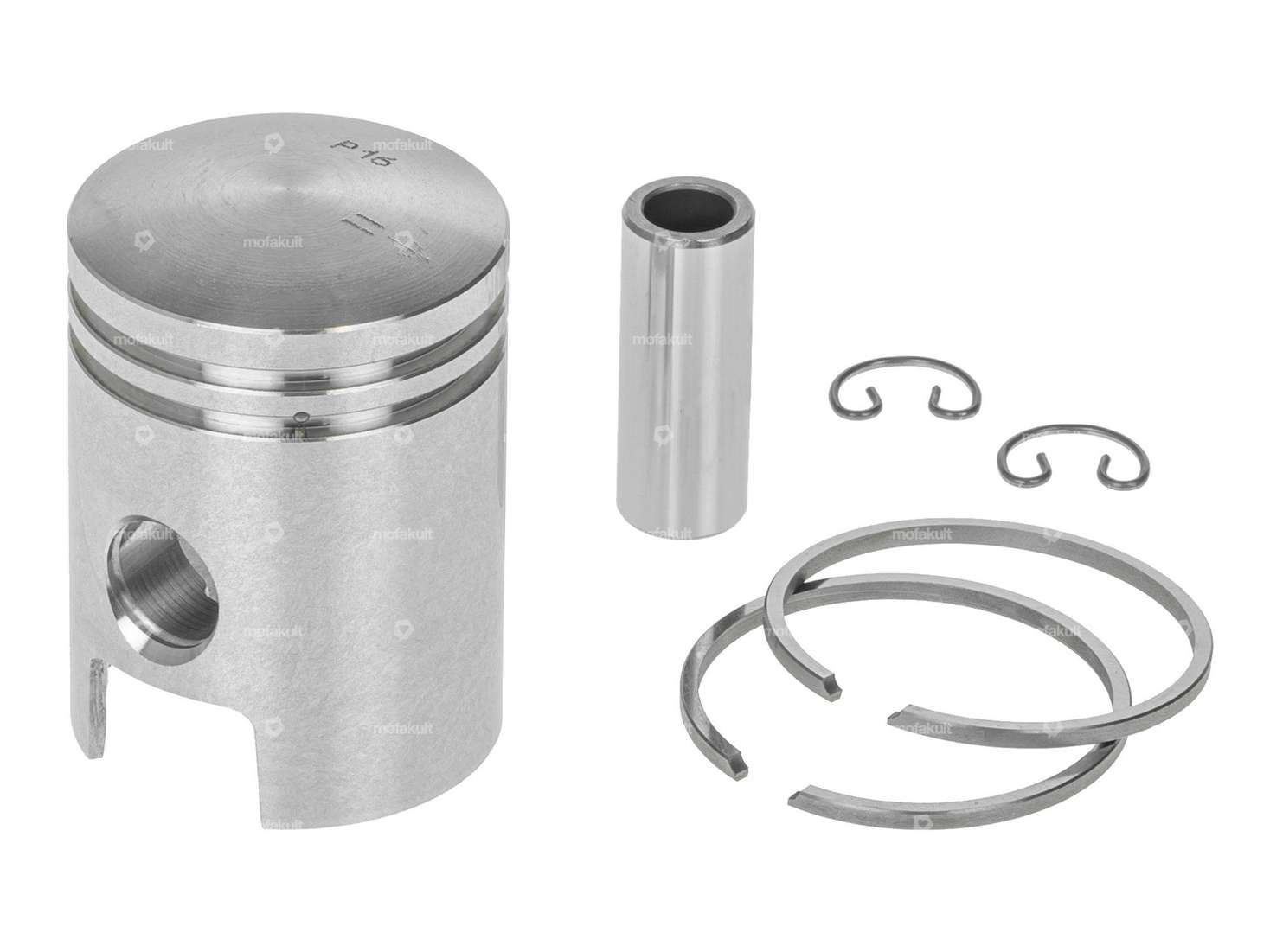

37.97 mm piston with two 2 mm rectangular piston rings with flank lock (FS) suitable for Sachs 504/2 ACH and 504/1 ACH mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.
Tolerance type: A
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Original Sachs spare part number: A4358
Quality product from the Italian manufacturer Meteor.
Details
| Manufacturer | Meteor |
| Nominal diameter | 38 mm |
| Ø outside piston (A) | 37.97 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 78 g |
Suitable for the following models
| Sachs | 504 (without pedal shaft) |
Accessories & related products
Meteor piston 37.98 mm type B | Sachs 504
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.98 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Piston weight: 77 g
EUR 66,30
Meteor piston 37.99 mm type C | Sachs 504
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.99 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: C · Piston weight: 77 g
EUR 66,30
GPO piston pin extractor Ø 10, 12, 14 mm
Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 21,00
EUR 23,40
