Piaggio gearbox

Oil filler plug M8x10 Inox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Thread type: M8x1.25 (standard thread) · Drive: Slot · Thread length: 10 mm

CUBE 6202 2RS ball bearing 15/35/11 triangular bearing plate | Piaggio Ciao, SI, Bravo, Grillo

Bearing type: Deep groove ball bearing · Stock number: 6202 · Manufacturer: CUBE · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides · Ø outside: 35 mm · Ø inside: 15 mm · Width: 11 mm

INA needle roller bearing 9/13/12 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Stock number: BK0912 · Dimension needle bearing: 9/13 x 12 · Ø inside: 9 mm · Ø outside: 13 mm · Manufacturer: INA · Width: 12 mm

INA Needle roller bearing 15/21/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing cage: Sheet steel cage · Stock number: HK1512 · Dimension needle bearing: 15/21 x 12 · Ø inside: 15 mm · Ø outside: 21 mm · Manufacturer: INA · Width: 12 mm · Piaggio OEM number: 103689

INA needle roller bearing 17/23/12 Mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1712 · Dimension needle bearing: 17/23 x 12 · Ø inside: 17 mm · Ø outside: 23 mm · Manufacturer: INA · Width: 12 mm · Piaggio OEM number: 103696

swiing® revival gasket & shaft seals Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Material: NBR · Material: Oiled paper · Manufacturer: swiing® revival parts · Gearbox type: Vario

Koyo needle bearing 13/19/12 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1312 · Dimension needle bearing: 13/19 x 12 · Ø inside: 13 mm · Ø outside: 19 mm · Manufacturer: Koyo · Width: 12 mm · Piaggio OEM number: 103614

swiing® revival gasket & oil seals mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Material: NBR · Material: Oiled paper · Manufacturer: swiing® revival parts · Gearbox type: Mono

SKF Needle roller bearing 20/26/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK2012 · Dimension needle bearing: 20/26 x 12 · Ø inside: 20 mm · Ø outside: 26 mm · Manufacturer: SKF · Width: 12 mm · Piaggio OEM number: 131509

INA needle roller bearing set MG2 Mono gearbox (1A quality) | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1712 · Stock number: HK2012 · Manufacturer: INA · Manufacturer: SKF

INA needle roller bearing set MG3 & MG4 Mono gearbox (1A quality) | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1712 · Stock number: HK2012 · Manufacturer: INA

Polini gearbox 13:1 / 11.5:1 Vario (selection) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Toothing type: straight toothed · Translation: 11.40 / 1 · Translation: 12.82 / 1 · Gearbox type: Vario

INA needle bearing set Vario gearbox (1A quality) | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1312 · Stock number: HK2012 · Manufacturer: INA · Manufacturer: SKF · Piaggio OEM number: 103613 · Piaggio OEM number: 103614 · Piaggio OEM number: 103689 · Piaggio OEM number: 131509

Spacer 16.4/24/0.6 clutch mono / gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.6 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 16 mm · Ø outside: 24 mm · Ø inside: 16.4 mm

CIF gearwheel 29/10 teeth Mono / Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Toothing type: helical toothed · Toothing type: straight toothed · Number of teeth: 10 pcs · Number of teeth: 29 pcs · Translation: 10.44 / 1 · Translation: 10.73 / 1 · Translation: 13.05 / 1 · Gearbox type: Mono · Gearbox type: Vario

Spacer washer 14/24/1 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø inside: 14 mm · Ø outside: 24 mm · Nominal diameter inside: 14 mm

Shift lever bicycle gear NOS | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Color: silver · Piaggio OEM number: 131031

Shift fork Velogang | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: burnished · Surface: galvanized (blue) · Ø outside: 8.95 mm · Total length: 60 mm · Gearbox type: Mono · Gearbox type: Vario · Width: 43 mm · Area of application: Standard · Piaggio OEM number: 131523

swiing® revival gasket set engine, cylinder & gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Oiled paper · Number of components: 3 pcs

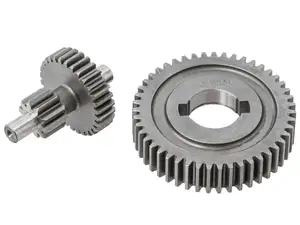

Malossi HTQ gearbox conversion kit reinforced Vario version | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Manufacturer: Malossi · Material: Steel · Toothing type: straight toothed · Gearbox type: Vario · Area of application: Cross · Area of application: Performance · Area of application: Tuning

Olympia freewheel hub galvanized | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Drive: External hexagon

Malossi gear set 8.92:1 long ratio | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Steel · Surface: Hardened · Toothing type: straight toothed · Translation: 8.92 / 1 · Gearbox type: Vario · Area of application: Tuning

Koyo HK1712 Needle roller bearing 17/23/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing cage: Sheet steel cage · Stock number: HK1712 · Manufacturer: Koyo · Ø inside: 17 mm · Bearing type: Needle sleeve · Ø outside: 23 mm · Dimension needle bearing: 17/23 x 12 · Width: 12 mm · Piaggio OEM number: 103696

Polini gearbox housing Evolution Variomatic | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Surface: varnished · Gearbox type: Vario · Area of application: High End · Area of application: Racing · Area of application: Tuning

Polini Vario input shaft & 1st gear | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Toothing type: straight toothed · Number of teeth: 11 pcs · Number of teeth: 23 pcs · Translation: 11.40 / 1 · Translation: 12.82 / 1 · Gearbox type: Vario

swiing® revival shim set VG4 & VG5 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: Hardened · Surface: blank / oiled · Piaggio OEM number: 131512 · Piaggio OEM number: 131513 · Piaggio OEM number: 131514 · Piaggio OEM number: 175747 · Piaggio OEM number: 175751

CIF gasket set engine / gearbox with oil seals Mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Place of use: Gear hub · Gearbox type: Mono · Area of application: Standard · Piaggio OEM number: 112967 · Piaggio OEM number: 114469 · Piaggio OEM number: 124571 · Piaggio OEM number: 131511 · Piaggio OEM number: 182519 · Piaggio OEM number: 480464 · Piaggio OEM number: 482552

CIF gear wheel 37 teeth Mono / Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Toothing type: straight toothed · Number of teeth: 37 pcs · Translation: 8.41 / 1 · Translation: 9.17 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Gearbox type: Mono · Gearbox type: Vario

CIF gearwheel 29/11 teeth Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Toothing type: helical toothed · Toothing type: straight toothed · Number of teeth: 11 pcs · Ø outside: 23 mm · Number of teeth: 29 pcs · Ø outside: 39 mm · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Gearbox type: Vario

Gearbox housing (two gears) original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Gearbox type: Mono

GPO oil seal set engine & gearbox (mono) | Piaggio Ciao, SI, Bravo, Boxer

Simmering type: A - With rubberized outer part / one sealing lip. · Simmering type: B - With sheet metal outer casing / one sealing lip. · Manufacturer: GPO · Place of use: Clutch · Place of use: Crankshaft · Place of use: Gear hub · Place of use: Gearbox cover · Material: NBR · Ø inside: 15 mm · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 20 mm · Ø outside: 22 mm · Ø outside: 24 mm · Ø outside: 25 mm · Ø outside: 30 mm · Temperature resistance (min.): -30 - 120 °C · Width: 3 mm · Width: 4 mm · Width: 5 mm · Area of application: Original · Area of application: Standard

GPO screw set gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Width across flats SW: 10 mm · Drive: External hexagon · Screw head: Hexagon · Shank: No · Thread length: 22 mm · Number of components: 8 pcs · Strength class: 8.8

Spacer 20/33/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø inside: 20 mm · Ø outside: 33 mm · Nominal diameter inside: 20 mm · Piaggio OEM number: 131513

swiing® ingenious rear wheel nut M14x1 SW19 Inox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® ingenious parts · Material: Chrome steel (known as Nirosta®) · Drive: External hexagon · Thread type: MF14x1.5 (fine pitch thread) · Width across flats SW: 19 mm · Height: 24 mm

SKF needle roller bearing 13/19/12 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing cage: Sheet steel cage · Stock number: HK1312 · Manufacturer: SKF · Ø inside: 13 mm · Bearing type: Needle sleeve · Ø outside: 19 mm · Dimension needle bearing: 13/19 x 12 · Width: 12 mm · Piaggio OEM number: 103614

CIF revision set gearbox Mono MG2 | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Mono · Area of application: Standard

Pin gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Ø outside: 6.98 mm · Total length: 30 mm

Transmission shaft 11 teeth variator NOS | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Toothing type: helical toothed · Number of teeth: 11 pcs · Total length: 137 mm · Ø shaft: 13 mm · Area of application: Original

Spacer 23/34/0.5 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.5 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø inside: 23 mm · Ø outside: 34 mm · Nominal diameter inside: 23 mm

swiing® revival thrust washer 23/34/0.4 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.4 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 23 mm · Ø outside: 34 mm

CIF transmission 11:1 Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 10.73 / 1 · Gearbox type: Vario · Area of application: Racing · Area of application: Tuning

CIF revision set gearbox variator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Vario · Area of application: Original · Area of application: Standard

swiing® revival spring freewheel lever Inox | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Torsion spring · Ø wire: 1.25 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: electropolished · Ø inside: 16 mm · Ø outside: 18.5 mm · Piaggio OEM number: 103054

Spacer 15/28/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø inside: 28 mm · Ø outside: 15 mm · Nominal diameter inside: 28 mm

Oil seal NBR 22/35/6 A splined gearbox original | Piaggio Ciao

Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Piaggio · Material: NBR · Surface: rubberized · Ø inside: 22 mm · Ø outside: 35 mm · Temperature resistance (min.): -30 - 100 °C · Width: 6 mm

swiing® revival thrust washer 10/18/0.3 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 10 mm · Ø outside: 18 mm

swiing® revival thrust washer 10/18/0.5 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.5 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 10 mm · Ø outside: 18 mm

swiing® revival thrust washer 14/24/0.2 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.2 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 14 mm · Ø outside: 24 mm

swiing® revival thrust washer 15/28/0.2 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.2 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 28 mm

swiing® revival thrust washer 20/33/0.2 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.2 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 20 mm · Ø outside: 33 mm
