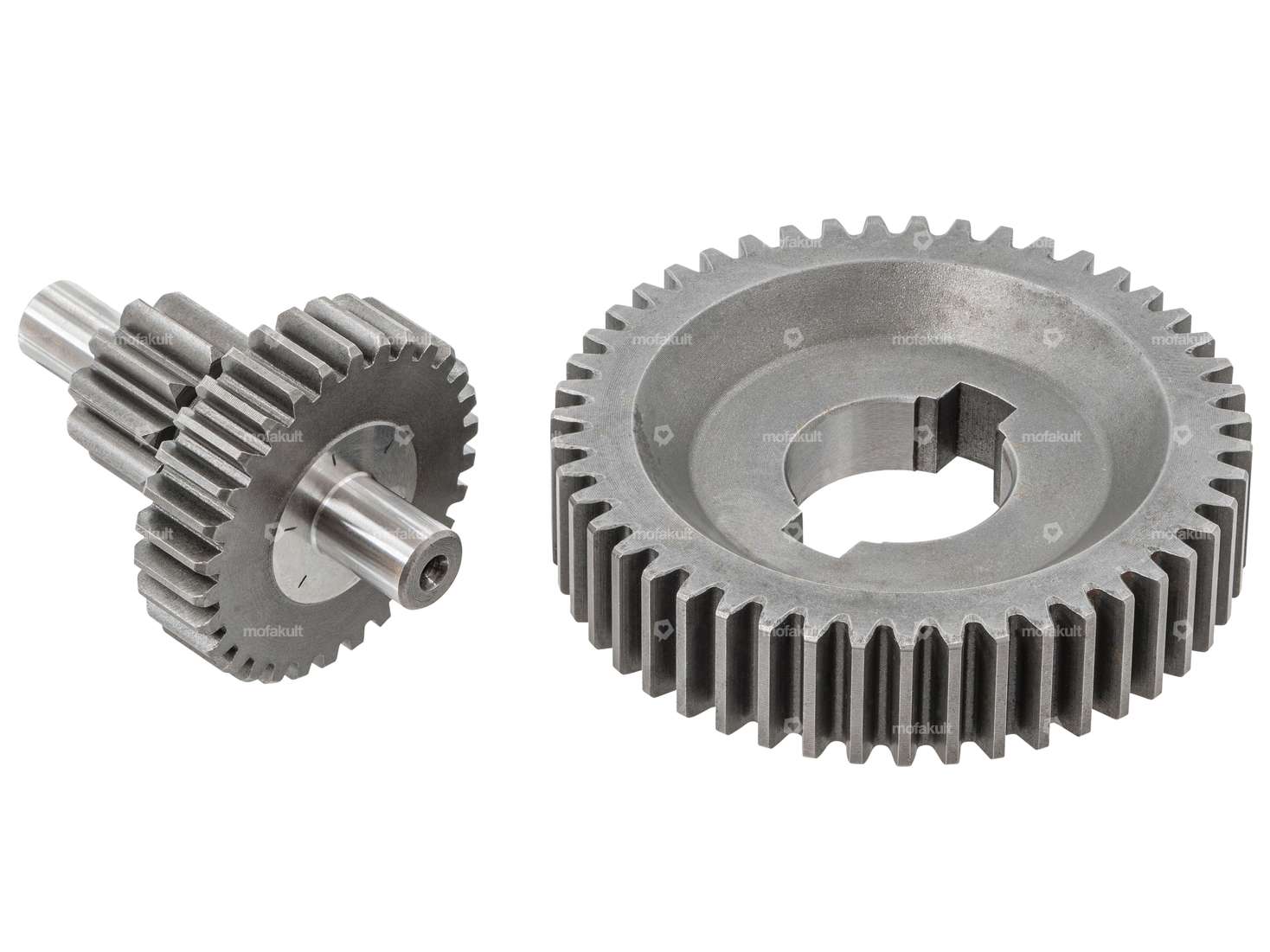

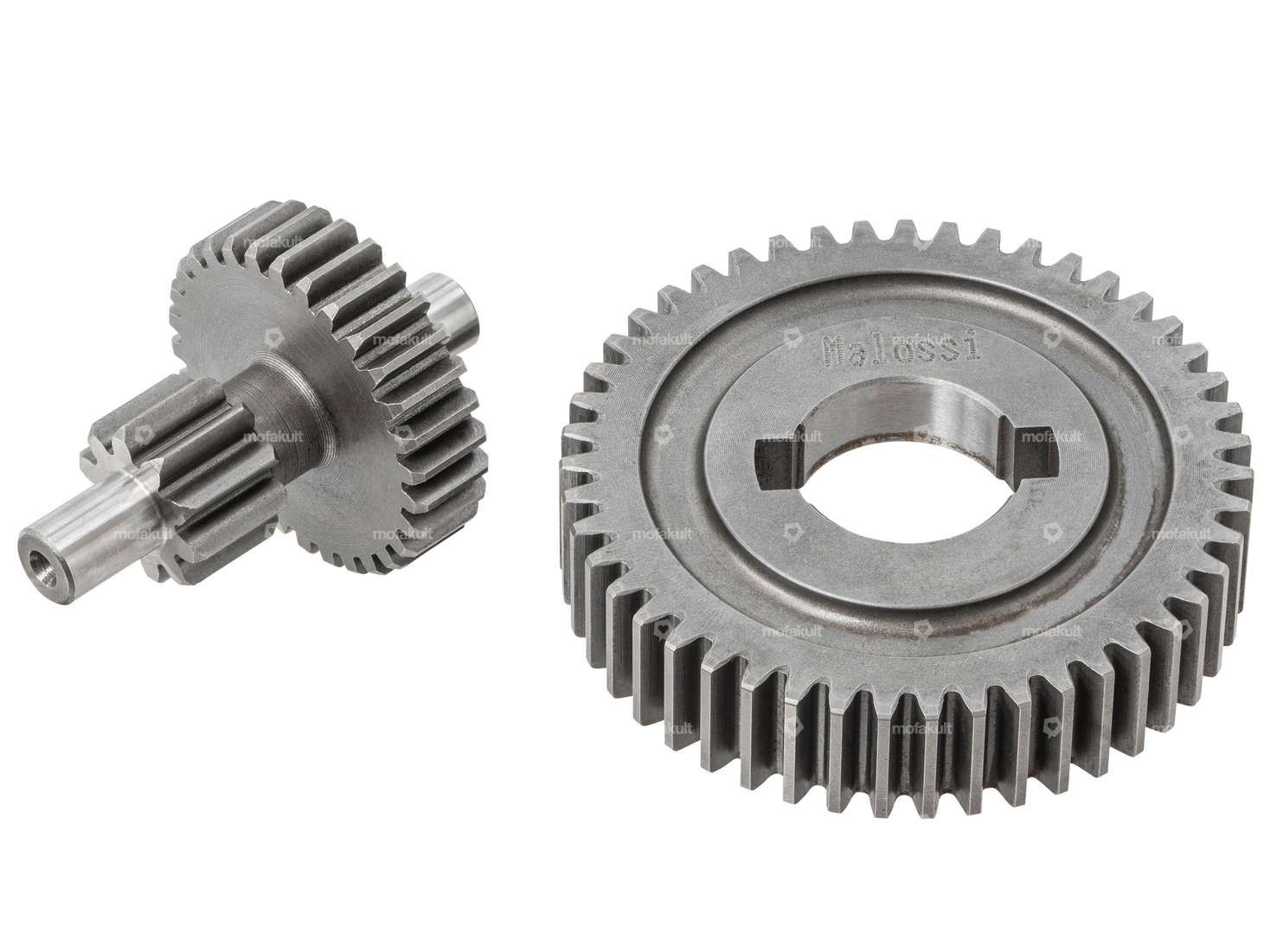

Pair of gears for converting the 8.92:1 gearbox on your Piaggio Ciao, Si, Bravo, Boxer and Grillo moped / moped with variomatic drive.
The overall ratio is changed from 1:8.92 to 1:13 by replacing the pair of gears.
This is the reinforced version of the large gearwheel. The thickness of the gear has been increased in order to provide more contact surface for the meshing flanks. This is particularly advantageous for heavy loads, such as in the cross area, and has a positive effect on durability.
Number of teeth large gear: 47
Thickness large gear: 16 mm
Number of teeth small gear: 10
Number of teeth intermediate gear: 30
Toothing: Straight toothed
Total gear ratio (with Malossi gearbox): 13:1
Note: Compatibility with the remaining transmission parts is still ensured by the cranking of the gear, however the Velo gear can no longer be used.
Matching accessories for the secondary gearbox such as gearbox, gearbox or mounting material can be found in the accessories section.
Quality product from the Italian manufacturer Malossi.
| Manufacturer | Malossi |
| Material | Steel |
| Area of application | Cross, Performance, Tuning |
| Toothing type | straight toothed |
| Gearbox type | Vario |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
