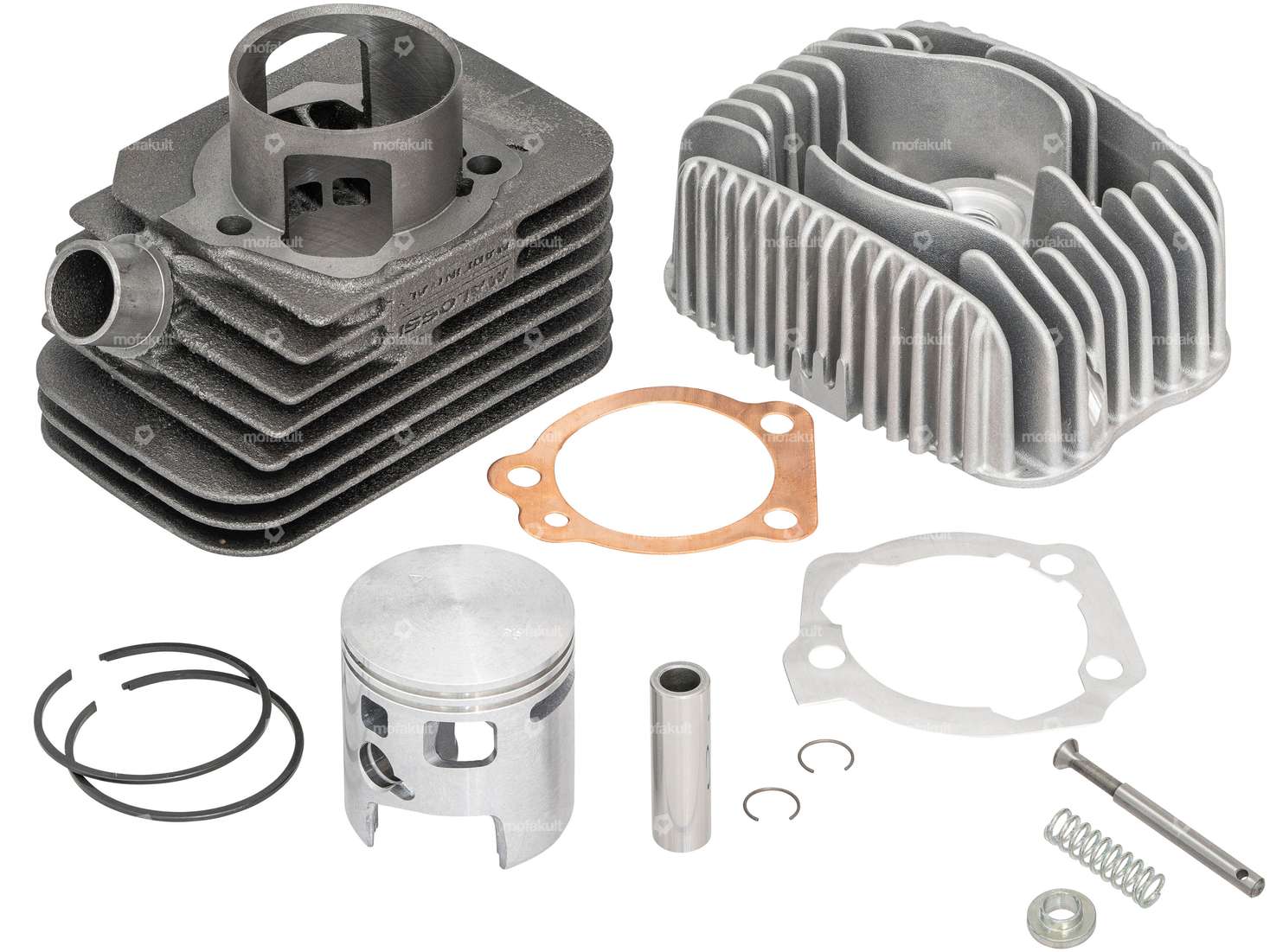

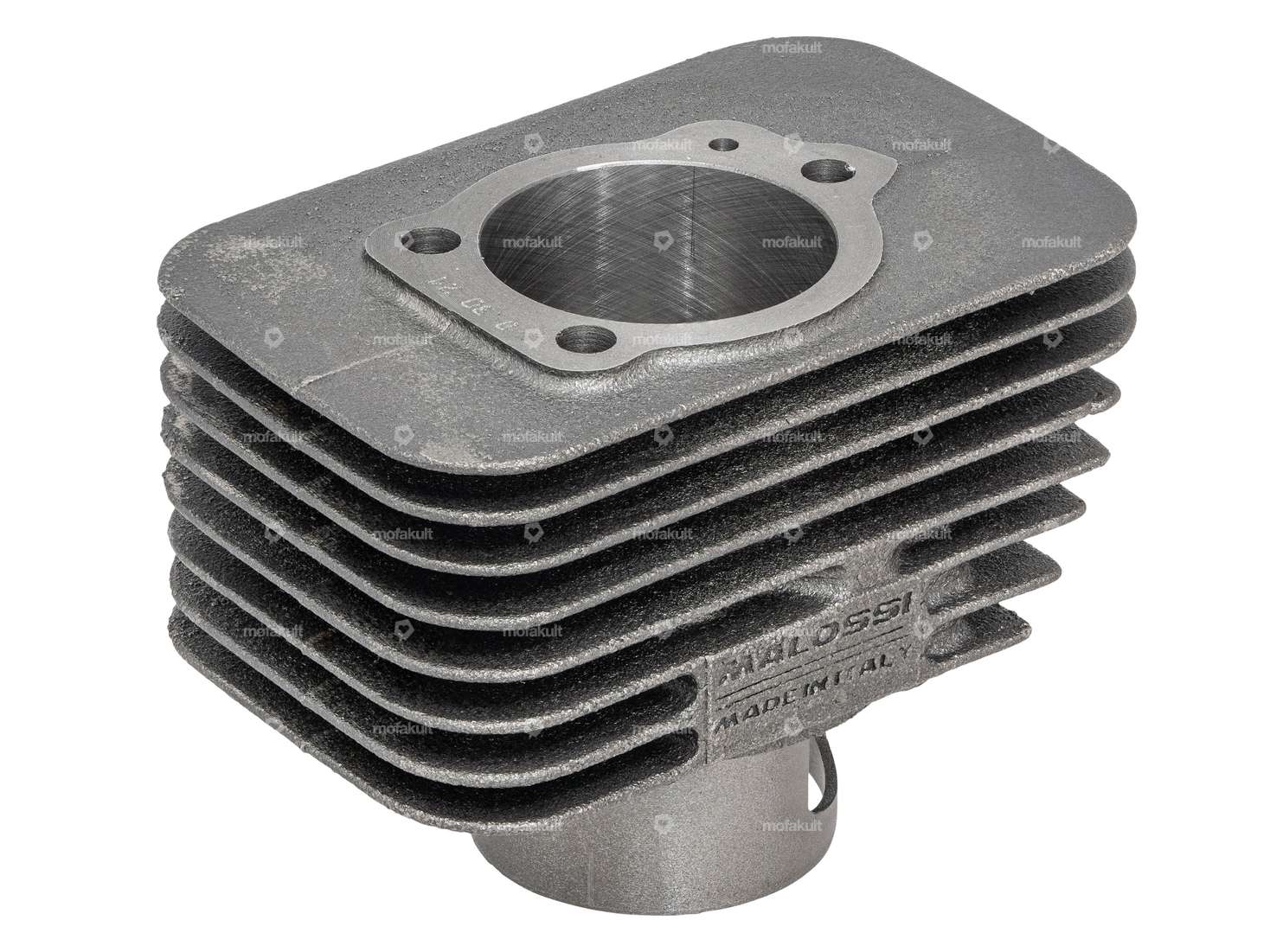

Revised 2021 version of one of the best cylinders available including cylinder head suitable for your Piaggio Ciao, Si, Bravo, Boxer moped / moped with 12 mm piston pin.

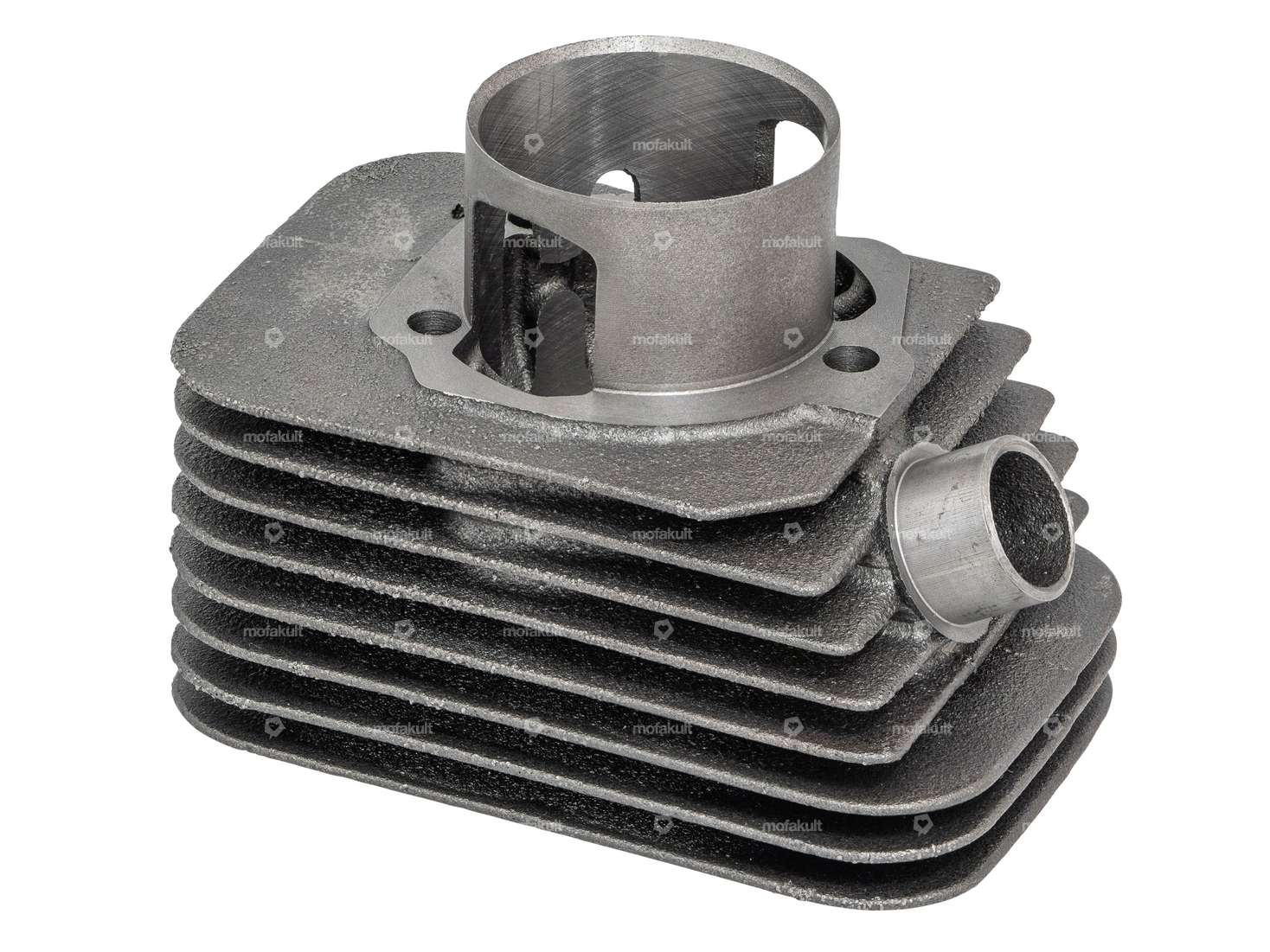

This cast iron cylinder offers a very good power increase over the entire speed range and makes it one of the most popular 73.5 cc racing cylinders for Piaggio engines.

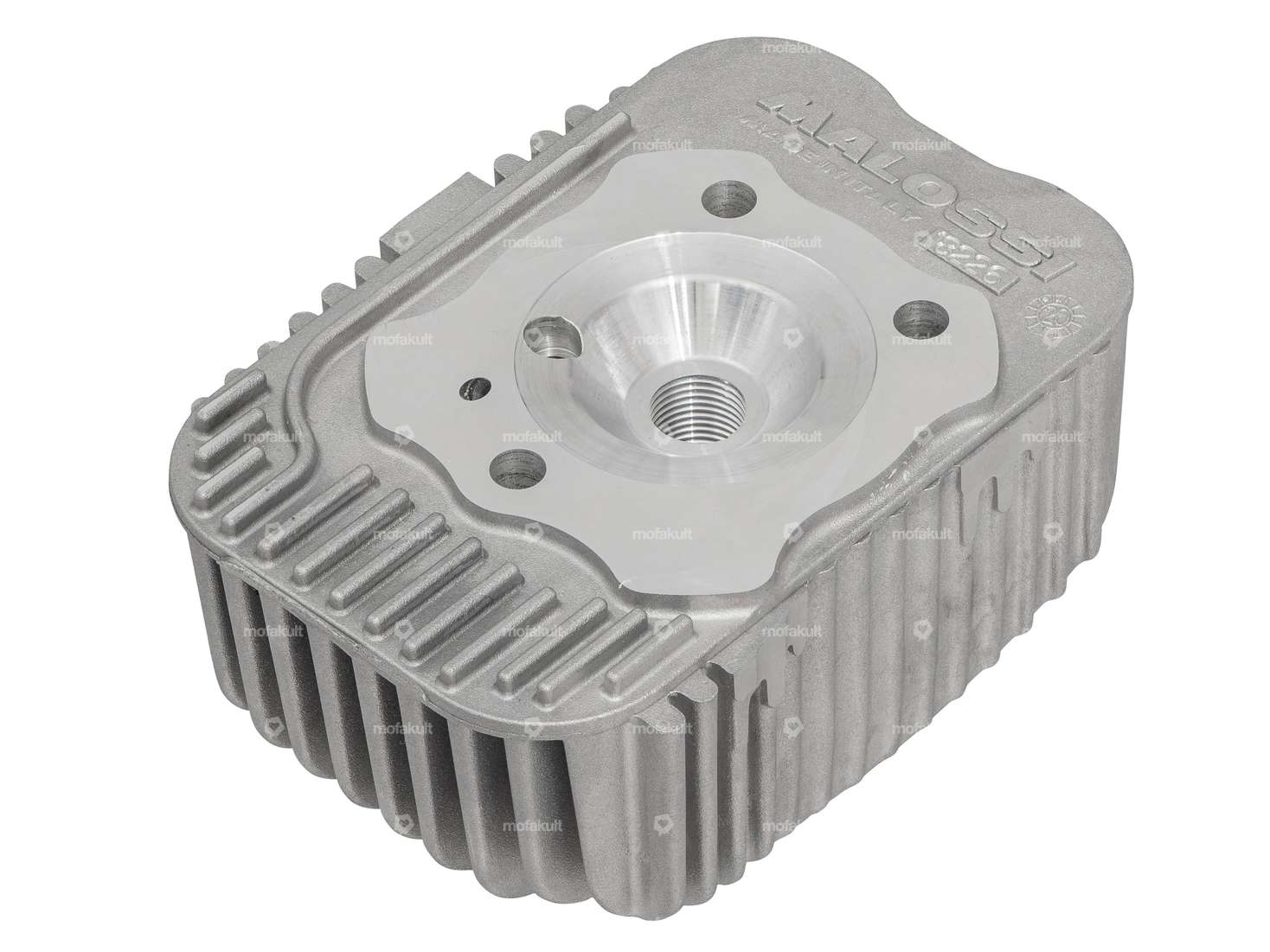

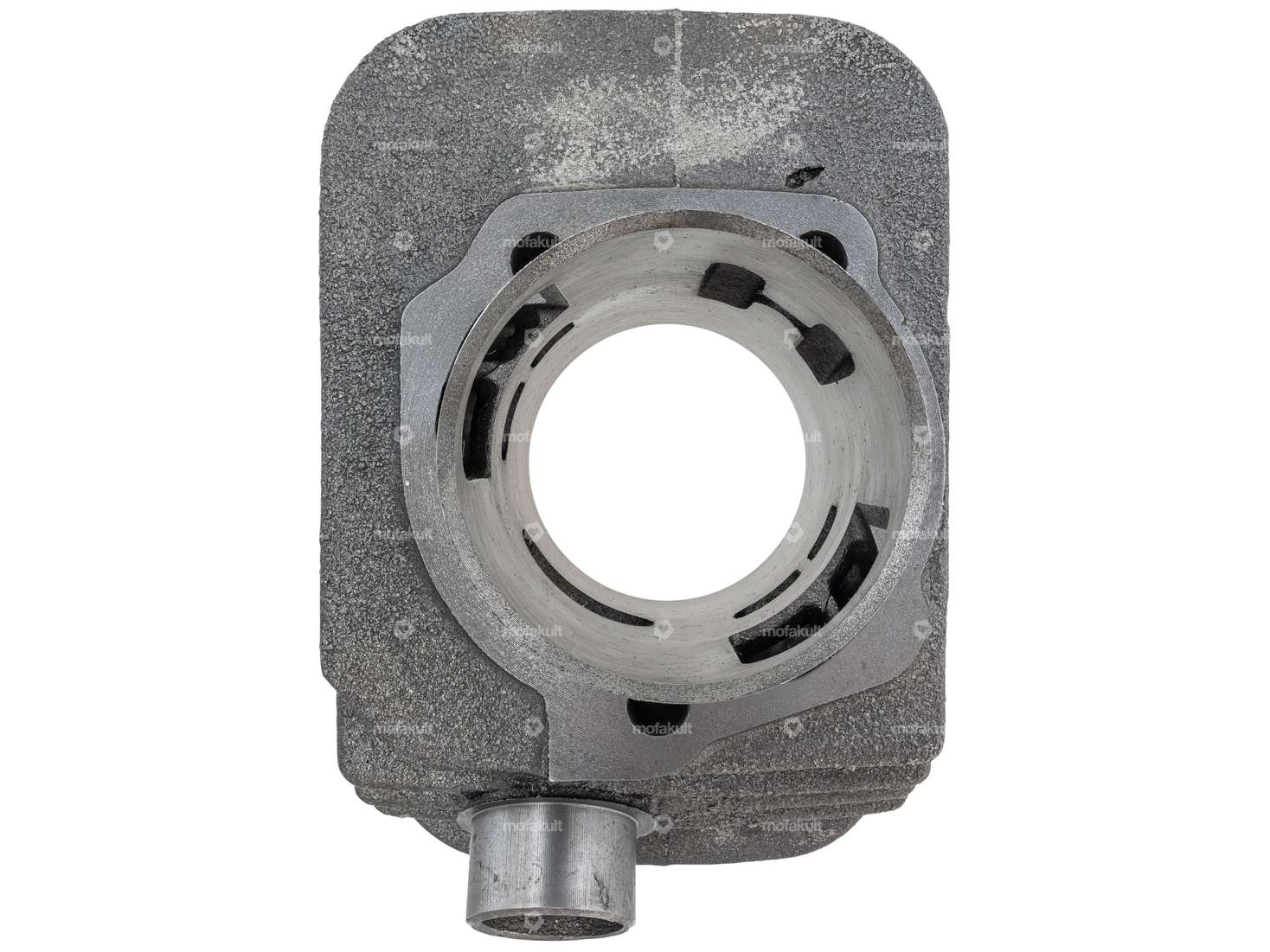

The workmanship is very clean and the matching of the piston windows to the overflow channels and boost parts is very good. The webs in the area of the cylinder head significantly reduce the risk of piston jamming and make the cylinder extremely durable. The cylinder head with its small combustion chamber and large flat sealing surface ensures good compression. Thanks to the additional cooling fins on the sides, this racing cylinder head can dissipate the resulting heat even better and thus protects the racing set from overheating.
Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Displacement: 73 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 46.5 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning · Ø cylinder neck: 50 mm · Ø Outlet outside: 22.4 mm · Ø outlet inside: 18.1 mm · Hole pattern [mm]: 55 x 34
Hole pattern [mm]: 35 x 55 · Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 44 - 47 mm · Camouflaged: No · Number of fixing points: 3 pcs · Candle thread: long · Decompressor: Yes · Total length: 122 mm · Width: 87 mm · Height: 60 mm · Area of application: Racing
| Nominal diameter | 46.5 mm |
| Manufacturer | Malossi |
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 70 ccm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Outlet type | clamped |
| Number of fixing points | 3 pcs |
| Decompressor | Yes |
| Camouflaged | No |
| Area of application | Tuning |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo Gilera CBA Gilera Citta |
Ratings
Accessories & related products
Dell'Orto 19 mm PHBG CS carburetor hand choke
Nominal diameter: 19 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: PHBG CS · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Width: 70 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Ø Internal connection: 24 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Total length: 82 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Height: 124 mm · Choke control: Hand choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 75 · Area of application: Racing · Area of application: Tuning · Size of secondary nozzle: 45
EUR 137,10
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Number of components: 7 pcs · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm · Total length: 130 mm · Area of application: (Dis)assembly tool
EUR 22,80

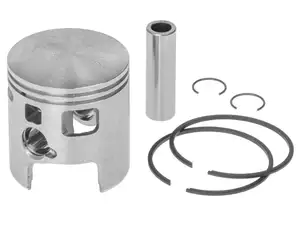

Malossi piston 46.5 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 46.5 mm · Manufacturer: Malossi · Ø outside piston (A): 46.4 mm · Compression height (C): 25.9 mm · Curvature (D): 2.4 mm · Total piston height (E): 52.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 101 g
EUR 100,50
Polini Speed Engine engine housing electronic ignition | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Color: silver · Stock number: 6202 · Crankshaft stroke: 43 mm · Ignition type: Electronic · Height: 104 mm · Width: 175 mm · Total length: 215 mm
EUR 240,00
Malossi 46.5 mm cylinder kit incl. head 12 mm KoBo | Piaggio SI, Bravo, Grillo
Manufacturer: Malossi · Material: Gray cast iron · Camouflaged: No · Surface: sandblasted · Nominal diameter: 46.5 mm · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Number of fixing points: 3 pcs · Outlet type: clamped · Area of application: Tuning · Decompressor: Yes
EUR 205,70
Not in stock
NGK B7ES spark plug long thread
Manufacturer: NGK · Candle designation: B7ES · Candle thread type: long · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm · Area of application: Performance · Area of application: Racing · Area of application: Tuning
EUR 7,45
swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Ø inside: 12 mm · Bearing type: Needle roller and cage assembly · Width: 14.2 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001
EUR 13,60

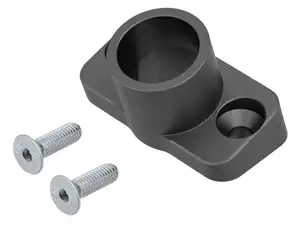

swiing® ingenious 19 mm PHBG intake manifold Speed Engine | Piaggio Ciao, SI, Bravo
Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Color: graphite colors · Ø inside: 19 mm · Mounting type: Screws · Hole spacing inlet: 36 mm · Ø External connection: 24 mm · Number of fixing points: 2 pcs · Area of application: Tuning
EUR 34,20

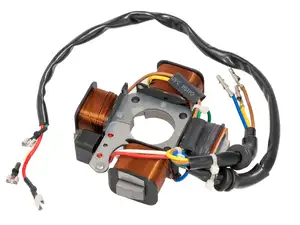

GPO stator electronic ignition with light (three outputs) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: GPO · Tension: 12 V · Performance: 90 W · Cable length: 100 mm · Cable length: 400 mm · Ø inside: 29.5 mm · Ø outside: 105 mm · Number of cables: 6 pcs · Hole spacing: 34.5 mm · Number of fixing points: 3 pcs · Piaggio OEM number: 219965
EUR 137,10
swiing® ingenious stud bolt M7x120 / Ø 7.3 shank (10.9 strength)
Diameter: 7.3 mm · Manufacturer: swiing® ingenious parts · Total length: 120 mm · Material: Steel · Surface: galvanized (blue) · Thread length: 20 mm · Thread length: 30 mm · Strength class: 10.9 · Thread type: M7x1 (standard thread)
EUR 5,60
Explore categories from Cylinder
Moped fans also bought
Dell'Orto 19 mm PHBG CS carburetor hand choke
Nominal diameter: 19 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: PHBG CS · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Width: 70 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Ø Internal connection: 24 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Total length: 82 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Height: 124 mm · Choke control: Hand choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 75 · Area of application: Racing · Area of application: Tuning · Size of secondary nozzle: 45
EUR 137,10
EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer
Ø mounting hole: 4.4 mm · Manufacturer: EFFE · Capacity: 0.26 µF · Mounting type: Tab for screwing · Connection type: Cable for screwing · Ø outside: 18 mm · Total height: 31 mm · Height: 26 mm · Area of application: Original · Area of application: Standard · Piaggio OEM number: 102939
EUR 13,60

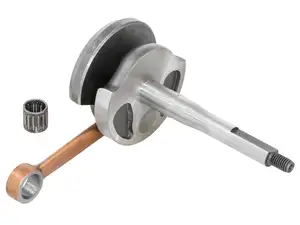

Jasil crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Jasil · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.5 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Thread type: M8x1.25 (standard thread) · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm · Area of application: Racing
EUR 148,50
Not in stock
Malossi cylinder head for 44 - 47 mm cylinder kit | Piaggio Ciao, Bravo 1, Boxer
Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 44 - 47 mm · Height: 60 mm · Width: 87 mm · Candle thread: long · Total length: 122 mm · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No · Area of application: Racing
EUR 91,40

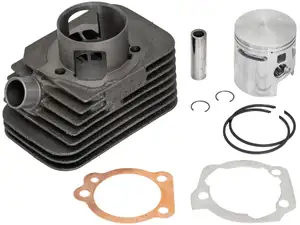

Malossi 46.5 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
