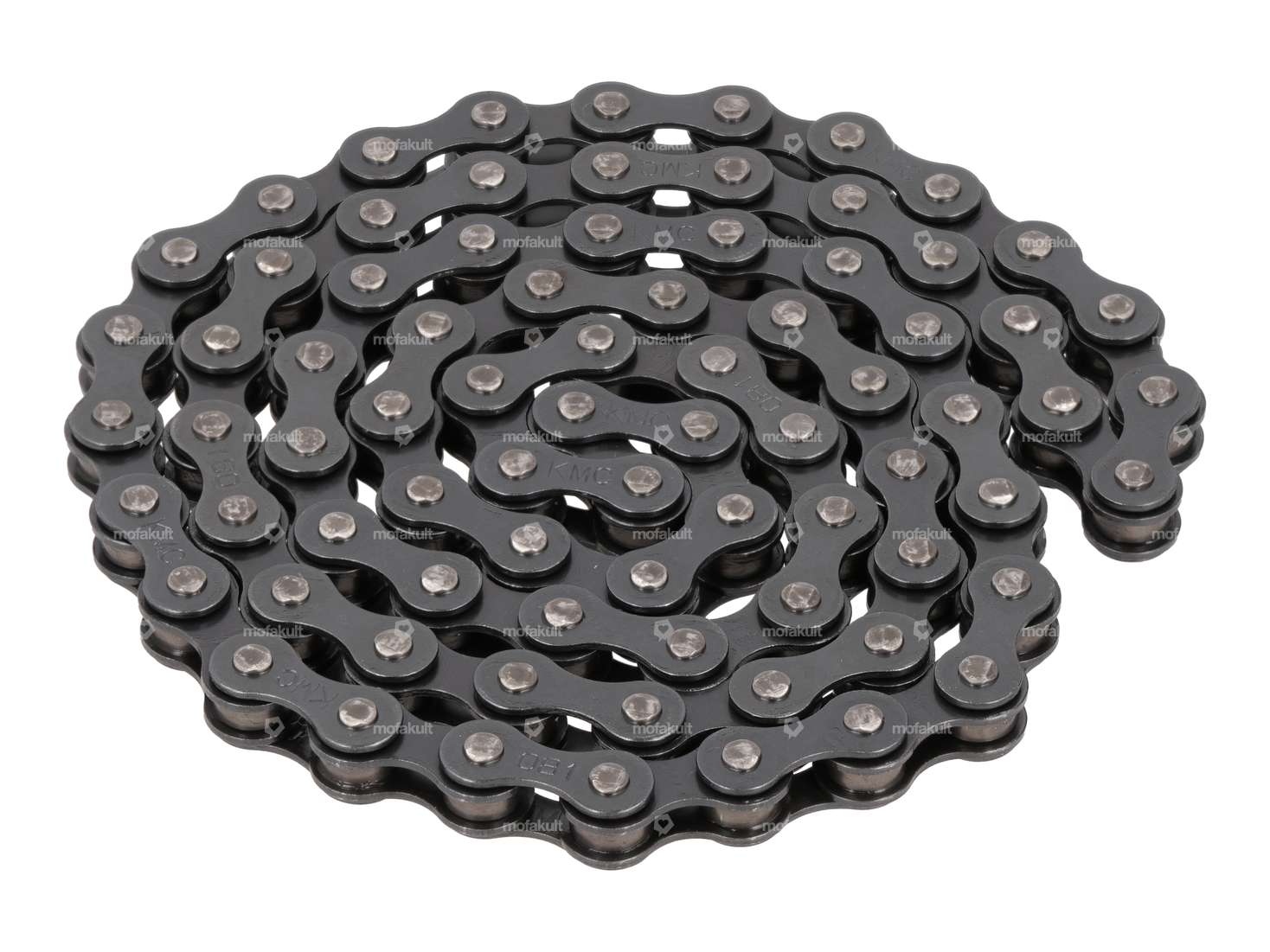

KMC pedal chain | Piaggio Boxer

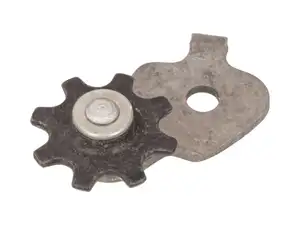

Chain tensioner NOS | Piaggio Boxer

Manufacturer: Piaggio · Material: Steel · Number of fixing points: 2 pcs

Freewheel 18 t. with hub | Piaggio Ciao, SI, Bravo, Boxer

Chain pitch: 1/2" x 1/8" · Thread type: FG34.8 (1.37" 24G) · Material: Steel · Surface: Hardened · Surface: galvanized (blue) · Number of teeth: 18 pcs · Piaggio OEM number: 103631 · Piaggio OEM number: 131515

Magura cable holder

Ø outside: 8 mm · Manufacturer: Magura · Material: Brass · Area of application: Standard · Surface: nickel-plated · Color: silver · Ø Cable bushing: 4 mm · Ø Nipple hole: 6.2 mm · Ø Bundle: 10 mm · Total length: 14.5 mm

Ø 9.5 mm Wedge 4.5° Pedal crank galvanized

Ø outside: 9.5 mm · Thread type: M6x1 (standard thread) · Material: Steel · Surface: galvanized (blue) · Color: silver · Total length: 43 mm · Angle crank wedge: 4.5°

Magura cable clamp Sachs shift/clutch arm

Ø outside: 7 mm · Manufacturer: Magura · Thread type: M4x0.7 (standard thread) · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Number of components: 2 pcs · Width across flats SW: 6 mm · Ø Cable bushing: 2.8 mm · Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Ø Bundle: 7 mm · Ø shaft: 4 mm · Total length: 11 mm · Thread length: 7 mm

Ø 9 mm wedge 3.5° pedal crank galvanized

Ø outside: 9 mm · Thread type: M6x1 (standard thread) · Material: Steel · Surface: galvanized (blue) · Color: silver · Total length: 43 mm · Angle crank wedge: 3.5°

CIF intermediate disk flywheel / clutch bell | Piaggio Ciao, SI, Bravo Boxer

Ø inside: 12 mm · Ø outside: 23 mm · Manufacturer: CIF · Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 12 mm · Ø Bundle: 16.3 mm · Total length: 5 mm

Chrome stop knob with cable

Width: 24.9 mm · Thread type: M4x0.7 (standard thread) · Surface: galvanized (blue) · Housing material: Plastic · Housing material: Sheet metal (steel) · Color: black · Color: silver · Ø Handlebars: 22 mm · Functions: Motor stop · Number of cables: 1 pcs · Number of positions: 2 pcs · Cable length: 700 mm · Total length: 56 mm

Oil seal NBR 20/30/5 A Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Temperature resistance (min.): -30 - 100 °C · Width: 5 mm · Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 20 mm · Ø outside: 30 mm · Manufacturer: Piaggio · Material: NBR · Surface: rubberized

Taillight | Piaggio Boxer BTV1 / Gilera CBA

Manufacturer: Made in Italy · Material: Plastic · Color: red · Bulb holder: Soffit pear · Test mark: none · Brake light: No · Reflectors: Yes · Battery operated: No · Depth: 38 mm

Reflector & Glass | Piaggio Boxer

Manufacturer: Made in Italy · Color: white · Mounting type: Screws · Test mark: none · Number of fixing points: 2 pcs

swiing® revival clamping screw front brake | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Thread type: M7x1 (standard thread) · Material: Steel · Surface: galvanized (blue) · Number of components: 3 pcs · Width across flats SW: 11 mm · Width across flats SW: 14 mm · Ø Cable bushing: 2.1 mm · Drive: External hexagon · Screw head: Hexagon · Ø shaft: 10.9 mm · Total length: 21 mm · Thread length: 9.5 mm · Alternative version of the Piaggio OEM number: 27348
