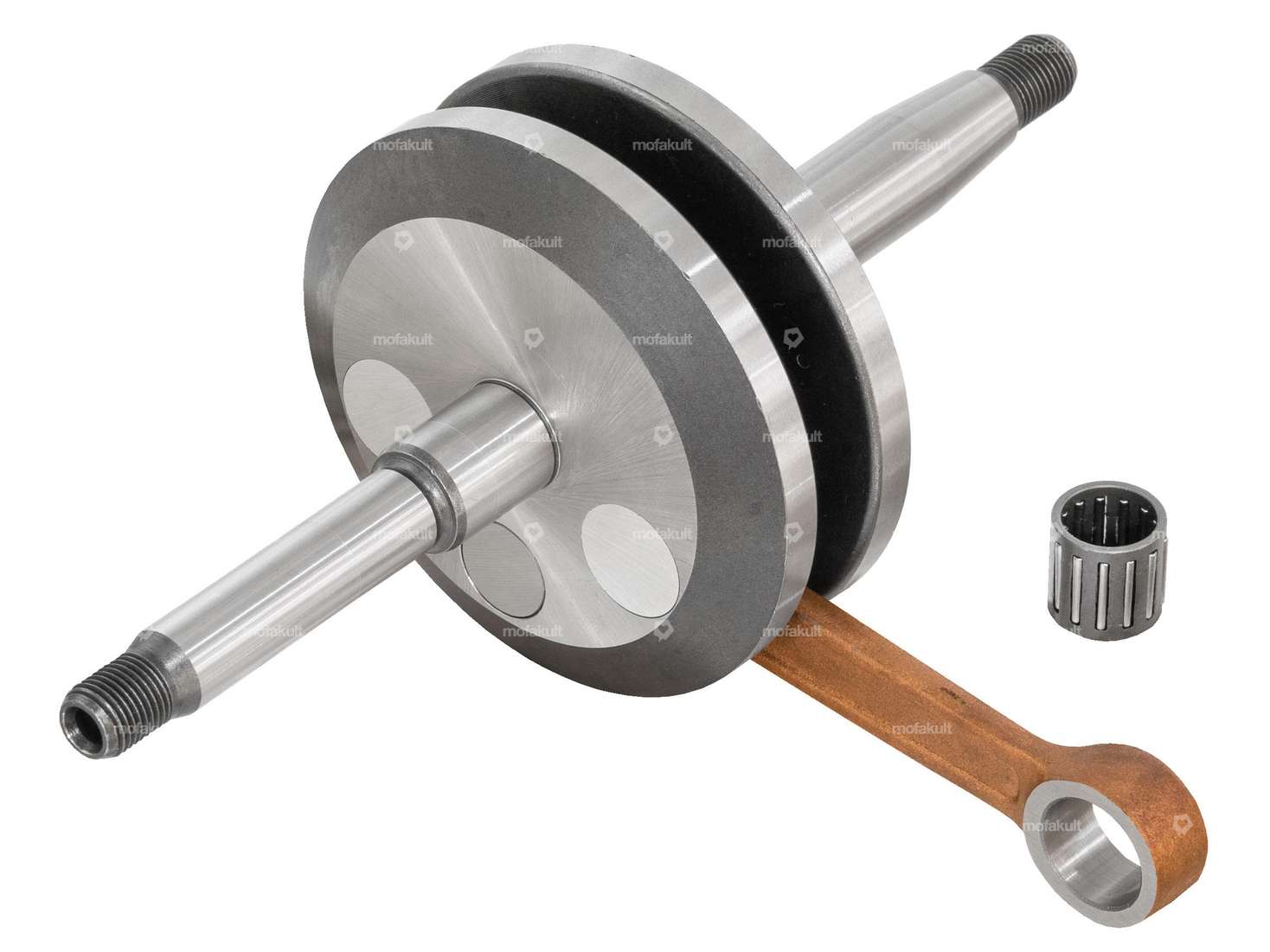

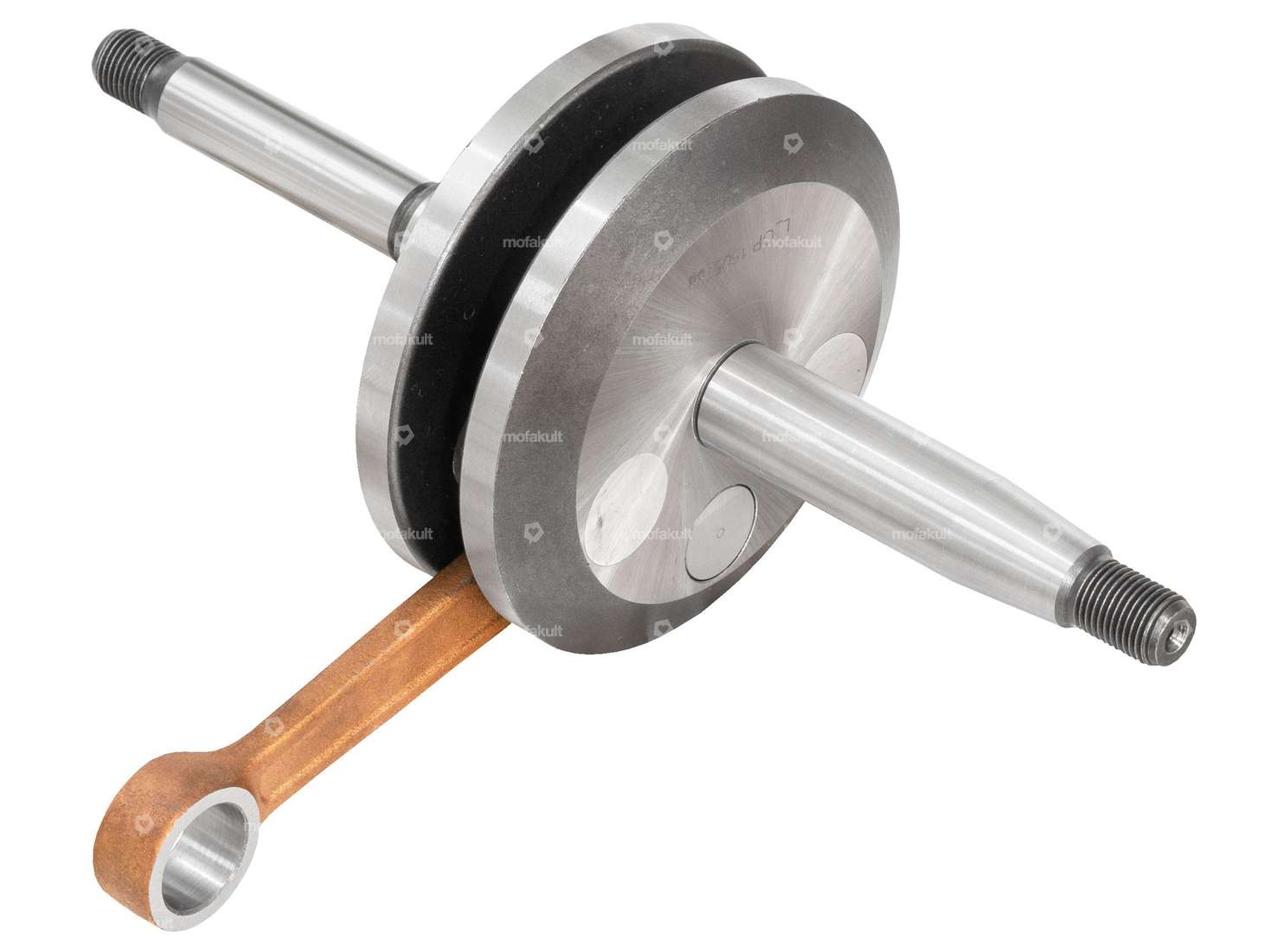

Solid-flange crankshaft compatible with Sachs mopeds equipped with 505, 535 A1, and 535 AV engines. Among others, this crankshaft is compatible with Hercules Prima 2, 3, 4, 5, and Optima models.
The needle bearing is included.
Brand-name product from the Portuguese manufacturer Jasil under the Top Racing brand.
Alternative to the original Sachs part number: A4477
| Manufacturer | Jasil |
| Cheek type | Full cheeks |
| Crankshaft stroke | 44 mm |
| Total length of crankpin on clutch side | 77.5 mm |
| Total length crankpin ignition side | 74 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Ø Bearing seat (clutch side) | 14.95 mm |
| Ø Bearing seat (ignition side) | 14.95 mm |
| Area of application | Standard |
| Alternative version of the Sachs OEM number | A4477 |
| Sachs | 505 (with pedal shaft) |
| Hercules | Great - 2 , 3 , 4 , 5 , Optima |
Accessories & related products
Crankshaft | Sachs 505, 535 A1, 535 AV (A4477)
Material: Steel · Crankshaft stroke: 44 mm · Weight: 956 g · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 77.5 mm · Total length crankpin ignition side: 73.5 mm · Ø crank webs: 79.9 mm · Ø piston pin (B): 12 mm · Area of application: Standard · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 12 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 18 mm · Length 2nd paragraph: 44 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 42.5 mm · Number of gears: 1 pcs · Number of gears: 2 pcs · Pony OEM number: A4477
EUR 199,90
Athena 45 mm cylinder kit incl. mounting parts | Sachs (504), 505, 508
Manufacturer: Athena · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Number of fixing points: 4 pcs · Ø Outlet outside: 25.9 mm · Nominal diameter: 45 mm · Ø outlet inside: 19.5 mm · Ø Inlet inside: 14.3 mm · Ø piston pin (B): 12 mm · Inlet window: 23.4 x 12.6 mm · Thread inlet: M6x1 (standard thread) · Area of application: Tuning · Hole spacing inlet: 31.5 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5
EUR 352,90
Jasil crankshaft original | Sachs 505, 535 A1, 535 AV (A4477)
Manufacturer: Jasil · Area of application: Standard · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Ø piston pin (B): 12 mm · Total length of crankpin on clutch side: 77.5 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Pony OEM number: A4477
EUR 161,10
Not in stock
Rito crankshaft full cheeks | Sachs 505, 535 A1, 535 AV
Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Weight: 878 g · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 77.8 mm · Total length crankpin ignition side: 73.8 mm · Ø crank webs: 79.5 mm · Ø piston pin (B): 12 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø Connecting rod eye: 16 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 9.5 mm · Thread length: 13 mm · Dimension needle bearing: 12 / 16 x 15.8 (axe 12) · Wide crank webs: 34.2 mm · Length 2nd paragraph: 16.8 mm · Length 3rd paragraph: 15 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 11.7 mm · Length of shoulder (ignition side): 42 mm · Number of gears: 1 pcs
EUR 211,70
Explore categories from Engine block
Moped fans also bought
Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)
Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Width: 5.5 mm · Ø outside: 30 mm · Ø inside: 15 mm · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A5602 · Sachs OEM no.: 0230 111 100
EUR 9,30
Oil seal NBR 15/35/7 AS crankshaft | Sachs 504, 535 (A4214)
Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 35 mm · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C
EUR 10,50
NTN 6202 Ball bearing 15/35/11
Bearing type: Deep groove ball bearing · Bearing cage: Sheet steel cage ball-guided · Ø inside: 15 mm · Stock number: 6202 · Ø outside: 35 mm · Inner ring width: 11 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Material: Steel · Width: 11 mm
EUR 8,10
NTN 6202 Ball bearing 15/35/11 | Sachs 503 ADV/AB, 504, 535 (A1165)
Bearing type: Deep groove ball bearing · Stock number: 6202 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Bearing cage: Sheet steel cage ball-guided · Pony OEM number: A1165 · Sachs OEM no.: 0232 120 003
EUR 8,10
Gasket set (1A quality) | Sachs 504, 505, 535
Manufacturer: Made in Italy · Material: Copper · Material: Sealing carton · Material: Sealing paper · Number of components: 5 pcs · Thickness: 0.3 mm · Thickness: 1 mm · Thickness: 2.6 mm · Ø outlet inside: 28 mm · Hole spacing inlet: 32 mm · Hole pattern [mm]: 81.5 x 51 mm / 58 x 58 mm · Pony OEM number: A4277 · Pony OEM number: A4278 · Pony OEM number: A4279
EUR 18,70
