For the economical repair of damaged or worn threads (of all materials) and as a structural element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread, but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil®plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface quality as well as corrosion and heat resistance. The flexible design enables uniform load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, the result is an internal thread that can be used on both sides.

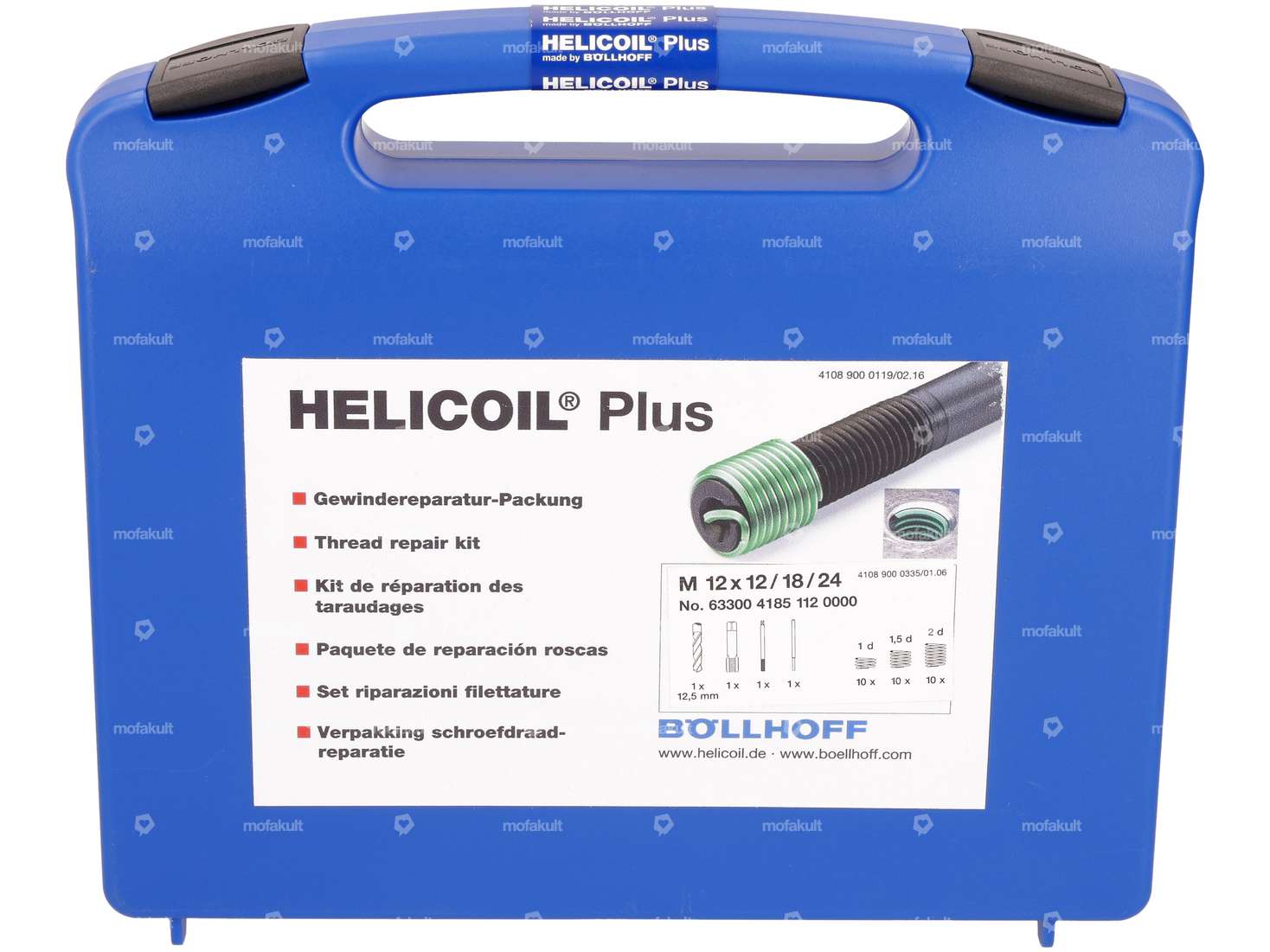

Complete repair kit for M12 thread sizes in a plastic case.
Application:
1. Drill out the defective thread with the enclosed drill.
2. Check the tap and threaded bolt.
3. Cut the holding thread using the special HeliCoil tap.
4. Turn the thread insert into the holding thread using the installation tool.
5. Remove the tang using the tang breaker

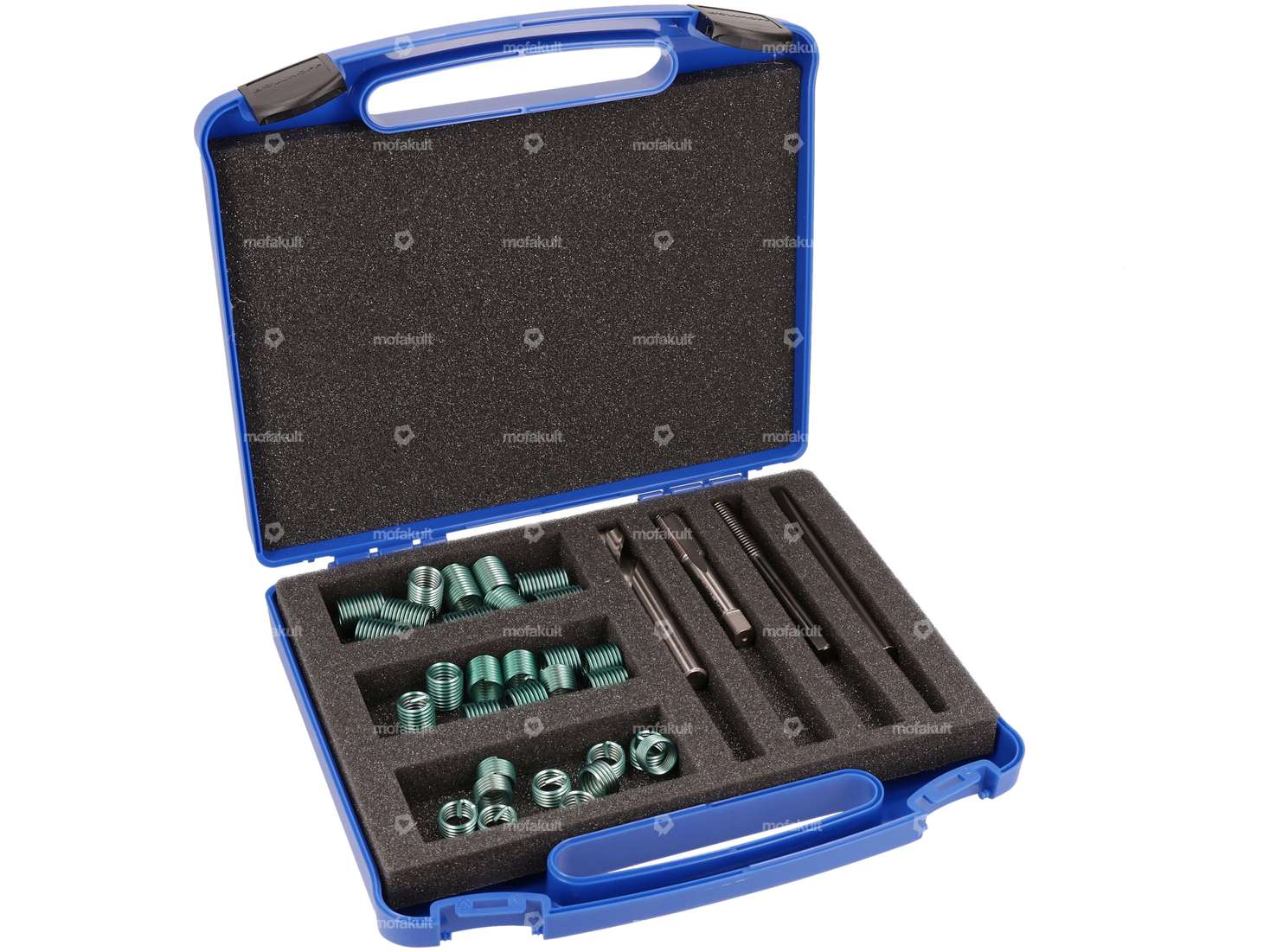

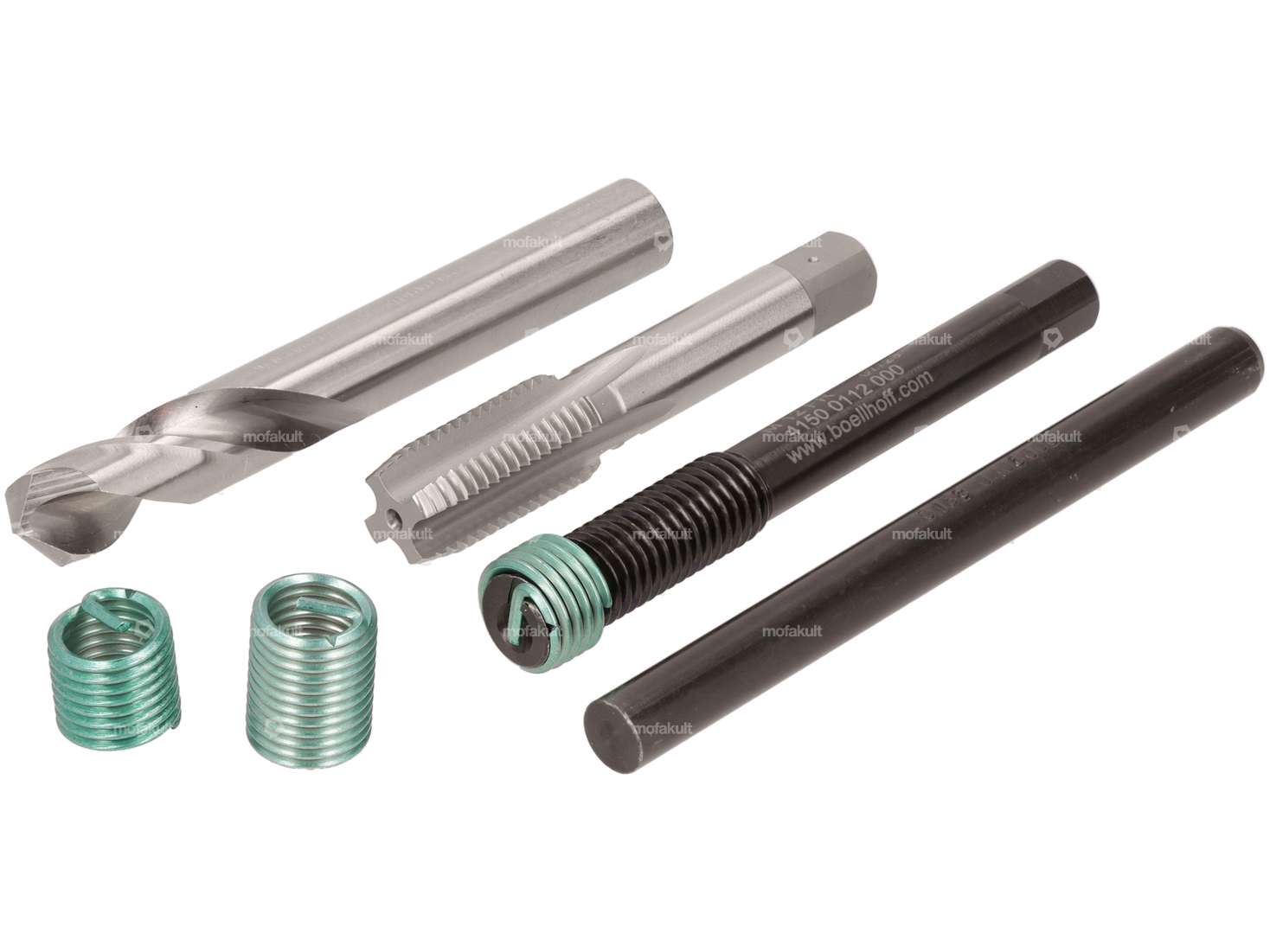

Scope of delivery
- 1 pc. twist drill Ø12.5 mm
- 1 pc. Tap
- 1 pc. Installation tool
- 1 pc. Stud breaker
- 10 pcs. HeliCoil thread insert (1×D)
- 10 pcs. HeliCoil threaded insert (1.5×D)
- 10 pcs. HeliCoil threaded insert (2×D)
- 1 pc. Plastic case 180×165×45 mm (L×B×H)
Note
Exhaustive instructions are included.
Original HeliCoil product from the German manufacturer Böllhoff.
| Manufacturer | HeliCoil |
| Material | Chrome steel (colloquially known as stainless steel) |
| Number of components | 30 pcs |
| Thread type | M12x1.75 (standard thread) |
| Dimension thread insert | 1D, 1.5D, 2D |
| Total length | 12 mm, 18 mm, 24 mm |
| Ø bore | 12.5 mm |
| Nominal diameter (thread) | 12 mm |
| Storage method | Suitcase |
| Storage box dimension [mm] | 180 x 165 x 45 mm |
| Area of application | Workshop accessories |
Ratings
Accessories & related products
Explore categories from Screws & fastener sets
Moped fans also bought
HeliCoil thread repair set M8 (professional tool)
Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Surface: coated · Area of application: Workshop accessories · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 8 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 8.4 mm · Total length: 8 mm · Total length: 12 mm · Total length: 16 mm · Number of components: 30 pcs · Storage method: Suitcase · Storage box dimension [mm]: 180 x 165 x 45 mm
EUR 91,40
HeliCoil thread repair set M10 (professional tool)
Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Area of application: Workshop accessories · Thread type: M10x1.5 (standard thread) · Nominal diameter (thread): 10 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 10.5 mm · Total length: 10 mm · Total length: 15 mm · Total length: 20 mm · Number of components: 30 pcs · Storage method: Suitcase · Storage box dimension [mm]: 180 x 165 x 45 mm
EUR 100,50

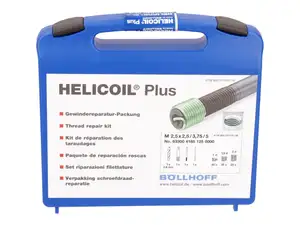

HeliCoil thread repair set M2.5x0.45
Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Thread type: M2.5x0.45 (standard thread) · Nominal diameter (thread): 2.5 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Area of application: Workshop accessories · Total length: 2.5 mm · Total length: 3.75 mm · Total length: 5 mm · Storage method: Plastic box · Number of components: 34 pcs
EUR 106,20

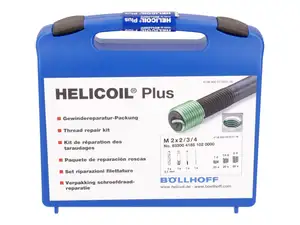

HeliCoil thread repair set M2x0.4
