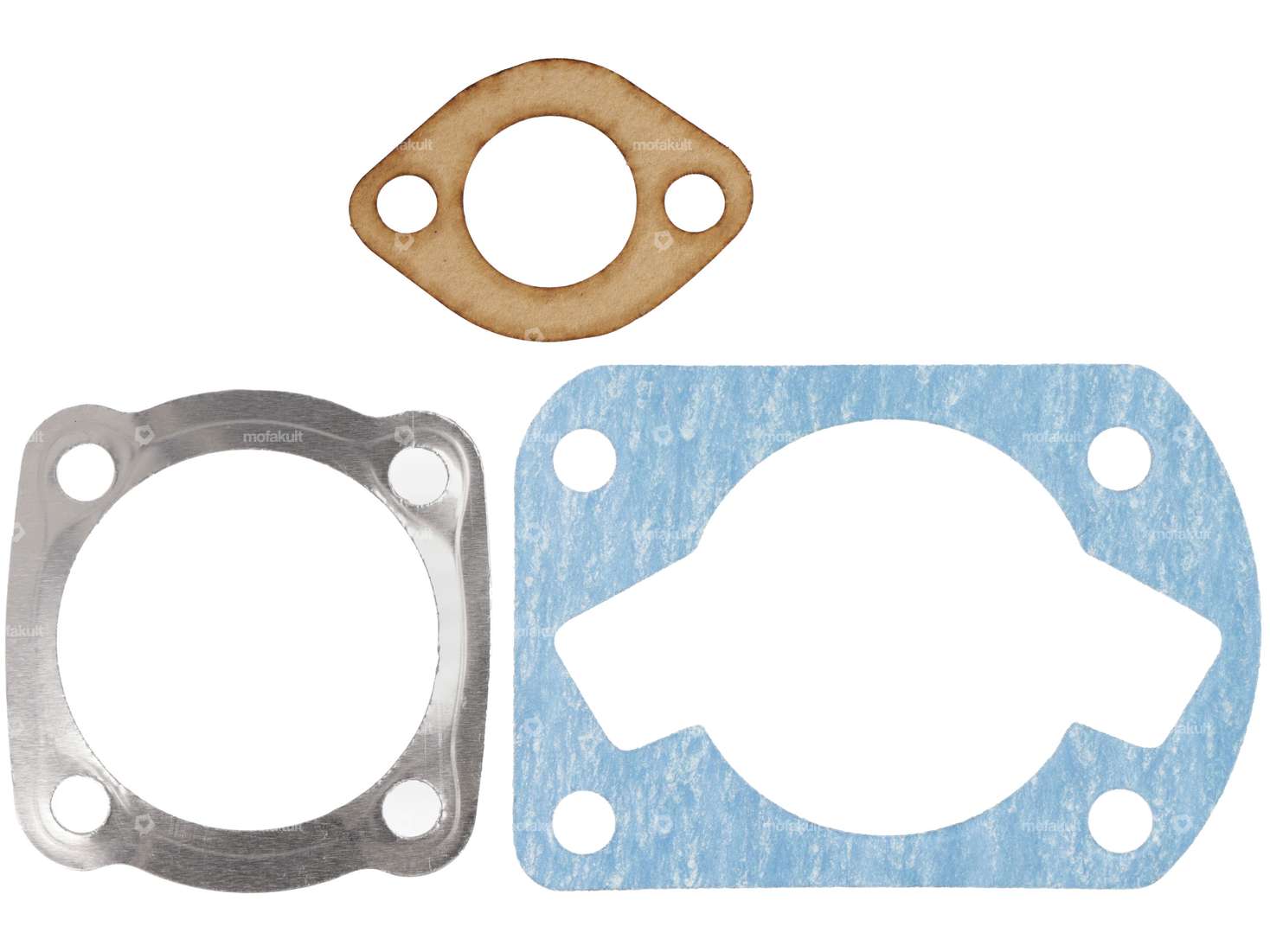

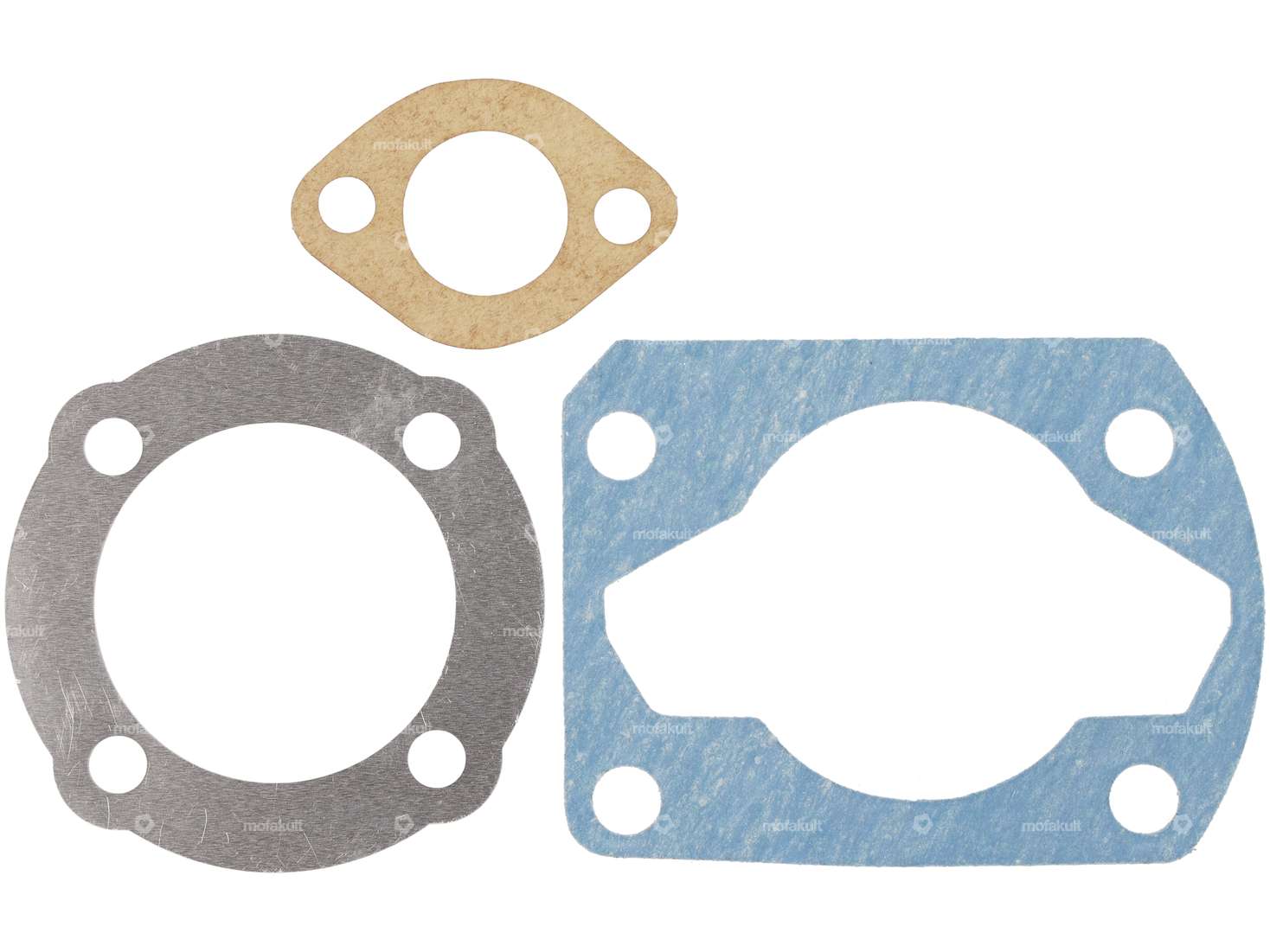

GPO gasket set 41 mm "Pomodoro" | Sachs 503

swiing® revival cylinder base gasket 0.3 mm | Sachs 503

Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Cylinder base · Thickness: 0.3 mm · Nominal diameter: 45 mm · Ø inside: 45 mm · Hole pattern [mm]: 60 x 40 · Area of application: Standard

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Weight piston kit: 86 g

swiing® ingenious gasket cylinder head 41 mm | Sachs 503, 502, 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Place of use: Cylinder head · Nominal diameter: 41 mm · Thickness: 0.3 mm · Ø inside: 41.7 mm · Ø cylinder: 41 mm · Hole pattern [mm]: 37 x 37 · Area of application: Standard

GPO inlet gasket "Pomodoro" & "Pandora" | Sachs 503 AAL / ABL / 2AL / 2BL, 50/2

Manufacturer: GPO · Material: Oiled paper · Place of use: Admission · Thickness: 1 mm · Ø inside: 19 mm · Hole spacing inlet: 32 mm · Ø screw holder: 6.5 mm

GPO 41 mm "Pomodoro" cylinder kit | Sachs 503

Nominal diameter: 41 mm · Manufacturer: GPO · Material: Gray cast iron · Displacement: 57 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 22 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 40 x 60 / 37 x 37 · Area of application: Tuning

swiing® revival solid exhaust clamp 26 - 28 mm galvanized (12.9 strength)

Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Material: Steel · Width: 42 mm · Ø inside: 26 - 28 mm · Ø outside: 39 mm · Mounting type: Nuts & bolts · Material thickness: 1.5 mm

Exhaust clamp 70 mm chrome wide version.

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Nominal diameter: 70 mm · Width: 28 mm · Clamping diameter: 67 - 71 mm · Ø mounting hole: 8.2 mm · Thickness: 2 mm · Number of fixing points: 1 pcs

swiing® ingenious 15 mm carburetor camouflaged | Sachs 503

Manufacturer: swiing® ingenious parts · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Total length: 66 mm · Nozzle thread: M3.5x0.6 (standard thread) · Ø fuel hose connection: 6 mm · Width: 50 mm · Nozzle size: 62 · Height: 95 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø Internal connection: 20 mm · Mounting type: Plug connection clamped · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Area of application: Tuning · Nozzle block: 2.17 · Camouflaged: Yes · Clamping screw torque (max.): 4 N/m

swiing® revival air filter Racing | Sachs 503

Height: 52 mm · Manufacturer: swiing® revival parts · Camouflaged: No · Material: Plastic · Color: black · Filter type: Racing screen · Area of application: Tuning · Mounting type: Plug connection clamped · Ø Internal connection: 20 mm · Total length: 165 mm · Width: 68 mm

swiing® ingenious exhaust manifold 28 mm chrome | Sachs 503

Manufacturer: swiing® ingenious parts · Material: Steel · Color: Chrome · Surface: chrome-plated · Ø inside: 26 mm · Ø outside: 28 mm · Total length: 410 mm · Mounting type: Bride · Flame tube attachment: inserted

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Weight piston kit: 86 g

AKOA 41 mm cylinder head | Sachs 503 2AL, AAL, 2BL, ABL

Manufacturer: AKOA · Material: Aluminum · Ø cylinder: 41 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 37 x 37 · Candle thread: short · Decompressor: No · Height: 30 mm · Area of application: Tuning

GPO 41 mm "Pomodoro" cylinder kit | Sachs 503

Nominal diameter: 41 mm · Manufacturer: GPO · Material: Gray cast iron · Displacement: 57 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 22 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 40 x 60 / 37 x 37 · Area of application: Tuning
