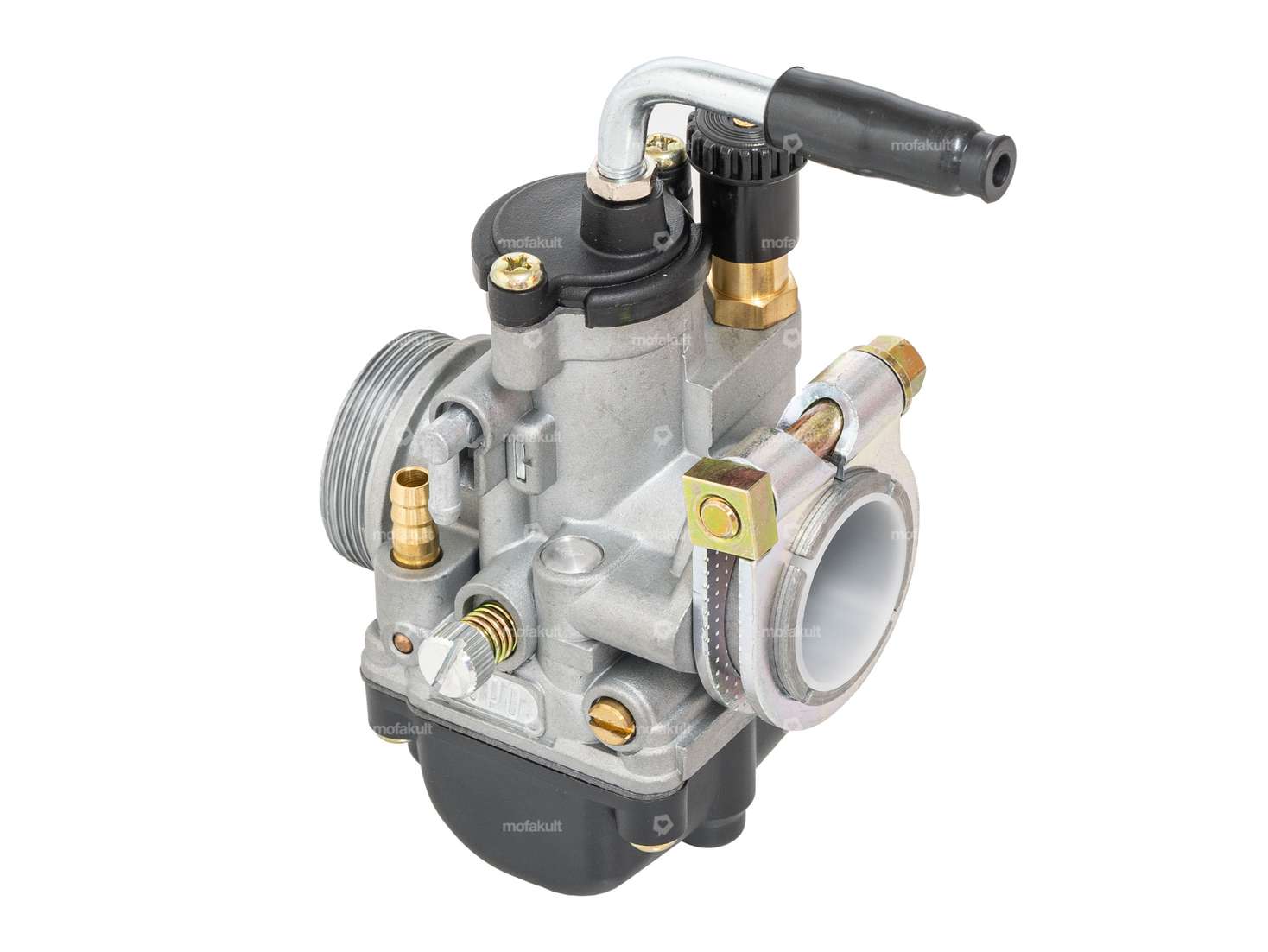

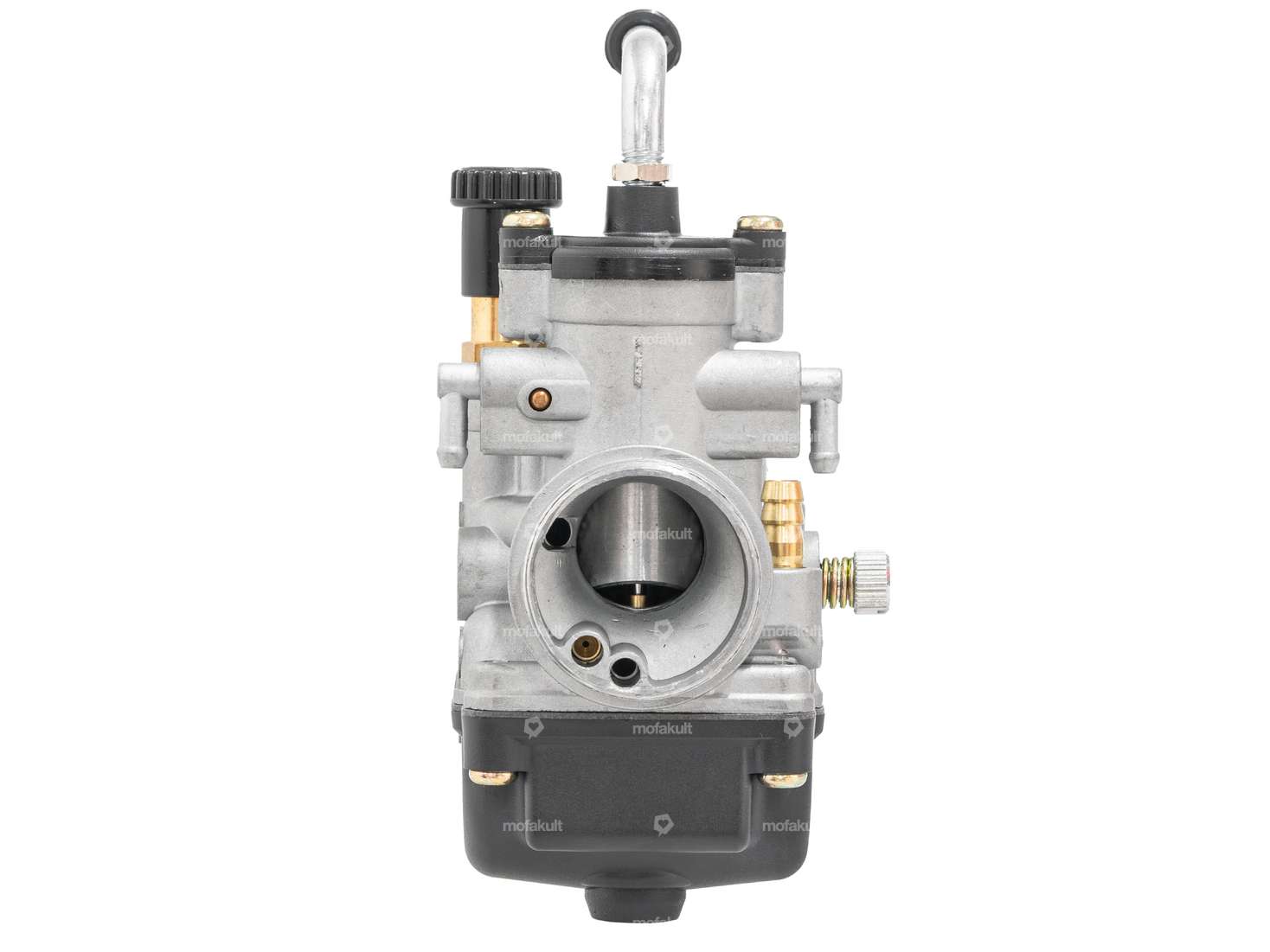

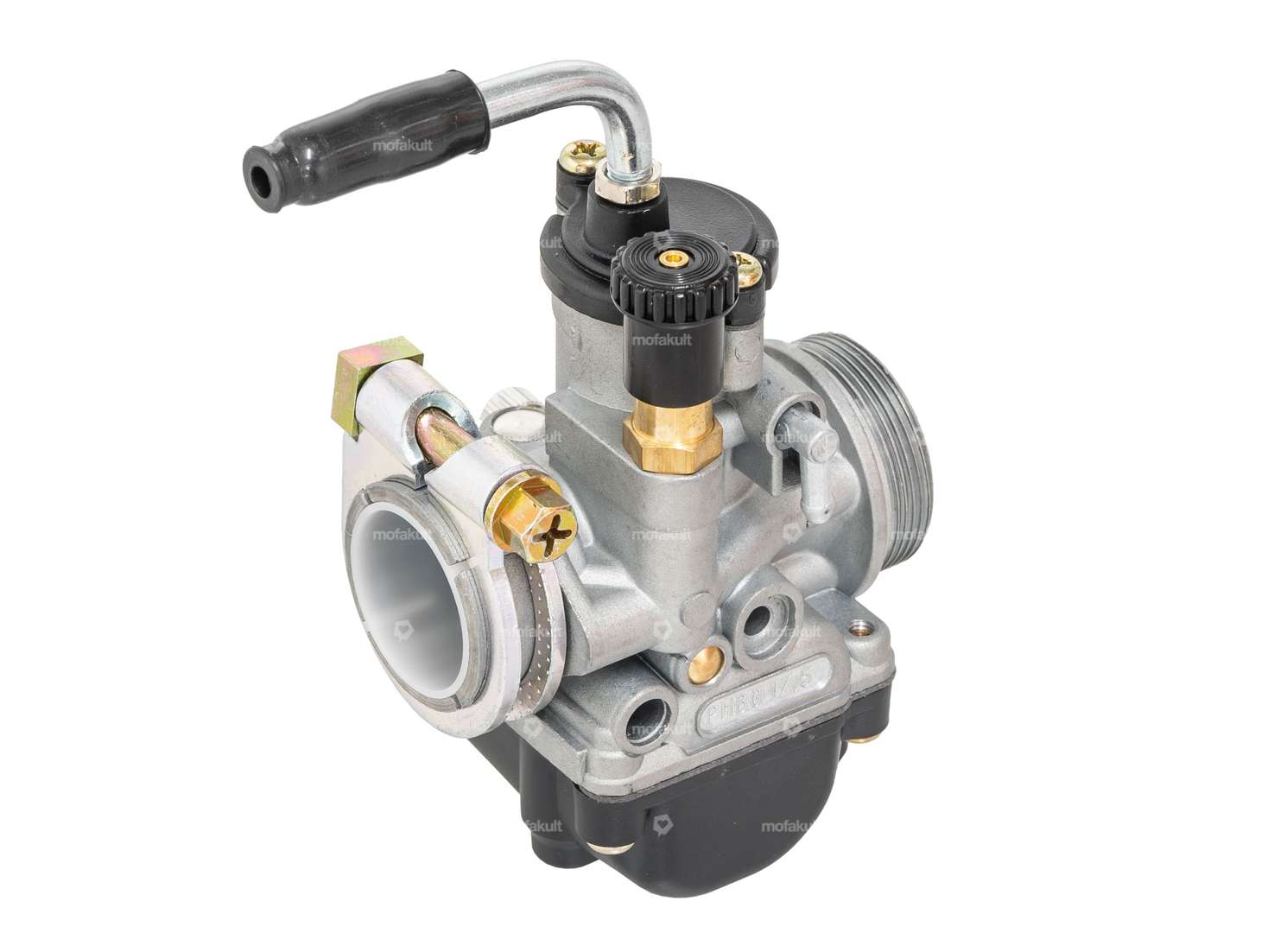

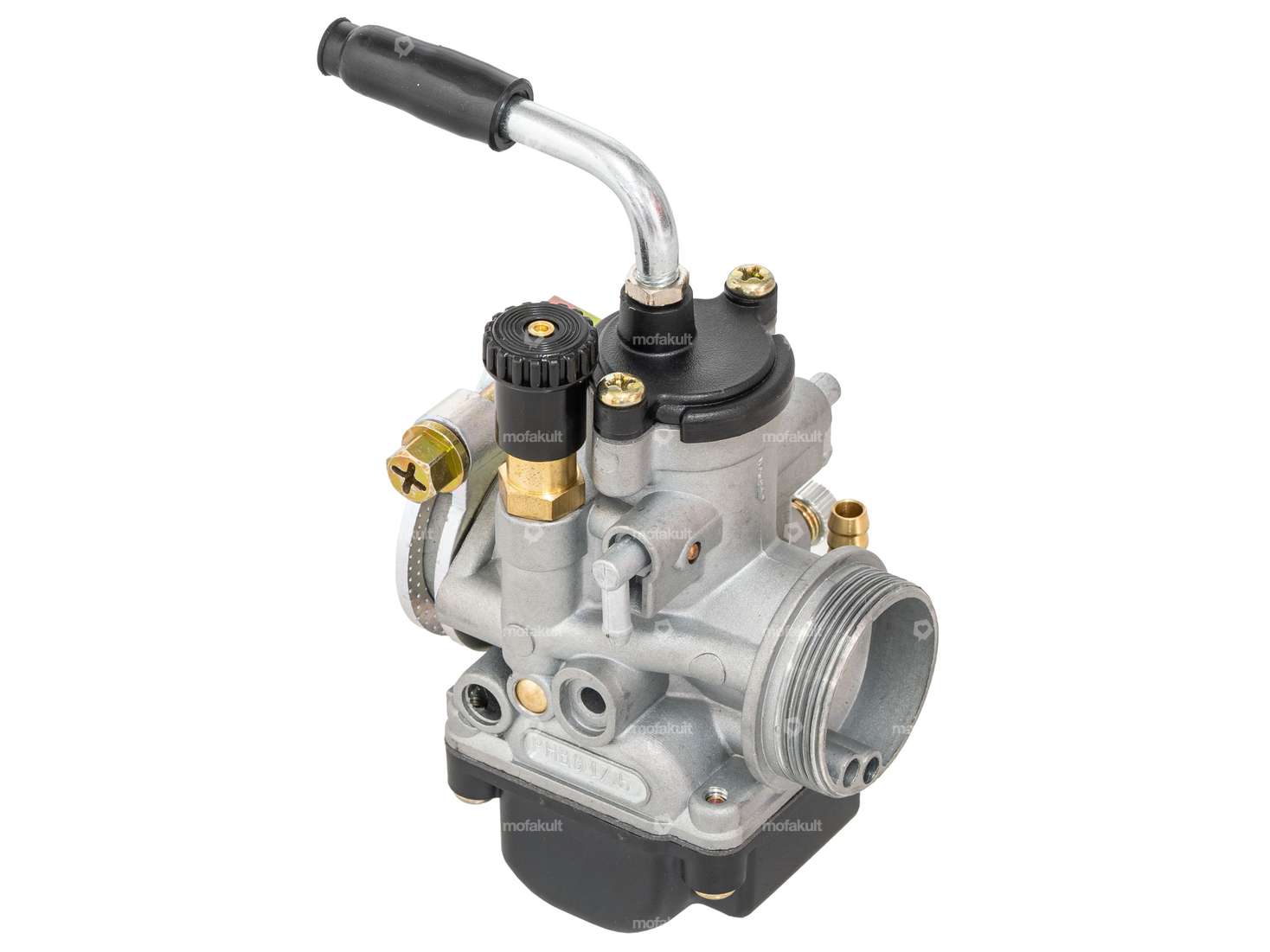

GPO 17.5 mm PHBG AS carburetor hand choke (Dell'Orto replica)

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 94,00

Incl. 20% VAT.

Description

17.5 mm PHBG replica racing carburetor for universal use for your moped, moped and small motorcycle.
This racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 70 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary air flow as well as the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main thread size (M5): 80 (with throttle plate)
Adjacent thread size (idle thread): 50
Choked thread size: 55
Air filter connection diameter: 32 mm (M32 x 1.25)
Connection diameter of intake manifold: 24 mm (or 26 mm after removing the reducer sleeve)
Total height: 130 mm
Total width: 75 mm

Matching nozzles, air filters and intake manifolds can be found in the accessories section.

Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.

ManufacturerGPO
CamouflagedNo
MaterialAluminum
Component group CarburetorCarburetor complete
Colorblack
Area of applicationTuning
Carburetor typePHBG AS
Width63 mm
Nominal diameter17.5 mm
Height130 mm
Ø Internal connection24 mm
Ø without reducing sleeve26 mm
Total length71.5 mm
Mounting typePlug connection clamped, Bride
Ø Air filter connection32 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Ø fuel hose connection6 mm, 5.3 mm
Mixed oil connectionNo
Vacuum connectionYes
Choke controlHand choke
Choke nozzle size55
Nozzle threadM5x0.8 (standard thread)
Nozzle block262AU
Nozzle size80
Size of secondary nozzle50
