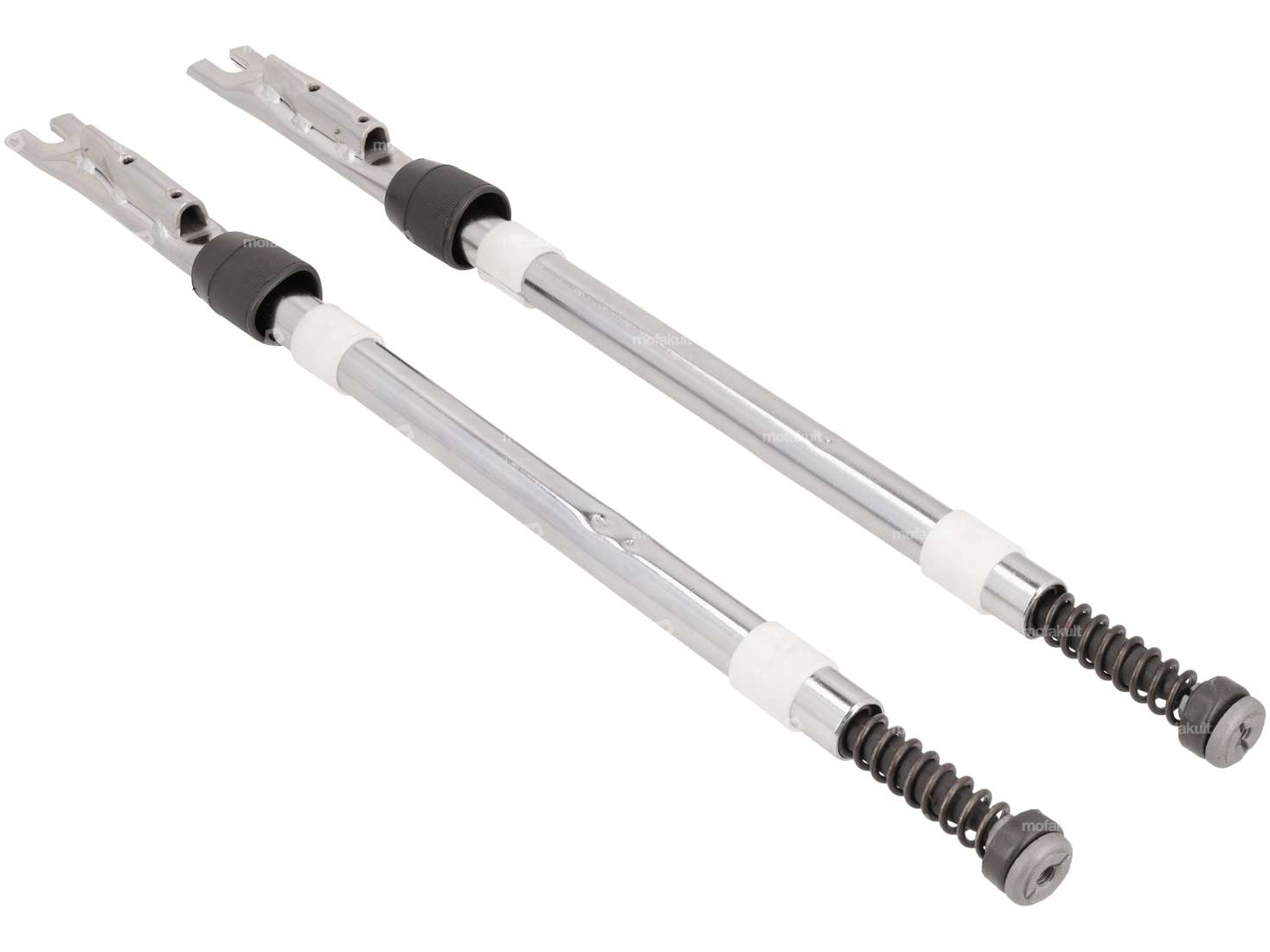

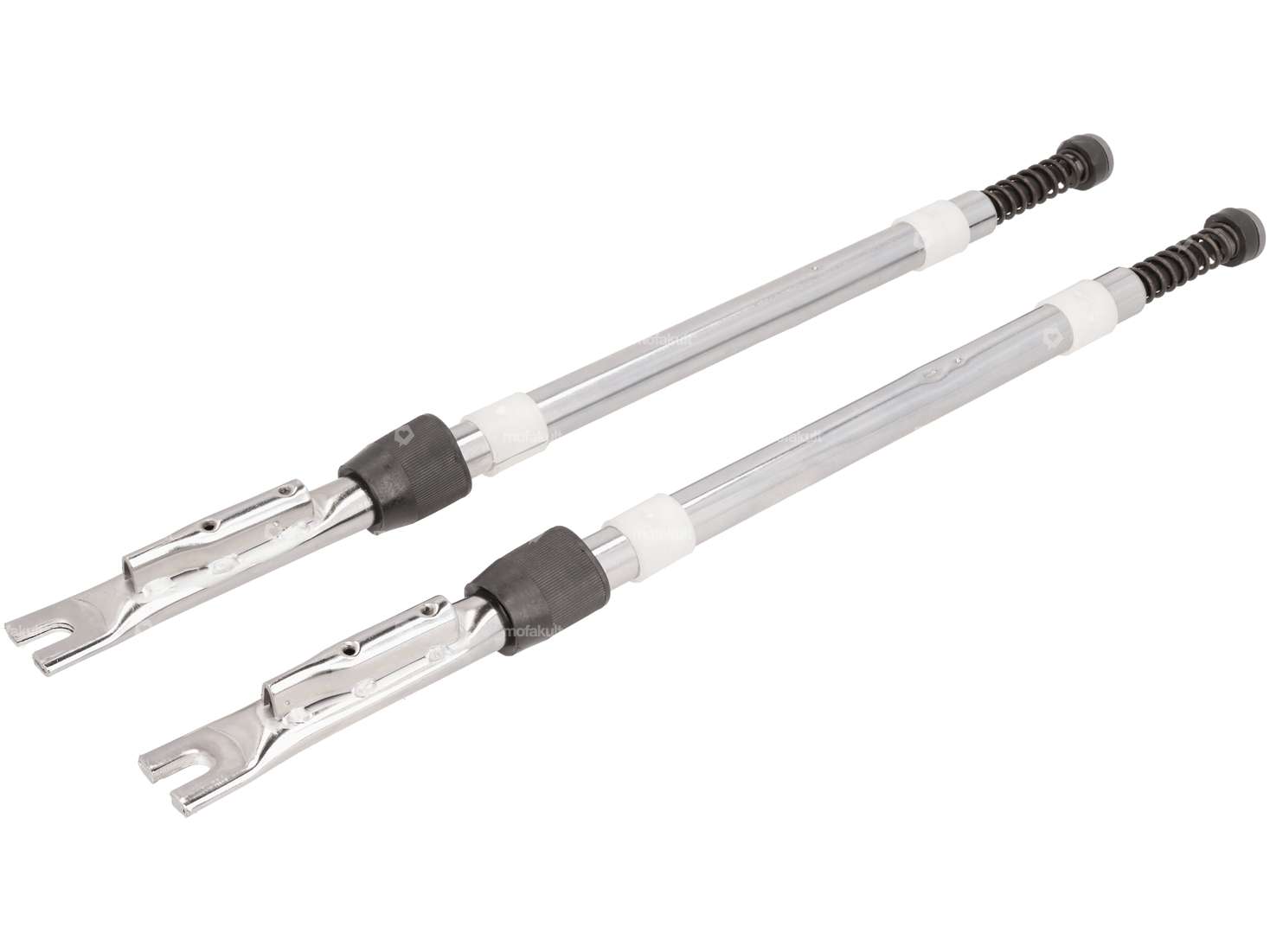

Complete standpipe set suitable for Puch Maxi S & N mopeds / mopeds.
The set consists of left & right fork leg, spring inserts, cover sleeves, rubber springs and sliding bushes.
Ø fork leg: 23 mm
Block for brake anchor plate: 74 x 16/8 x 16 mm (LxWxH)
Total length: 495 mm
Below block to below fork leg: 46 mm
Spring length incl. insert: 210 mm. Insert: 210 mm
Note: This is a cheap reproduction product that cannot be compared with the original fork legs. The springs are slightly longer, which means that the sliding bush protrudes slightly from the steerer tube. In addition, the welded-on tab on the fork leg may need to be compressed slightly to fit into the brake anchor plate.
Accessories for the dip tubes, such as reinforced springs, can be found under accessories.
Good-quality reproduction product from the Asian market.
| Manufacturer | Quenching |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Total length | 578 mm |
| Adjustable | No |
| Ø spars | 23 mm |
| Distance brake cam to wheel axle center-center | 38 mm |
| Puch |
