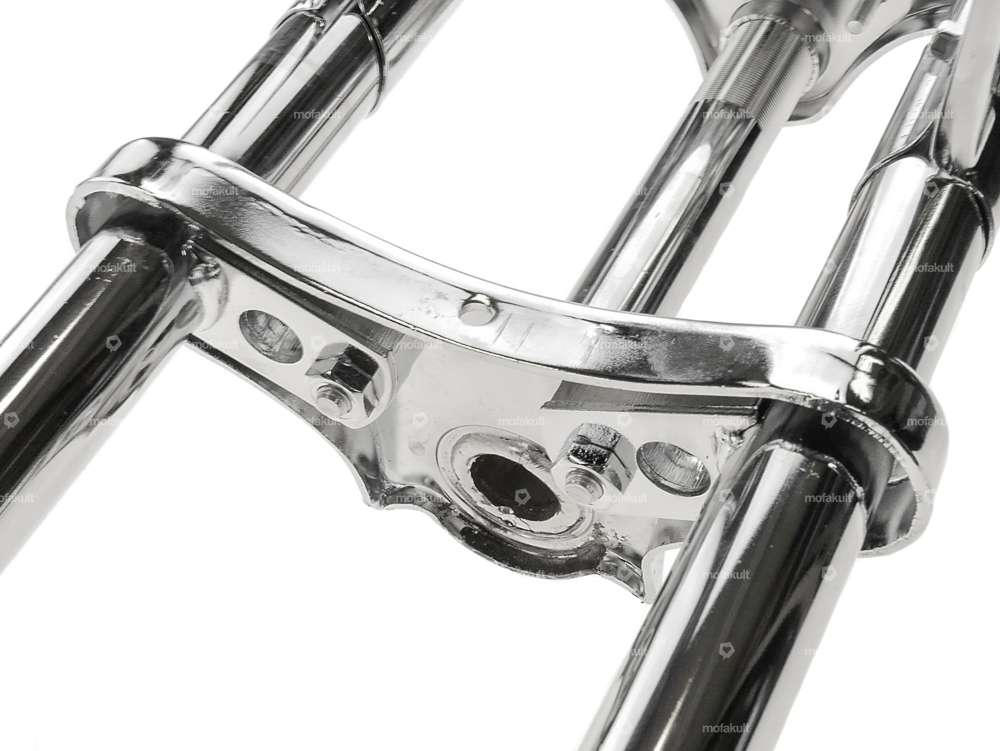

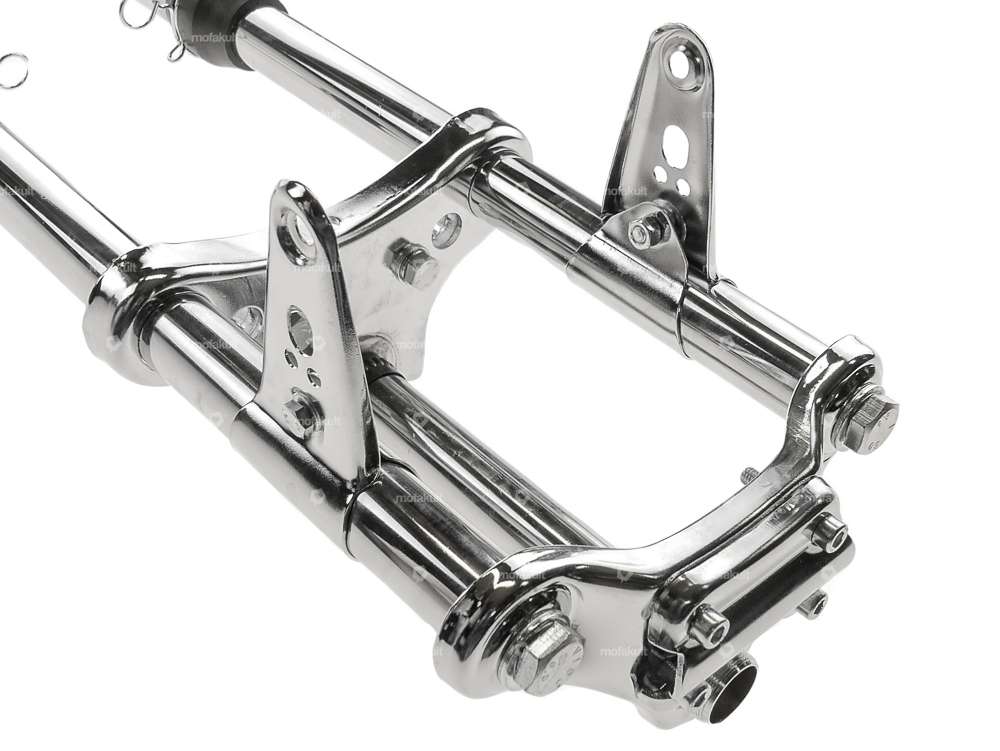

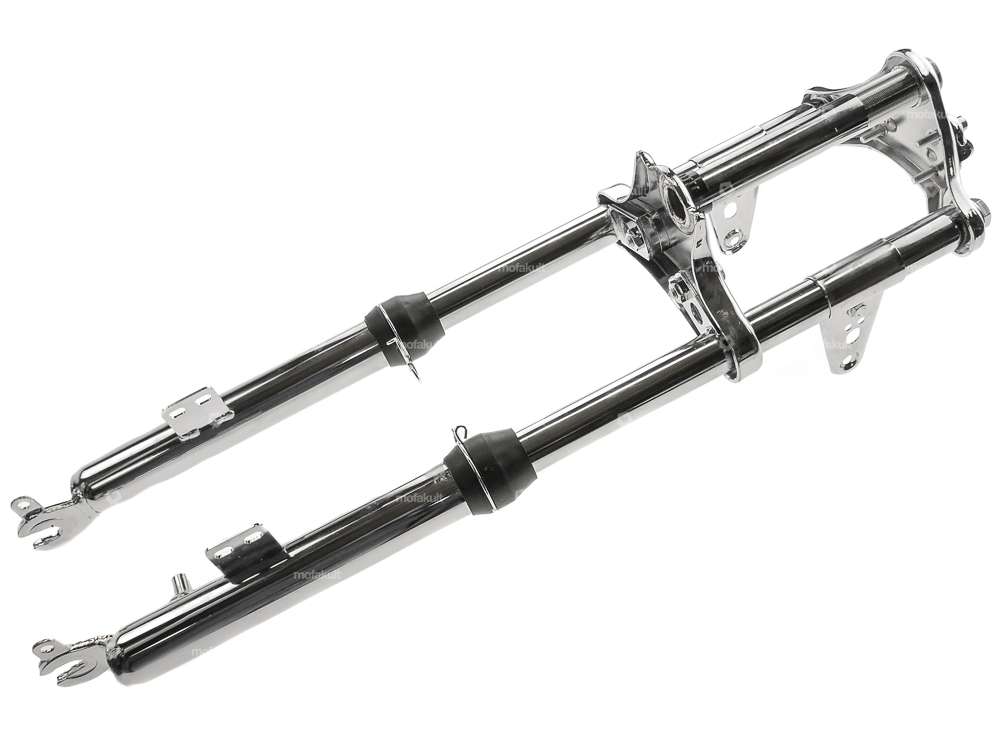

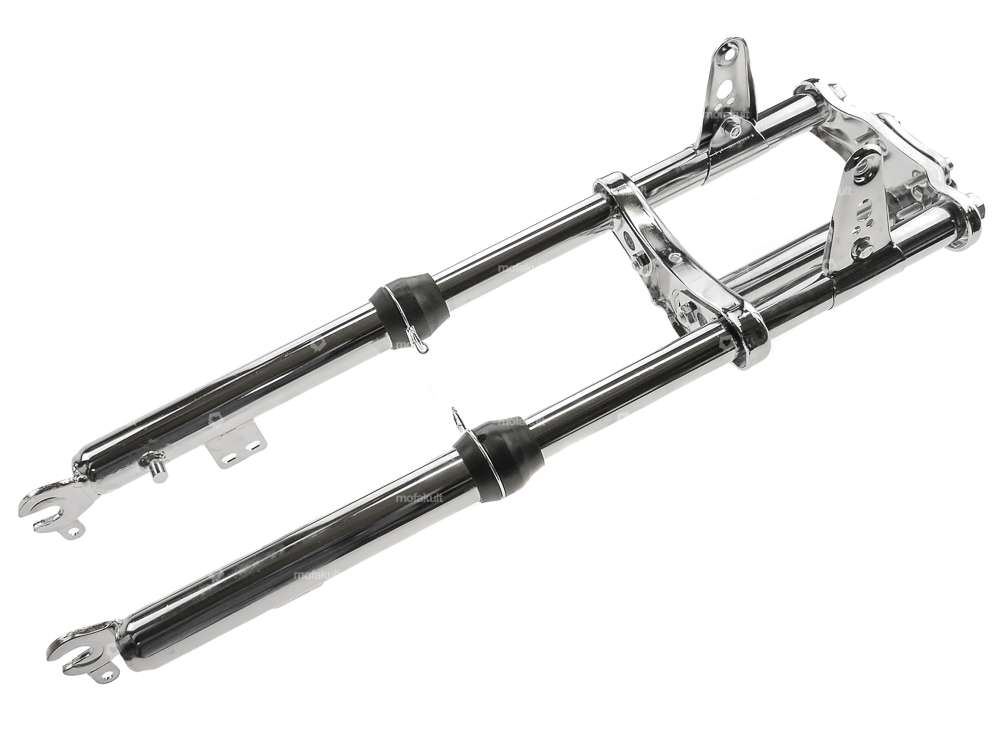

Fork specially made for Zündapp Belmondo mopeds!
The chrome-plated fork fits perfectly and no further adjustments are necessary.

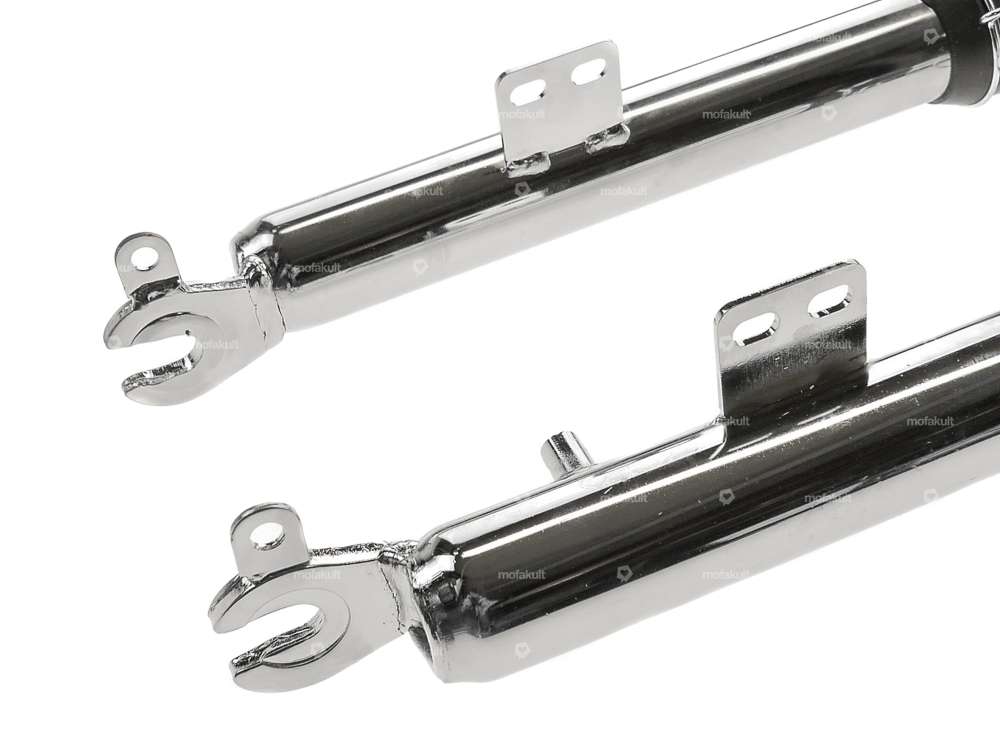

The two tabs for attaching the upper and lower struts are perfectly modeled on the original.
You will find the matching headset set and other add-on parts in the accessories section below.
The snap ring is supplied as shown.
Total fork length: 64 cm
Head tube length: 18.5 cm
Head tube thread: M26x1
Head tube inner diameter (for stem mounting): 22 mm
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Ø spars | 28 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Spar end distance (center-center) | 140 mm |
| Ø head tube inside | 22.1 mm |
| Ø outer head tube | 26 mm |
| Adjustable | No |
| Head tube length | 185 mm |
| Fork bridge - center wheel axle | 420 mm |
| Distance brake cam to wheel axle center-center | 72 mm |
| Thread length | 58 mm |
| Total length | 640 mm |
| Zündapp Belmondo |
