DR 43 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Home
| Motor
| Cylinder
| Cylinder & racing set
EUR 167,80

Incl. 20% VAT.

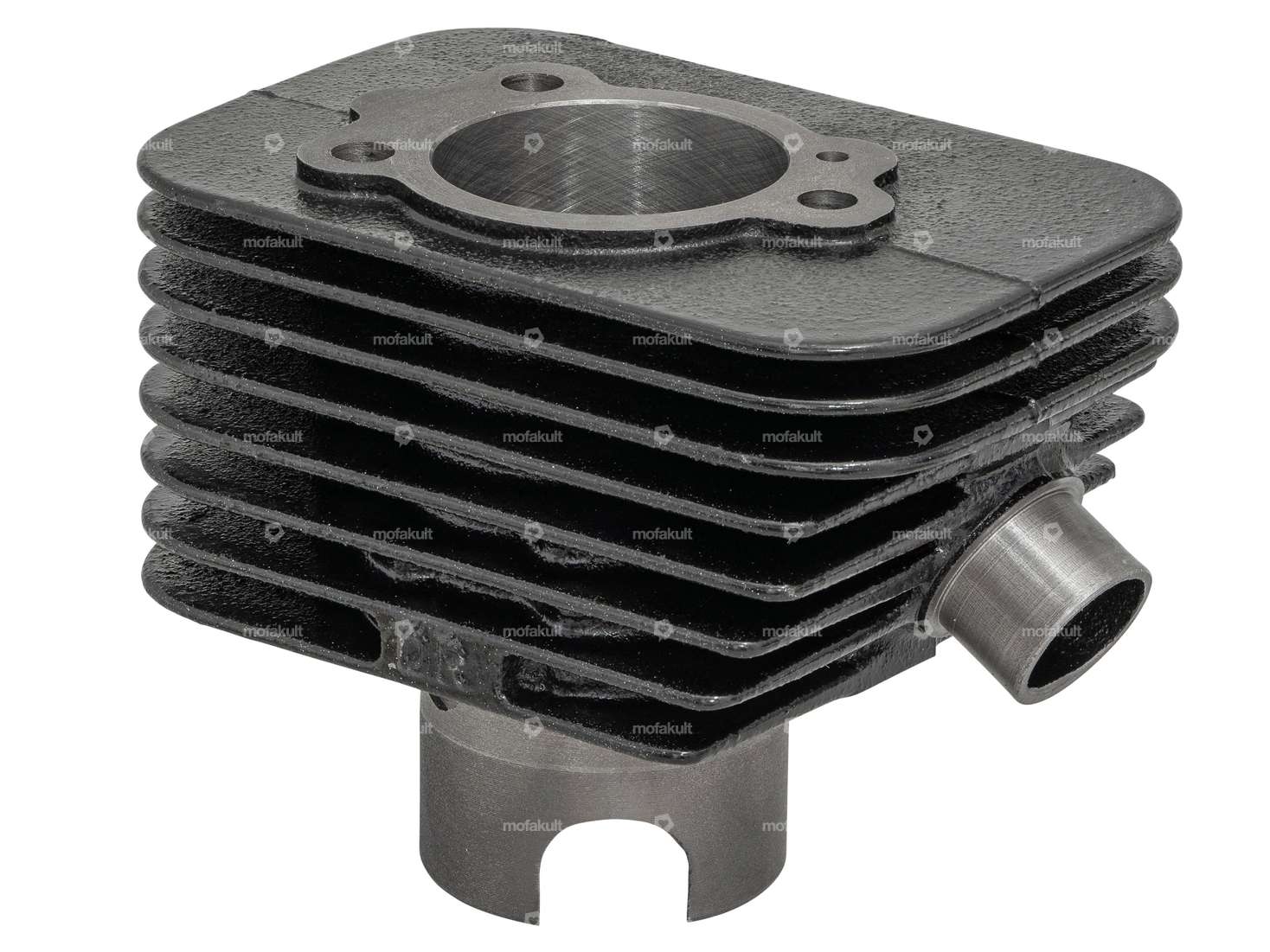

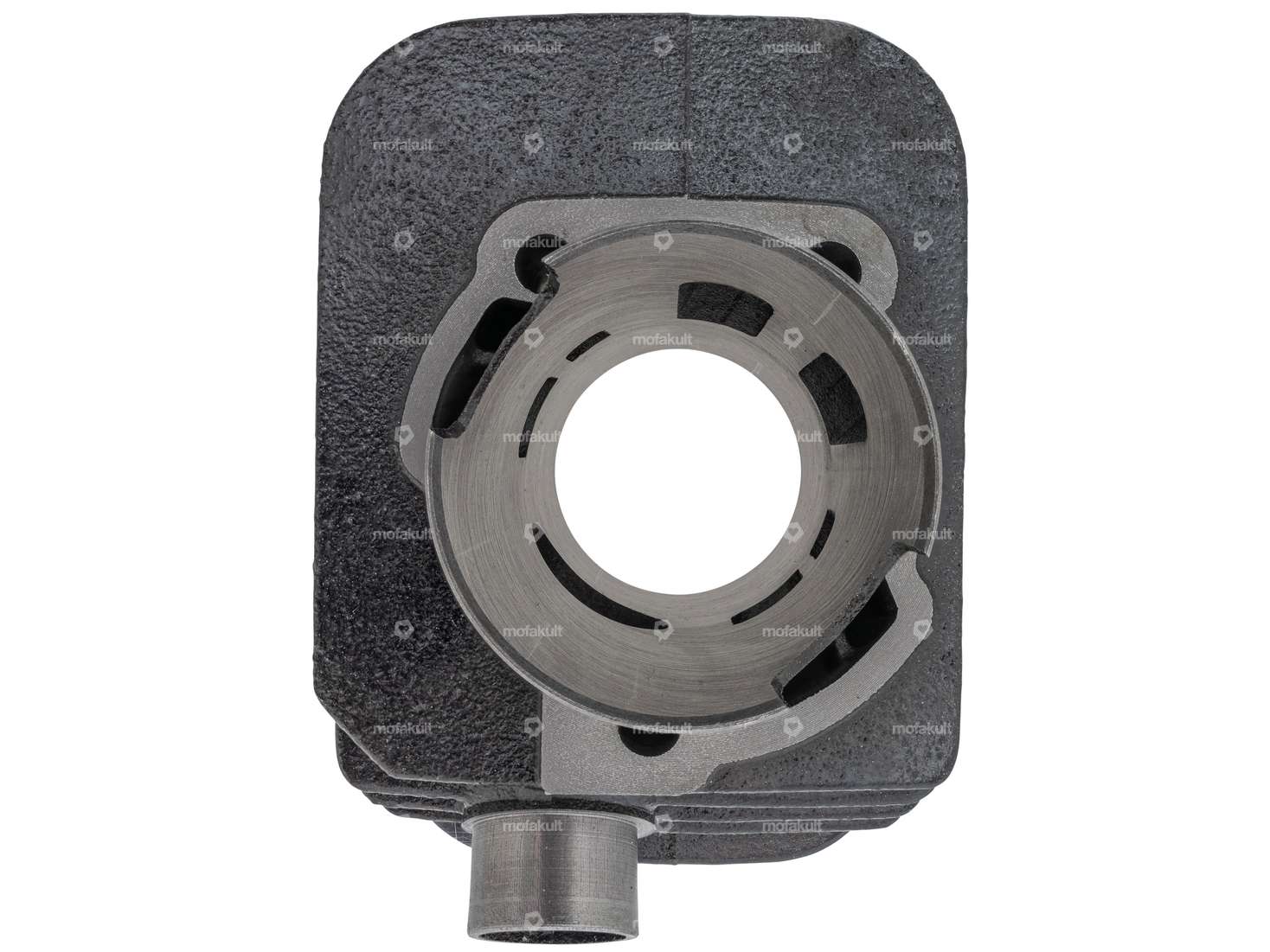

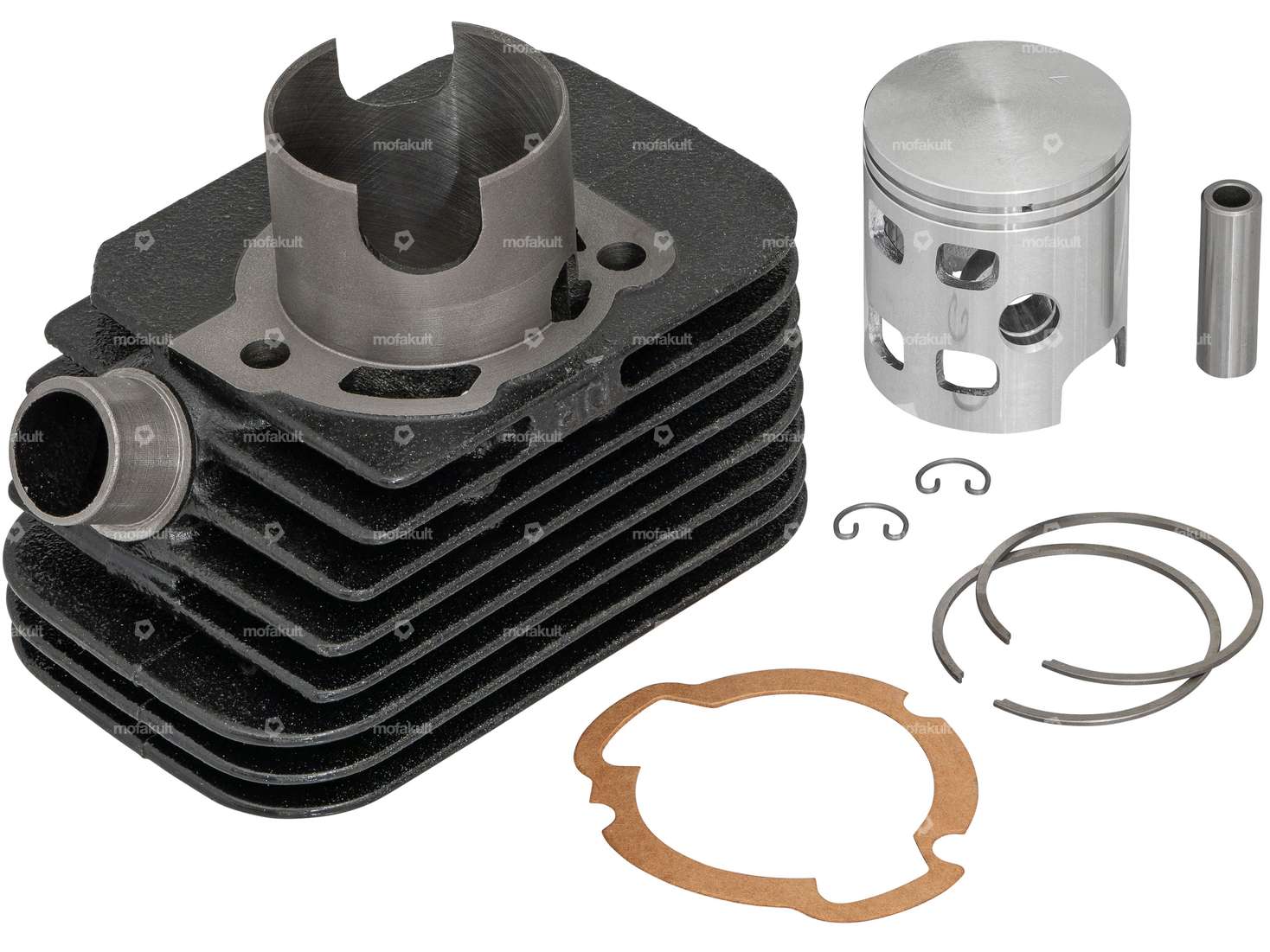

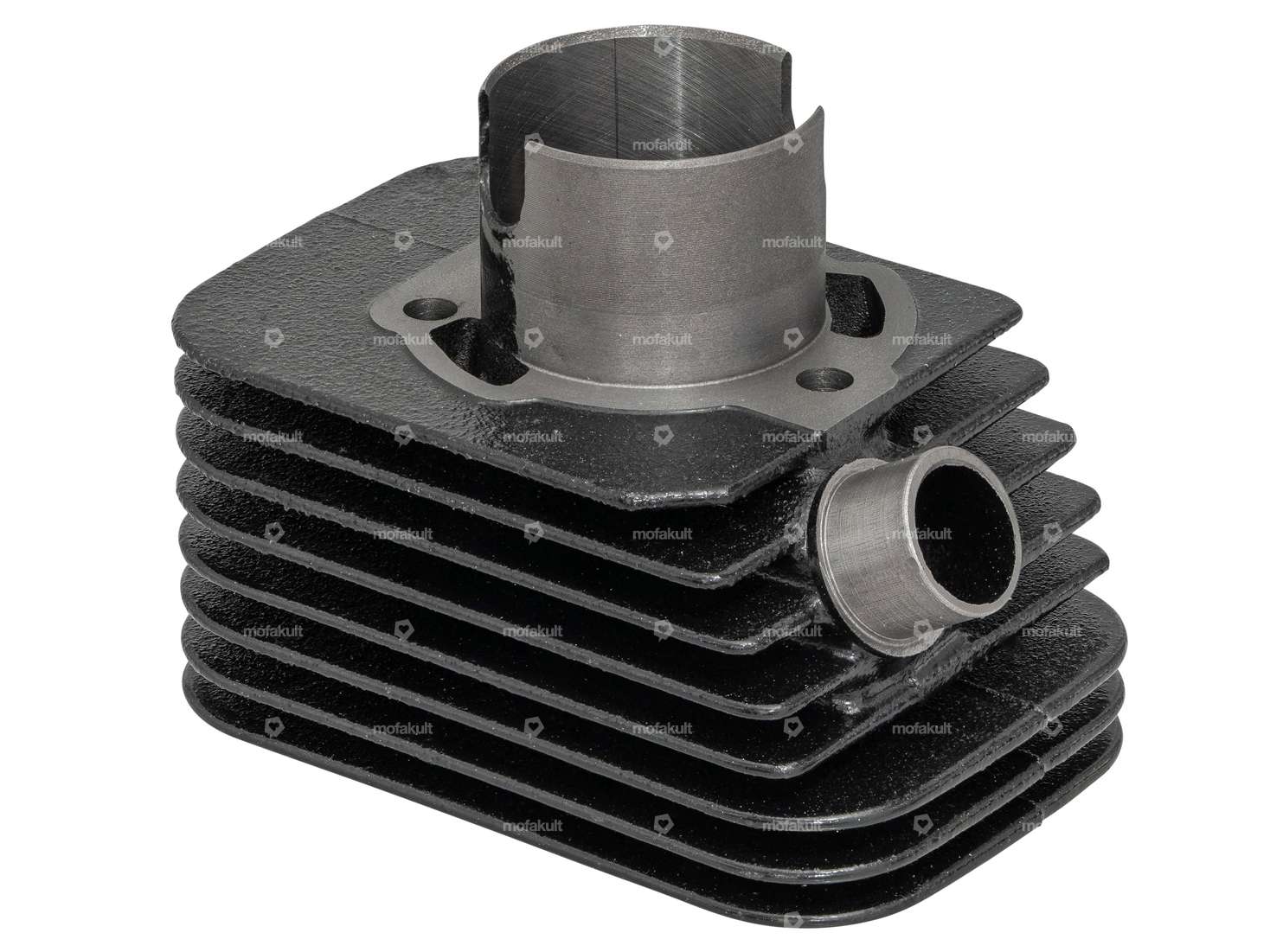

High-quality 43 mm cast iron racing cylinder suitable for your Piaggio Ciao, Si, Bravo, Boxer moped / moped

.

The racing cylinder with 65 cc displacement is ideal for a tuning setup for everyday use. The tuning cylinder has 6 overflow channels, which guarantee plenty of power across the entire rev range.

Ø piston pin: 10 mm

Notes:
In order to achieve optimum performance, the intake on the engine housing and the area of the overflow channels should be adjusted accordingly. You will find a corresponding tutorial for the intake linked below.
A 12/12 carburetor should also be used as a minimum.
It is recommended to fit a cylinder head with a larger diameter.

Suitable cylinder heads as well as replacement pistons and mixing oil can be found in the accessories section.

Quality product from the Italian manufacturer DR Racing Parts.

Details

Nominal diameter43 mm
ManufacturerDR Racing Parts
MaterialGray cast iron
CamouflagedNo
Surfacevarnished
Displacement65 ccm
Crankshaft stroke43 mm
Ø cylinder neck46 mm
Ø Outlet outside22.3 mm
Ø outlet inside18 mm
Ø piston pin (B)10 mm
Number of fixing points3 pcs
Area of applicationTuning
Hole pattern [mm]55 x 34
Outlet typeclamped
DecompressorYes

Suitable for the following models

Piaggio

Ciao - P, SC, PX, C24

Si

Bravo / Super Bravo

Boxer

Grillo

Accessories & related products

Inox
Nut M7 Inox

Universal

10886

Nut M7 Inox

Thread type: M7x1 (standard thread) · Material: Chrome steel (known as Nirosta®) · Drive: External hexagon · Nut type: Hexagon nut · Width across flats SW: 11 mm

EUR 2,80

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)
undefined

Universal

15357

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Color: green · Area of application: Standard

EUR 23,40

EUR 23,40/l

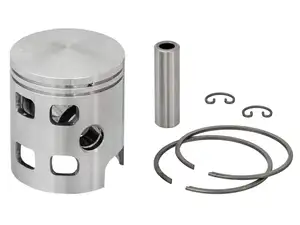

DR piston 43 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
