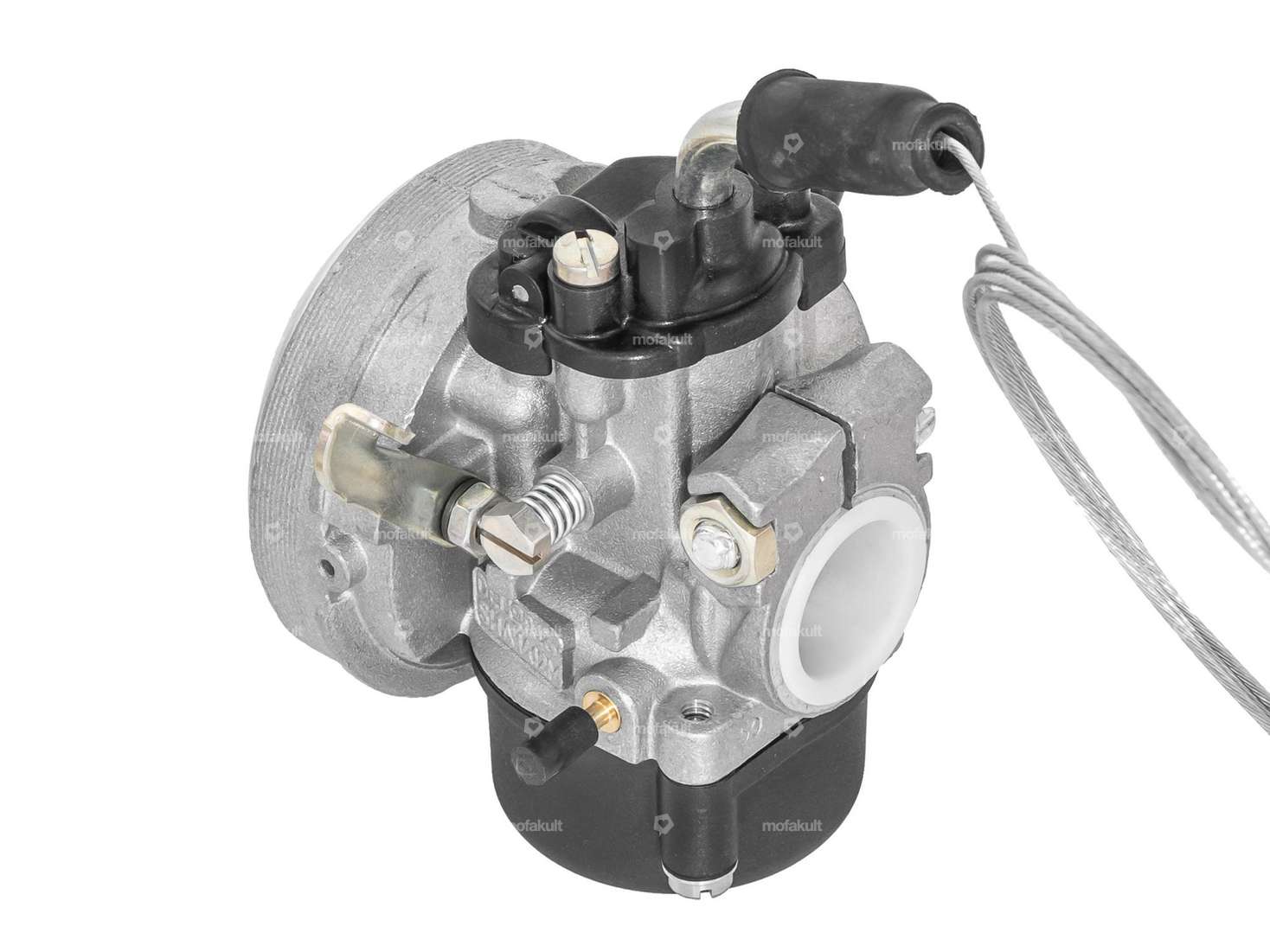

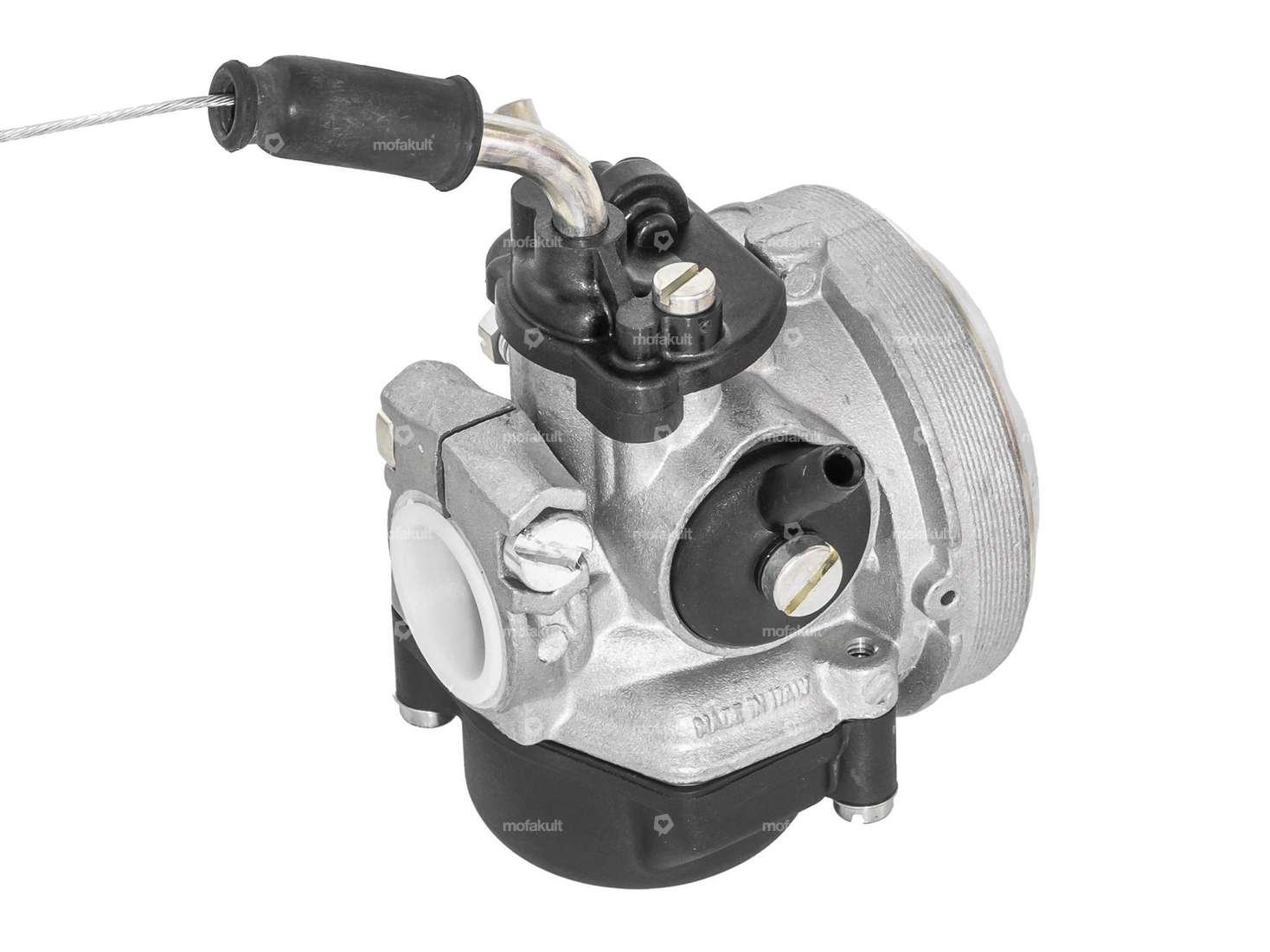

The Dell'Orto 14 / 12 M SHA racing carburetor impresses with its compact design and can be used universally for various mopeds, mopeds and small motorcycles.

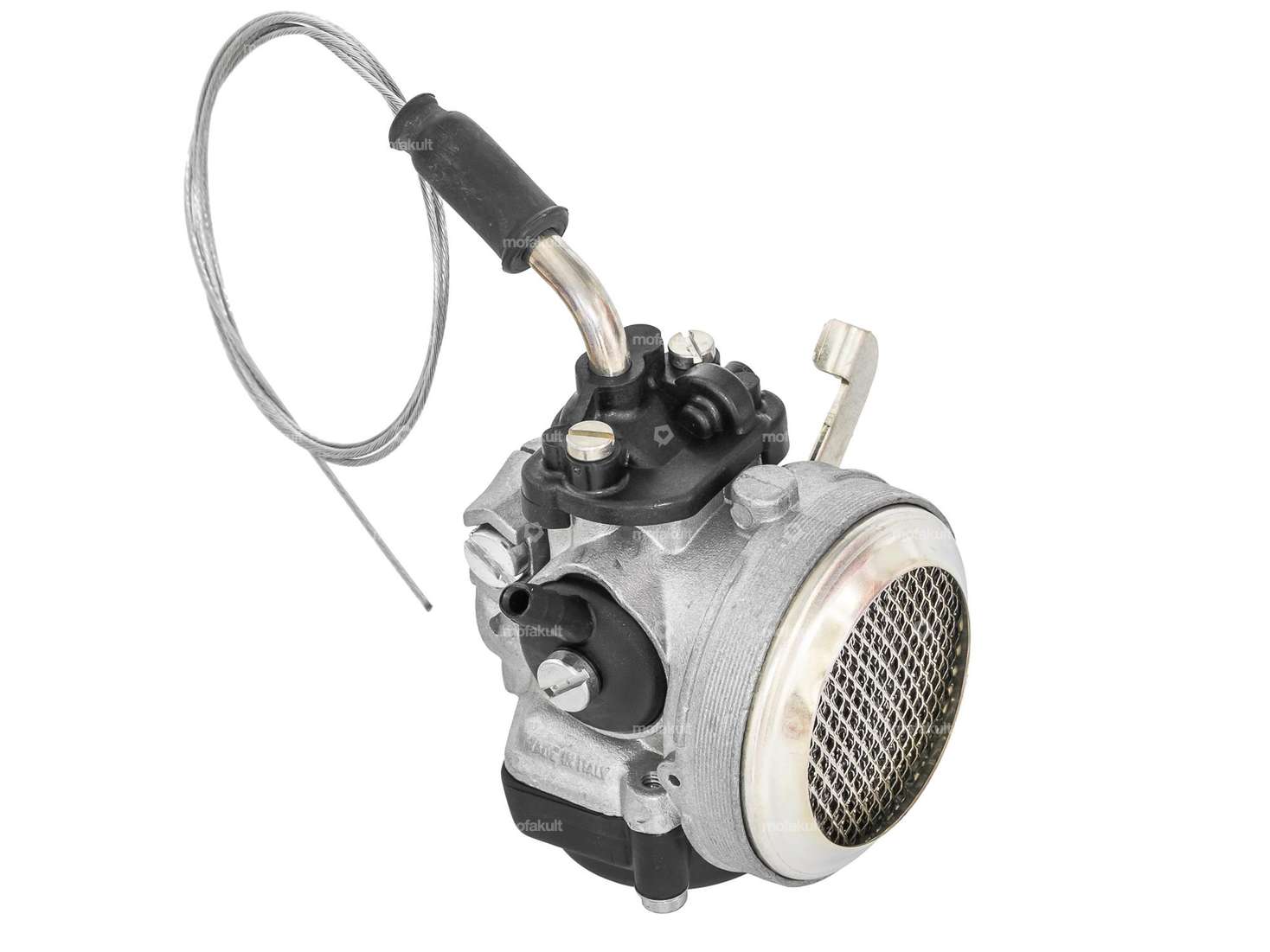

The integrated air filter screen can be easily removed for cleaning purposes.

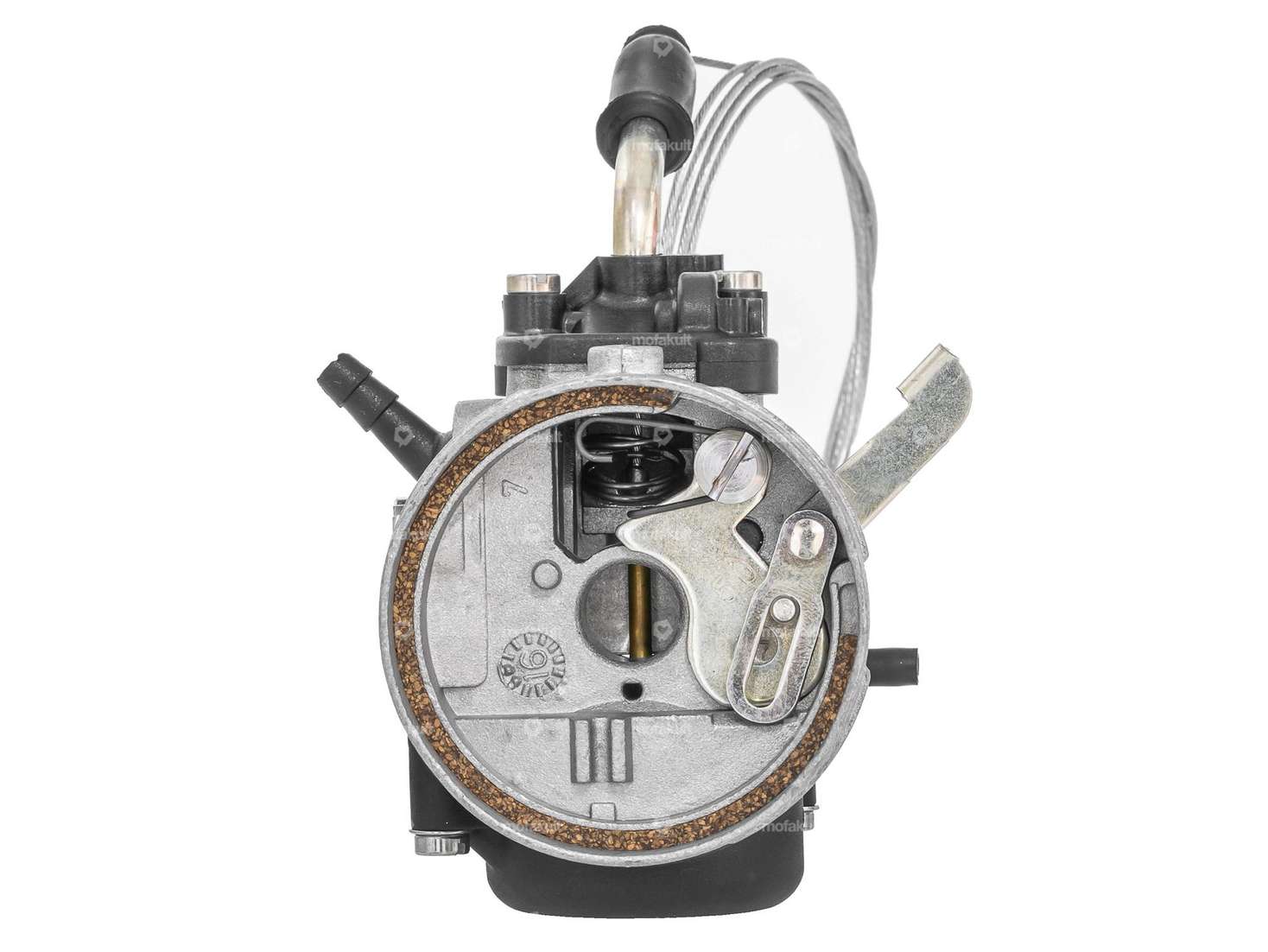

The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 4 (SHA4)
Main diameter (M5): 68
Inlet connection diameter: 18 mm (or 21 mm after removing the reducer). 21 mm after removing the reducing sleeve)
Ø outside air filter connection: 59 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 14 mm
Total height: 81 mm (without pipe bend)
Total length: 65 mm
Total width: 82 mm
Matching nozzles and air filters can be found in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
| Nominal diameter | 14 mm, 12 mm |
| Manufacturer | Dell'Orto |
| Camouflaged | No |
| Material | Aluminum |
| Area of application | Tuning |
| Component group Carburetor | Carburetor complete |
| Color | black |
| Total length | 65 mm |
| Carburetor type | SHA |
| Width | 82 mm |
| Height | 110 mm |
| Ø without reducing sleeve | 21 mm |
| Ø Inside entrance | 12 mm |
| Ø Output inside | 14 mm |
| Ø Air filter connection | 59 mm, 56 mm |
| Ø Internal connection | 18 mm |
| Ø fuel hose connection | 6 mm, 5.2 mm |
| Mixed oil connection | Yes |
| Vacuum connection | No |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 68 |
| Mounting type | Plug connection clamped |
| Universal |
| Tomos |
