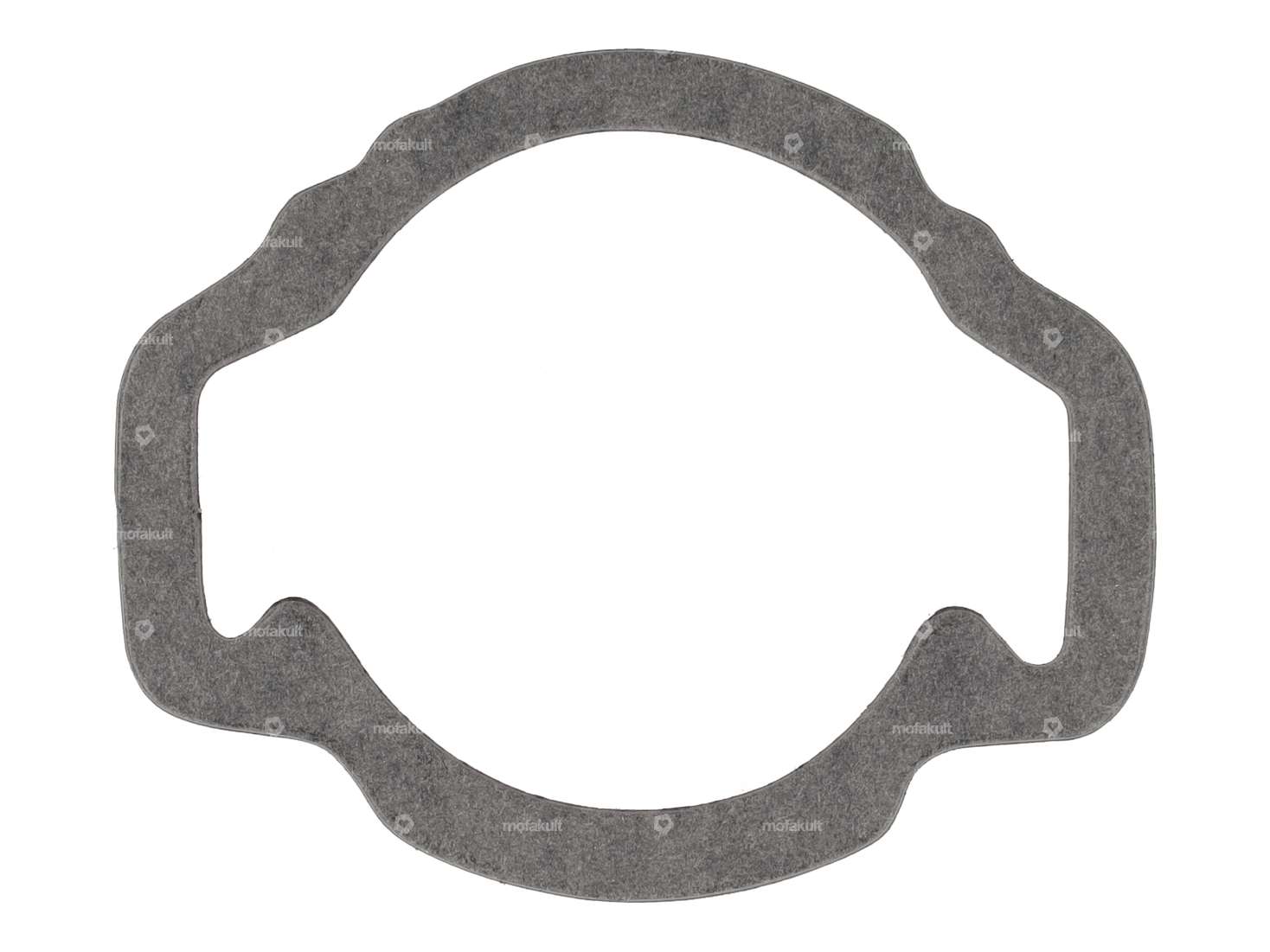

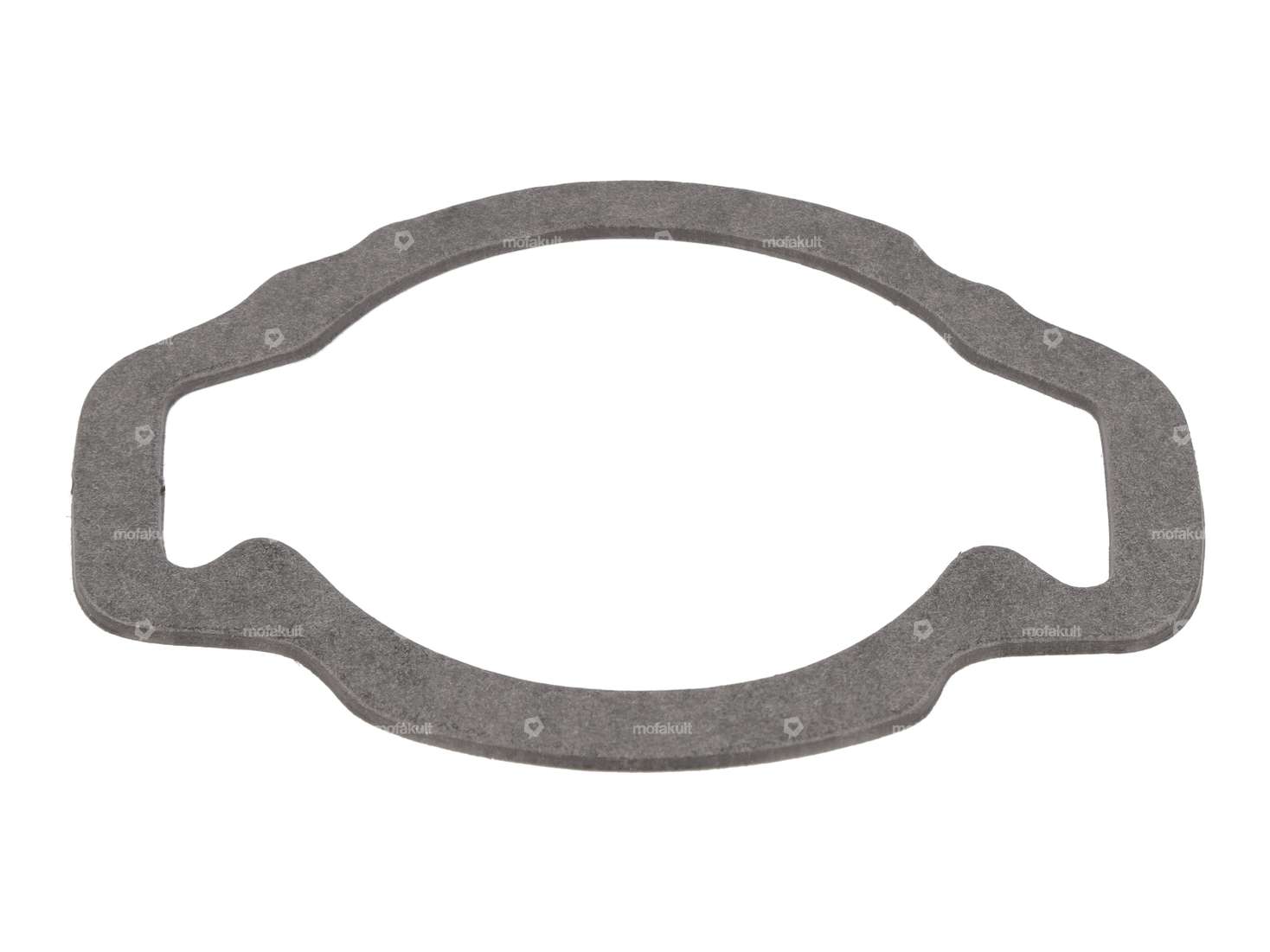

Cylinder base gasket, fan-cooled cylinder (1 mm)

Outlet seal Ø 27 Steel ring

Thickness: 2.1 mm · Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Reinforced: Yes · Ø outlet inside: 27 mm · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm · Area of application: Tuning

Meteor piston 38 mm #1 | Puch

Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.95 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 1 · Weight piston kit: 79 g · Puch OEM number: 349.1.10.106.0/21

Cylinder head gasket 40 - 43.5 mm | Puch

Material: Aluminum · Place of use: Cylinder head · Ø cylinder: 40 - 43.5 mm · Thickness: 0.4 mm · Ø screw holder: 8 mm

Gasket cylinder base 1 mm | Puch

Material: Sealing carton · Place of use: Cylinder base · Nominal diameter: 50 mm · Thickness: 1 mm · Ø inside: 50 mm · Area of application: Standard · Hole pattern [mm]: 44 x 44

0.45 mm inlet seal oil paper (32 mm hole spacing)

Material: Oiled paper · Place of use: Admission · Ø outlet inside: 14.5 mm · Thickness: 0.45 mm · Hole spacing inlet: 32 mm

swiing® revival gearbox cover gasket ZA50 engine | Puch Maxi S -2A, X30 NG - 2AH

Material: Sealing paper · Color: sand-colored · Total length: 175 mm · Number of fixing points: 6 pcs · Manufacturer: swiing® revival parts · Number of components: 1 pcs · Width: 125 mm · Thickness: 0.3 mm · Puch OEM number: 321.1.10.649.1

Outlet gasket 18 - 22 mm metal ring

Thickness: 2 mm · Hole spacing: 38 - 42.5 mm · Ø mounting hole: 6.7 mm · Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Ø inside: 22 mm · Number of fixing points: 2 pcs

Cylinder base gasket, fan-cooled cyl.

Place of use: Cylinder base

Inlet gasket 3.2 mm | Puch

Place of use: Admission · Thickness: 3.2 mm · Hole spacing inlet: 32 - 38 mm

Cylinder base gasket, fan-cooled cylinder (2 mm)

Place of use: Cylinder base
