Description

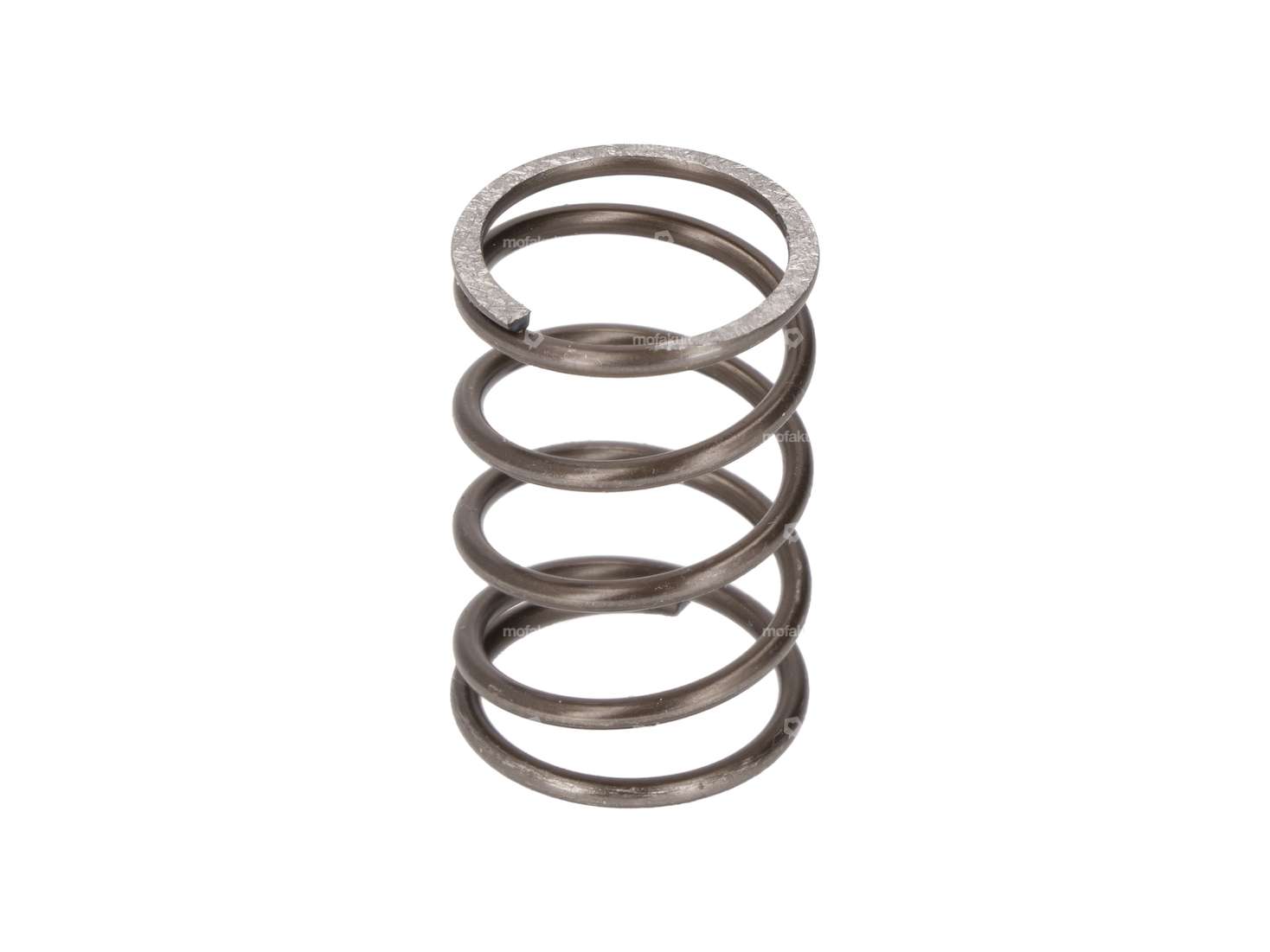

Single clutch spring in the standard version to fit your Vespa Largeframe scooter. You can find a list of the exact models below in the drop-down menu under «suitable for the following models».

The spring provides the necessary tension in the clutch and serves as a replacement when the clutch is overhauled or if your old clutch spring is damaged.

Note: Depending on the model, 6 or 7 springs are required, so be sure to check this.

You can find more spare parts for your clutch in the accessories section.

OEM number: 022821

Details

Spring design	Pressure spring
Material	Steel
Ø wire	1.58 mm
Total length	28.5 mm
Ø inside	15 mm
Ø outside	18.2 mm
Area of application	Standard
Piaggio OEM number	022821

Suitable for the following models

Vespa

Vespa PX, T5, Cosa - PX80 E Lusso · V8X1T · 1983 - 1993 Lusso / Arcobaleno , PX100E · VIX1T · Indien , P125X · VNX1T · 1977 - 1982 (PX alt) Aussenverschluss , P125X · VNX2T · 1981 - 1984 (PX alt) Innenverschluss , PX125 E · VNX2T · 1982 - 1993 / Lusso / Arcobaleno , PX125 · VNX2T · 1993 - 1996 Classic , PX125 · VNX2T · 1997 - 1999 (Disc) , T5 125 · VNX5T · 1985 - 1993 , PX125 · ZAPM471 · 2001 MY Katalysator (Millenium) , P150X · VLX1T · 1978 - 1993 , P150S · VBX1T · 1978 - 1990 , PX150 · ZAPM742 · 2001 MY Katalysator (Millenium) , P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , Cosa 125 · VNR1T · I 1988 - 1992 II 1992 - 1998 , PX200 · VSX1T · 1997 - 1999 (Disc) , Cosa 150 · VLR1T · I 1988 - 1991 II 1992 - 1995 , Cosa 200 · VSR1T · I 1988 - 1992 II 1992 - 1998 , P80X · V8X1T · alt (Zündschloss Lenkkopf)
