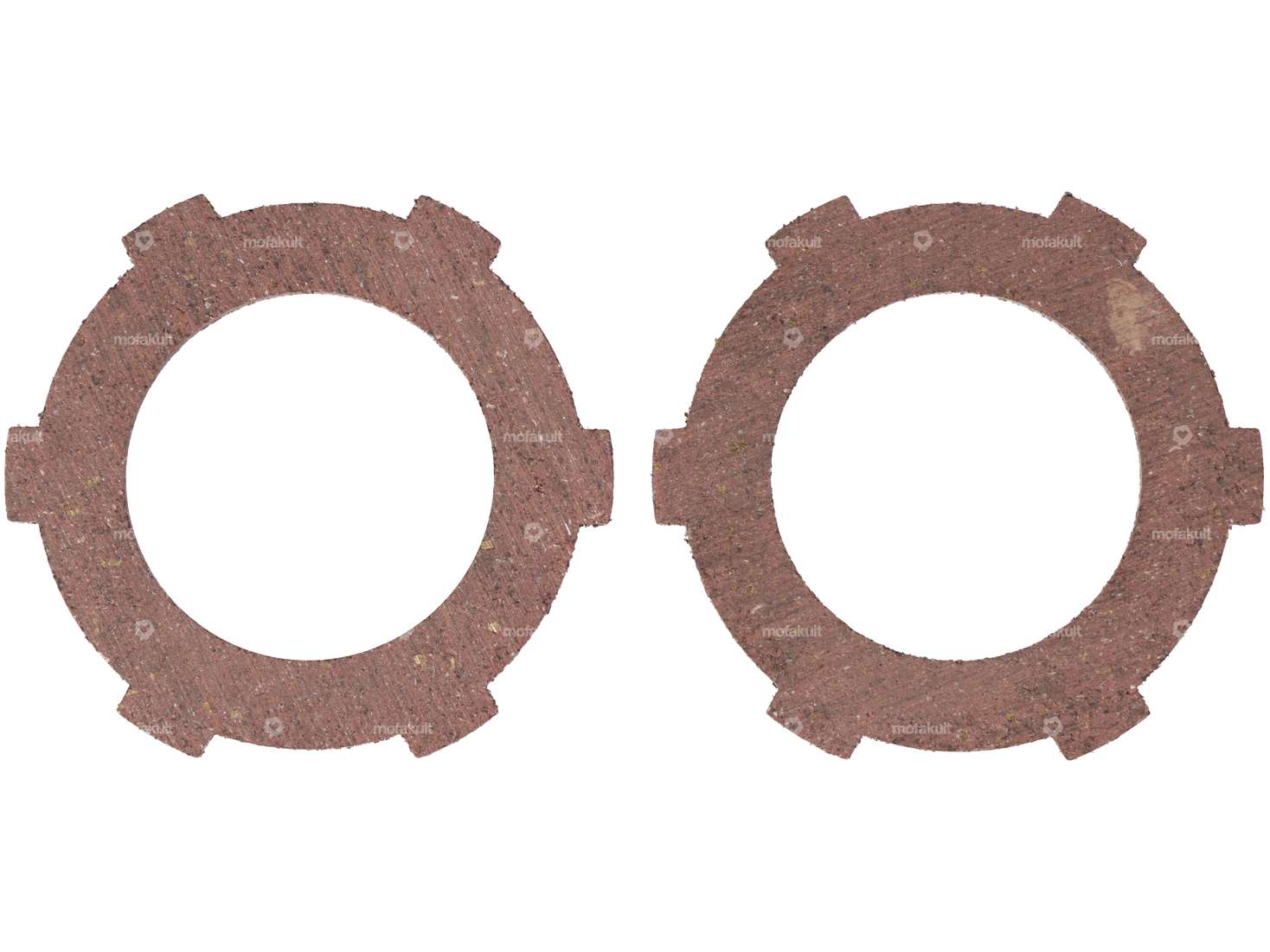

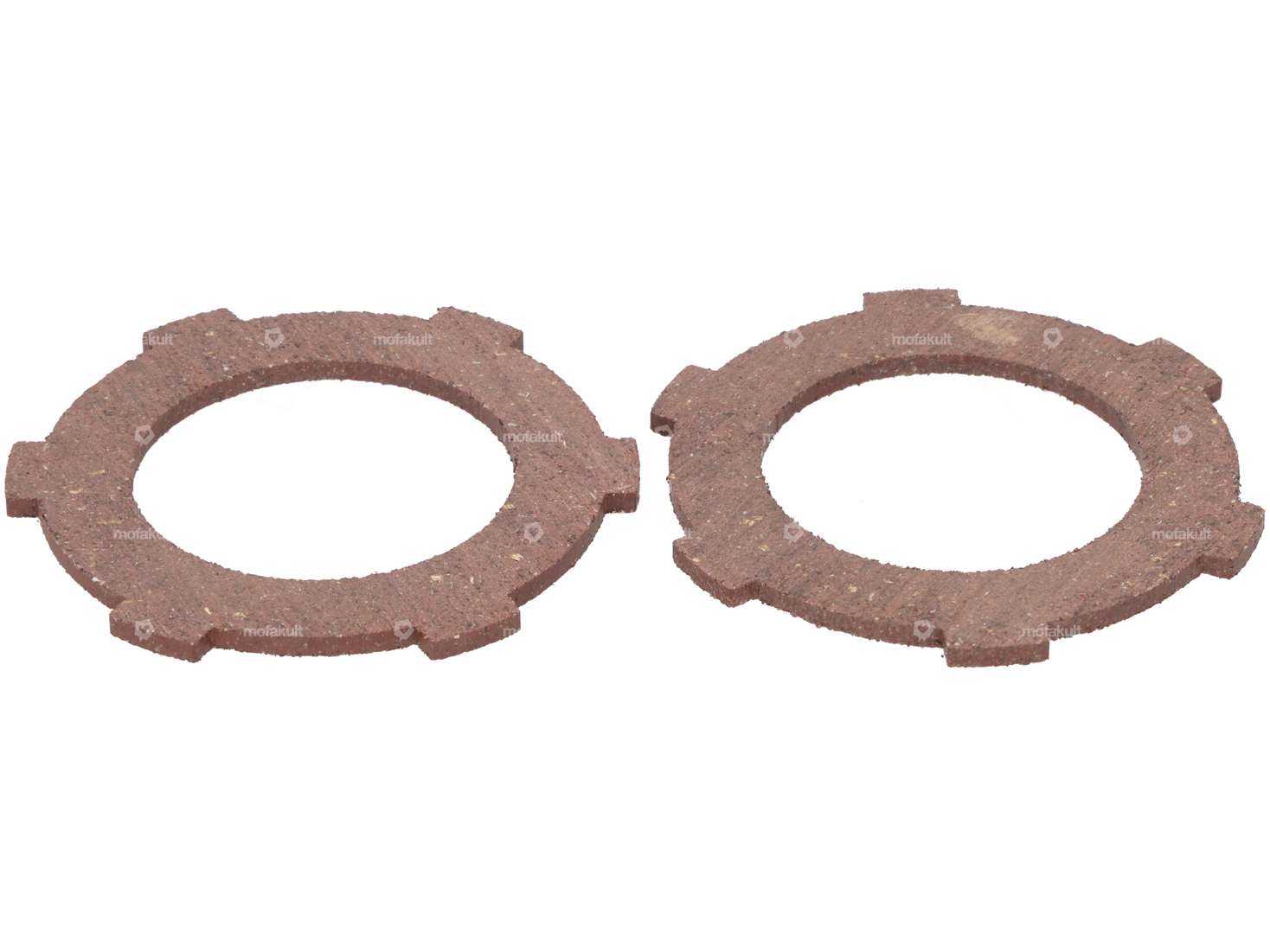

Clutch plates pair | Zündapp ZD10, ZD30, ZR20, ZB22

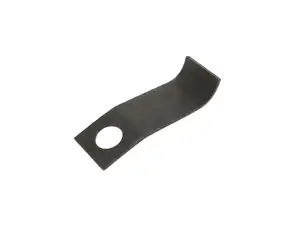

Leaf spring clutch Zündapp

Spring design: Leaf spring · Material: Spring steel · Total length: 24 mm · Width: 8 mm · Material thickness: 0.6 mm

Spring cup clutch | Zündapp

Height: 11.6 mm · Ø outside: 12 mm · Ø outside: 15.2 mm · Area of application: Standard

Clutch adjustment screw | Zündapp

Total length: 39 mm · Thread type: MF10x1 (fine pitch thread)

swiing® revival pressure pin clutch | Zündapp Belmondo (Type 247)

Nominal diameter: 6 mm · Material: Steel · Total length: 22.5 mm · Manufacturer: swiing® revival parts · Ø External head: 11.5 mm · Ø Pin: 6 mm

Surflex clutch 1st gear | Zündapp ZR10, ZR40

Manufacturer: Surflex · Area of application: Original · Area of application: Standard · Material: Steel · Material addition: Steel · Recording type: Interlocking · Number of jaws: 3 pcs

Surflex clutch 2nd gear | Zündapp ZR10, ZR30

Manufacturer: Surflex · Area of application: Original · Area of application: Standard · Material: Steel · Material addition: Steel · Recording type: Interlocking · Number of jaws: 3 pcs · Number of springs: 3 pcs

Circlip 7 mm clutch | Zündapp ZL30

Manufacturer: Zündapp · Ø outside: 7 mm · Place of use: Clutch · Pony OEM number: A5654 · Sachs OEM no.: 2512 023 000

Jasil connecting rod set | Zündapp

Material: Steel · Manufacturer: Jasil · Surface: copper-coated · Connecting rod length center-center: 91 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 31 mm · Thickness: 10 mm · Ø upper connecting rod eye outside: 23 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.75 mm · Total length: 118.2 mm · Area of application: Standard · Area of application: Tuning · Dimension upper bearing: 12/15 x 12.7 mm · Ø piston pin (B): 12 mm · Connecting rod pin length: 37.85 mm

swiing® revival Silentblock engine / cylinder head | Zündapp Belmondo (Type 247)

Ø inside: 8.2 mm · Manufacturer: swiing® revival parts · Ø outside: 19 mm · Total length: 21 mm · Material: Rubber · Material: Steel · Ø Bundle: 25.5 mm

Stud bolt M6 x 145 mm black

Total length: 145 mm · Thread length: 25.3 mm · Diameter: 5.2 mm · Material: Steel · Surface: blackened · Thread type: M6x1 (standard thread)

swiing® ingenious 44 mm cylinder head without decoration | Zündapp Belmondo, Bergsteiger

Manufacturer: swiing® ingenious parts · Ø cylinder: 44 mm · Number of fixing points: 4 pcs · Decompressor: No

swiing® ingenious 44 mm cylinder kit tuning with head | Zündapp Belmondo

Nominal diameter: 44 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 21.3 mm · Inlet window: 22.3 x 15.5 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Tuning
