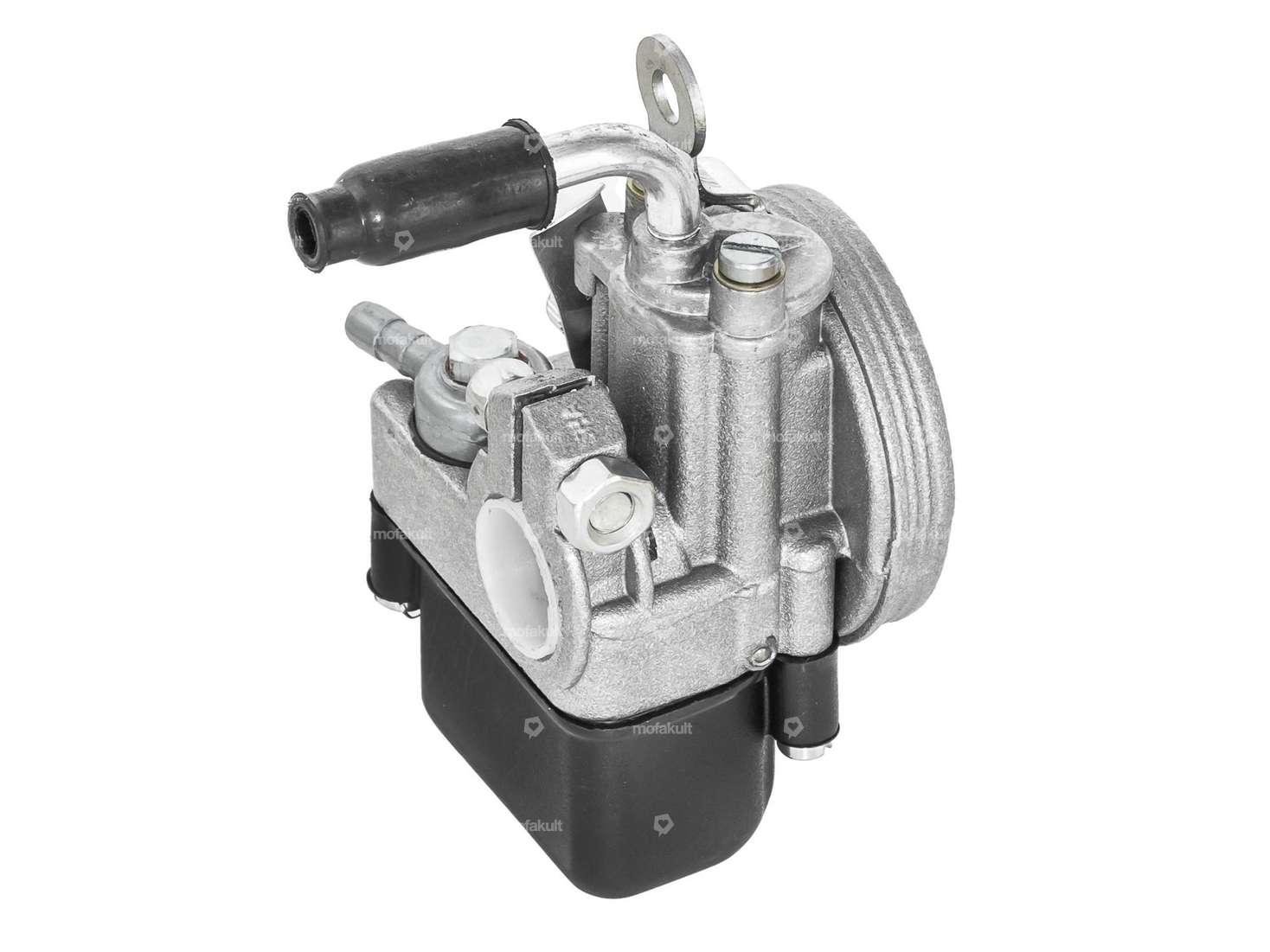

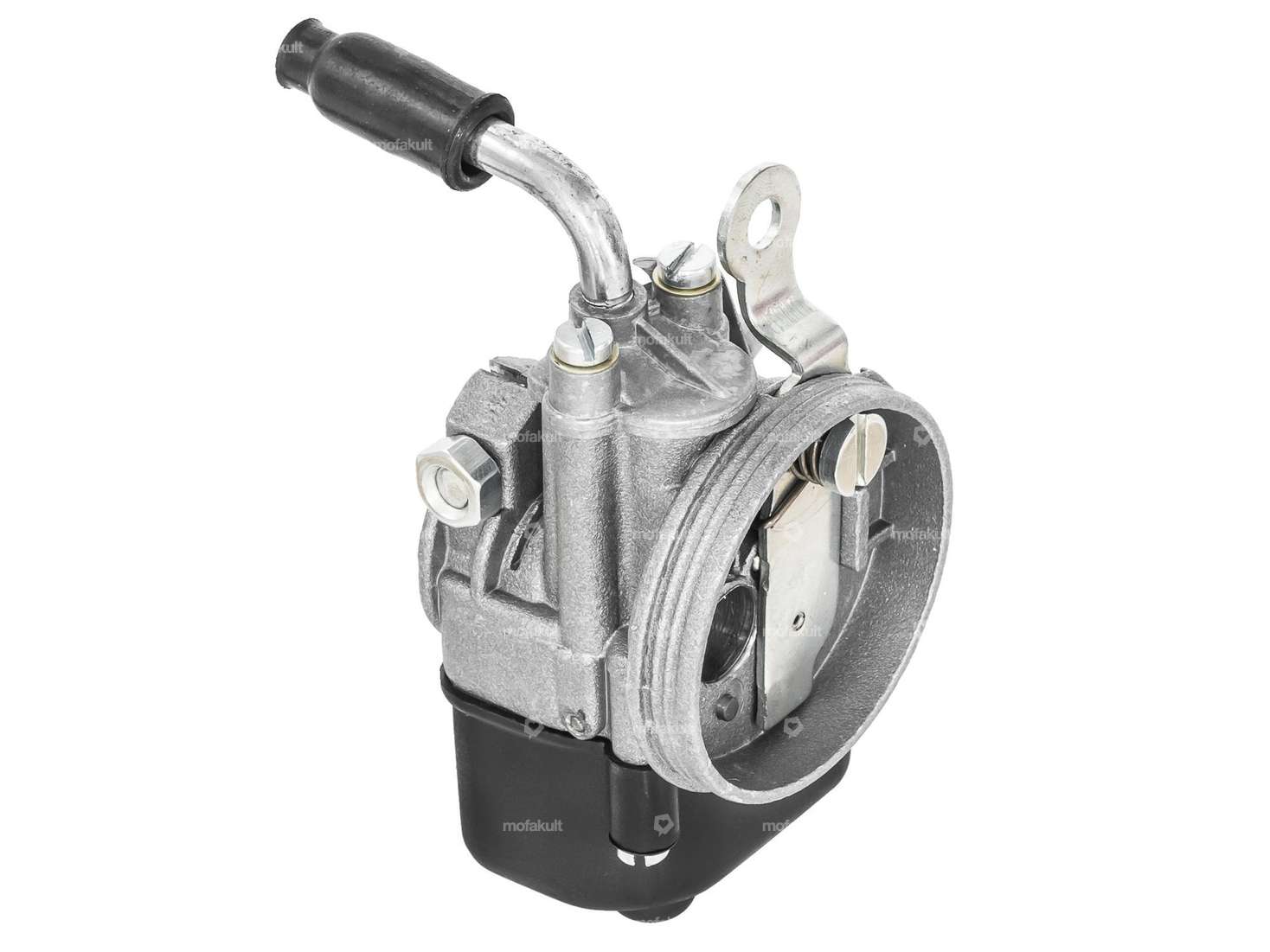

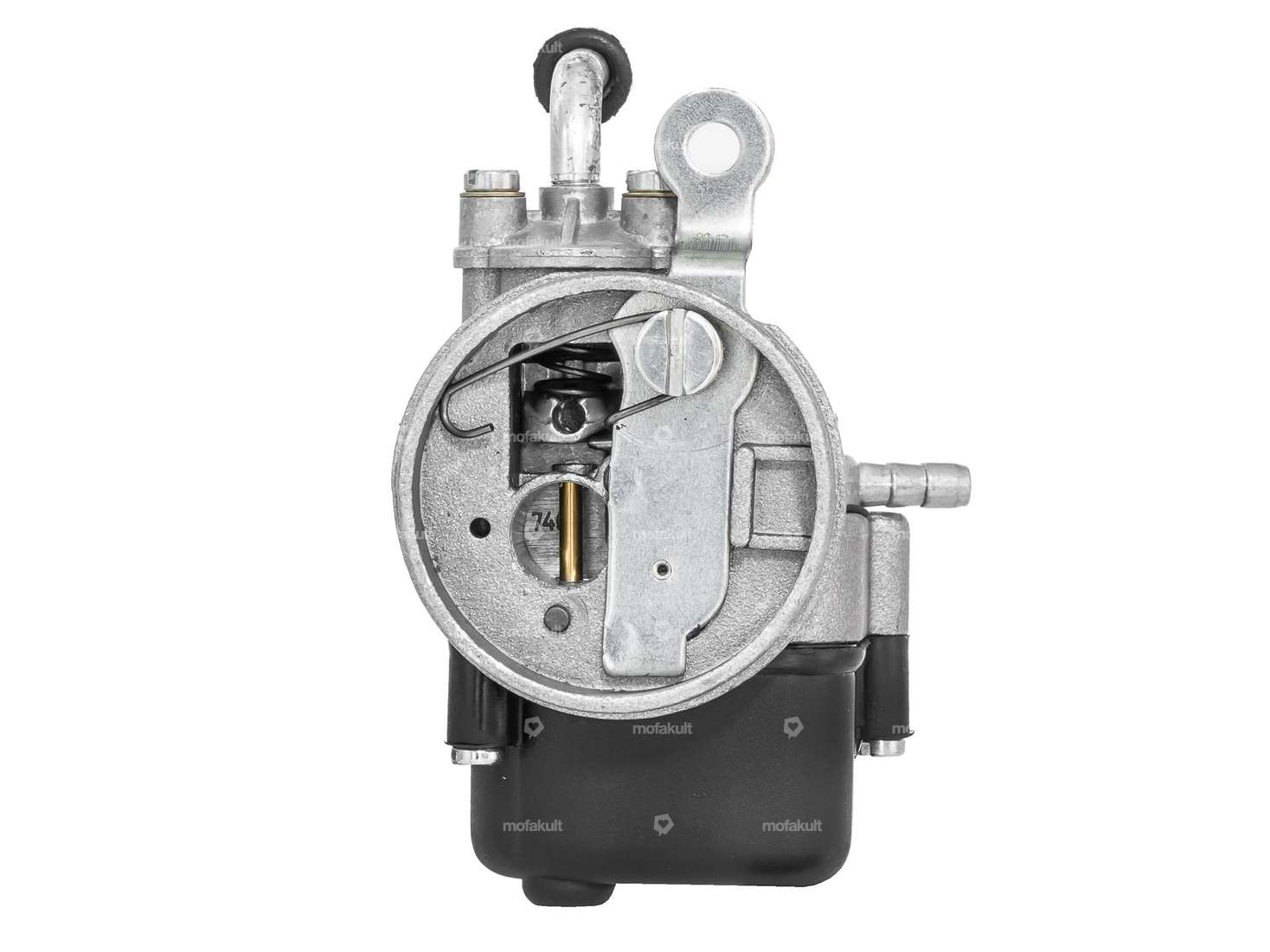

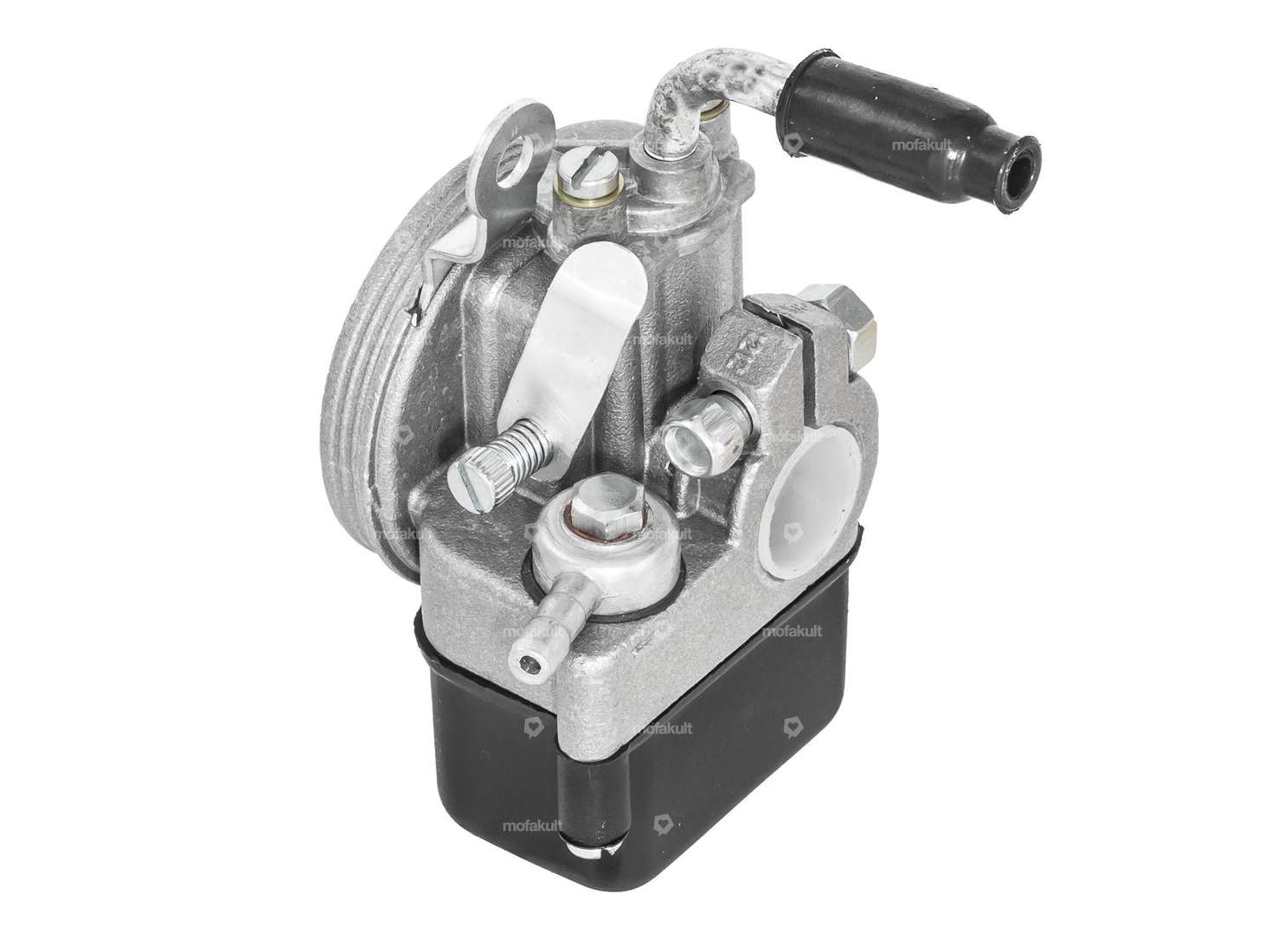

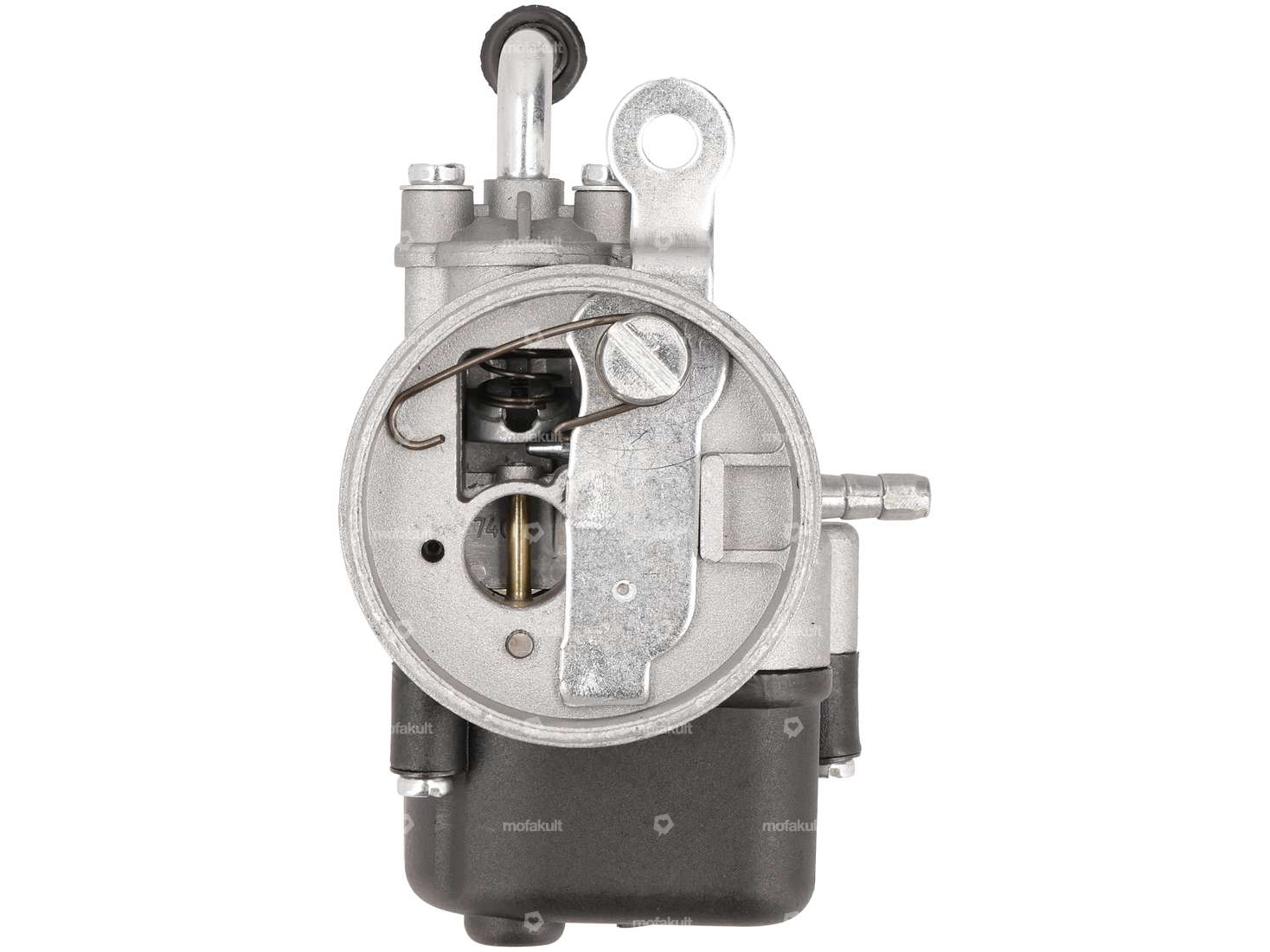

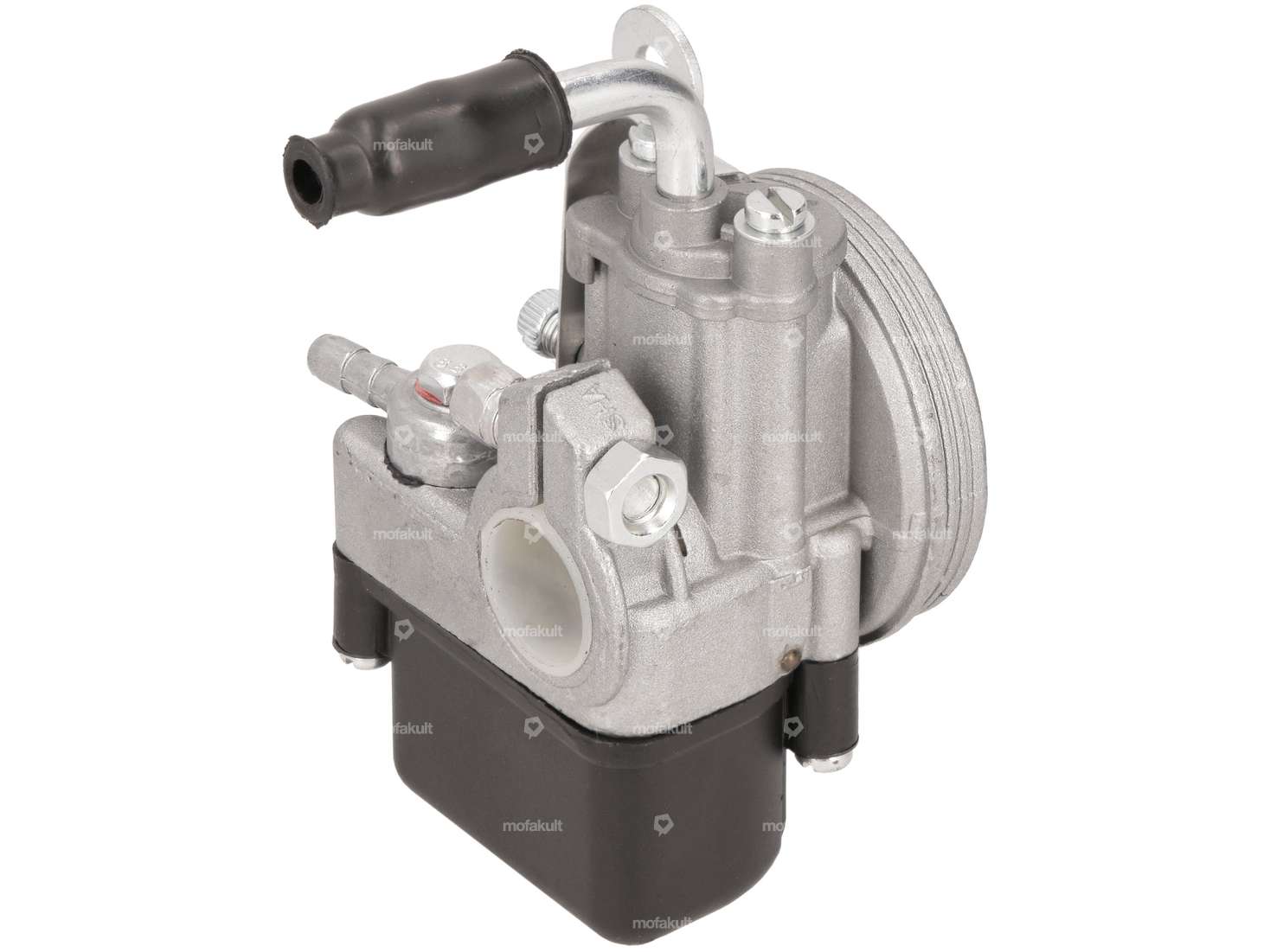

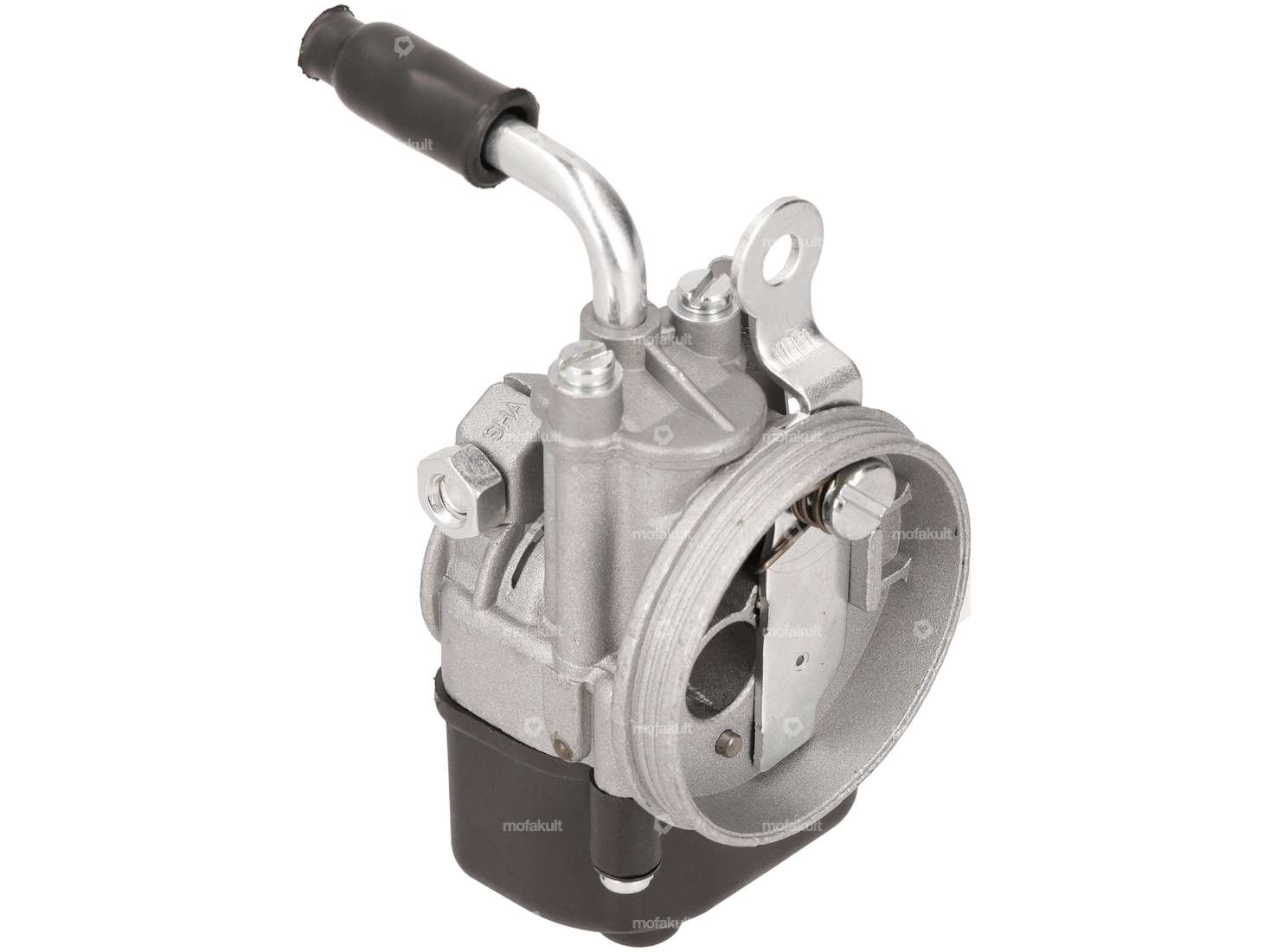

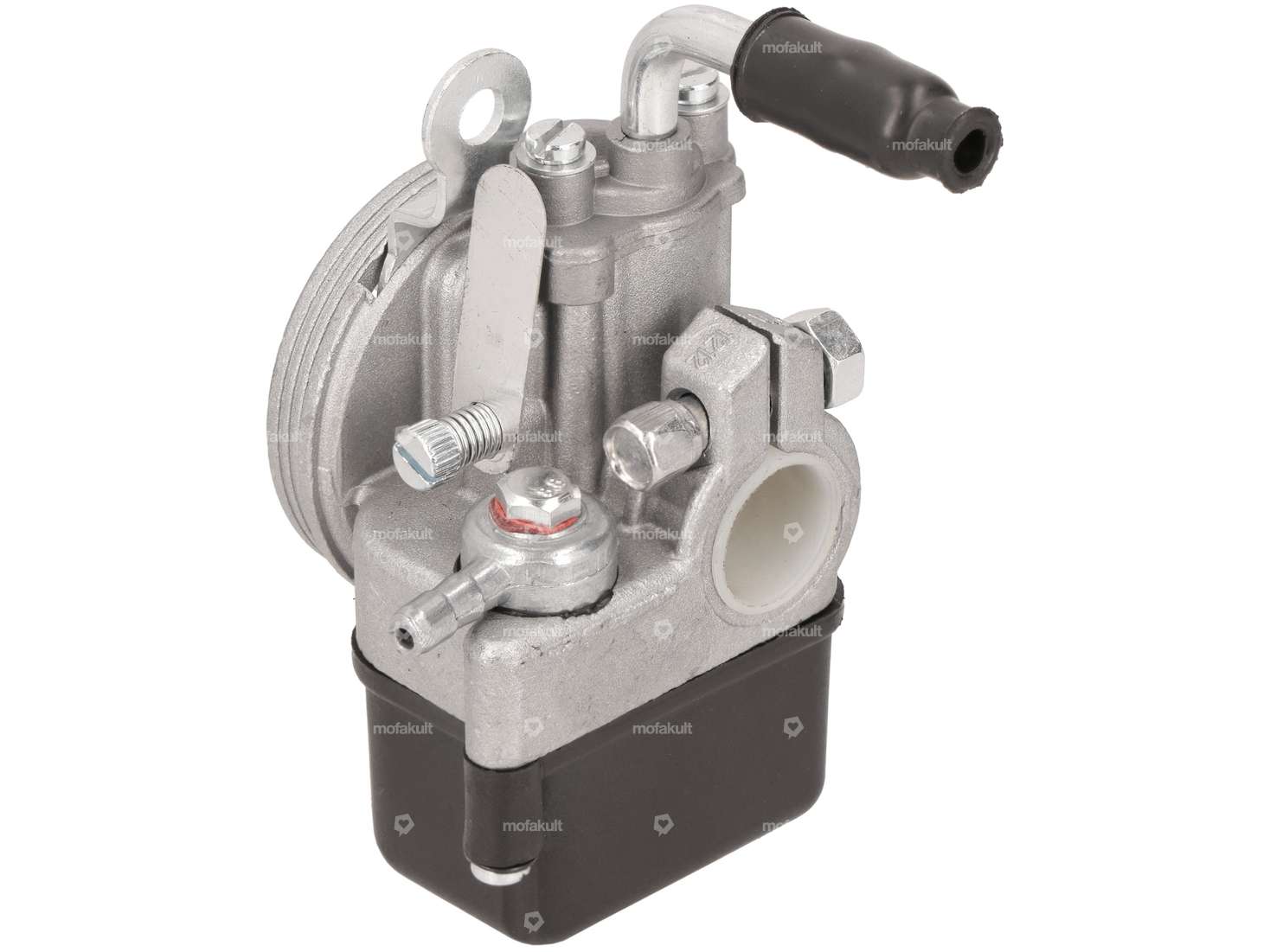

Favourable 12 / 12 replica carburettor for your Piaggio Ciao moped / moped.
The carburettor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 3 (SHA3)
Main thread size (M5): 48
Inlet connection diameter: 16 mm (or 18 mm after removing the reducer). 18 mm after removing the reducing sleeve)
Ø outside air filter connection: 50.5 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 12 mm
Total height: 87 mm (without pipe bend)
Total length: 45 mm
Total width: 60 mm
Note: The finish of the aftermarket carburettors varies. The idle throttle bore is not perfect on all of them. We also recommend that you clean the carburetor again before installation, as some metal shavings from production can be found in the carburetor. If you want to be on the safe side and avoid problems, go straight for the original Dell'Orto product.
You can find suitable jets, air filters and original Dell'Orto carburettors in the accessories section.
Good quality reproduction product from the Asian market.
| Material | Aluminum |
| Manufacturer | Quenching |
| Camouflaged | No |
| Component group Carburetor | Carburetor complete |
| Color | black |
| Carburetor type | SHA (Piaggio) |
| Nominal diameter | 12 mm |
| Ø Internal connection | 16 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 48 |
| Ø without reducing sleeve | 18 mm |
| Ø Inside entrance | 12 mm |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 50.5 mm |
| Ø fuel hose connection | 5.5 mm, 4.8 mm |
| Mixed oil connection | No |
| Vacuum connection | No |
| Choke control | Hand choke |
| Mounting type | Plug connection clamped |
| Total length | 45 mm |
| Width | 60 mm |
| Height | 104 mm |
| Area of application | Tuning |
| Piaggio | Ciao - PX, C24 |
Accessories & related products
Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Camouflaged: No · Material: Plastic · Color: black · Filter type: Foam · Ø outside: 53.2 mm · Ø Internal connection: 51 mm · Mounting type: Plug connection clamped · Total length: 31.2 mm · Width: 95 mm · Height: 88.7 mm · Area of application: Tuning
EUR 23,30

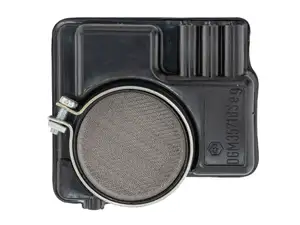

Air filter 2 PS (DGM) original | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Piaggio · Material: Plastic · Color: black · Mounting type: Plug connection clamped · Filter type: Grille · Ø outside: 51 mm · Total length: 26.5 mm · Ø Internal connection: 49.7 mm · Width: 94 mm · Height: 89 mm · Area of application: Original · Area of application: Tuning
EUR 18,60

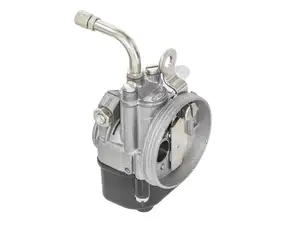

Dell'Orto 12/12 SHA carburetor hand choke | Piaggio Ciao PX, C24
Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Color: black · Carburetor type: SHA (Piaggio) · Nominal diameter: 12 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 48 · Mounting type: Plug connection clamped · Total length: 55 mm · Width: 60 mm · Height: 110 mm · Area of application: Tuning
EUR 76,10
swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120
EUR 4,10
swiing® revival nozzle set M5 (32 - 50) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 32 · Nozzle size: 34 · Nozzle size: 36 · Nozzle size: 38 · Nozzle size: 40 · Nozzle size: 42 · Nozzle size: 44 · Nozzle size: 46 · Nozzle size: 48 · Nozzle size: 50
EUR 24,50

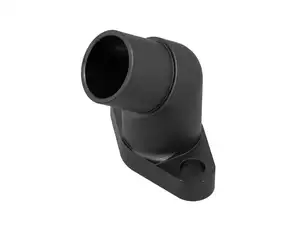

swiing® ingenious 16 mm intake manifold | Cilo 502
Material: Aluminum · Surface: anodized · Color: black-matt · Manufacturer: swiing® ingenious parts · Mounting type: Screws · Number of fixing points: 2 pcs · Ø inside: 16 mm · Area of application: Tuning · Ø External connection: 19 mm · Hole spacing inlet: 32 mm
EUR 57,30

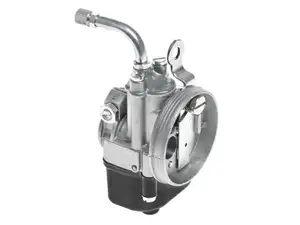

Dell'Orto 12/12 SHA carburetor | Piaggio Ciao PX, C24
Material: Aluminum · Color: black · Nominal diameter: 12 mm · Total length: 55 mm · Width: 60 mm · Height: 109 mm · Manufacturer: Dell'Orto · Mounting type: Plug connection clamped · Camouflaged: No · Component group Carburetor: Carburetor complete · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Area of application: Tuning · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 18 mm · Nozzle size: 51 · Ø Inside entrance: 12 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.8 mm · Mixed oil connection: No · Vacuum connection: No
EUR 76,10
Not in stock
swiing® revival nozzle set M5 (50 - 60) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 11 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60
EUR 26,80
Moped fans also bought
Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom
Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut
EUR 11,60
swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Total length: 8 mm
EUR 24,50
Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Camouflaged: No · Material: Plastic · Color: black · Filter type: Foam · Ø outside: 53.2 mm · Ø Internal connection: 51 mm · Mounting type: Plug connection clamped · Total length: 31.2 mm · Width: 95 mm · Height: 88.7 mm · Area of application: Tuning
EUR 23,30
GPO chain tensioner | Piaggio Ciao
Manufacturer: GPO · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Thread type: M8x1.25 (standard thread) · Color: black · Color: silver · Number of teeth: 8 pcs · Ø outside sprocket: 33 mm · Total length: 64 mm · Width: 45 mm · Number of fixing points: 1 pcs
EUR 11,00
Not so nice
Clutch 56 mm (reproduction) | Piaggio, Ciao, SI, Bravo, Boxer
Material: Steel · Manufacturer: Quenching · Ø outside: 90 mm · Ø Outer pulley: 56 mm · Material addition: Composite materials · Ø inside: 8.45 mm · Ø inside: 12 mm · Number of jaws: 2 pcs · Number of jaws: 3 pcs · Area of application: Standard · Number of springs: 2 pcs · Number of springs: 3 pcs
EUR 46,80
Polini air filter | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Camouflaged: No · Material: Plastic · Color: black · Filter type: Foam · Ø outside: 53 mm · Ø Internal connection: 50.6 mm · Mounting type: Plug connection clamped · Total length: 29 mm · Width: 98 mm · Height: 94.7 mm · Area of application: Tuning
EUR 17,50

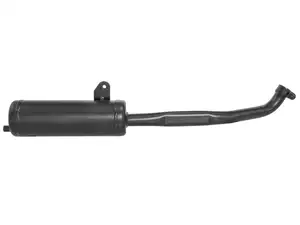

TECNO City Power exhaust Ø 25 mm | Piaggio Ciao, Bravo
