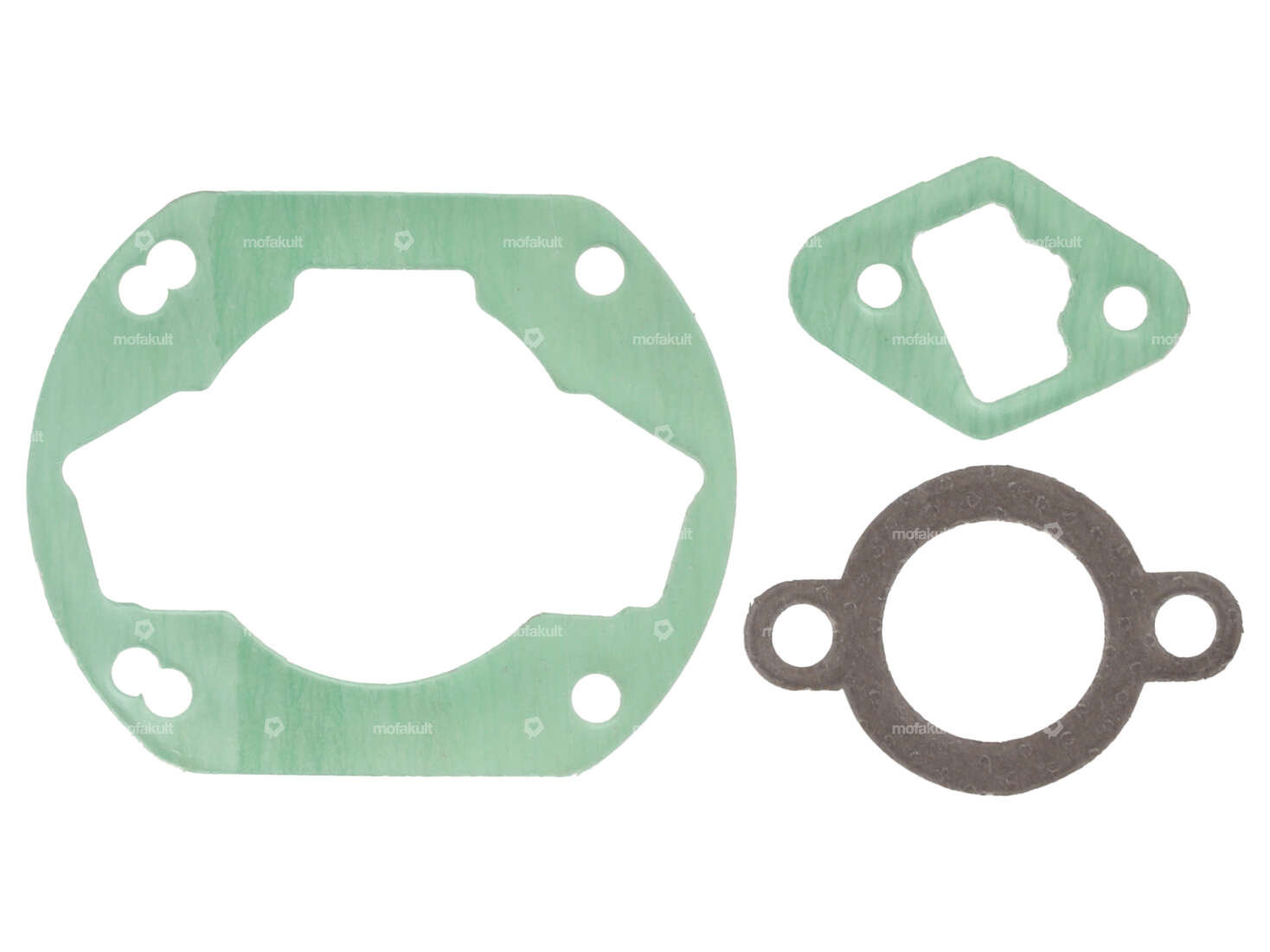

Athena gasket set 48 mm cylinder kit (diaphragm) | Sachs 504, 505

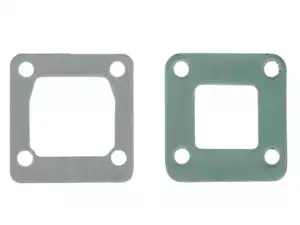

Athena membrane seal set (2 pcs.)

Manufacturer: Athena · Material: Sealing paper · Thickness: 0.5 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 33 x 32 mm · Mounting type: Screws

Athena 48 mm cylinder kit without mounting parts | Sachs (504), 505, 508

Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 44 mm · Nominal diameter: 48 mm · Ø cylinder neck: 51.6 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: M10x1.5 · Camouflaged: No

Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508, 535

Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 44 mm · Nominal diameter: 48 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Hole spacing inlet: 32.5 mm · Number of fixing points: 4 pcs · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 56/60 x 56 · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Decompressor: M10x1.5 · Camouflaged: No

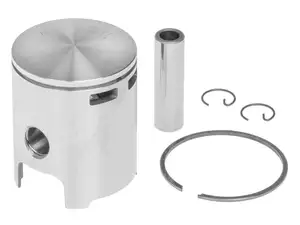

Athena piston 48 mm #B | Sachs 504 / 505

Manufacturer: Athena · Ø outside piston (A): 47.96 mm · Compression height (C): 30.12 mm · Curvature (D): 1.94 mm · Total piston height (E): 59 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 48 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Weight piston kit: 123 g

Athena piston 48 mm #A | Sachs 504 / 505

Manufacturer: Athena · Ø outside piston (A): 47.94 mm · Compression height (C): 30.2 mm · Curvature (D): 1.94 mm · Total piston height (E): 59.05 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 48 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Weight piston kit: 123 g

Athena intake manifold 18 mm | Puch / Sachs

Manufacturer: Athena · Material: Aluminum · Area of application: Tuning · Ø inside: 18 mm · Ø External connection: 24 mm · Number of fixing points: 4 pcs · Mounting type: Screws

Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C

Manufacturer: Elring · Contents: 70 ml · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Gap dimension (max.): 2 mm · Temperature resistance (min.): -60 - 300 °C · Area of application: Chemistry

swiing® revival solid exhaust clamp 28 - 30 mm galvanized (12.9 strength)

Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Material: Steel · Color: silver · Ø outside: 41 mm · Ø inside: 28 - 30 mm · Total length: 46 mm · Mounting type: Nuts & bolts · Width: 42.5 mm · Material thickness: 1.6 mm · Pony OEM number: A1897 · Sachs OEM no.: 0251 113 105

Athena membrane seal set (2 pcs.)

Manufacturer: Athena · Material: Sealing paper · Thickness: 0.5 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 33 x 32 mm · Mounting type: Screws

NGK B8ES spark plug long thread

Manufacturer: NGK · Candle designation: B8ES · Candle thread type: long · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Width across flats: 21 mm · Area of application: Performance · Area of application: Racing · Area of application: Tuning

Inlet seal | Sachs 504 (A4279)

Place of use: Admission

Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508, 535

Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 44 mm · Nominal diameter: 48 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Hole spacing inlet: 32.5 mm · Number of fixing points: 4 pcs · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 56/60 x 56 · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Decompressor: M10x1.5 · Camouflaged: No

Polini air filter Air Box Ø 32 mm straight

Manufacturer: Polini · Area of application: Tuning · Color: black · Color: blue · Filter type: Foam · Total length: 100 mm · Ø Internal connection: 32 mm · Mounting type: Plug connection clamped · Camouflaged: No

Athena piston 48 mm #B | Sachs 504 / 505

Manufacturer: Athena · Ø outside piston (A): 47.96 mm · Compression height (C): 30.12 mm · Curvature (D): 1.94 mm · Total piston height (E): 59 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 48 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Weight piston kit: 123 g

NTN 6202 Ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: CM (special/noise-reduced) · Bearing cage: Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm

Athena piston 48 mm #A | Sachs 504 / 505

Manufacturer: Athena · Ø outside piston (A): 47.94 mm · Compression height (C): 30.2 mm · Curvature (D): 1.94 mm · Total piston height (E): 59.05 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 48 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Weight piston kit: 123 g
