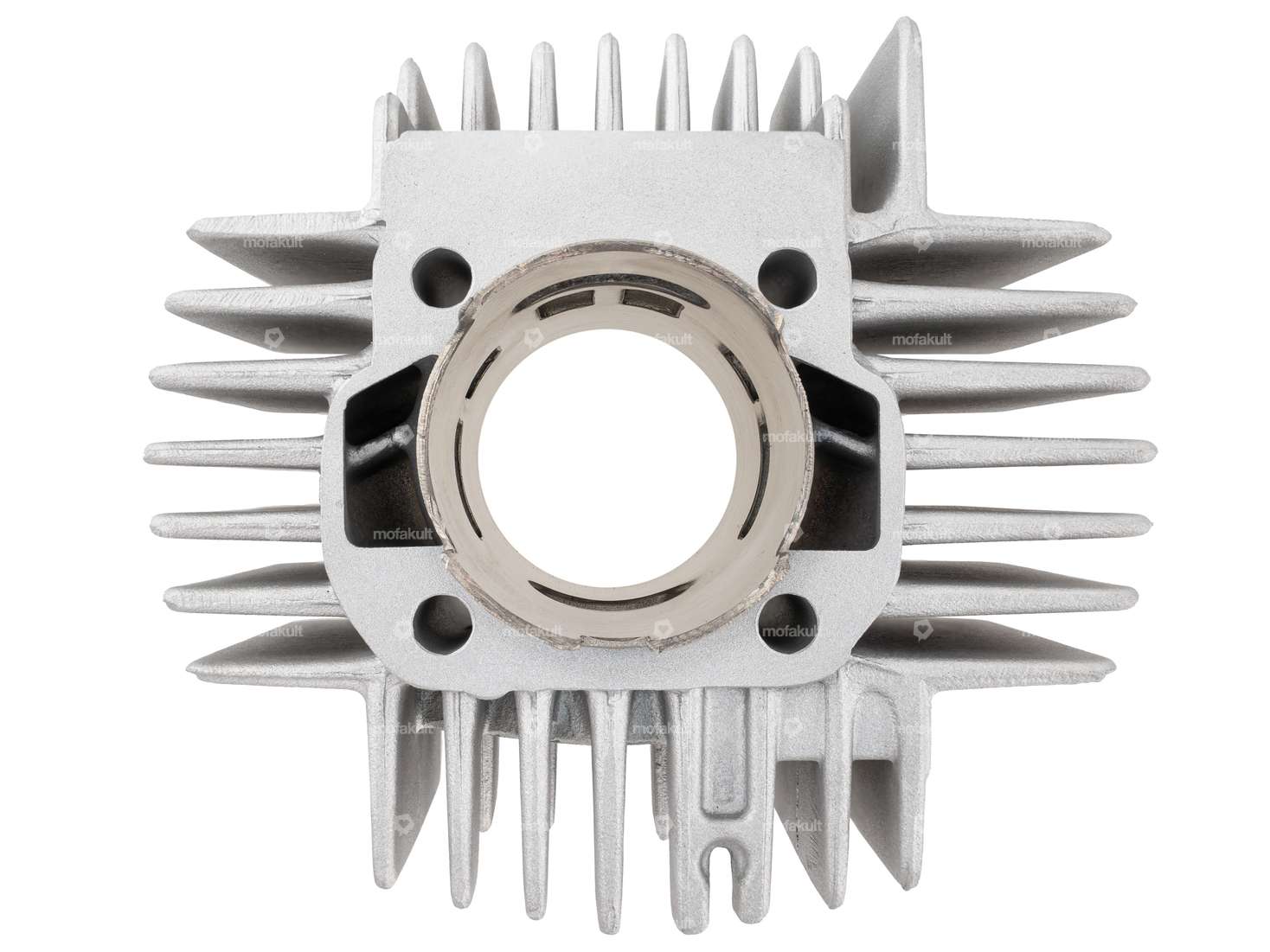

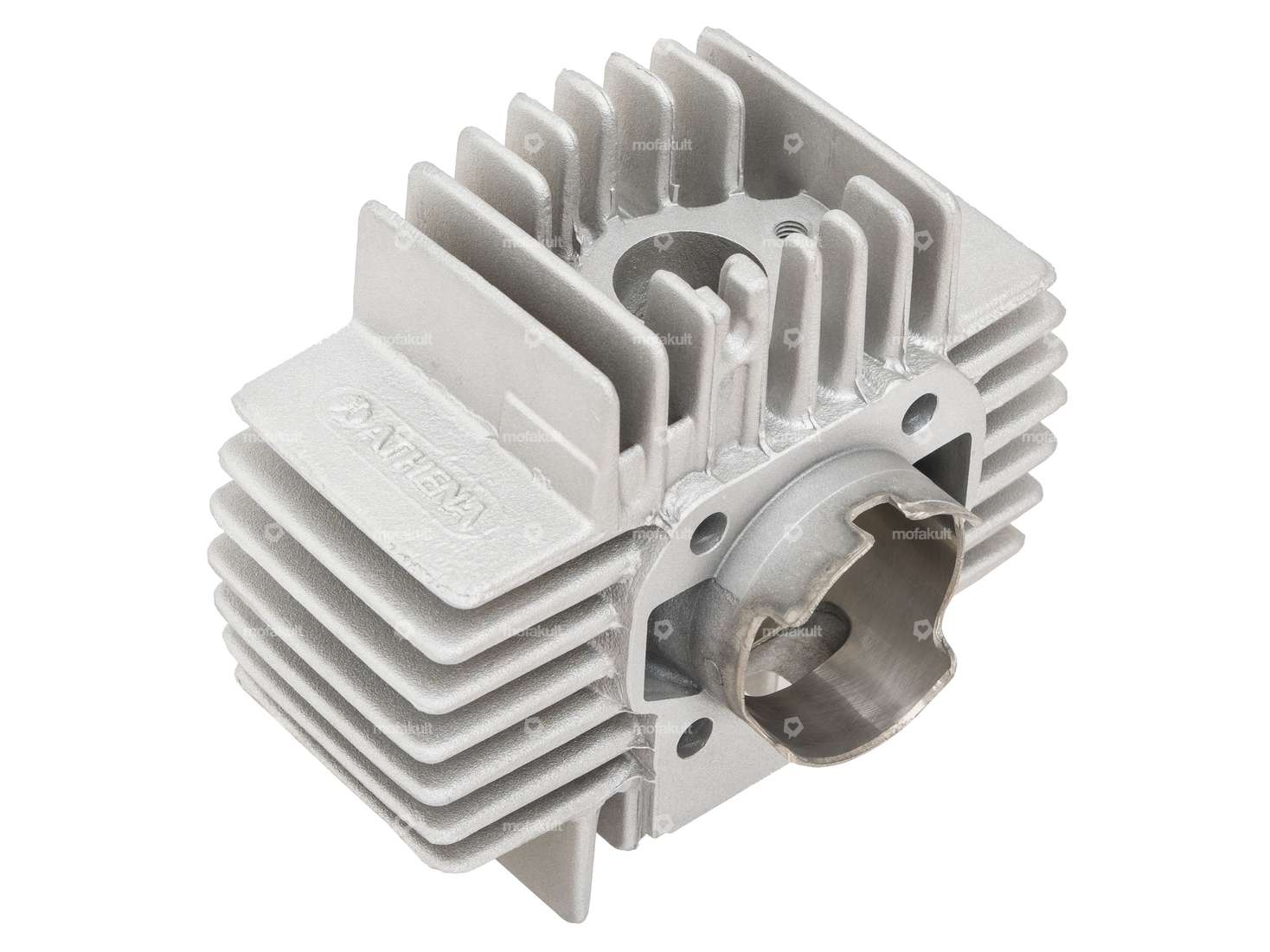

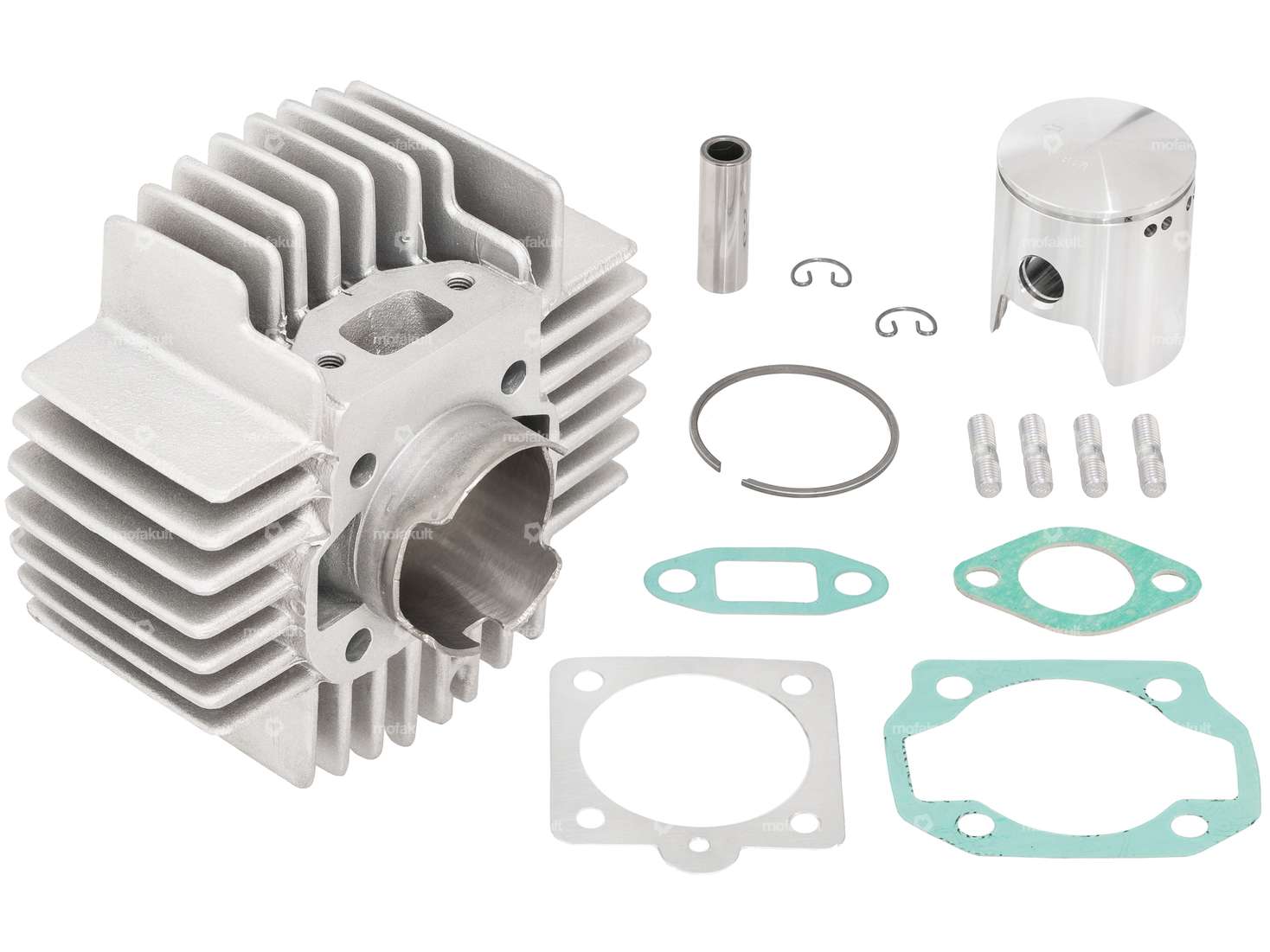

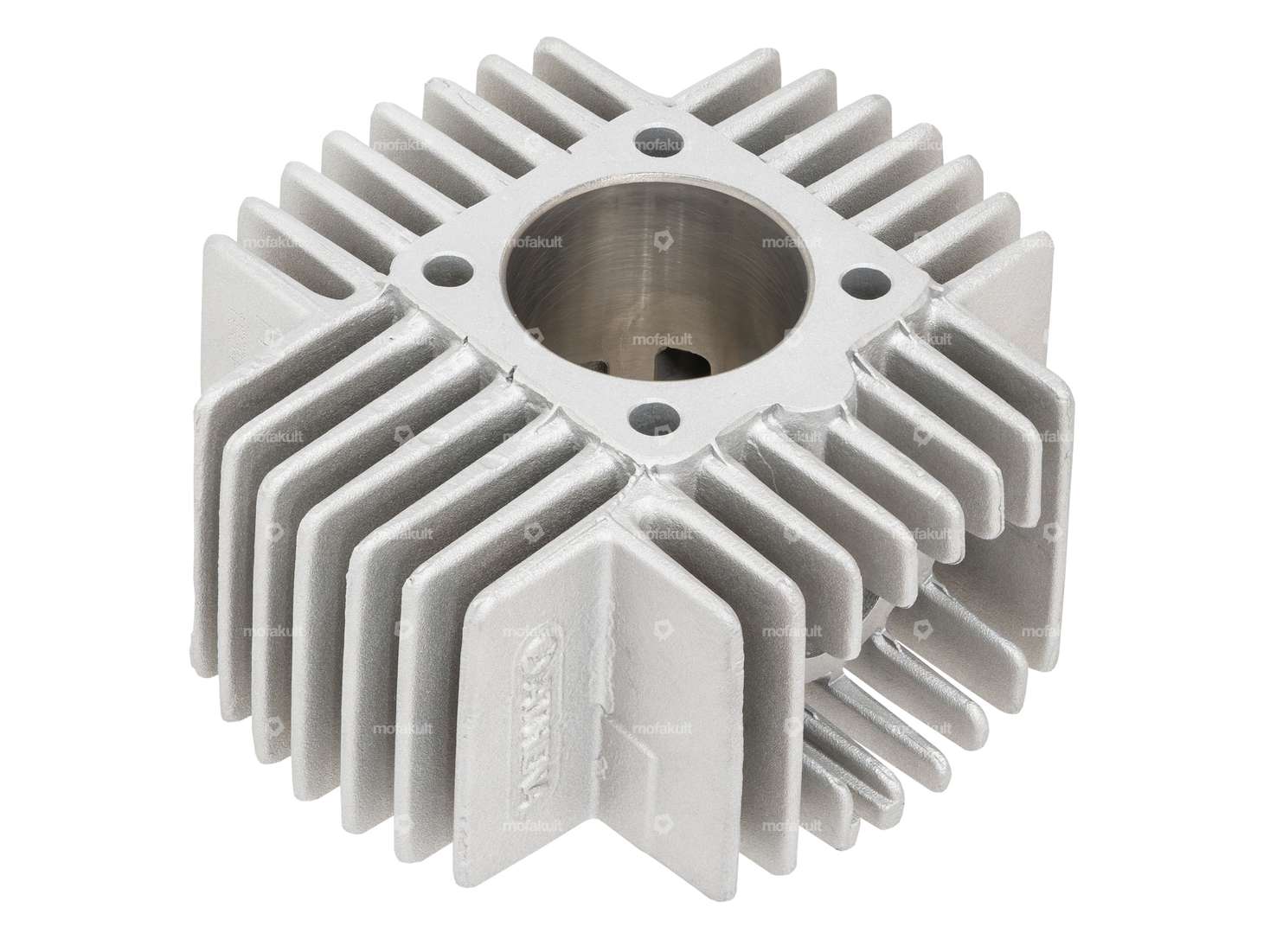

Athena 45 mm cylinder kit 70 ccm camouflaged | Puch

swiing® revival stud bolts M6 x 106 (10.9 strength)

Manufacturer: swiing® revival parts · Total length: 106 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Thread length: 20 mm · Nominal diameter (thread): 6 mm · Puch OEM number: 360.1.10.034.1

Athena piston 45 mm #A | Puch

Manufacturer: Athena · Ø outside piston (A): 44.94 mm · Compression height (C): 22.4 mm · Curvature (D): 3.15 mm · Total piston height (E): 52.67 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Weight piston kit: 98 g

Athena gasket set 45 / 47 mm slot | Puch

Manufacturer: Athena · Number of components: 4 pcs · Area of application: Tuning · Ø cylinder: 45 mm · Ø cylinder: 47 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Width: 14.2 mm · Bearing type: Needle roller and cage assembly · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

Outlet seal Ø 27 Steel ring

Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Area of application: Tuning · Reinforced: Yes · Thickness: 2.1 mm · Ø outlet inside: 27 mm · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Surface: galvanized (blue) · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Material: Steel · Nipple shape: Cylinder · Number of components: 1 pcs · Area of application: Standard

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Total length: 135 mm · Manufacturer: GPO · Height: 55 mm · Width: 125 mm · Camouflaged: Yes · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Ø cylinder: 45 mm · Number of fixing points: 4 pcs · Candle thread: short · Hole pattern [mm]: 44 x 44 · Decompressor: No

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival screw set engine galvanized | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: Cross recess · Drive: Hexagon socket · Screw head: Countersunk head · Screw head: Cylinder head · Screw head: Lens head · Puch OEM number: 900.1216 · Puch OEM number: 901.1308

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Area of application: High End · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Weight: 968 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm

swiing® ingenious 17 mm SRF carburetor camouflaged | Puch Maxi, Supermaxi, X30 NS / NL

Nominal diameter: 17 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Nozzle size: 74 · Ø Inside entrance: 17 mm · Area of application: Tuning · Ø Output inside: 17.1 mm · Ø Air filter connection: 27.5 mm · Ø Internal connection: 23 mm · Ø fuel hose connection: 5 mm · Total length: 65 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle block: 2.2 · Width: 47 mm · Height: 89 mm · Height: 109 mm · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

GPO 45 mm cylinder head Racing high-compression | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Ø screw holder: 7.4 mm · Area of application: Tuning · Candle thread: short · Total length: 135 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Width: 125 mm · Height: 55 mm

swiing® ingenious intake manifold 17 mm SRF camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Ø inside: 17 mm · Total length: 38 mm · Mounting type: Stud bolts & nuts · Ø External connection: 23 mm · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Hole spacing inlet: 38 mm · Height flange center hole: 42 mm · Total height: 53.5 mm · Number of fixing points: 2 pcs
