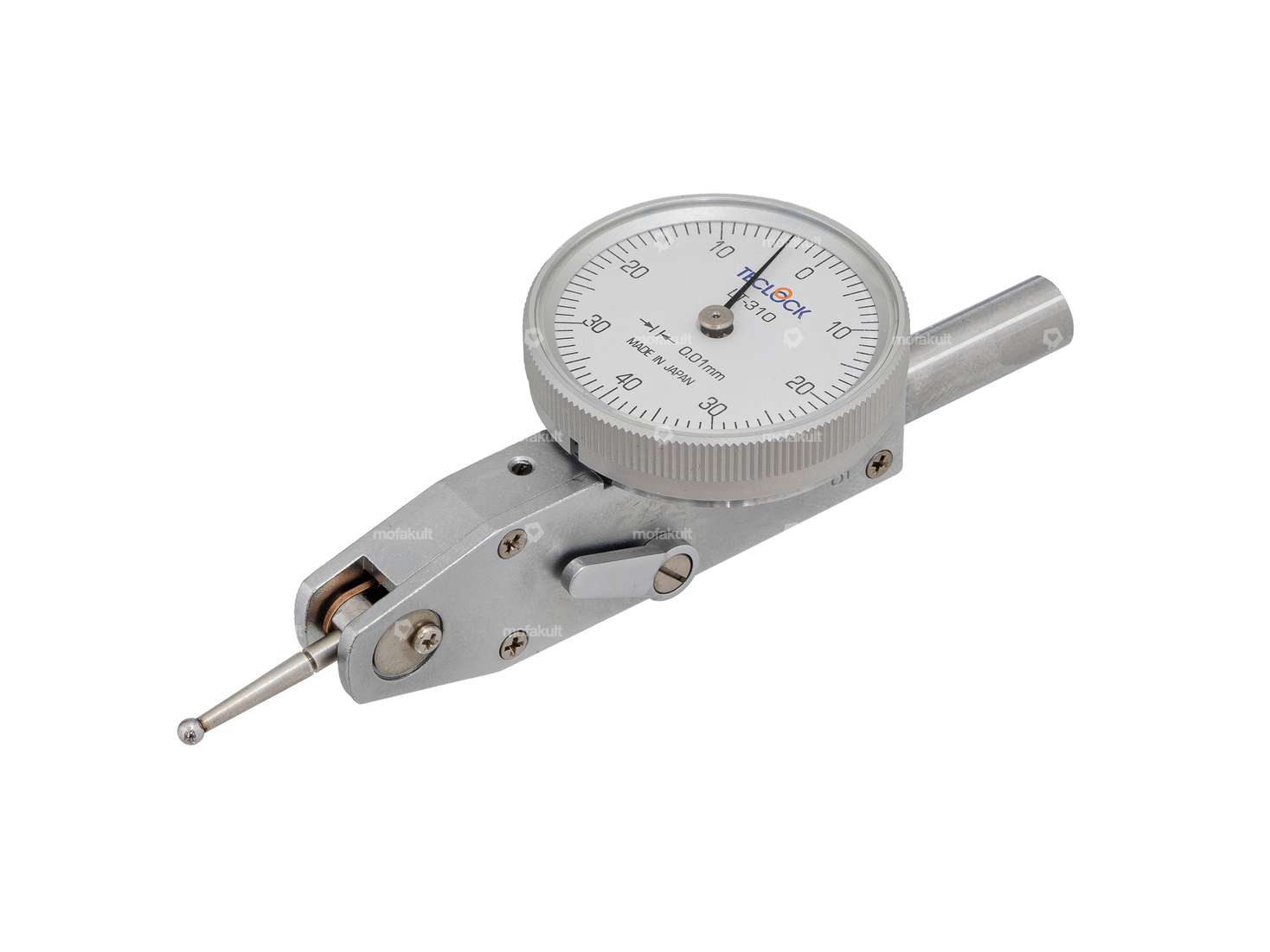

High-precision crank lever measuring device with analog display which can be used, for example, to check crankshaft concentricity, bearing play, etc.
The Bubitaster can optionally be mounted on a dial gauge stand. You can find a suitable magnetic base holder in the accessories section.
The fine probe is equipped with a switch on the side to change the scanning movement. The measuring accuracy remains the same regardless of the angle set.
The dial can be rotated all around. This allows measurements to be taken from all angles.
Ø measuring ball: 2 mm
Ø clamping shaft: 8 mm

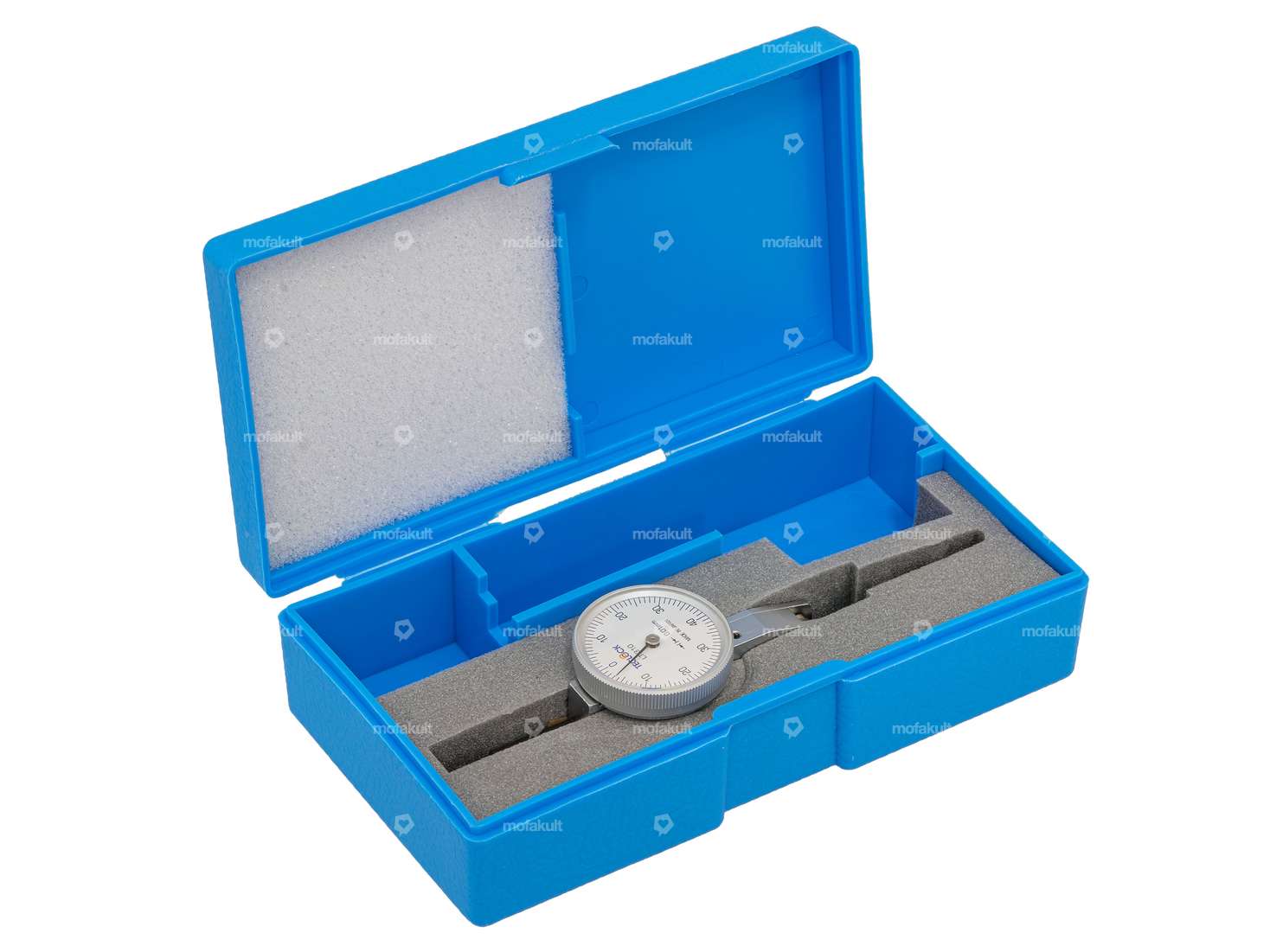

The measuring tool is supplied in a padded plastic box.
A quality product made in Japan.
| Material | Metal |
| Manufacturer | Made in Japan |
| Ø Measuring sphere | 2 mm |
| Ø Clamping shaft | 8 mm |
| Area of application | Measuring tool |
