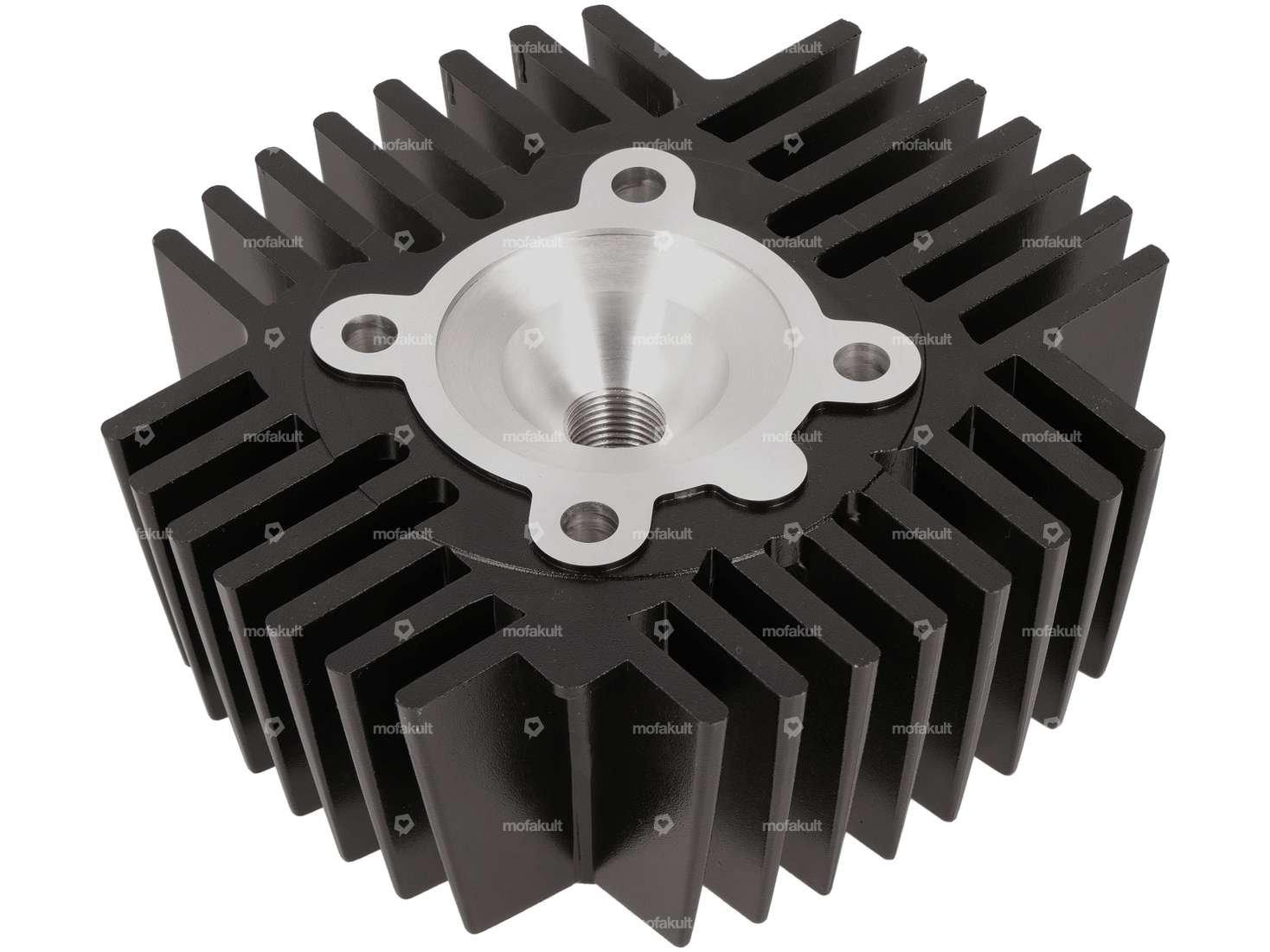

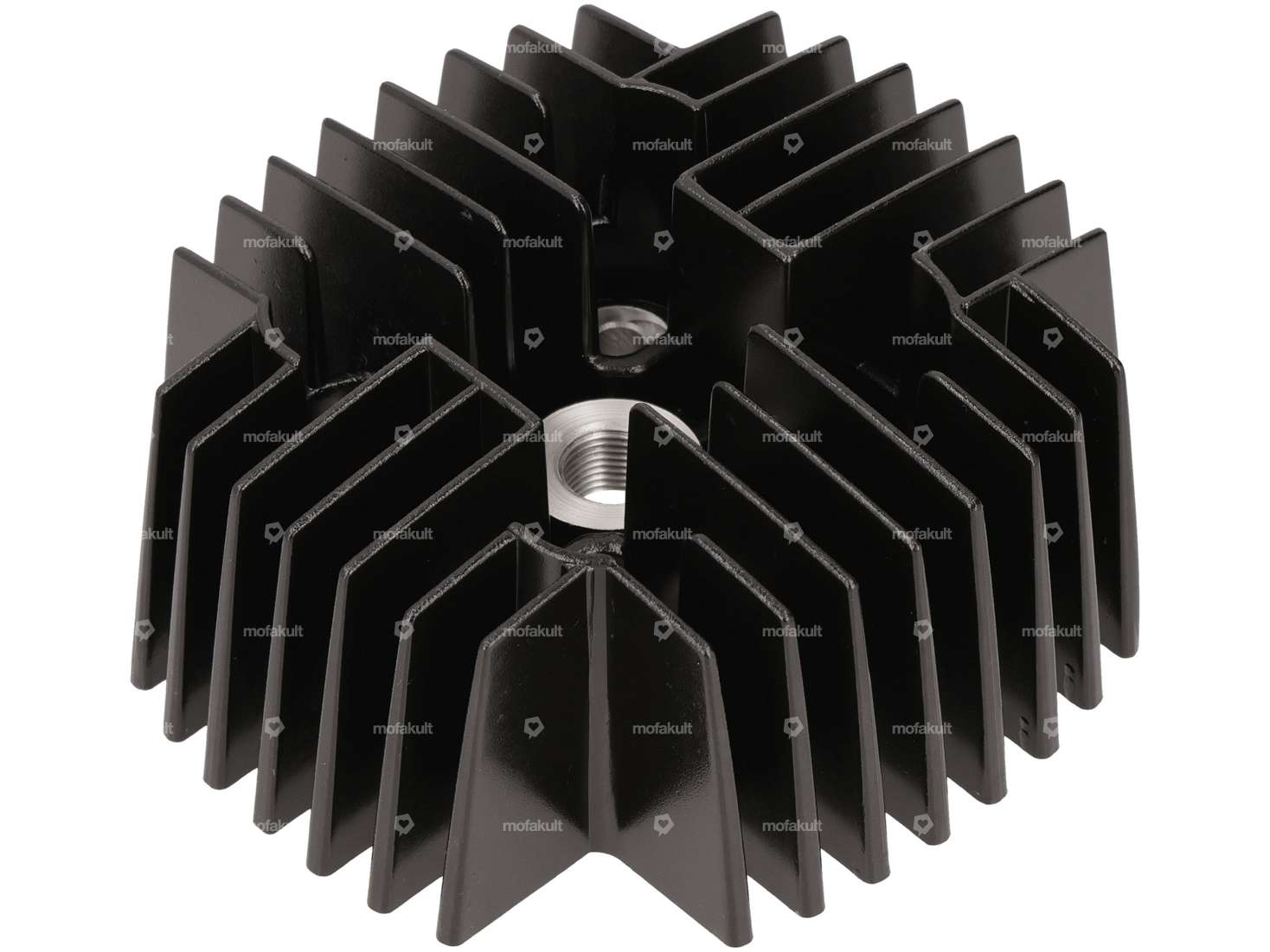

Black cylinder cover in the 45 mm version, suitable for your Puch S / N, Supermaxi LG1 / LG2 and your X30 Sport NS / NL moped / moped with E50 / ZA50 (air-cooled) / ZA50 (catalytic converter) or Z50 engine.
The black combustion chamber cover is perfect for the matching AKOA 45 mm cylinder as well as for other 70 cc cylinders, e.g. GPO Metrakit replica 45 mm. The original design is harmoniously picked up by the cast-in Puch stamp on the underside.
It is important to note that there is no decompressor hole.
The matching cylinder head gasket, mounting material and our spark plug recommendation can be found in the accessories section.
Branded product from the manufacturer AKOA.
| Total length | 132.2 mm |
| Manufacturer | AKOA |
| Height | 54.5 mm |
| Width | 123.2 mm |
| Material | Aluminum |
| Camouflaged | No |
| Surface | varnished |
| Ø cylinder | 45 mm |
| Area of application | Tuning |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 44 x 44 |
| Decompressor | No |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
