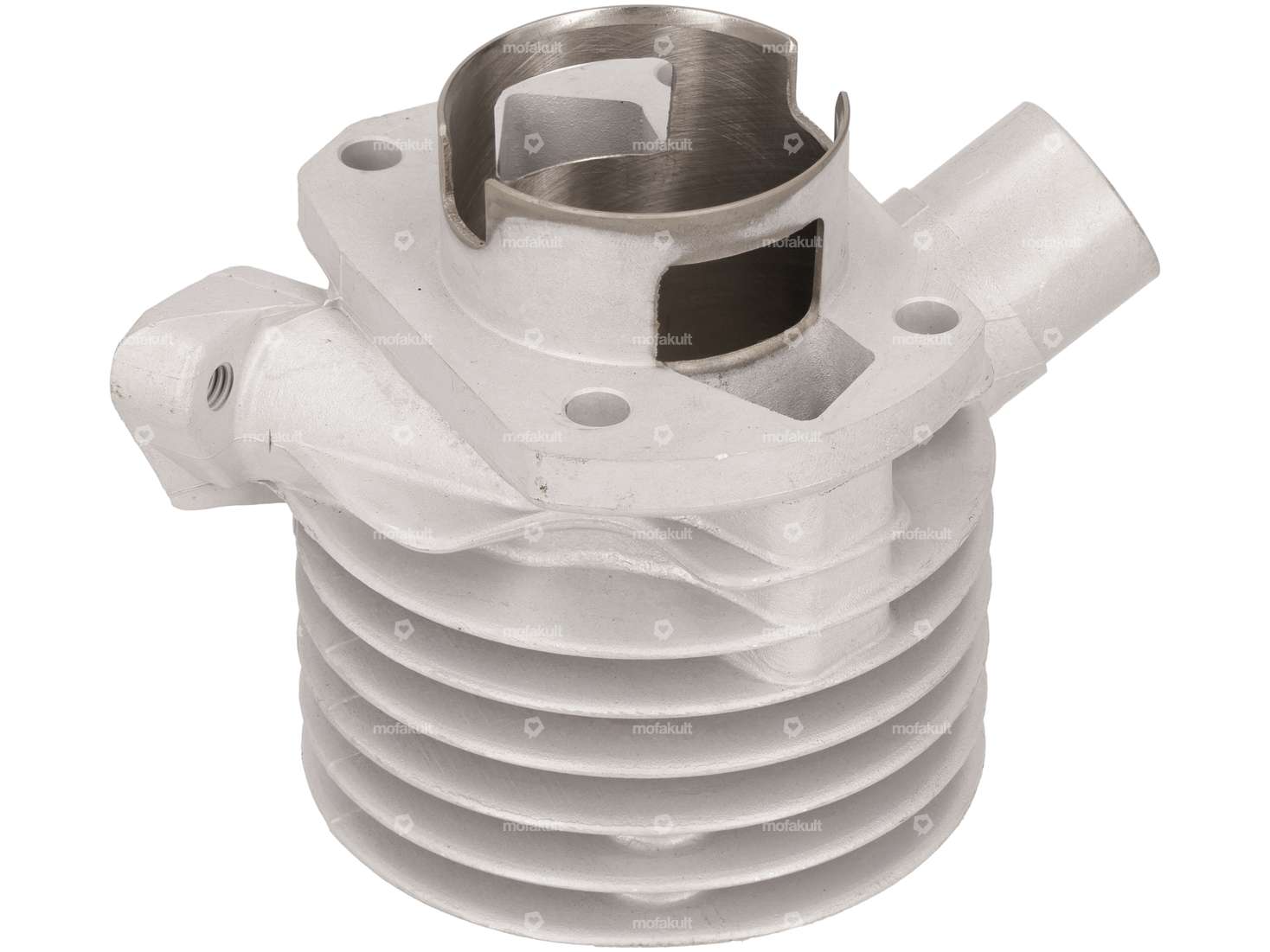

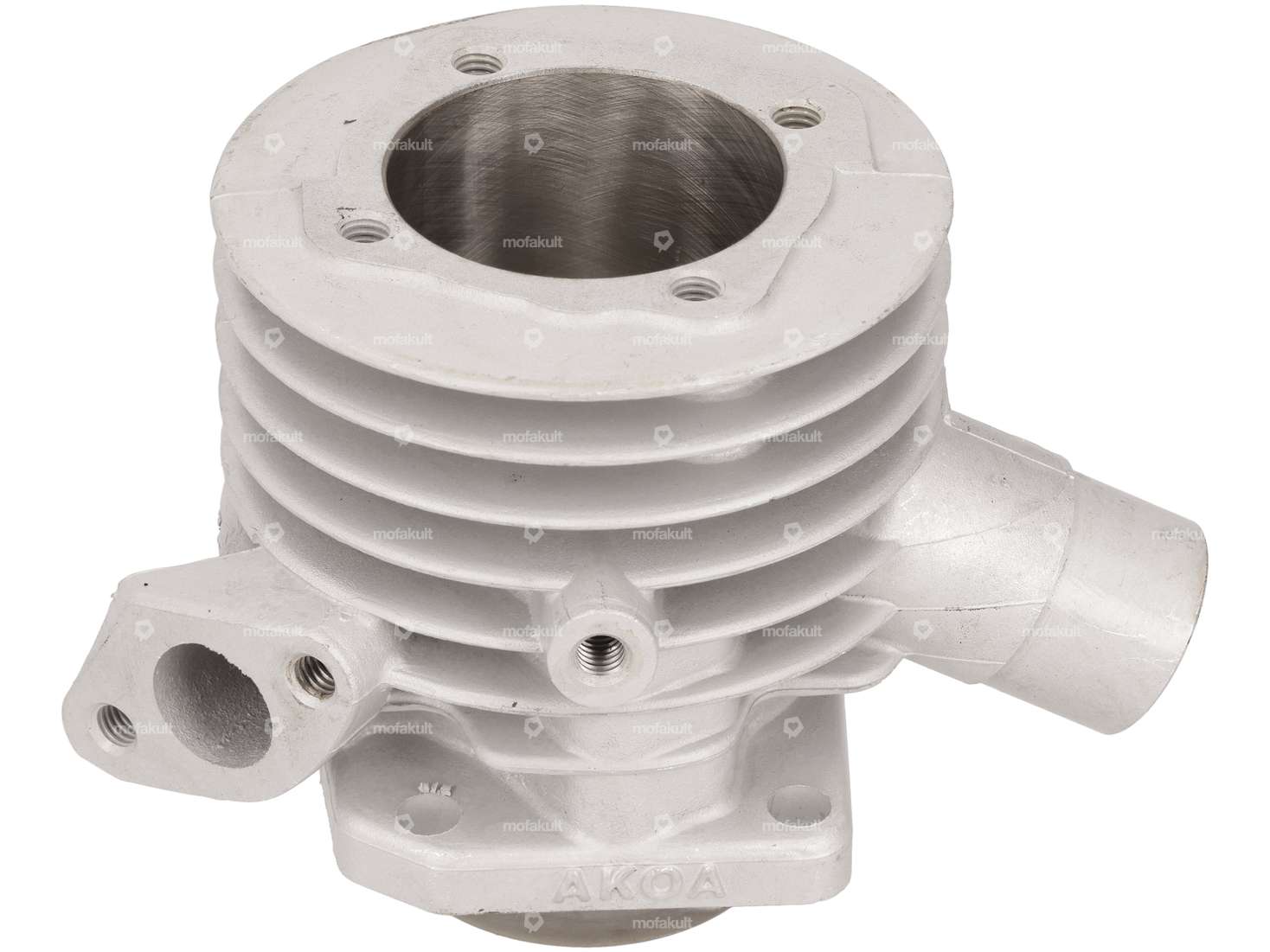

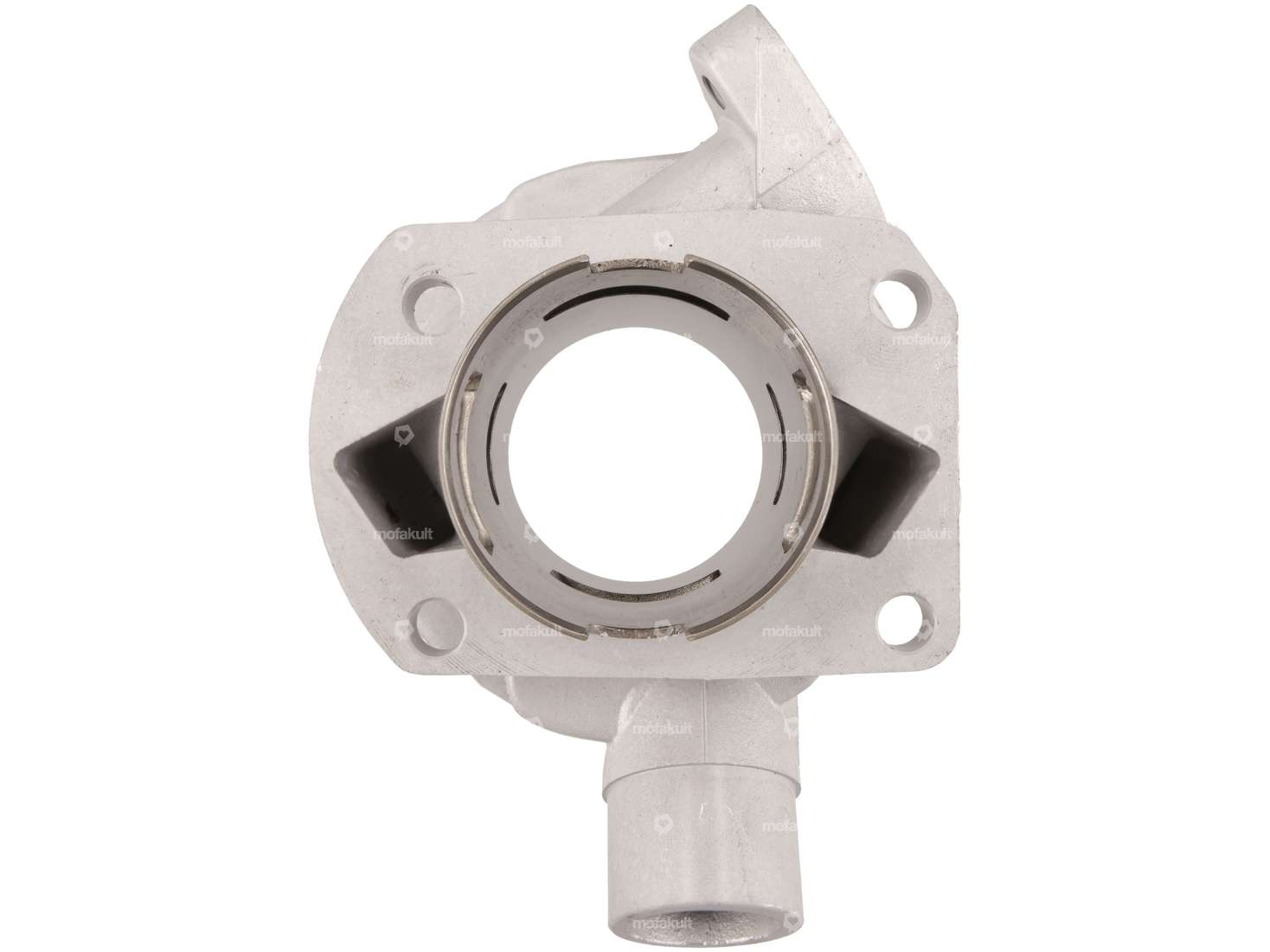

41 mm tuning cylinder in the "Power Edition" version, made of aluminum with a displacement of 57 ccm, suitable for mopeds equipped with Sachs 503 2AL, AAL, 2BL, or ABL CH engines.
The racing kit, made of cast aluminum with a nickel-silicon carbide coating (commonly known as Nikasil), offers a significant performance boost across the entire RPM range, with an emphasis on low RPMs and high torque. Compared to the original cylinder, the sealing has been removed from this racing cylinder and the intake port has been enlarged. The overflow channels, as well as the exhaust and intake ports, have been modified to optimize valve timing. In addition, the exhaust port has been designed at a more aerodynamic angle. All housing covers can still be installed.

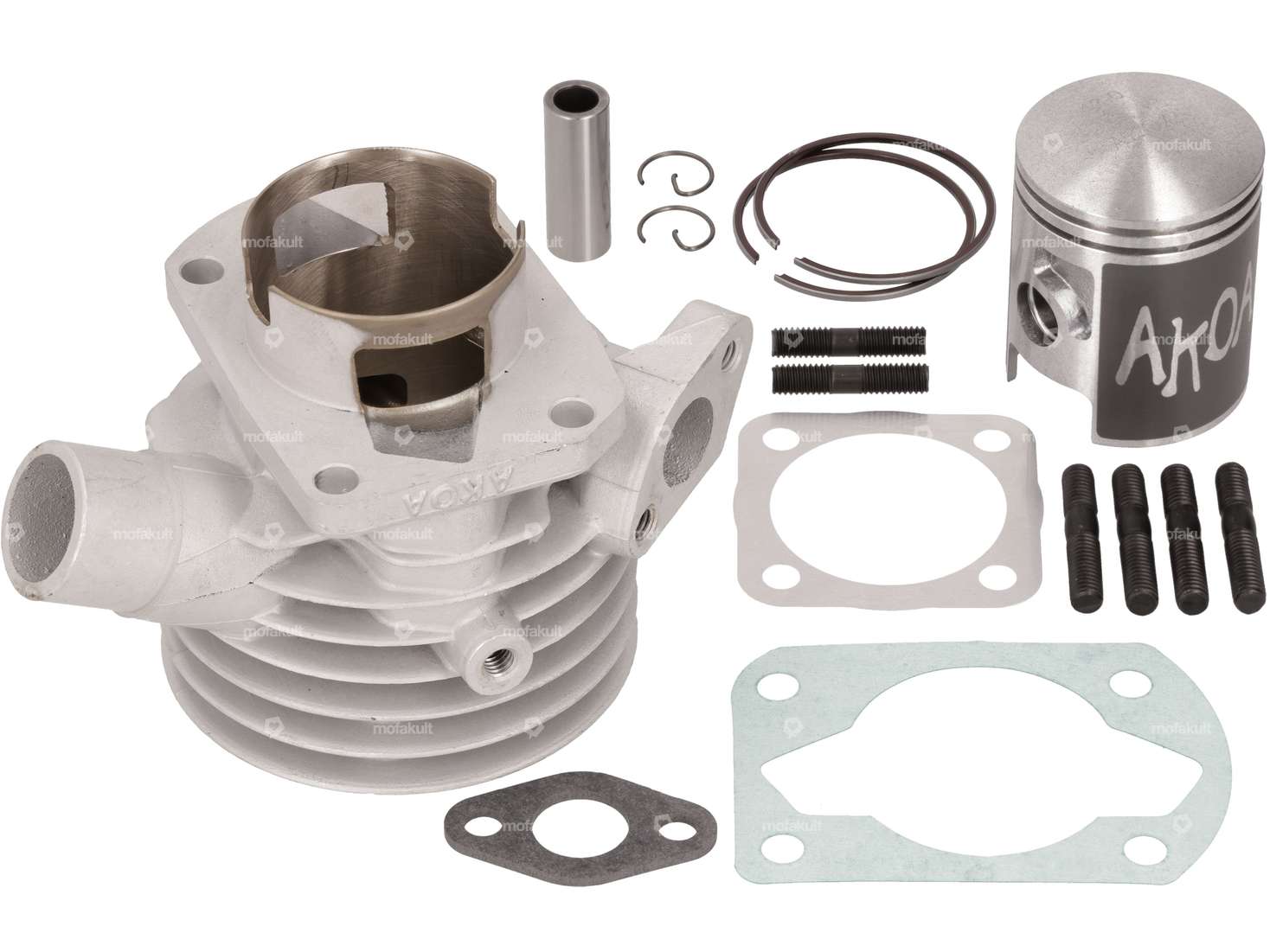

The package includes pistons, piston rings, clips, bolts, studs, and the necessary gaskets for the cylinder base, intake, and cylinder head.
Note: For Sachs 503 ABL engines, the engine block may need to be slightly ground down in the area of the cylinder neck. Please observe the installation direction during assembly. The piston is installed with the arrow pointing toward the exhaust on the exhaust side.
You can find compatible cylinder heads and other versions in the accessories section.
Brand-name product from the manufacturer AKOA.
| Nominal diameter | 41 mm |
| Manufacturer | AKOA |
| Material | Aluminum |
| Surface | Nickel silicon carbide (colloquially known as Nikasil) |
| Displacement | 57 ccm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Ø cylinder neck | 45.5 mm |
| Ø Outlet outside | 25.9 mm |
| Ø outlet inside | 20.5 mm |
| Ø Inlet inside | 15.8 mm |
| Number of fixing points | 4 pcs |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 32 mm |
| Area of application | Tuning |
| Outlet type | clamped |
| Hole pattern [mm] | 40 x 60 / 37 x 37 |
| Decompressor | No |
| Camouflaged | No |
| Sachs | 503 - AAL , ABL , 2AL / 2BL |
