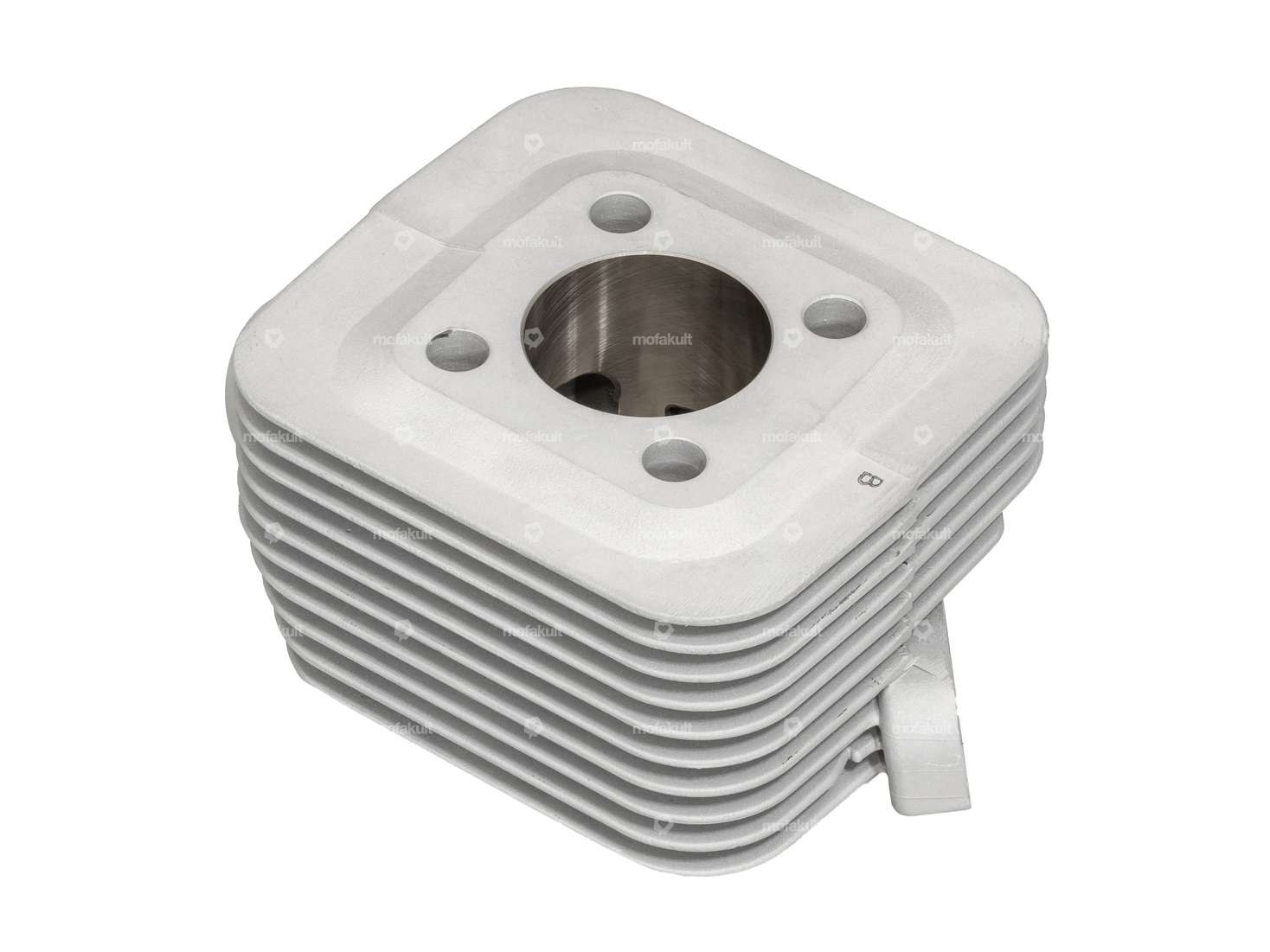

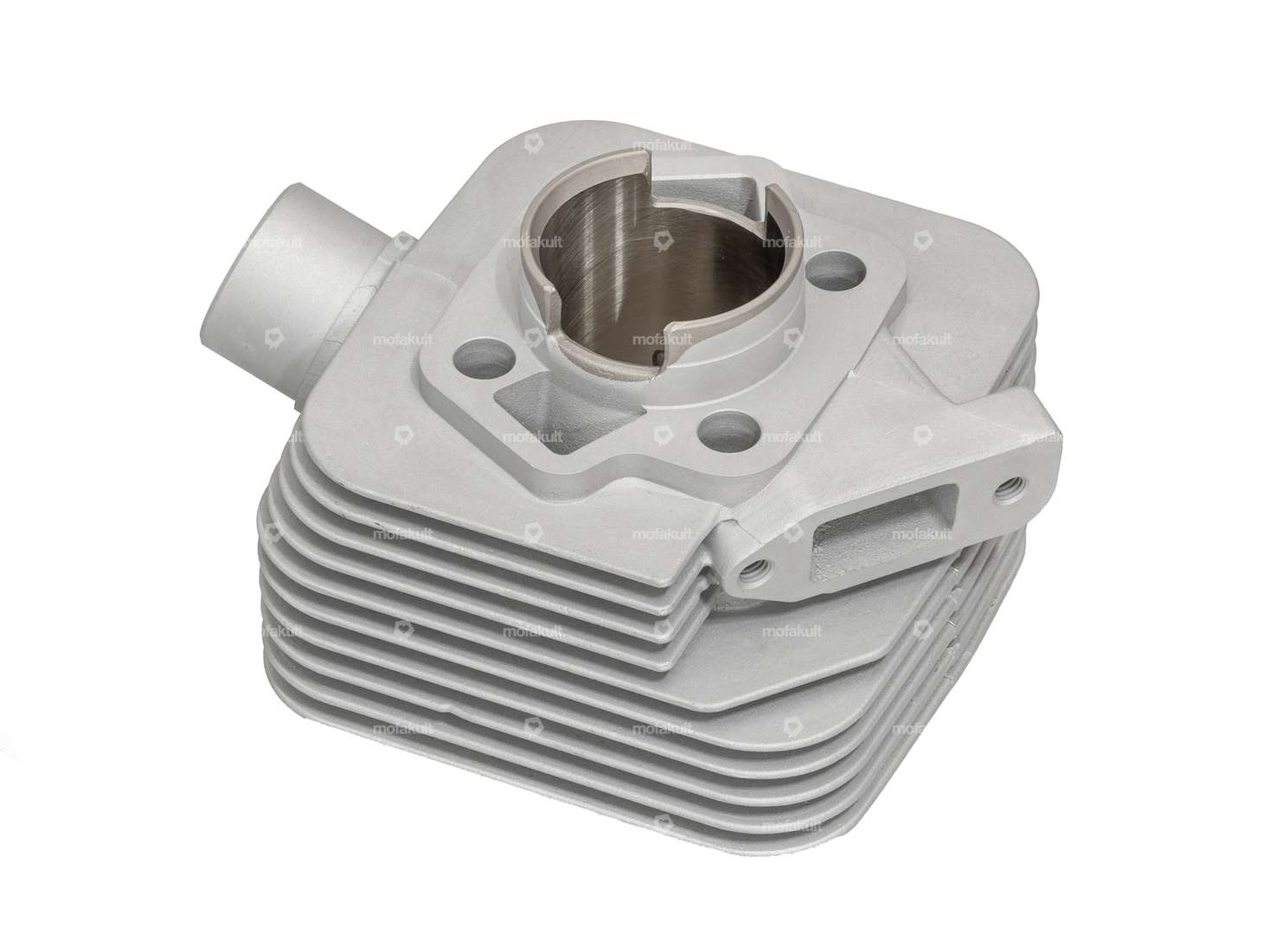

High-quality 40 mm aluminum cylinder with Nikasil coating for blown Kreidler Florett Super TS, Mustang (1965 - 1969), Kreidler Florett GT - TM etc. Small engine bikes.
The cylinder kit can also be installed as a tuning cylinder on Kreidler models such as K 54, K54 0, K54 0M, K 54/2A, LF - LF, LH K 54/32 etc.
The cylinder was modeled almost identically on the original Zeta cylinder with 5.8 hp. The durable cylinder delivers high torque and decent power even at high engine speeds.

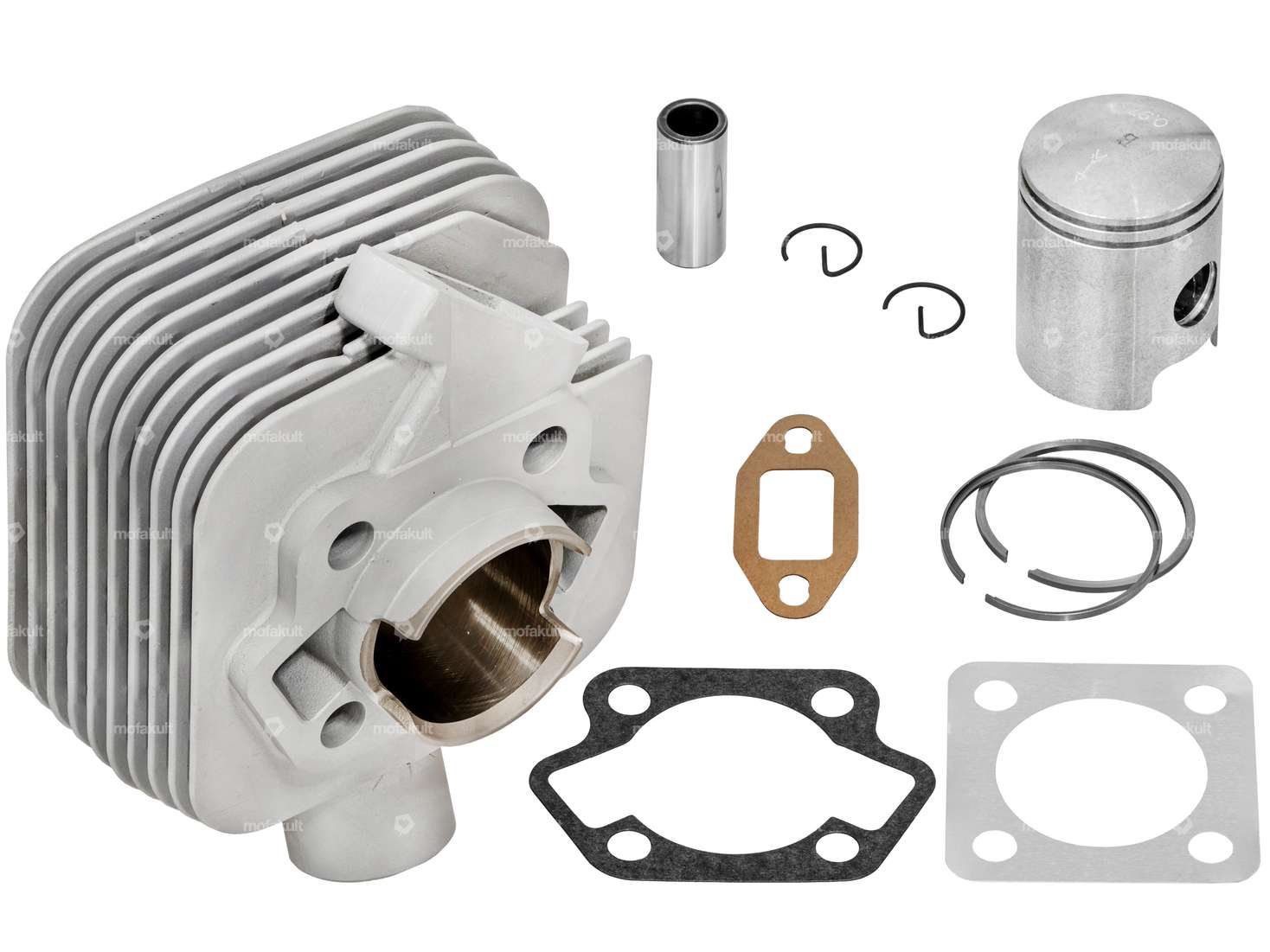

Delivery according to figure 1 incl. cylinder, piston kit and gasket set.
Ø exhaust flange: 32 mm
Inlet window: 15 x 25 mm
Inlet stud spacing: 32 mm
Ø piston pin: 14 mm
Hole pattern: 43.5 x 43.5 mm
Details
| Material | Aluminum |
| Camouflaged | No |
| Area of application | Tuning |
| Surface | sandblasted |
| Nominal diameter | 40 mm |
| Ø piston pin (B) | 14 mm |
| Ø Outlet outside | 32 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Number of fixing points | 4 pcs |
| Hole spacing inlet | 32 mm |
| Outlet type | clamped |
Suitable for the following models
| Kreidler |
Accessories & related products
Rito crankshaft Kreidler Florett K3 42 mm stroke
Manufacturer: Rito · Cheek type: standard · Area of application: Standard · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Number of gears: 3 pcs · Number of gears: 4 pcs · Number of gears: 5 pcs · Total length of crankpin on clutch side: 64.2 mm · Total length crankpin ignition side: 63.8 mm · Ø piston pin (B): 14 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 39.9 mm
EUR 305,20
Rito crankshaft Kreidler Florett K3 39.8 mm stroke Racing
Manufacturer: Rito · Cheek type: standard · Area of application: Racing · Crankshaft stroke: 39.8 mm · Connecting rod length center-center: 85 mm · Number of gears: 3 pcs · Number of gears: 4 pcs · Number of gears: 5 pcs · Total length of crankpin on clutch side: 64.2 mm · Total length crankpin ignition side: 63.8 mm · Ø piston pin (B): 14 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 39.9 mm
EUR 305,20
44 mm tuning cylinder | Kreidler Florett RS, RMC
Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Nominal diameter: 44 mm · Number of fixing points: 4 pcs · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 47 mm · Ø piston pin (B): 14 mm · Hole spacing outlet: 50 mm · Outlet type: slanted · Camouflaged: No
EUR 340,40

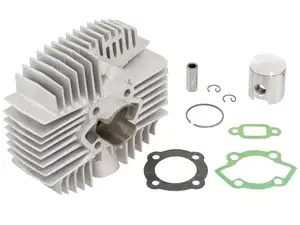

Parmakit 44 mm cylinder kit tuning | Kreidler Florett RS, RMC
